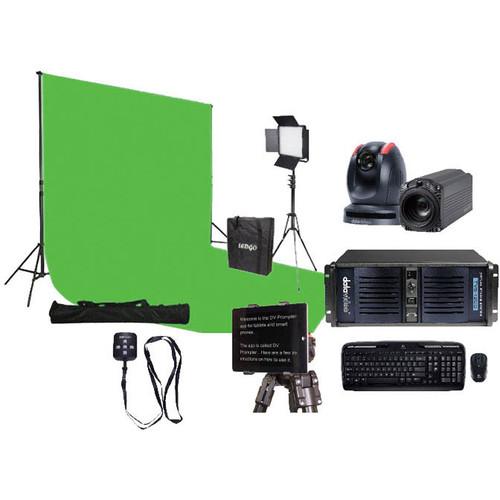

Product description The Datavideo Tracking Virtual Studio System Bundle Educational Kit is well suited for use in educational institutions as well as other operations that need a PTZ teleprompting solution with a tracking green screen set up. Included in the kit is the Datavideo TVS-200A 3D Tracking Virtual Studio, a PTC-150 HD/SD camera, a BC-90 HD block camera with 30x zoom, the TP150 teleprompter kit, a green screen, and an LED light kit.
The TVS-2000A features 20 included 3D virtual sets, and it is able to track the PTZ camera's movements for realistic camera moves within the sets. The PTZ camera provides camera movements and preset positions, while the block camera provides an HD signal via SDI or HDMI output. The teleprompter enables your talent to read along with the copy for doing stand-up broadcasts, while the green screen and lights enable capturing your talent so they can be placed in front of virtually any background. - PTC-150 HD/SD PTZ Video Camera (Black) The black PTC-150 HD/SD PTZ Video Camera from Datavideo captures HD video at up to 1920x1080p resolution, and features wide dynamic range with backlight compensation. It can be mounted on a wall, ceiling, floor, or tabletop, and includes an IR remote control.
The PTC-150 features motorized 30x optical zoom capability. Its image-mirror and image-rotation functions allow you to electronically adjust the image to help compensate for mounting limitations based on your location. There are 50 programmable position presets including pan, tilt, and zoom positions; these allow the camera to move quickly between predetermined camera positions using the remote, or an optional PTZ controller.
For multi-camera shoots, the built-in tally light can identify when the camera is active. The camera features a built-in IR cut filter in the image path for low-light shooting, and then returns for daytime shooting. Moreover, the PTC-150 supports real time position report on a per frame basis; this is helpful for virtual studio applications. The camera supports Sony VISCA protocol for PTZ control using RS-422 interface over the unit's RJ-45 port. - Position coordinates report in real time per frame
- Dehazing technology allows foggy or hazy images to be clear and sharp
- Simultaneous HD-SDI, CVBS, and HDMI video output
- Supports DVIP control protocol (Firmware update required)
- Supports Sony VISCA protocol keyboard
- Digital Noise Reduction Function (DNR) reduces the noise and enables clearer image under low light conditions
UPC: 672255006672 - TP150 Teleprompter Kit for iPad & Android Tablets The Datavideo TP150 Teleprompter Kit includes a mount that holds the tablet securely below the camera head.It is quick and easy to assemble without the need for any special tools. The frame attaches to any standard tripod quick release plate. The teleprompter can be operated using the included controller that works in Bluetooth or wired modes. In addition, it is suitable for small studios, business presentations and conferences, or live events.
Using the optional wireless or wired WR-500 controller, you can control the speed of your prompting, jump between break marks, and switch scripts.The DV prompter app allows easy and quick overview of all your scripts. Users can send a document to the software via email or by copying and pasting the text. With the script editing and timing tool, texts can be amended or added to accommodate any last minute changes.
The app gives the user control over the background color and the font type, size, and color. Thanks to the intuitive interface, it allows you to make quick changes in the middle of a live production. In addition, the app is available as free download in the Apple App Store and Google Play Store. - For iPad & Android Tablets
- Can be used with PTZ cameras
- Can be operated entirely by the presenter
- Suitable for small studios, business presentations and conferences or live events
- Remote included (works by Bluetooth or wired connection)
UPC: 672255007068 - 3D Tracking Virtual Studio With 2 Camera Inputs With Control Panel, Keyboard, Mouse
- HD Block Camera With 30X Zoom Plus HD-SDI And HDMI Outputs And Supports Up To 1080P
In the Box Bundle Items 3D Tracking Virtual Studio With 2 Camera Inputs With Control Panel, Keyboard, Mouse ycwucsvb PTC-150 HD/SD PTZ Video Camera (Black) - Table / Ceiling Mounting Bracket
- 12 VDC Power Adapter and Cord
- Limited 1-Year Warranty; Extendable to 2 Years with Product Registration within 30 Days of Purchase
HD Block Camera With 30X Zoom Plus HD-SDI And HDMI Outputs And Supports Up To 1080P ycwucsvb TP150 Teleprompter Kit for iPad & Android Tablets
Also Includes - Green Screen
- LED Light Kit
Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo Tracking Virtual Studio System Bundle Educational Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - PTC-150 HD/SD PTZ Video Camera (Black)
| | | Video Outputs | 1 x HD/SD-SDI
1 x CVBS
1 x HDMI (V1.3) | | Output Level | 1 V p-p, 75 ohms | | | | Ports | 1 x RJ-45, RS-422
1 x RJ-45, DVIP | | Protocol | VISCA / DVIP (selectable) | | Baud Rate | 38,400 bps (or more) | | F/W Upgrade | Via USB port on rear using USB dongle (not included) | | IR | 2 x IR receivers in front of the camera | | | | Image Pickup Element | 1/2.8" type progressive scan Sony CMOS sensor | | Effective Picture Elements | Approx. 2.14 MP | | Resolution | HD / FHD / SD (CVBS only) | | Supported Formats | HDMI & SDI: 1080/59.94p (4:1:1), 1080/59.94i, 1080/29.97p, 720/59.94p 1080/50p (4:1:1), 1080/50i, 1080/25p, 720/50p
CVBS: 480i/576i | | S/N Ratio | 50 dB | | Minimum Illumination | Color: 0.4 lx (f/1.6, 1/30 sec, 50 IRE, high gain)
Black / White : 0.03 lx (f/1.6, 1/30 sec, 50 IRE, high gain) | | Electric Shutter | 1/50 (1/60), 1/120 (1/100), 1/250, 1/500, 1/1000, 1/2000 sec | | Electronic Sensitivity UP | 0 - 128x | | Gamma | Off, AUTO, Smart-1, Smart-2, Smart-3 | | Iris Control | Auto / manual | | Digital Noise Reduction (DNR) | On / off | | On Screen Display | English | | White Balance | AWC / ATW / MWB (adjustable R and B signals) / outdoor / indoor / fluorescent | | AGC (Automatic Gain Control) | Gain Adjustment Table: Low1 / Low2 / Low / Mid1 / Mid / High1 / High / OFF | | Mirror | Of / horizontal / vertical / H+V | | Switches | Fog Correction: On / off
Backlight Compensation Function: On / Off
Camera Title (OSD): On / off, 16 alphanumeric characters (Camera ID: 16)
Color Bar: On / off (full bar) | | Focus Modes | Auto / manual / one-push / STOP-AF | | Day & Night | Auto / color / BW (using IR) | | | | Type | 30x optical zoom | | Focal Length | 4.3 to 94.6 mm, f/1.6 to f/4.7 | | Angle of View | Horizontal: 63.7° to 2.3° | | | | Pan Range | 270° | | Tilt Range | +90° to -20° | | Pan/Tilt Speed | Manual: 1 - 150°/sec
Swing: 1 - 150°/sec | | Initializing Time | 30 sec | | Preset | 50 positions | | Scan | 8 groups | | Camera ID | 1 - 7 | | Operating Noise | Tilt: ≤25 dB
Pan: ≤25 dB | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | 14 to 140°F (-10 to 60°C) | | Operating Humidity | 20 - 90%, non-condensing | | Certifications | CE / FCC Class A | | Dimensions (W × H × D) | 6.8 x 7.4 x 8.6" (173 x 189 x 218 mm) | | Weight | 6.1 lb (2.8 kg) | | | | Box Dimensions (LxWxH) | 24.6 x 14.4 x 12.1" | - TP150 Teleprompter Kit for iPad & Android Tablets
| Dimensions | 15 x 13 x 10" (381 x 330.2 x 254 mm) | | Weight | 6 lb (2.72 kg) | | | | Box Dimensions (LxWxH) | 12.8 x 8.9 x 4.3" | - 3D Tracking Virtual Studio With 2 Camera Inputs With Control Panel, Keyboard, Mouse
- HD Block Camera With 30X Zoom Plus HD-SDI And HDMI Outputs And Supports Up To 1080P
