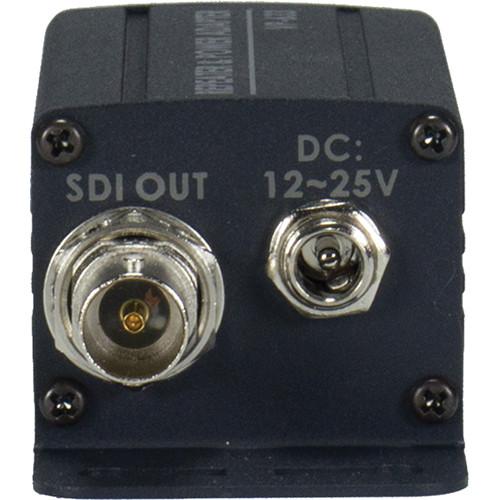

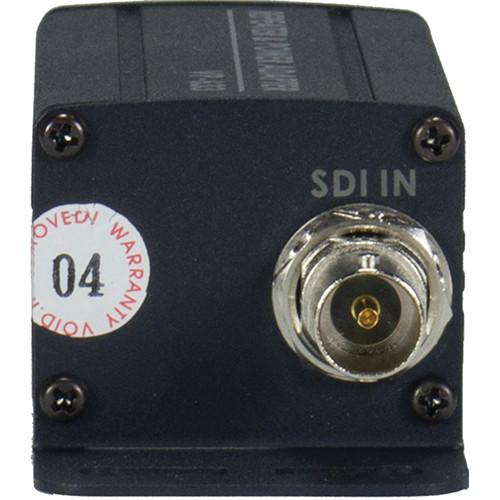

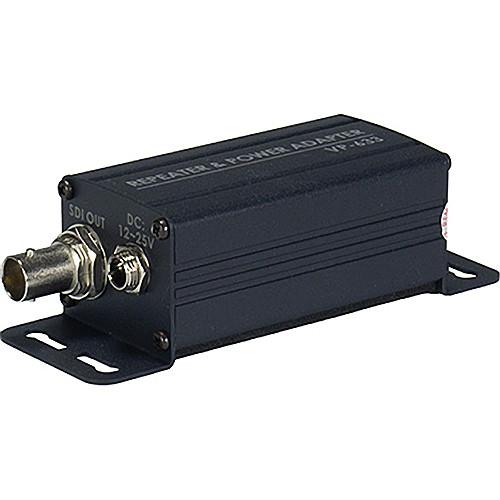

User Manual for Datavideo VP-633 3G HD SD-SDI Repeater with DC Power Input Click to enlarge the picture
Contents of the user manual for the Datavideo VP-633 3G HD SD-SDI Repeater
- Product category: Video Extenders & Repeaters Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo Video Extenders & Repeaters
 |
User manual for the Datavideo VP-633 3G HD SD-SDI Repeater contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|
Product description The Datavideo VP-633 3G/HD/SD-SDI Repeater with DC Power Input extends an SDI video signal along with embedded audio 328 ft, reclocking to maintain the quality of the signal. The unit supports resolutions up to 1080i60 NTSC, or 1080i50 PAL, automatically detecting whether the input is NTSC or PAL.
If you want to extend the signal even further, instead of adding another VP-633 at the end of the first 328 ft, you can connect a slightly less expensive VP-634. The VP-634 does not have a power input like the VP-633 model. The VP-633 is the device closest to your switcher, with up to three VP-634 devices extending the chain. The VP-634 features reclocking, and supports embedded audio. -
- Extends SDI video signal with embedded audio a distance up to 328 ft
- Supports resolutions up to 1080i60 NTSC, or 1080i50 PAL
- DC-powered: Feeds power to every additional (and optional) VP-634, which is non-powered
- Maintains quality by reclocking
UPC: 672255005583 In the Box Datavideo VP-633 3G/HD/SD-SDI Repeater with DC Power Input 12 VDC Power Supply Limited 1-Year Warranty, Extendable to 2 Years If Registered within 30 Days Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo VP-633 3G HD SD-SDI Repeater with DC Power Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo VP-633 Specs | Input | 1 x 3G/HD/SD-SDI | | Output | 1 x 3G/HD/SD-SDI | | Supported Resolutions | 1080p 24/25/30
1080i 50/59.94/60
720p 50/59.94/60
NTSC
PAL | | Impedance | 75 Ohms | | Carry Distance | 328 ft (100 m) | | Power | 12-25 VDC | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 6.1 x 4.1 x 2.2" |
