User Manual for Datavideo VS-150 Waveform Monitor & Vectorscope Click to enlarge the picture
Contents of the user manual for the Datavideo VS-150 Waveform Monitor & Vectorscope
- Product category: Waveform Monitors & Scopes Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo Waveform Monitors & Scopes
 |
User manual for the Datavideo VS-150 Waveform Monitor & Vectorscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|
Product description - Datavideo Waveform / Vectorscope Monitors

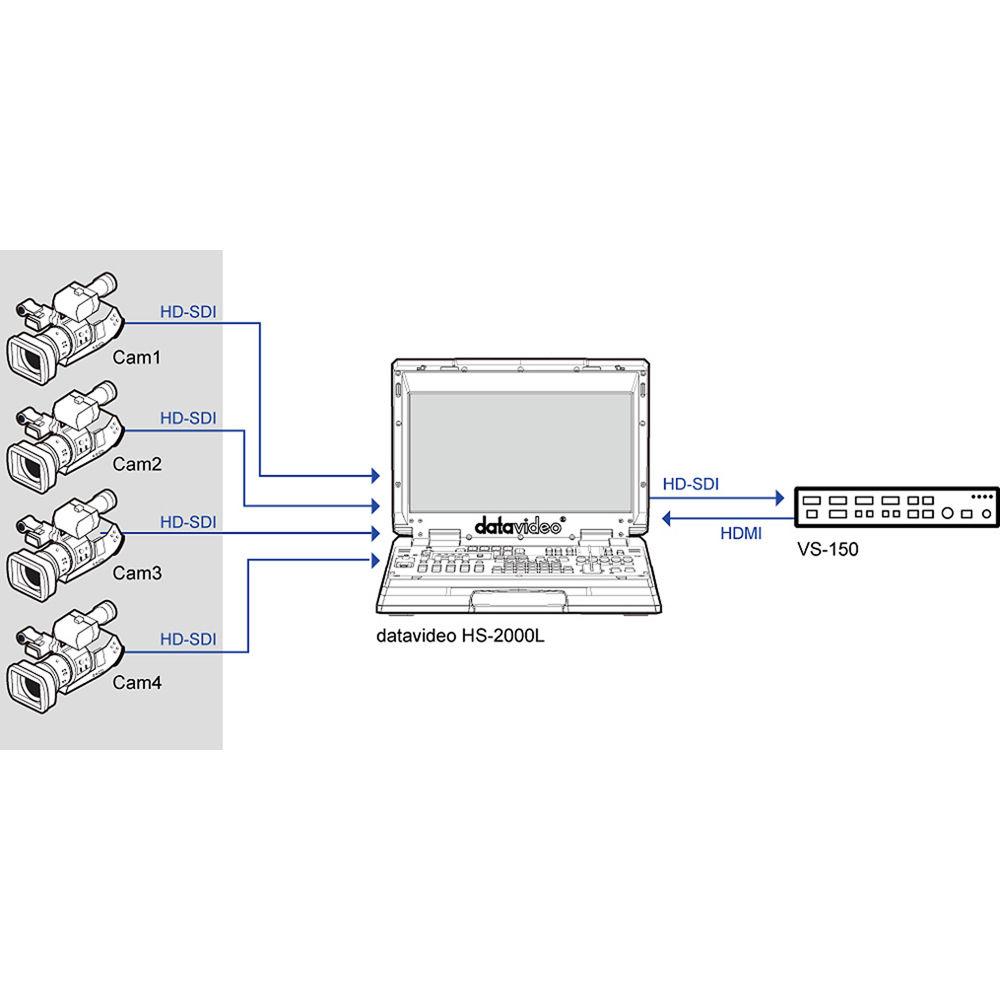

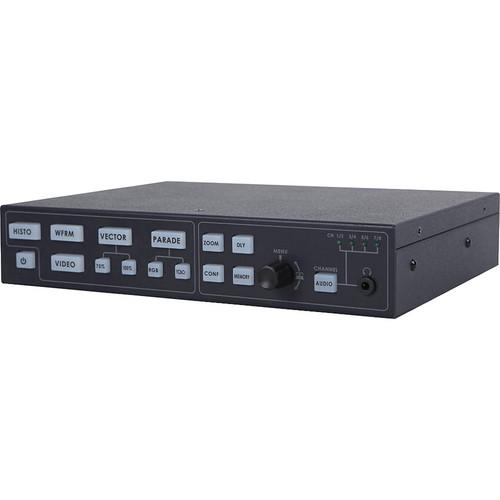

The Datavideo VS-150 Waveform Monitor & Vectorscope is a table top or rack-mounted instrument that displays HD/SD-SDI vectorscope, waveform, parade, and histogram information at the push of a button. You can always know whether your color and luminance levels are consistent and within specification. The scope data can be easily displayed on a large separate HDMI or HD/SD-SDI monitor or in the HD/SD-SDI video stream.Video image quality is often determined by a combination of multiple factors such as camera alignment and calibration. The location of the production and the brands of connected video devices especially under Electronic Field Production (EFP) conditions can cause variable image quality in terms of brightness, color saturation, and white balance between different video sources. Traditionally, experienced camera operators would align equipment before a production in order to avoid too much time and resources being spent on adjusting images in post production.The VS-150 provides quick, accurate, and standardized ways to calibrate and align signals from cameras and other video equipment. The VS-150 can be used to test and compare the accuracy of incoming video signals from cameras and/or connected equipment. The VS-150 can accept either SDI or HD-SDI input for signal analysis. The VS-150 can be set up to provide a clean video loop through on SDI/HD-SDI, whilst still allowing video analysis views on its HDMI output. Alternatively the scope view can also be displayed as a 1280 x 720 HD-SDI output. - Rugged and compact single unit that requires only an HD-SDI or HDMI monitor

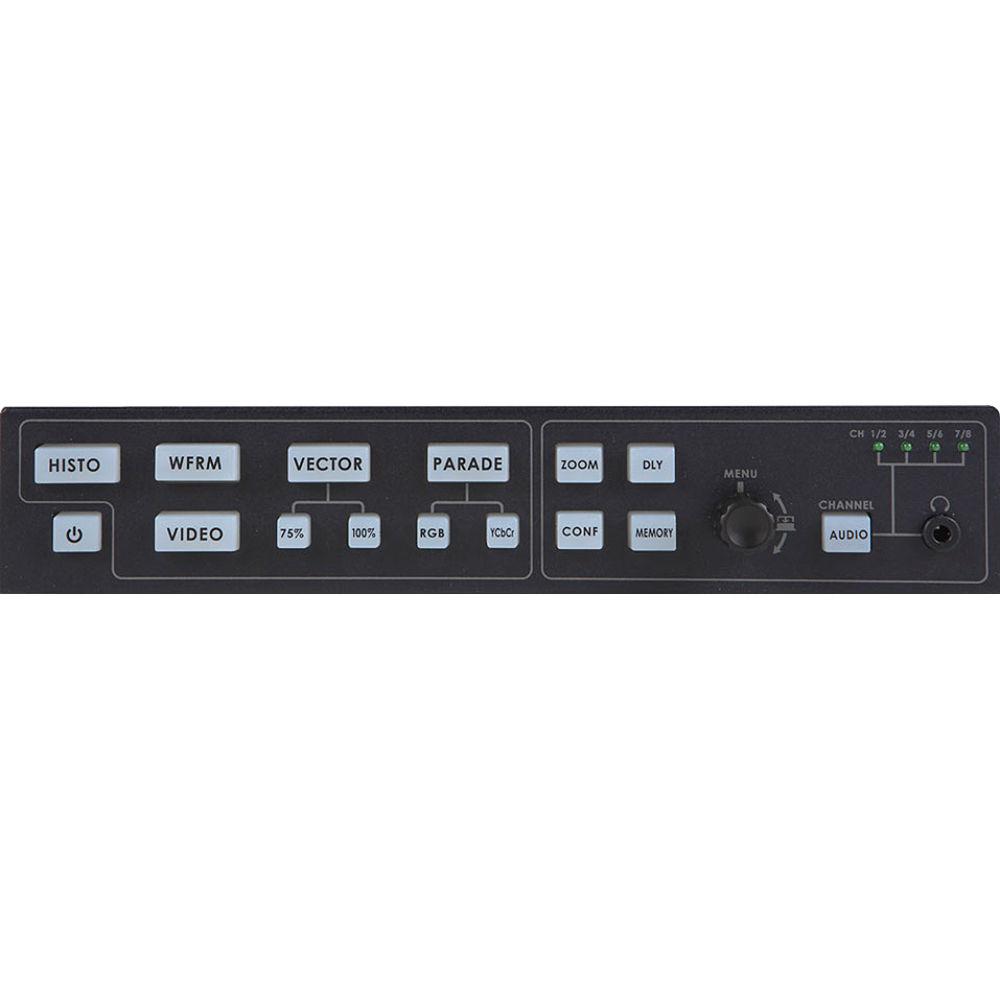

- Menu choice of Vectorscope, Histogram, Waveform, and Parade displays as well as clean Video Display output (SDI to HDMI conversion)
- SDI / HD-SDI loop through can provide clean pictures or video analysis view
- Automatically detects and locks to NTSC, PAL, or HD signals
- Embedded SDI audio peak meter with selectable monitoring for 4 stereo pairs
- Switchable 4:3 / 16:9 video thumbnail when input signal is SD-SDI
- Headphone jack audio monitoring socket with menu-based volume control
- Save and Recall trace menu options for quick and easy overlay comparison of video traces
- Parade Display can be toggled between RGB and YCbCr
- Vectorscope can be toggled between 75% and 100% graticules/bars
- Waveform detail can be zoomed 20%, 40%, 60%, and 100% - various parts of the waveform can then viewed by changing the X Delay value
- Capture sampling can be by Field1, Field 2, or Frame
- 12VDC operation makes the unit suitable for field or studio operation
UPC: 672255004074 In the Box Datavideo VS-150 Waveform Monitor & Vectorscope AD Switch 12V 500mA Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo VS-150 Waveform Monitor & Vectorscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

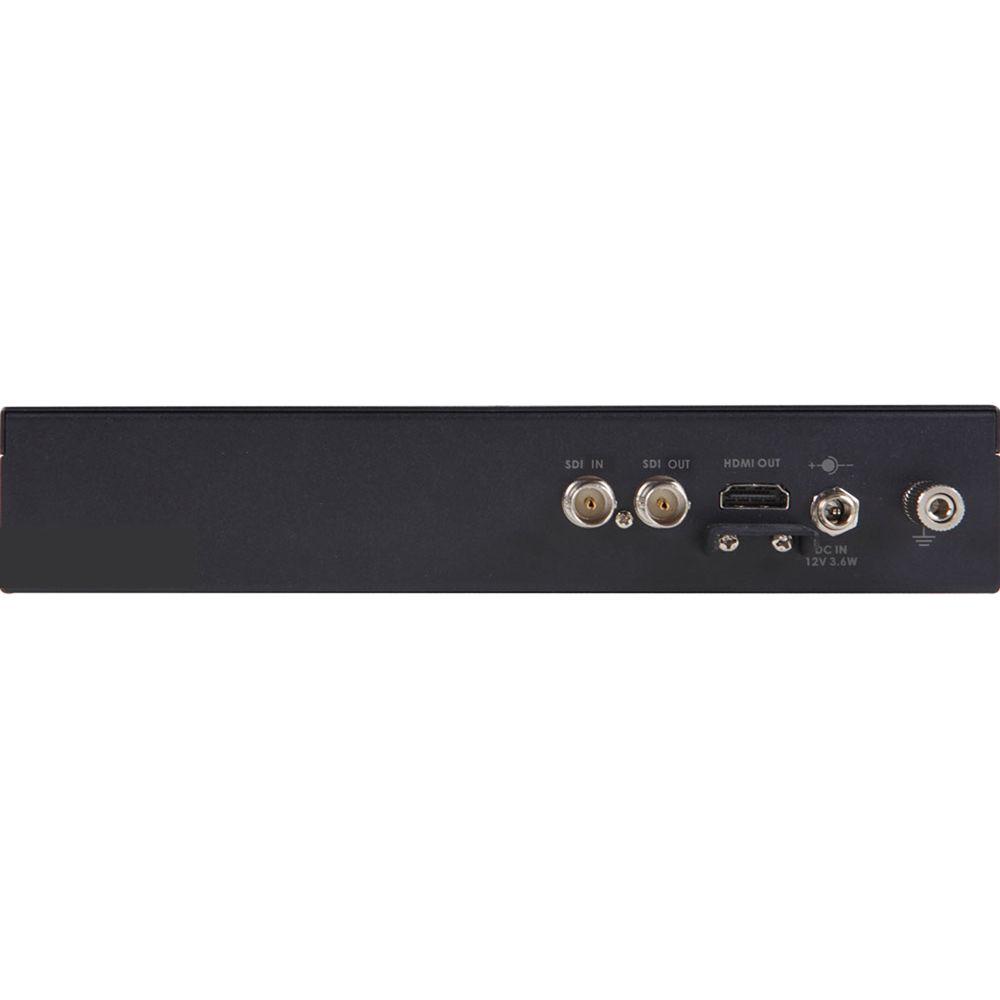

Technical parametersDatavideo VS-150 Specs | Interface | 1 x SDI/HD-SDI input (HD-SDI SMPTE 292M 1.5 Gb/s, SD-SDI SMPTE 259M-C 270 Mb/s with Embedded Audio)
1 x SDI/HD-SDI Loop through output
1 x HDMI Output | | HD/SD-SDI | SMPTE 259M-C (270 Mb/s -525/625 Component Video) and SMPTE 292M (1.485/1.001 Gb/s) Connector BNC (IEC 169-8)
Impedance: 75 Ω
Return Loss: HD > 10 dB (1.5 GHz); SD > 15 dB (270 MHz)
Equalization: 656.1' (200.0 m) Belden 8281 cable at 270 Mb/s; 328.8' (100.0 m) typical of Belden 1694A at 1.485 Gb/s | | HDMI | Supports HDMI v1.1 | | Operating Temperature | 32 to 102°F (0 to 50°C) | | Humidity | 10 to 90% (non condensing) | | Power | 12 VDC, 0.5 A (3.6 W) | | Supported Resolutions | 1080p (23.98, 30 Hz), 1080i (50, 59.94, 60 Hz), 720p (29.97, 50, 60 Hz), 576i, 480i | | Dimensions (W x H x D) | 8.6 x 1.8 x 8.7" (220.0 x 47.0 x 221.3 mm) | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 12.4 x 11.1 x 4.2" |
