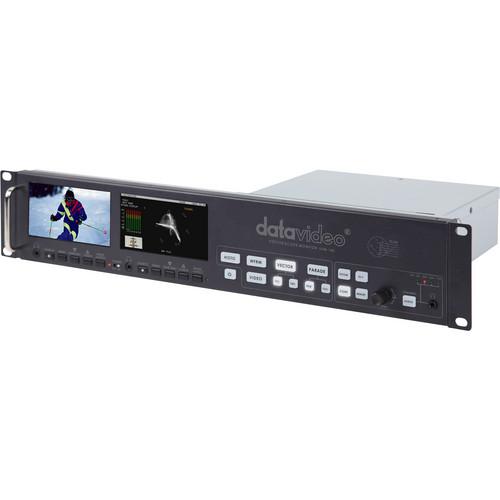

User Manual for Datavideo VSM100 Vectorscope Waveform Monitor with 2 Screens Click to enlarge the picture
Contents of the user manual for the Datavideo VSM100 Vectorscope Waveform Monitor with
- Product category: Waveform Monitors & Scopes Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo Waveform Monitors & Scopes
|
User manual for the Datavideo VSM100 Vectorscope Waveform Monitor with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|
Product description - Datavideo Waveform / Vectorscope Monitors
The Datavideo VSM100 Vectorscope Monitor with 2 Screens is a sophisticated system that allow users to easily ensure the stability of incoming video signals and recorded video quality from a connected recorder and cameras through two 4.3" monitors to display and monitor high-quality images. When equipped with sampling vector scope, it can accurately assist camera calibration, ensure precise B&W Balance calibration, support color saturation, and enable luminance adjustment. Monitor - Each monitor has a HD-SDI video input with loop-through output
- Individual adjustments of Brightness, Contrast, Color Saturation, and Backlight Level for each monitor
- Front panel headphone jacks
- Support embedded audio on SDI & HDMI
- HD / SD-SDI, and HDMI Input
- 4:3 & 16:9 display mode switching / PAL & NTSC auto switching
Sampling Vector Scope - Rugged and compact single unit that requires only an HD-SDI or HDMI monitor
- Menu choice of Vectorscope, Histogram, Waveform, and Parade displays as well as clean Video Display output (SDI to HDMI conversion)
- SDI / HD-SDI loop through can provide clean pictures or video scope view
- Automatically detects and locks to NTSC, PAL, or HD signals
- Embedded SDI audio peak meter with selectable monitoring for 4 stereo pairs
- Switchable 4:3 / 16:9 video thumbnail when input signal is SD-SDI
- Headphone jack audio monitoring socket with menu-based volume control
- Save and Recall trace menu options for quick and easy overlay comparison of video traces
- Parade Display can be toggled between RGB and YCbCr
- Vector scope can be toggled between 75% and 100% graticules/bars
- Waveform detail can be zoomed 20%, 40%, 60%, and 100%; various parts of the waveform can then be viewed by changing the X Delay value
- Capture sampling by Field 1, Field 2, or Frame
- 12VDC operation makes the unit suitable for field or studio operation
UPC: 672255004050 In the Box Datavideo VSM100 Vectorscope / Waveform Monitor with 2 Screens 4 x Rack Screw (M5 x 10) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo VSM100 Vectorscope Waveform Monitor with 2 Screens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo VSM-100 Specs | | | LCD Display | 4.3" (109.2 mm) TFT LCD x 2 | | Resolution | RGB: 480 x 272 | | Aspect Ratio | 4:3 and 16:9 selectable | | Brightness | 500 cd/m² | | Contrast Ratio | 300:1 | | Viewing Angle | Monitor Panel
Top: 50˚ / Bottom: 70˚
Left: 70˚ / Right: 70˚ 2U 19'' rack mount can support adjustable view angle (Tilt 45˚ viewing angle). | | Video Input | HD-SDI / SD-SDI / HDMI | | Supported Formats | HDMI RGB: 720 x 576i x 50 Hz, 720 x 480i x 60 Hz, 1280 x 720p x 50 Hz, 1280 x 720p x 60 Hz, 1920 x 1080i x 50 Hz, 1920 x 1080i x 60 Hz
SDI: 720 x 576i / 50 Hz, 720 x 480i / 60 Hz, 1280 x 720p / 60 Hz, 1280 x 720p / 50 Hz, 1920 x 1080i / 50 Hz, 1920 x 1080i / 60 Hz | | Video System | NTSC/PAL auto recognition | | | | Interface | 1 x SDI/HD-SDI input (HD-SDI SMPTE 292M 1.5 Gb/s, SD-SDI SMPTE 259M-C 270 Mb/s with Embedded Audio)
1 x SDI/HD-SDI Loop through output
1 x HDMI Output | | HD/SD-SDI | SMPTE 259M-C (270 Mb/s - 525/625 Component Video) and SMPTE 292M (1.485/1.001 Gb/s) Connector BNC (IEC 169-8)
Impedance: 75 Ω
Return Loss: HD > 10 dB (1.5 GHz); SD > 15 dB (270 MHz) Equalization: 656.1' (200.0 m) Belden 8281 cable at 270 Mb/s; 328.0' (100.0 m) (typical) of Belden 1694A at 1.485 Gb/s | | HDMI | Supports HDMI v1.1 | | Input Formats | HD-SDI: 1080i50 / 1080i59.97 / 1080i60 / 1080p30 / 720p29.97 / 720p30 / 720p50 / 720p59.97 / 720p60
SD-SDI: 576i / 480i | | Modes | Waveform monitor / Vectorscope / Parade / Histogram / Video input display / input in thumbnail format / 8-Channel audio meter | | Acquisition Modes | Single field / Whole frame | | Waveform Monitor and Vectorscopes | Time zoom / Delay / Non-volatile display storage and recall / Sampling Bandwidth
75% color bar scale / 100% color bar scale / Non-volatile display storage and recall | | Parade | Display format: RGB / YCbCr / Non-volatile display storage and recall | | Inputs | HD, SD-SDI / RS-232 (firmware upgrade) | | Outputs | HD, SD-SDI can be setup as input loop-through as well as Instrument output
HD, SD-HDMI External terminal must support 720p50, 720p60, and 720p59.5. | | Firmware Upgrade | Through USB | | | | Power Consumption | 12 V, 19 W | | Temperature | 41 to 122°F (5 to 50°C) | | Humidity | 10 to 90% (non condensing) | | Dimensions (W x H x D) | 19.0 x 3.4 x 8.7" (482.7 x 88.5 x 221.2 mm) | | | | Package Weight | 6.9 lb | | Box Dimensions (LxWxH) | 21.6 x 11.4 x 7.8" |
