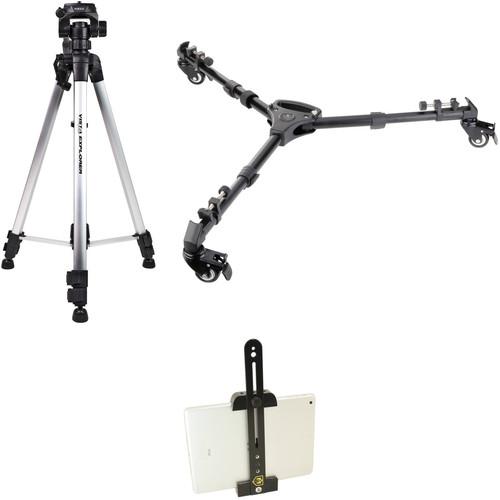

User Manual for Davis & Sanford Explorer V Tripod Kit with 3-Way Pan Tilt Head, Universal Dolly, and Tablet Mount Adapter Click to enlarge the picture
Contents of the user manual for the Davis & Sanford Explorer V Tripod
- Product category: Tripod Systems Davis & Sanford
- Brand: Davis & Sanford
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Davis & Sanford Tripod Systems
|
User manual for the Davis & Sanford Explorer V Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Davis & Sanford product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Davis & Sanford user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Davis & Sanford product will considerably shorten its lifespan!
|
Product description The Davis & Sanford Explorer V Tripod Kit with 3-Way Pan/Tilt Head, Universal Dolly, and Tablet Tripod Mount Adapter from B&H is a tripod package for supporting loads up to 4 pounds. It includes the Explorer V Tripod, which features an attached built-in 3-way pan/tilt head with a quick-release plate, and an adapter for mounting an iPad or tablet ranging from 3 to 9" wide. For added convenience, a universal adjustable dolly is also included, useful for wheeling your tripod on smooth surfaces. The dolly features 3" ball-bearing rubber/metal wheels and folds to a compact 24" x 7" form and has a built-in carry handle for easy transport.
Please see the links below for more information on the components of this kit. - Magnus DWF-2 Universal Tripod Dolly The Magnus DWF-2 Universal Tripod Dolly presents a simple, affordable way to put your tripod on wheels. The dolly features 2" ball-bearing metal/rubber wheels that feature revolving assemblies. That means you can steer your tripod along any line imaginable to capture a smooth tracking shot.The DWF-2 dolly bears loads up to 33 lb and features adjustable clamps to lock just about any size of tripod foot into place securely. Mounting a tripod is easy: Just line up each tripod foot and twist the thumb screws to tighten each clamp.Each leg bar extends up to 4.9" to accommodate tripods of various dimensions, and flip locks secure the extension. Fully extended, the dolly has a doorway width of 31". With step-on locks for each wheel, you can easily transform your rolling tripod into a sturdy lock-down mount for your camera.Two of the legs fold down to create a compact package for transport – the dolly folds down to just 17 x 5".
- Step on the wheel locks to brake the spinning of the wheels and the rotation of the wheel assemblies
- Spring-loaded stoppers automatically lock the legs in the open position when they're rotated out - easily pull them up to rotate the legs back into the closed position
- Hook & loop strap to secure legs in a tidy package for transport
- Carry bag with shoulder strap
UPC: 847628570436 - Vista by Davis & Sanford Explorer V Tripod with 3-Way Head The Vista Explorer V Tripod is a handy camera support that weighs in at under 3 lbs, it is rated to support up to 4 lbs. Ideal for general use with mid-range digital or film SLR cameras, point and shoots, or compact camcorders. The attached head features a 3-way pan/tilt "fluid-effect" design, with a built-in quick release mechanism.
- 26mm-diameter aluminum 3-section legs
- Bubble level on base and head
UPC: 049383208344 - Glide Gear Tablet Mount Adapter The Tablet Mount Adapter from Glide Gear enables you to attach your tablet to a tripod, slider, or stabilizer via 1/4 and 3/8" mounting and attachment holes. The tablet mount accommodates iPads and tablets 3 to 9" wide and features cushioned top and bottom grips that slide and tighten, locking your device into position. UPC: 784672613736
In the Box - Magnus - DWF-2 Universal Tripod Dolly tsbqzzzvxtucfvedaeycyetyzcxedruydu
- Hook & Loop Strap
- Carry Bag with Shoulder Strap
- Limited 1-Year Warranty
- Vista by Davis & Sanford - Explorer V Tripod with 3-Way Head tsbqzzzvxtucfvedaeycyetyzcxedruydu
- Glide Gear - Tablet Mount Adapter
Table of Contents
|
Upload User Manual
Have you got an user manual for the Davis & Sanford Explorer V Tripod Kit with 3-Way Pan Tilt Head, Universal Dolly, and Tablet Mount Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Magnus DWF-2 Universal Tripod Dolly
| Construction | Aluminum & plastic | | Load Capacity | 33 lb (15 kg) | | Doorway Width | 31.0" (78.7 cm) with legs fully extended | | Extension | 4.9" (12.4 cm) per leg | | Folded Length | 17.0 x 5.0" (43.2 x 12.7 cm) | | Wheel Diameter | 2" (51 mm) | | Wheel Lock | Yes | | Cable Guards | No | | Weight | 3.8 lb (1.7 kg) | | | | Box Dimensions (LxWxH) | 17.25 x 5.75 x 5.5" | - Vista by Davis & Sanford Explorer V Tripod with 3-Way Head
| | | Head Type | Pan & Tilt Head | | | | Load Capacity | 4 lb / 1.8 kg | | Maximum Working Height | 59" / 149.9 cm | | Max Height without Center Column | 47" / 119.4 cm | | Minimum Working Height | 22" / 55.9 cm | | Folded Length | 24" / 61 cm | | Materials | Aluminum Alloy | | Weight | 3 lb / 1.4 kg | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | No | | Leg Sections | 3 | | Bubble Level | Yes | | | | Center Column Features | Center Brace | | Center Column Sections | 1 | | Center Column Extension Type | Geared | | Lateral / 90-Degree Center Column | No | | | | Box Dimensions (LxWxH) | 24.5 x 5.0 x 5.0" | - Glide Gear Tablet Mount Adapter
| Mounting Holes | 1/4" and 3/8"
Attachment Holes: 1/4" and 3/8" | | Compatibility | Tablets 3.0 to 9.0" (7.6 to 22.9 cm) wide | | Material | Powder-coated 6061 aluminum | | Dimensions | 11.50 x 3.15" (29.21 x 8.00 cm) | | Weight | 8.5 oz (241.0 g) | | | | Box Dimensions (LxWxH) | 12.6 x 4.4 x 2.4" |
