User Manual for Davis & Sanford ProElite Tripod System with 3-25 Fluid Head Click to enlarge the picture
Contents of the user manual for the Davis & Sanford ProElite Tripod System
- Product category: Tripod Systems Davis & Sanford
- Brand: Davis & Sanford
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Davis & Sanford Tripod Systems
 |
User manual for the Davis & Sanford ProElite Tripod System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Davis & Sanford product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Davis & Sanford user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Davis & Sanford product will considerably shorten its lifespan!
|

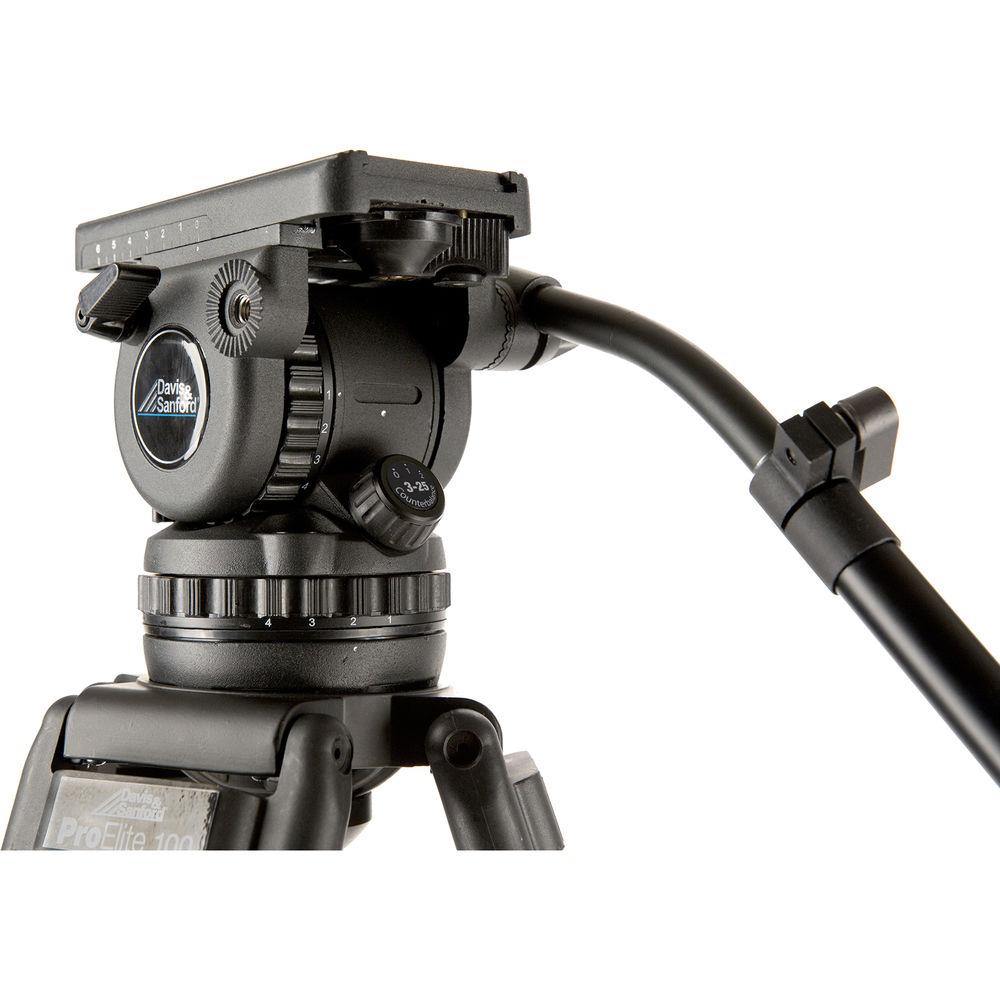

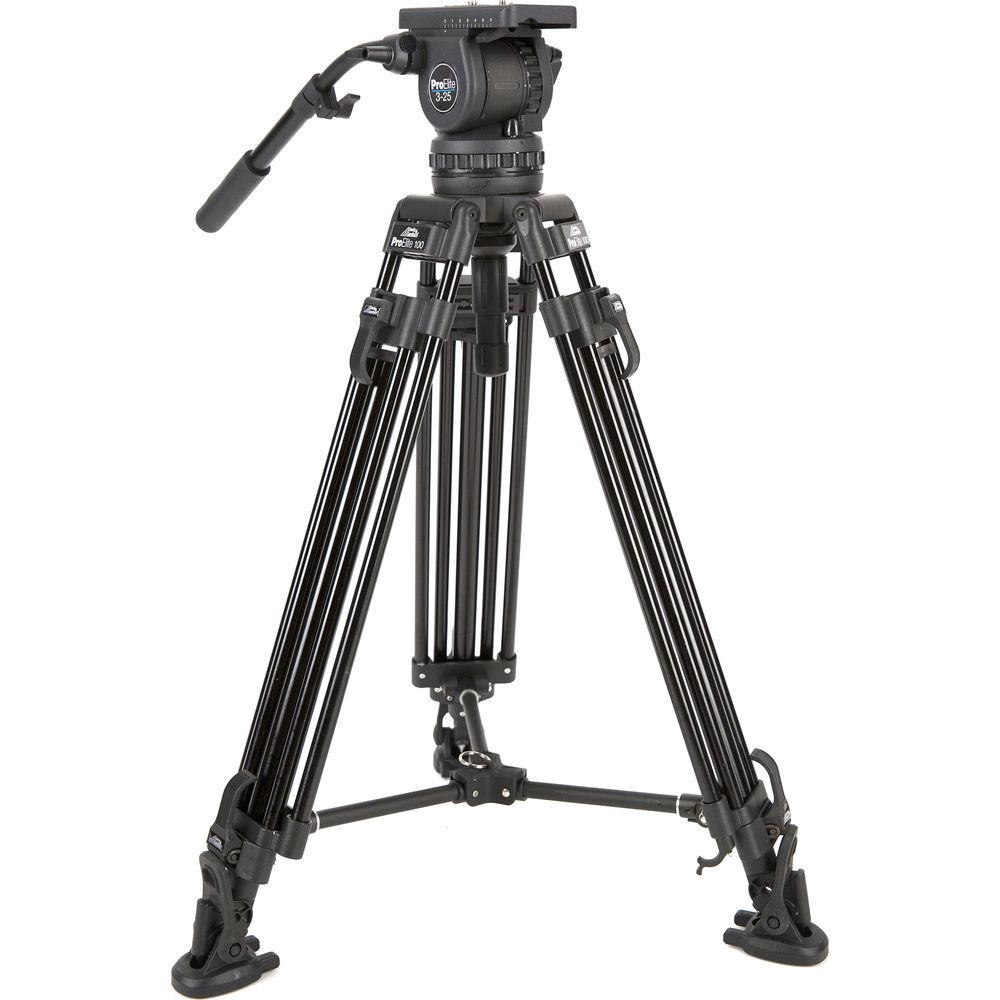

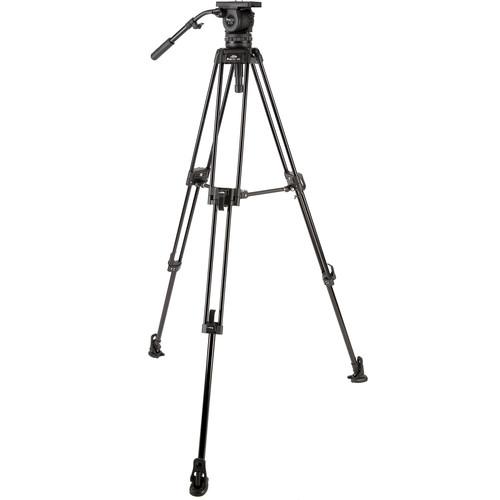

Product description Made for cameras weighing up to 25 lb, this ProElite Tripod System is made up of 2-stage quick-lock legs with a 100mm bowl and a 3-25 fluid head with a 100mm ball base. The head will hold and counterbalance cameras up to 25 lb, making it useful for supporting either a large or small camcorder, a DSLR, or a mirrorless camera even while using larger lenses. The tripod supports payloads of up to 88lb, so even larger video heads or heavy dollies and sliders can be supported by the tripod itself. The tripod head uses a mini-euro style quick release plate which is secured by a sliding platform to balance your camera. Pan and tilt drag can be adjusted in four steps, and the counterbalance can be added in three increments including zero. The extendable pan handle can be secured to either the left or right side of the head, to accommodate right- or left-handed users. The aluminum tripod legs feature dual flip-lock stages and a mid-level spreader for use on even and uneven surfaces. With the legs at their full extension, the tripod is 63.5" tall, and it compacts to 32.5". The rubber feet on the bottom can be removed to reveal metal spikes for extra traction outdoors. Features - Multi-Step Drag and Counterbalance Head with 25 lb payload
- Works with camcorder, DSLR, and mirrorless camera configurations
- Removable mid-level spreader
- Aluminum tripod legs and head construction
- 2-stage quick lock leg clamping system
- Rapid action transport clip
- 3-step plus 0 pan and 4-step tilt fluid head drag
- 2-step plus 0 head counterbalance control
- Sliding camera platform and Mini Euro quick release plate system
- Adjustable pan handle and bubble level on head
- Heavy duty ballistic nylon padded tripod case included
UPC: 884613015015 In the Box Davis & Sanford ProElite Tripod System with 3-25 Fluid Head Ballistic Nylon Padded Case Mini-Euro Quick Release Plate Pan Handle Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Davis & Sanford ProElite Tripod System with 3-25 Fluid Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDavis & Sanford PE3100-25 Specs | | | Maximum Height | 63.5" / 161.3 cm | | Minimum Height | 32.5" / 82.6 cm | | Folded Height | 34" / 86.4 cm | | Capacity | 88 lb / 39.9 kg | | Leg Diameter | Top: 0.6" / 16 mm
Bottom: 1" / 25 mm | | Leg Stages | 2 | | Leg Lock Type | Flip-lock | | Spreader | Mid-level snap-in with stationary 43" / 109.2 cm floor diameter | | | | Payload | 8.8 to 25 lb / 4 to 11.3 kg | | Bowl Diameter | 3.9" / 100 mm | | Quick Release | QR3 | | Tilt and Pan | 4-step (0 to 3) | | Tilt Range | -75 to 90° | | Counterbalance | 3-step (0 to 2) | | | | Package Weight | 20.4 lb | | Box Dimensions (LxWxH) | 42.0 x 8.0 x 8.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
