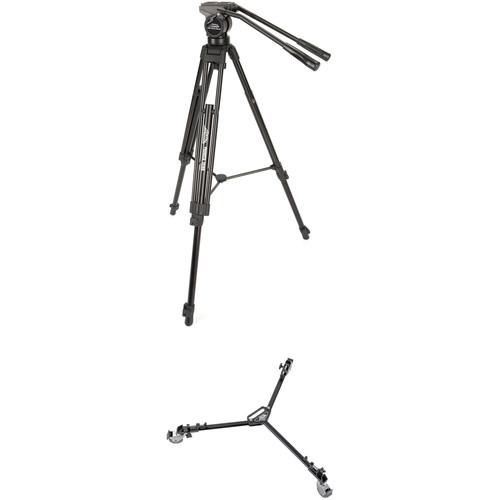

User Manual for Davis & Sanford Provista 7518B Tripod Kit with V18 Fluid Head and Universal Dolly Click to enlarge the picture
Contents of the user manual for the Davis & Sanford Provista 7518B Tripod
- Product category: Tripod Systems Davis & Sanford
- Brand: Davis & Sanford
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Davis & Sanford Tripod Systems
|
User manual for the Davis & Sanford Provista 7518B Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Davis & Sanford product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Davis & Sanford user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Davis & Sanford product will considerably shorten its lifespan!
|
Product description The Davis & Sanford Provista 7518B Tripod Kit with V18 Fluid Head and Universal Dolly from B&H provides stable support for videographers working with larger camcorders weighing up to 18 lb, and is ideal for studio use thanks to an included adjustable dolly. The aluminum alloy legs feature double-strut top leg sections for extra stability and a 75mm claw ball leveler for the V18 Fluid Head. An included mid-level spreader adds additional leg rigidity, while large rubber leg tips provide a secure grip on a variety of surfaces. The adjustable tripod dolly features three-inch ball bearing rubber/metal wheels to easily move the tripod around the studio. The system offers a height range of 28 to 64", folding down to 29" for storage inside the included padded carrying case. - Davis & Sanford Provista 7518B Tripod with V18 Fluid Head From the field to the studio, the David & Sanford Provista 7518B Tripod with V18 Fluid Head provides stable support for videographers working with larger camcorders weighing up to 18 lb. The aluminum alloy legs feature double-strut top leg sections for extra stability, and a 75mm claw ball leveler for the V18 Fluid Head. An included mid-level spreader adds additional leg rigidity, while large rubber leg tips provide a secure grip on a variety of surfaces. The system offers a height range of 28 to 64" and folds down to 29" for storage inside the included padded carrying case. Dual pan bar handles for the fluid head are provided.
- Key Features
-
- V18 Fluid Head with 18 lb load capacity
- Aluminum tripod with double-strut top leg section of stability
- 75mm claw ball leveler with 3/8"-16 stud
- Mid-level spreader
- Height range from 28 to 64"
- Self-aligning metal quick-flip leg locks
- Dual pan bar handles
- Large rubber leg tips for superior grip in a variety of surfaces
- Padded carrying case
UPC: 049383056334 - Davis & Sanford W3 Universal Folding Dolly with 3" Wheels The Davis & Sanford W3 Universal Folding Dolly with 3" Wheels is an adjustable tripod dolly with 3" ball-bearing rubber/metal wheels. It features a 35 lb load capacity and can be used with all standard tripods. It can conveniently be folded up to a compact 24" x 7" for transport and has a carry handle. The 3" wheels have "step on brakes" that lock and unlock their rolling and swivel movement. UPC: 049383221336
In the Box - Provista 7518B Tripod with V18 Fluid Head
- 7518B Tripod
- V18 Fluid Head
- Quick Release Plate for V18 Head
- Padded Carrying Case
- Limited 10-Year Warranty
- W3 Universal Folding Dolly with 3" Wheels
Table of Contents
|
Upload User Manual
Have you got an user manual for the Davis & Sanford Provista 7518B Tripod Kit with V18 Fluid Head and Universal Dolly in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Davis & Sanford Provista 7518B Tripod with V18 Fluid Head
| Load Capacity | 18 lb | | Ball Base | 75 mm | | Leg Construction | Aluminum | | Leg Sections | Three | | Leg Diameter | Double-Strut Leg Sections: 0.75" (19 mm)
Middle Leg Section: 1.25" (32 mm) | | Quick Release Plate | QRFM18 | | Minimum Height | 28" (71.1 cm) | | Maximum Height | 64" (162.6 cm) | | Folded Length | 29" (73.7 cm) | | Weight | 12 lb (5.4 kg) | | | | Box Dimensions (LxWxH) | 37.0 x 7.5 x 7.5" | - Davis & Sanford W3 Universal Folding Dolly with 3" Wheels
| Load Capacity | 35 lb (16 kg) | | Construction | Aluminum | | Doorway Width | 31" (78.7 cm) | | Folded Length | 24" (60.9 cm) | | Wheel Diameter | 3" (7.6 cm) | | Wheel Lock | Yes | | Cable Guards | No | | Weight | 7 lb (3.2 kg) | | | | Box Dimensions (LxWxH) | 22.5 x 7.4 x 6.5" |
