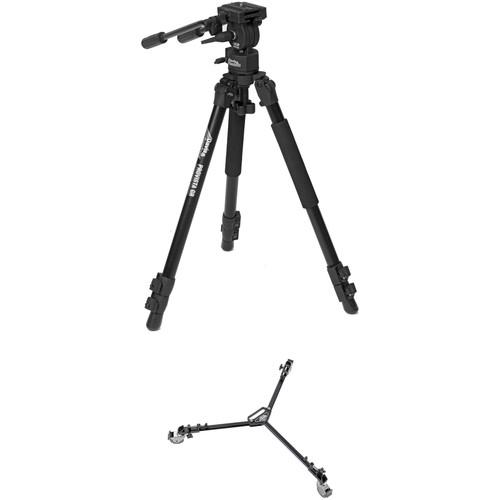

Product description The Davis & Sanford Provista Grounder Video Tripod, FM18 Fluid Head & W3 Universal Dolly Kit from is a professional tripod system that transforms to meet your needs.
The FM18 head utilizes a quick release balancing plate to balance cameras of all sizes, which allows you to focus on where the dolly is going rather than if the camera is falling over. The dolly provides smooth professional tracking with the flexibility that can only be achieved without a dolly track, and last but not least, the Provista Grounder is a dependable tripod for static shots. - Davis & Sanford PROVISTAGR18 Provista Grounder Video Tripod The Davis & Sanford PROVISTAGR18 Provista Grounder Video Tripod is a professional tripod system featuring the FM18 fluid head. This system offers ball head leveling with heads that are equipped with a 65 to 75mm ball and an 18 lbs capacity.
- FM18 Head
- This fluid head offers smooth operation, quick release plate balance system and two pan handles.
- Tripod Legs
- The legs incorporate a 65mm bowl that has been specially formed to allow you to support a ball head with a 65 to 75mm ball.
UPC: 049383062427 - Davis & Sanford W3 Universal Folding Dolly with 3" Wheels The Davis & Sanford W3 Universal Folding Dolly with 3" Wheels is an adjustable tripod dolly with 3" ball-bearing rubber/metal wheels. It features a 35 lb load capacity and can be used with all standard tripods. It can conveniently be folded up to a compact 24" x 7" for transport and has a carry handle. The 3" wheels have "step on brakes" that lock and unlock their rolling and swivel movement. UPC: 049383221336
In the Box - PROVISTAGR18 Provista Grounder Video Tripod sszczvuccbudtrcvuvrateycrq
- Tripod System
- 2 x Pan Bars
- Quick Release Plate
- Padded Bag
- Limited 10-Year Warranty
- W3 Universal Folding Dolly with 3" Wheels
Table of Contents
|
Upload User Manual
Have you got an user manual for the Davis & Sanford Provista Grounder Video Tripod, FM18 Fluid Head & W3 Universal Dolly Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Davis & Sanford PROVISTAGR18 Provista Grounder Video Tripod
| | | Load Capacity | 18 lbs / 8.2 kg | | Maximum Height | 64" / 162.5 cm | | Minimum Height | 28" / 71.1 cm | | Folded Length | 34" / 86.4 cm | | Leveling Bubble/Illuminated | Yes / No | | Weight | 10.3 lb / 4.7 kg | | | | Counter Balance System | Sliding quick release plate | | Quick Release/Wedge Plate | Yes, sliding | | Balance Plate | Quick release | | Tilt Drag | Yes | | Tilt Range | 90° up and down | | Tilt Lock | Yes | | Spring Loaded Counter Balance | Yes | | Pan Range | 360° | | Pan Lock | Yes | | | | Material | Metal | | Head Attachment Fitting | 65mm bowl | | Leg Stages/Sections | 1 / 2 | | Leg Lock Type | Quick-flip | | Independent Leg Spread | No | | Spiked/Retractable Feet | Rubber feet | | Center Brace | None | | | | Box Dimensions (LxWxH) | 36.0 x 7.6 x 7.6" | - Davis & Sanford W3 Universal Folding Dolly with 3" Wheels
| Load Capacity | 35 lb (16 kg) | | Construction | Aluminum | | Doorway Width | 31" (78.7 cm) | | Folded Length | 24" (60.9 cm) | | Wheel Diameter | 3" (7.6 cm) | | Wheel Lock | Yes | | Cable Guards | No | | Weight | 7 lb (3.2 kg) | | | | Box Dimensions (LxWxH) | 22.5 x 7.4 x 6.5" |
