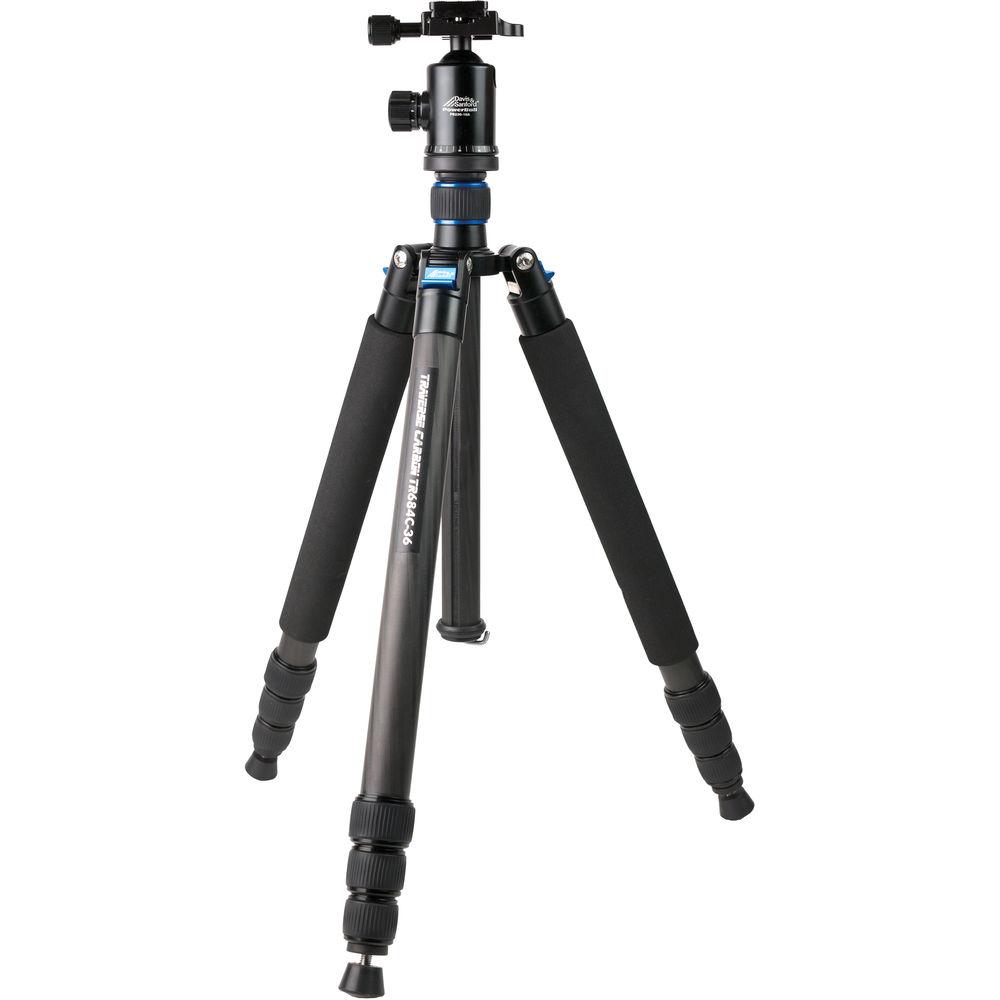

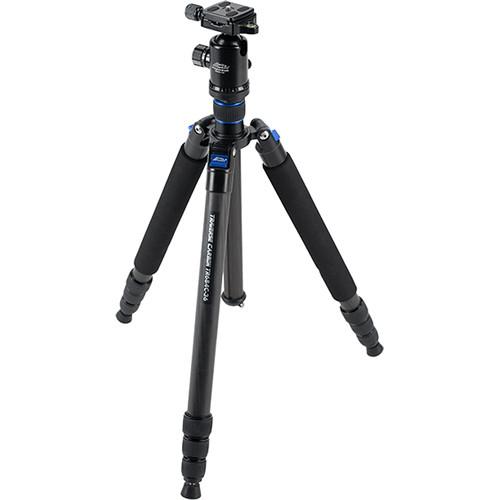

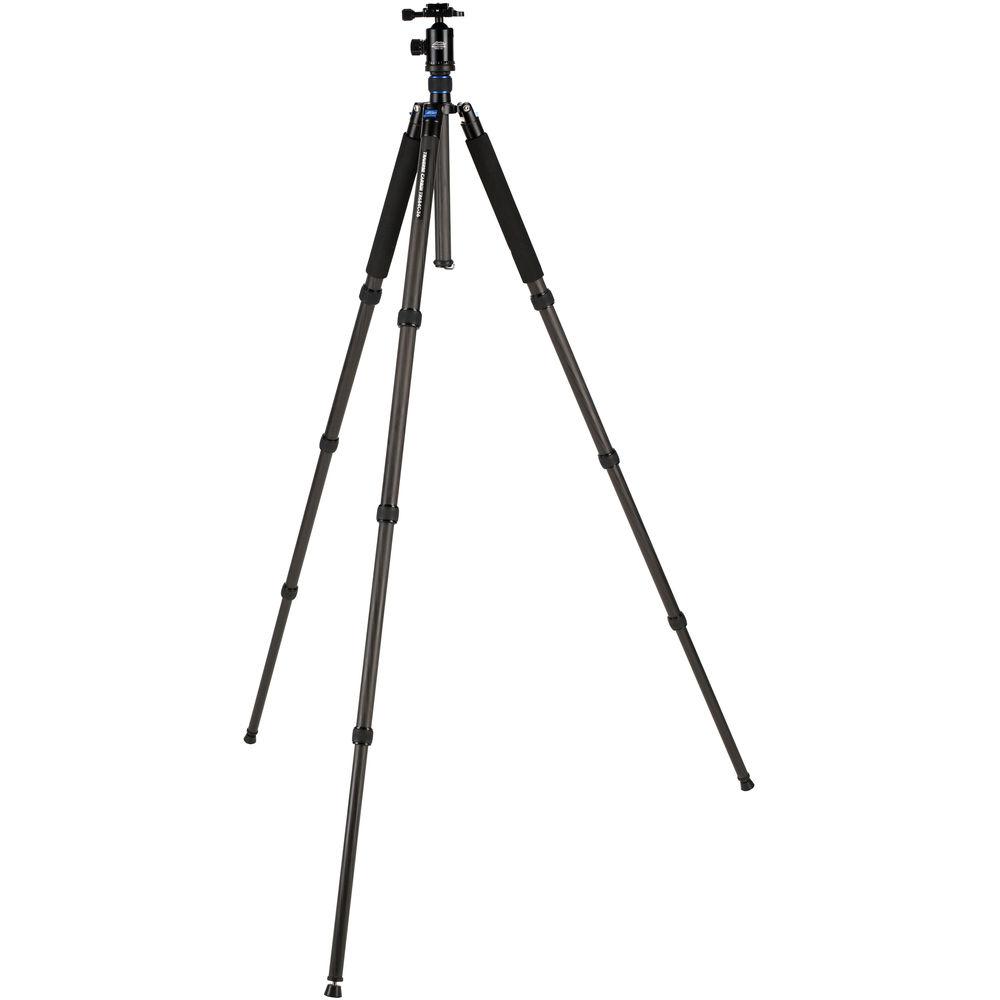

Product description Time-Lapse Tips and Tools Read More For travel or candids, in the home or studio, the Traverse TR684C-36 Carbon Fiber Tripod with Dual Locking Ball Head from Davis and Sanford is a versatile, lightweight support for DSLR, mirrorless, and point and shoot cameras.

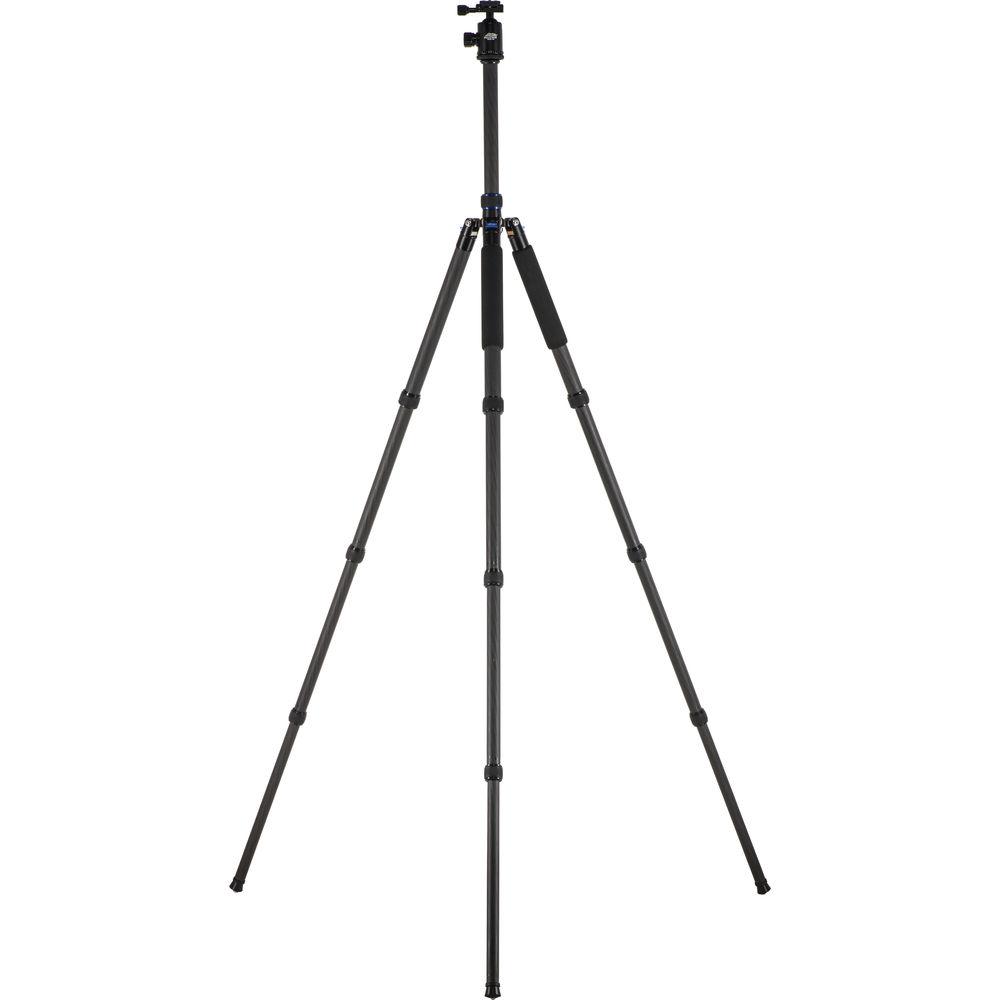

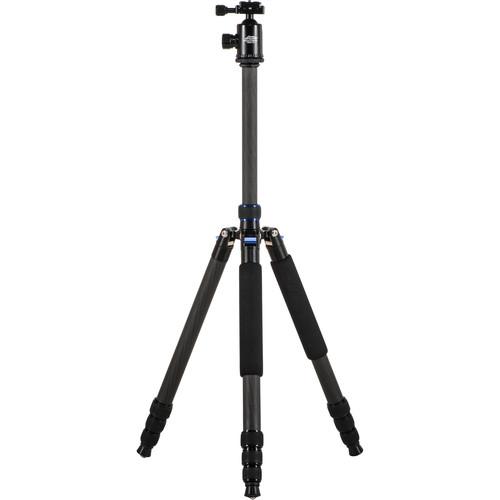

This kit includes a carbon fiber set of legs and a dual-action ball head, which combine to weigh only 4 lb while supporting up to 18 lb. The 4-section twist-lock legs extend to a maximum height of 68" and can be lowered to a minimum height of 9.5". Additionally, each leg can be set to 3 separate leg angles for balancing the tripod on uneven surfaces. The legs utilize rubber feet that feature integrated metal spikes for securing the legs in sand, dirt, or snow. One leg features a cushioned foam grip and the center column includes a ballast hook for stabilizing the tripod with additional weight.

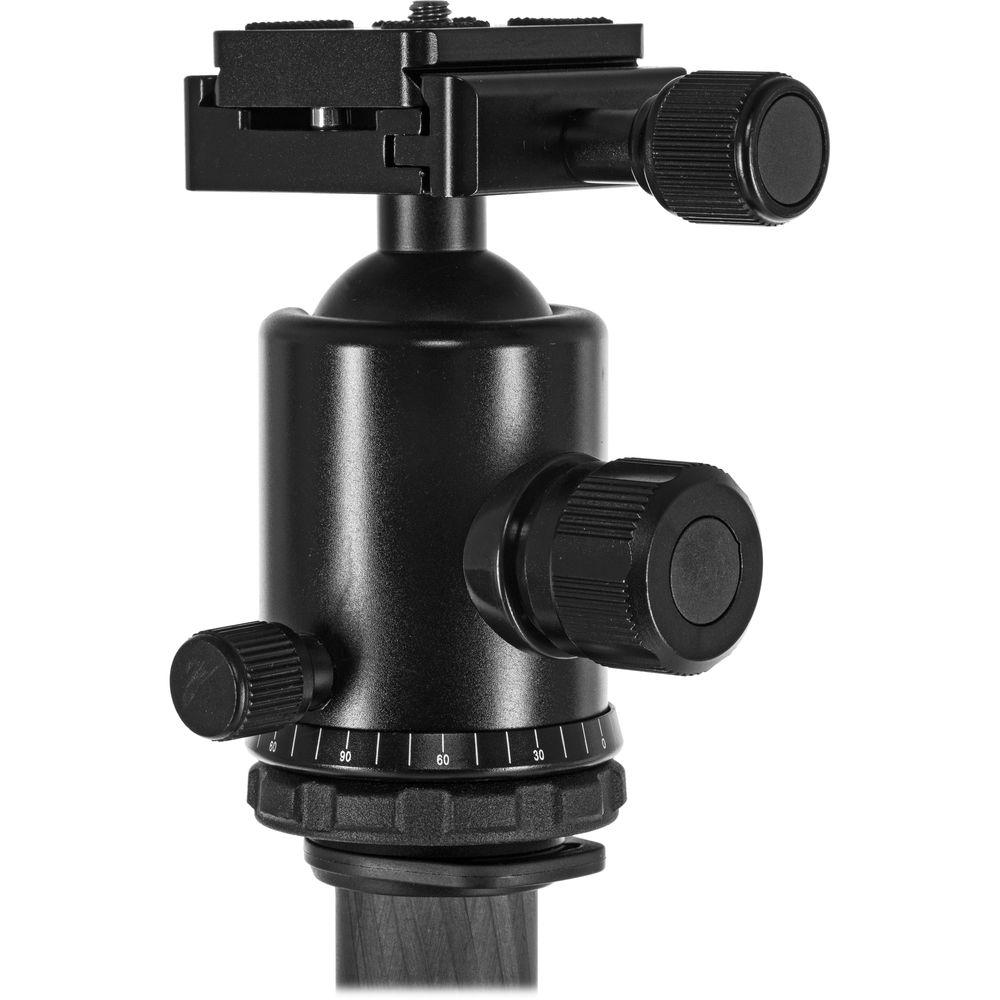

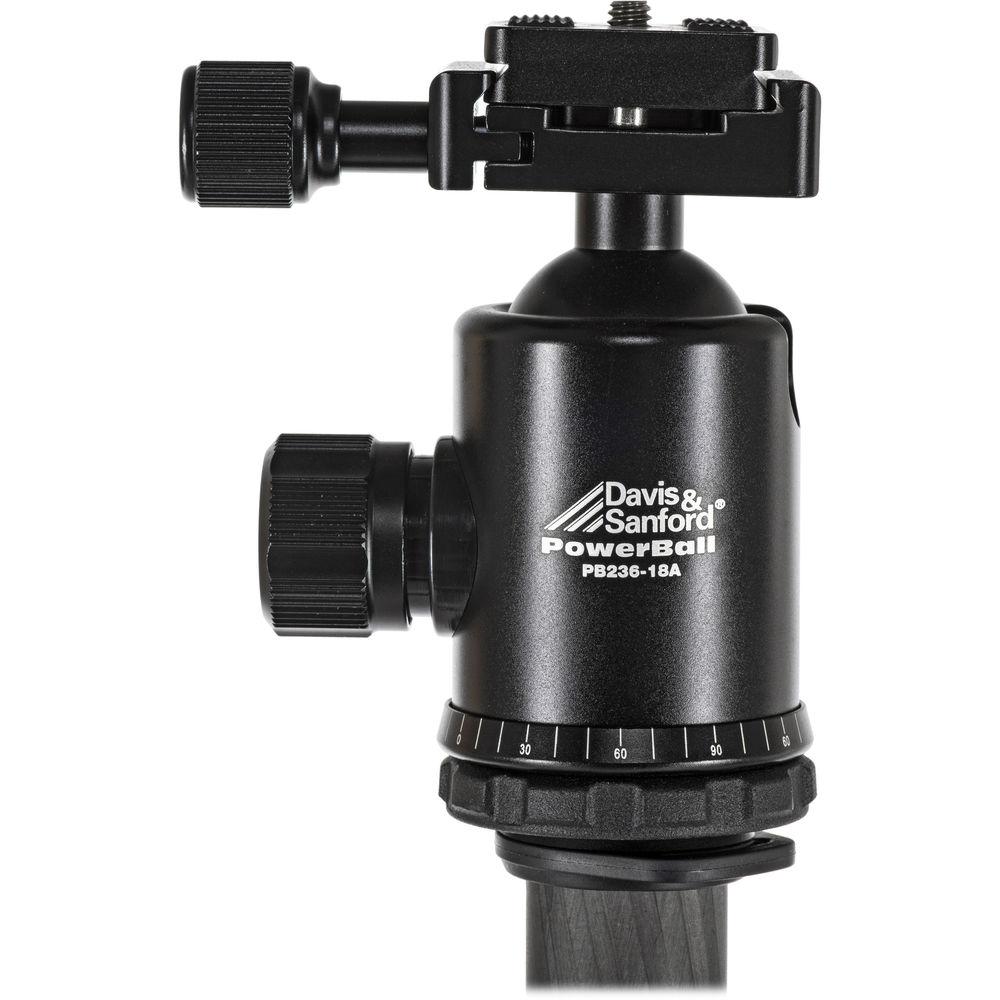

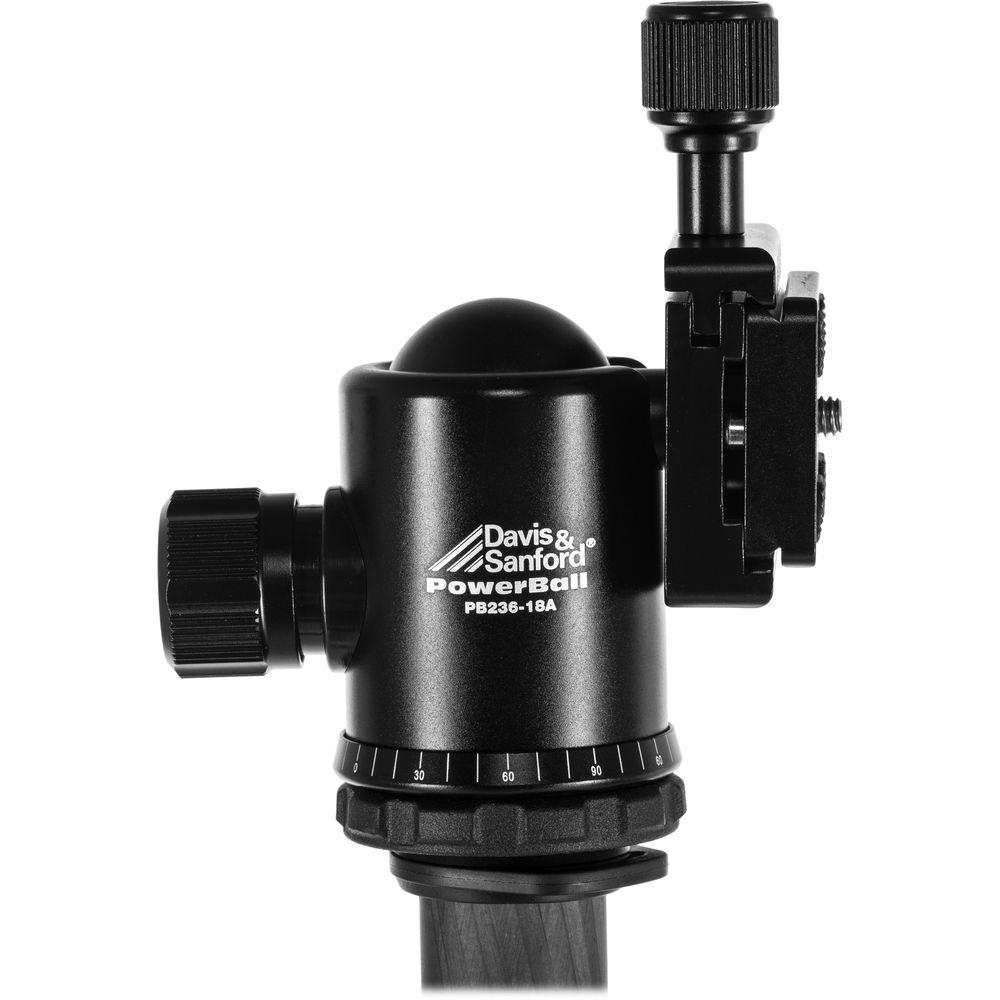

The included ball head has a dual-action design that features one lock for ball movement and a separate lock for pan. The head also features degree markings along the panning axis and an Arca-type quick release, with one included plate. A bubble level has also been added to the ball head for increased positioning accuracy.

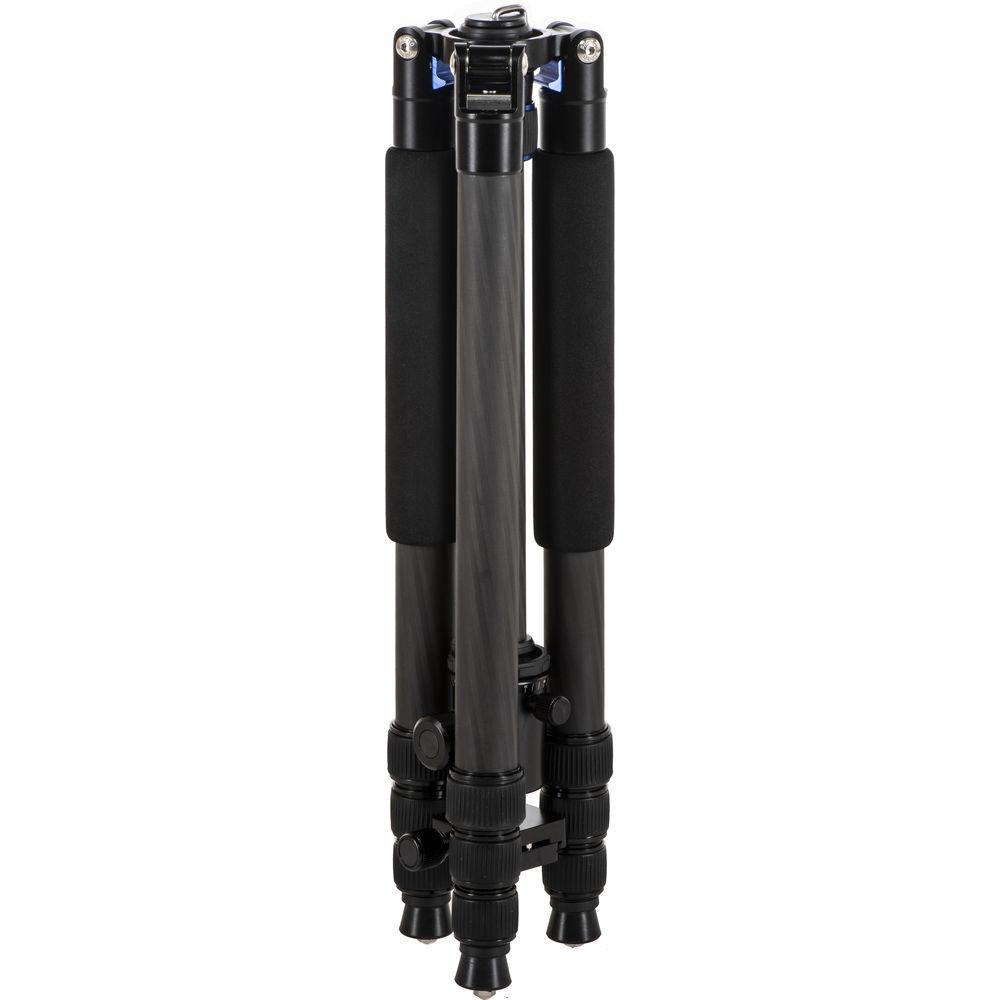

For ease of transport, the tripod folds down to 19" and includes a carrying case. A short center column is also included to help facilitate low angle and macro shooting. UPC: 884613029081 In the Box Davis & Sanford Traverse TR684C-36 Carbon Fiber Tripod with Dual Locking Ball Head Carrying Case Arca-Type Compatible QR Plate Short Center Column Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Davis & Sanford Traverse TR684C-36 Carbon Fiber Tripod with Dual Locking Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDavis & Sanford TR684C-36 Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | Arca-Type | | | | Load Capacity | 18 lb / 8.2 kg | | Maximum Working Height | 68" / 172.7 cm | | Minimum Working Height | 9.5" / 24.1 cm | | Folded Length | 19" / 48.2 cm | | Materials | Carbon Fiber | | Weight | 4.0 lb / 1.8 kg | | | | Leg Lock Type | Twist Lock | | Leg Positions | 3 Positions | | Independent Leg Spread | Yes | | Leg Sections | 4 | | Bubble Level | No | | Feet Features | Retractable, Spiked | | | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 6.3 lb | | Box Dimensions (LxWxH) | 27.2 x 5.5 x 5.1" |
