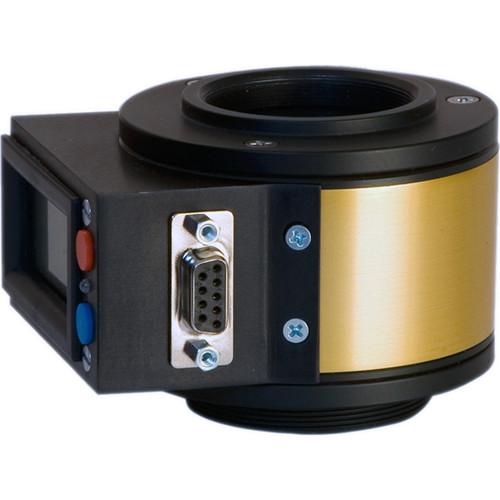

User Manual for DayStar Filters 0.4Å Quantum Sodium Na-D Solar Filter Click to enlarge the picture
Contents of the user manual for the DayStar Filters 0.4Å Quantum Sodium Na-D
- Product category: Solar Filters for Astronomical Telescopes DayStar Filters
- Brand: DayStar Filters
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DayStar Filters Solar Filters for Astronomical Telescopes
|
User manual for the DayStar Filters 0.4Å Quantum Sodium Na-D contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DayStar Filters product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DayStar Filters user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DayStar Filters product will considerably shorten its lifespan!
|
Product description A Buying Guide for Solar and Solar Eclipse Viewing Read More Daystar Filters' 0.4Å half-bandwidth tuned Quantum Sodium Na-D Solar Filter uses its precise micro processor-controlled electronic tuning system to isolate the extremely thin but bright emission line from the Sun's surface continuum to produce highly detailed views of granulations, supergranulations, and P-modes. The filter is installed at the rear of the optical tube assembly (OTA), rather than before the primary objective so it can be used on telescopes of virtually any aperture and easily move between a variety of scopes.This version of the Quantum is designed for professional research-grade users which require tight tolerances and exceptional quality. To accomplish this, Daystar improves homogeneity and on-band transmittance values across the substrate surface, so these filters require additional quality control steps, as well as additional fabrication and testing times.It comes calibrated for the Sodium Na-D line at 5895.9Å and is used un-heated for observing the lower two emissions lines, or heated to view the higher two lines. By employing the electronic tuning system, the wavelength can be offset to make Doppler studies possible by photographing in each line and deriving different images after subtracting an average solar velocity image. This process is referred to as a dopplergram velocity image, and reveals the surface motions associated with supergranulation.Most telescope configurations and styles can be used with no aperture limit, although Daystar recommends using the filter at focal ratios between f/27 and f/35. An optional Powermate Barlow or stop-down mask can be used to get to that f-stop, and an energy rejection filter or UV/IR cut filter must be used to prevent damage to the optical system. The Quantum is outfitted with an RS-232 serial port that allows it to be connected to a computer and enables remote viewing of the wavelength display and control of the tuning. It runs on 12 VDC power and comes with a 6' power cord and a set of international outlet plugs for the US, EU, UK, and Australia. A Q3GFTF Front Flat T-Plate is also included so that users can attach T-rings or snouts, which are available separately, to match their applications; with additional plates also available to match user's needs. UPC: 702730990490 In the Box DayStar Filters 0.4Å Quantum Sodium Na-D Solar Filter (Research Grade) Front Flat T-Plate for Quantum Filters 6' Power Cord Set: International Power Plugs Limited 5-Year Warranty Solar and Solar Eclipse Viewing 101 Christopher Witt 12/14/2016 Mark Your Calendars: North American Solar Eclipse 2017 Todd Vorenkamp and Christopher Witt 08/19/2016 Table of Contents
|
Upload User Manual
Have you got an user manual for the DayStar Filters 0.4Å Quantum Sodium Na-D Solar Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDayStar Filters NAD.4UNI Specs | Application | Solar viewing | | Type | Sodium D | | Bandpass | 0.4 Å | | Wavelength | 5895.9 Å
± 1.0 Å offset capability for Doppler shift observation | | Multi-Coated | Yes | | Power Requirement | 12 VDC | | Environmental Limits | 32 - 104°F / 0 to 40°C
Humidity: 20 - 80%,Non-Condensing | | Dimensions | Diameter: 3.0" / 7.6 cm
Length: 1.7" / 4.3 cm
Length with Filter Mounting plates: 2.2" / 5.6 cm | | Weight | 16.0 oz / 453.6 g |
