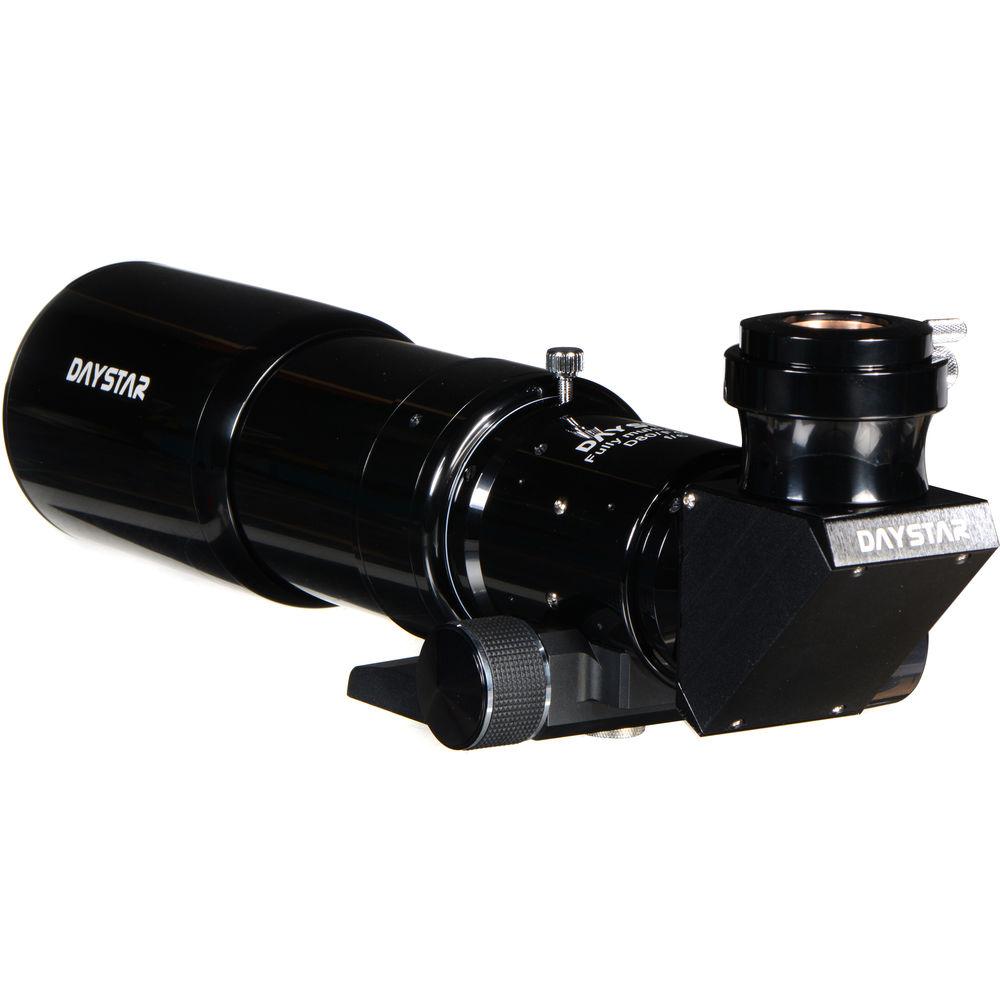

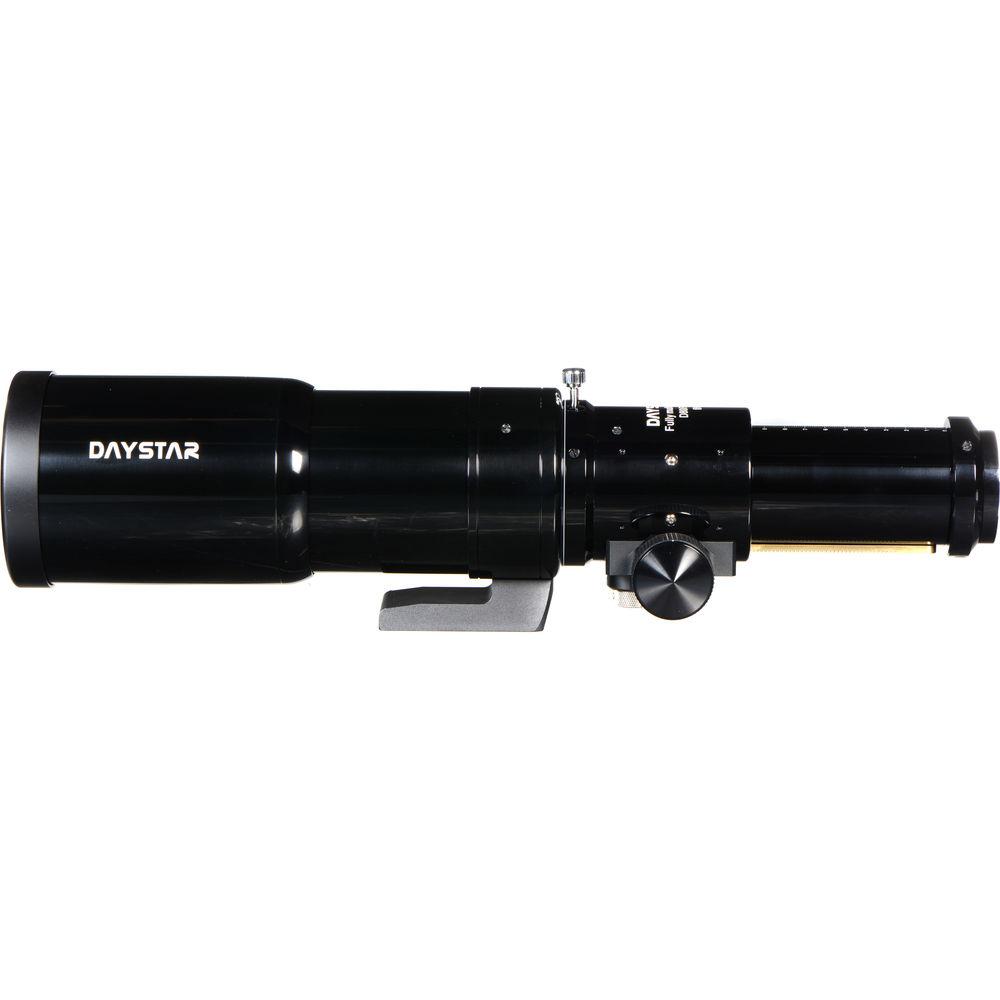

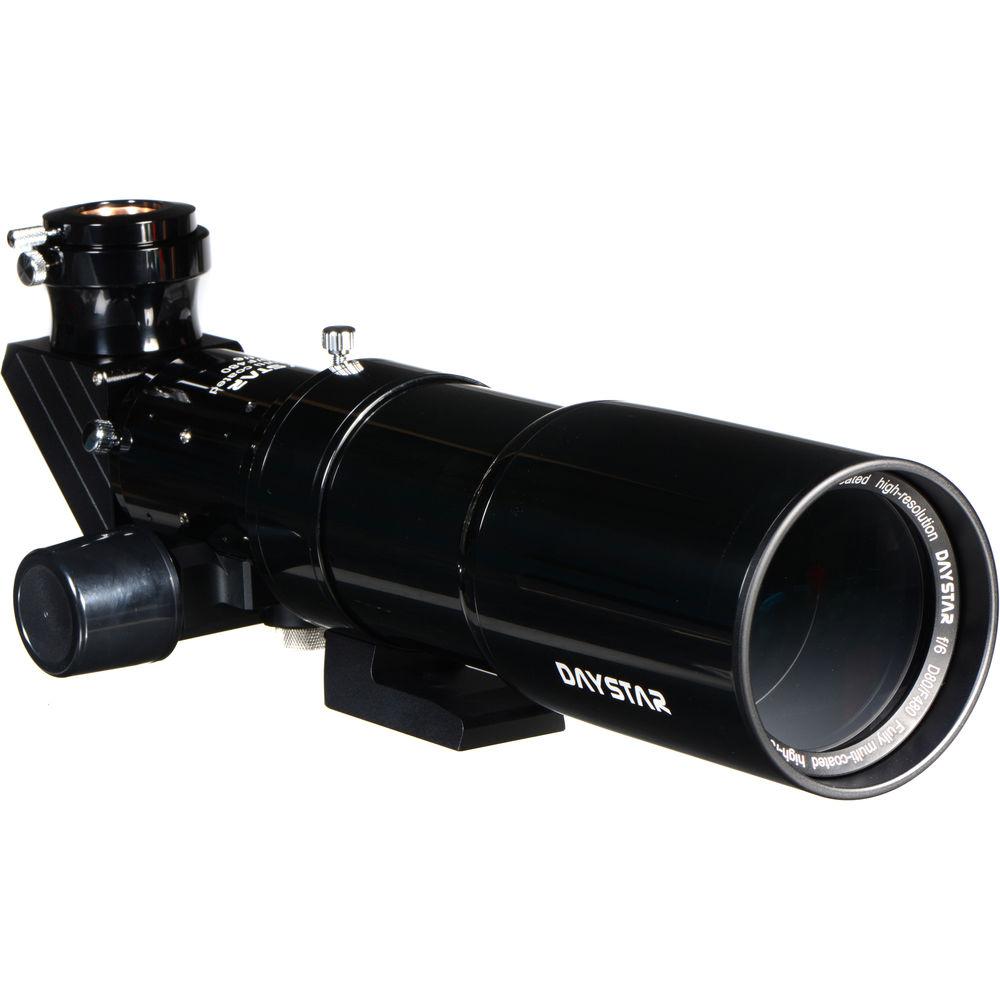

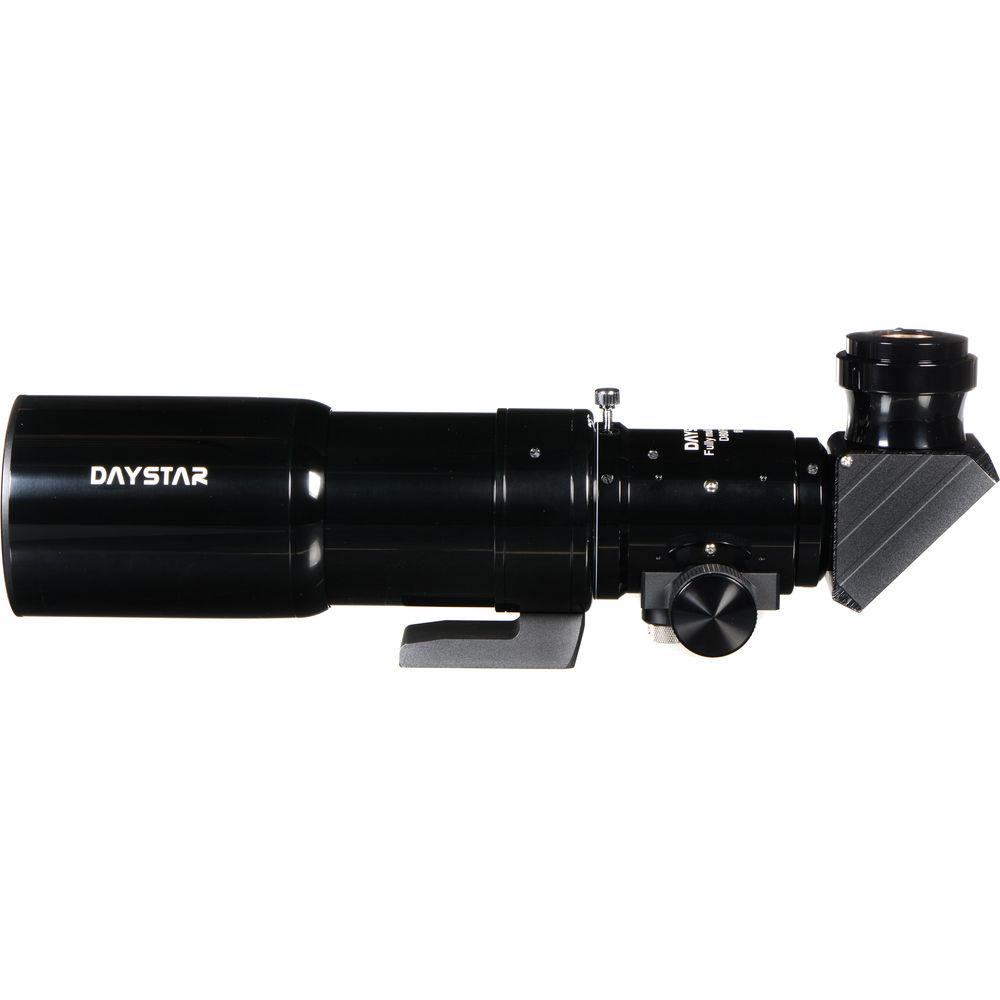

Product description A Buying Guide for Solar and Solar Eclipse Viewing Read More Daystar Filters put together the 480E 80mm Refractor Telescope with Quark Chromosphere Filter Kit to provide you with a versatile instrument for nighttime astronomical and daytime solar observations. This bundle comes with an 80mm achromatic doublet refractor OTA, the chromosphere-tuned Quark solar filter, and a 90° dielectric-coated mirror diagonal. - 480E 80mm f/6 Achro Refractor Telescope (OTA Only) An ideal grab-and-go OTA for astronomical or solar viewing, Daystar Filters' 480E 80mm f/6 Achro Refractor Telescope is engineered with an achromatic doublet lens system and fully multi-coated optics that work together to improve light transmission and to produce color-accurate images without distortion across the entire field of view. For solar observing, the 80mm objective represents the maximum aperture that is safe to use without a front energy rejection filter, and the simple refractor optical configuration also eliminates the need for a rear IR/UV filter, so all that is required is a rear solar filter like the Daystar Quark.An innovative hybrid focuser combines the stability of a rack-and-pinion with the precision of a Crayford-style to enable fast yet fine focusing while still being able to handle heavier rear-weighted loads as from large eyepieces, accessories, imaging/photography rigs, and/or solar filters. It is outfitted with a 2" drawtube for using larger visual accessories. The OTA is constructed from CNC-machined aluminum with a gloss-black anodized finish that resists scratches. This OTA is offered here without a mount and tripod, but comes with a Vixen-style dovetail plate to easy attach to a wide variety of Alt-az, EQ, and motorized mount and support systems. To protect your investment during transport or in storage, the 480E comes with a hard aluminum carrying case.
- Optical Performance
-
- Aperture: 80mm
- Focal ratio: f/6
- Focal length: 480mm
- Doublet refractor optical configuration
- Achromatic lens elements correct spherical and chromatic aberration to produce color-accurate images without distortion across the entire field of view
- Fully multi-coated optics improve light transmission through the entire optical path
- Retractable sunshade/dew shield
- Focuser
-
- Large 2" drawtube
- Hybrid focuser
- Rack-and-pinion gets image close to focus
- Crayford-style allows for super-fine focusing
- Mounting
-
- Mount and tripod required
- Vixen-style dovetail plate
- Carrying Case
-
- Lightweight and durable aluminum
- Custom-cut foam insert for OTA and visual accessories

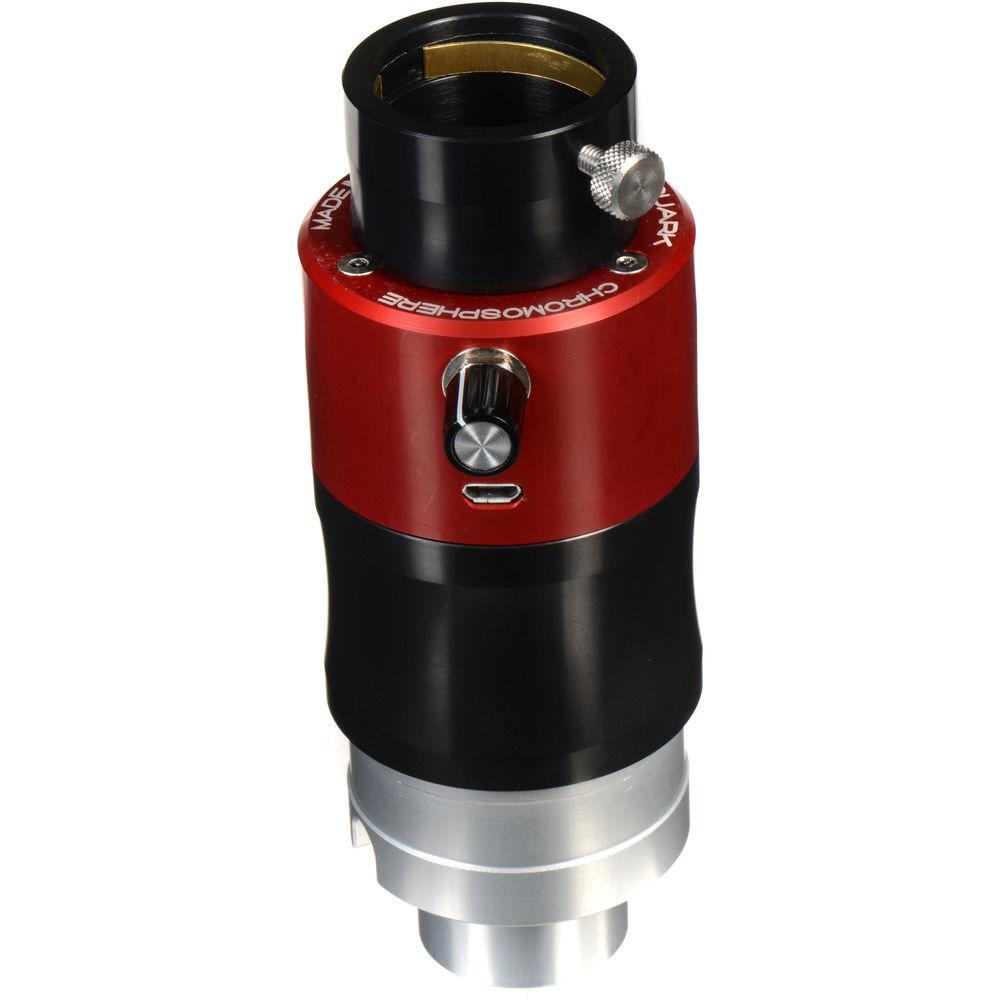

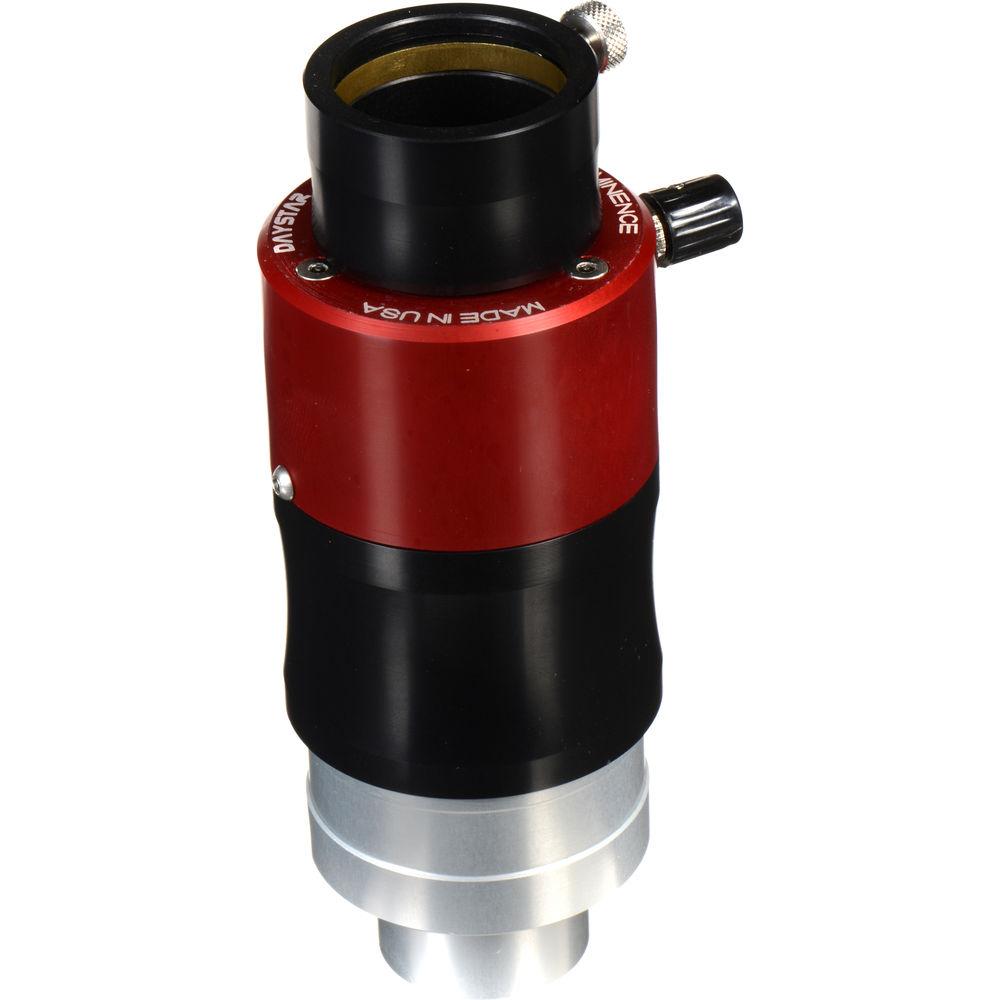

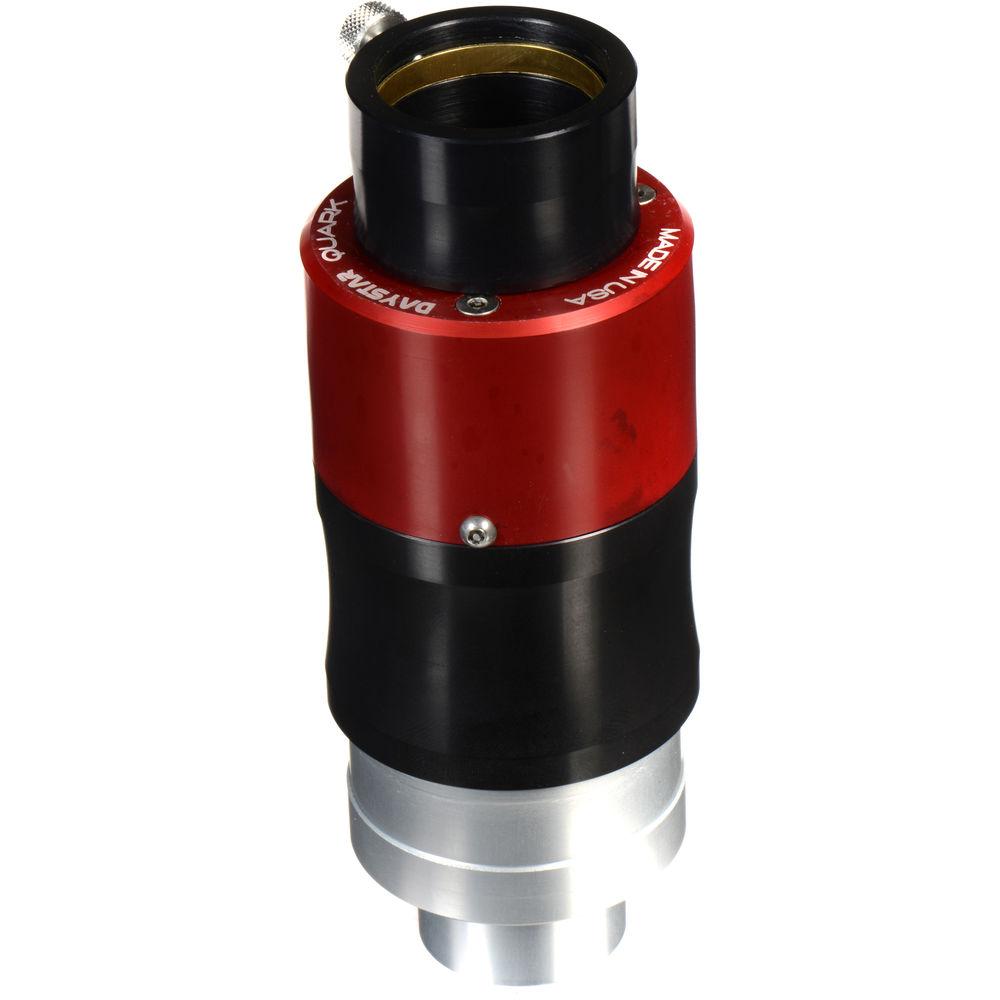

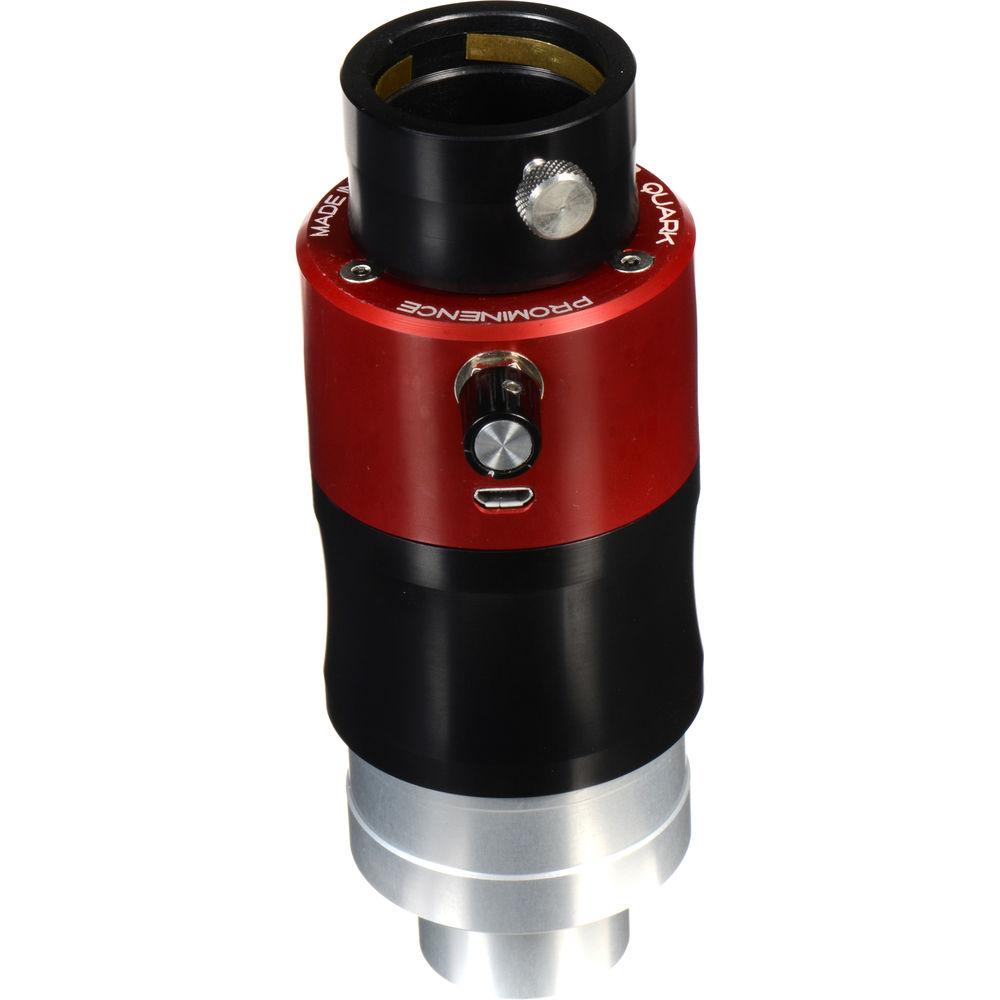

UPC: 724696425083 - QUARK H-Alpha Eyepiece Solar Filter (Chromosphere) Daystar Filters designed this version of the QUARK H-Alpha Eyepiece Solar Filter specifically for viewing chromosphere details. The chromosphere's surface structure behaves differently in active regions than quiet areas, where magnetic field lines are stronger, so viewing this portion of the sun provides a constantly-changing observational experience.This all-in-one hydrogen-alpha filter is engineered to eliminate unnecessary components which reduced the size and weight, and enabled it to fit in a compact form factor that simply inserts into 1.25" or 2" diagonals and accepts 1.25" eyepieces. This design enables the use of nighttime telescopes for solar viewing. In addition to the tunable H-alpha filter, the Quark also functions as a 4.3x Barlow lens, with a 2-element lens system designed to be telecentric which flattens the field of view and reduces parallax, and optical coatings that are optimized for the 656nm H-alpha wavelength.While there are no OTA aperture limitations, Daystar recommends the use of UV/IR cut filters or front-mount energy rejection filters on OTAs over 80mm of for long-duration solar viewing sessions. For best results, they suggest using refractor-style scopes with focal ratios between f/4-f/8, and you can enjoy full-disk viewing with focal lengths up to 450mm. The filter is powered via a micro-USB port, and Daystar includes a power cord and an AC adapter to meet the high-power requirements of 5 VDC 1.5A. To enable its use at home and abroad, a set of international outlet plugs is provided with adapters for the US, UK, EU, and Australia.
- Filter Properties
-
- Hydrogen-alpha bandpass
- Integrated 12mm blocking filter
- 21mm clear filter aperture
- Tuned to 0.5-0.3Å for viewing chromosphere details
- Tuning knob allows for ±0.5Å wing shift for Doppler-shift compensation
- Markers at every 0.1Å for reference and repeatability
- LED indicators for power, warming, ready, and fault
- Optics
-
- Integrated 4.3x Barlow lens
- Lens and optical coatings designed specifically for 656nm H-alpha wavelength
- Two-element telecentric lens design keeps light waves parallel to flatten the field of view and reduce parallax as magnification increases
- Recommended OTA Specifications
-
- No aperture limitation
- Best performance with f/4-f/8 refractors
- Full-disk viewing on refractors up to 450mm focal length
- For apertures over 80mm (3.1"), or for long-duration solar viewing, an UV/IR cut filter should be used for energy rejection
- Not suited for off-axis applications
- Power
-
- 5 VDC, 1.5A micro-USB port
- 90-240 VAC wall adapter
- Set of international outlet plugs for US, UK, EU, and Australia

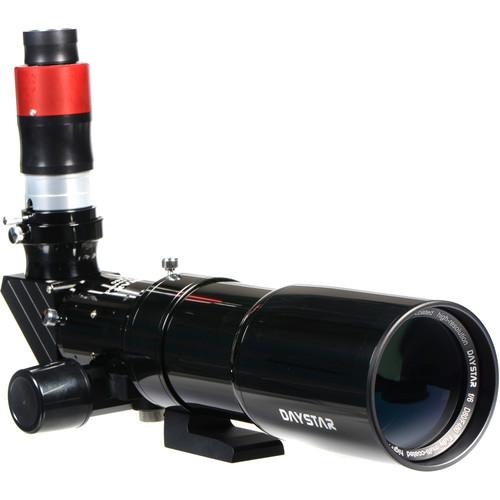

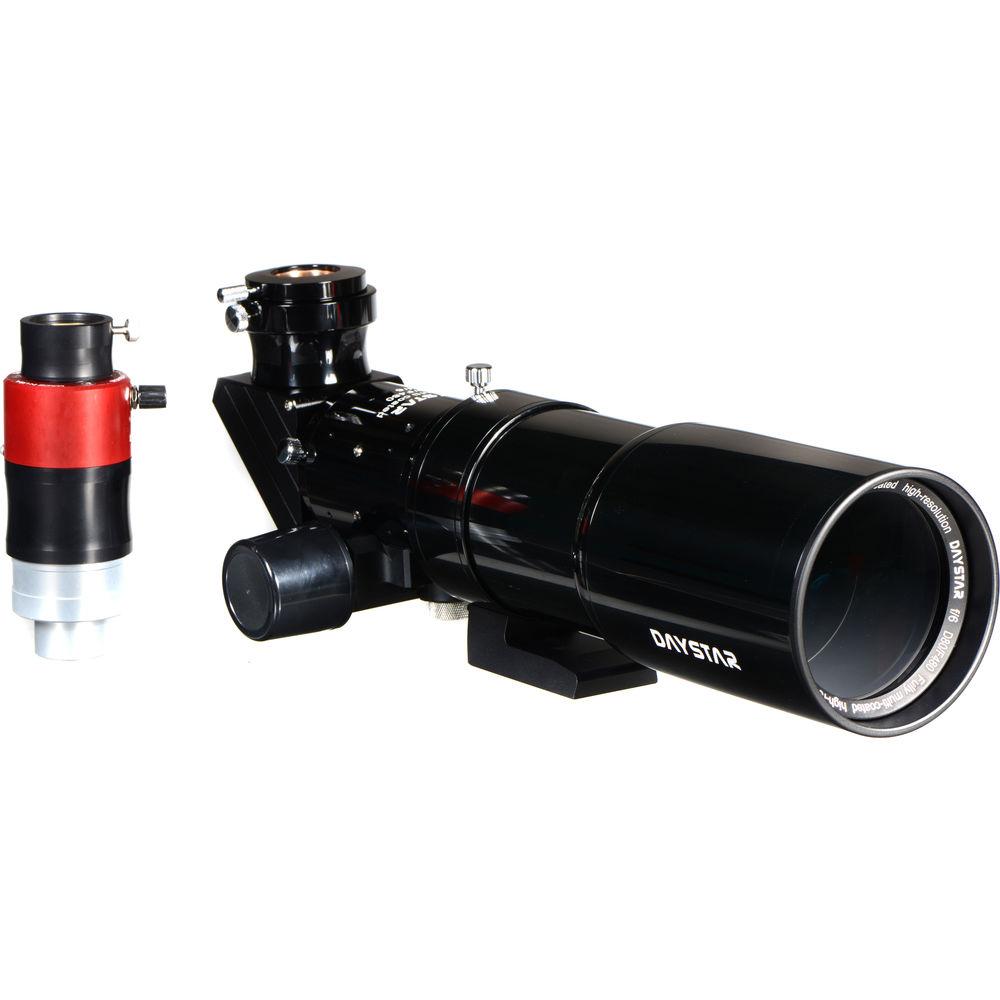

UPC: 702730990728 In the Box Bundle Items 480E 80mm f/6 Achro Refractor Telescope (OTA Only) eaqqrsfecqtscu QUARK H-Alpha Eyepiece Solar Filter (Chromosphere) - Wall Outlet Power Adapter
- Set of International Plug Adapters
Also Includes Solar and Solar Eclipse Viewing 101 Christopher Witt 12/14/2016 eaqqrsfecqtscu Mark Your Calendars: North American Solar Eclipse 2017 Todd Vorenkamp and Christopher Witt 08/19/2016 Table of Contents
|
Upload User Manual
Have you got an user manual for the DayStar Filters 480E 80mm Refractor Telescope with Quark Chromosphere Filter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 480E 80mm f/6 Achro Refractor Telescope (OTA Only)
| | | Optical Design | Achromatic Doublet Refractor | | Aperture | 80 mm / 3.2" | | Focal Length | 480 mm | | Focal Ratio | f/6 | | Eyepiece Barrel Diameter | 2" | | Diagonal | None | | Finderscope | None | | Mounting System | Vixen Style | | | | Box Dimensions (LxWxH) | 23.0 x 14.8 x 8.7" | - QUARK H-Alpha Eyepiece Solar Filter (Chromosphere)
| Type | Hydrogen-Alpha | | Filter Factor | 0.5 - 0.3 Å | | Application | Chromosphere viewing | | Size | Drawtube side: 1.25"/2"
Eyepiece holder: 1.25" | | Multi-Coated | Yes | | Power Requirement | 5 VDC, 1.5 A | | Construction | Aluminum alloy | | Dimensions | 5.7 x 2.8 x 2.2" / 14.6 x 7.1 x 5.5 cm | | | | Box Dimensions (LxWxH) | 10.75 x 4.35 x 4.15" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
