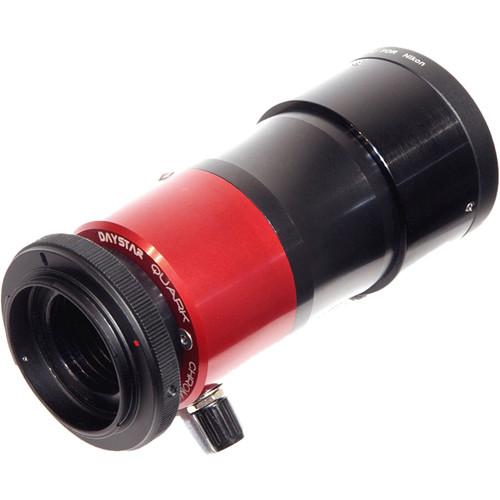

User Manual for DayStar Filters Camera Quark H-alpha Solar Filter for Nikon Click to enlarge the picture
Contents of the user manual for the DayStar Filters Camera Quark H-alpha Solar
- Product category: Solar Filters for Astronomical Telescopes DayStar Filters
- Brand: DayStar Filters
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DayStar Filters Solar Filters for Astronomical Telescopes
 |
User manual for the DayStar Filters Camera Quark H-alpha Solar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DayStar Filters product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DayStar Filters user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DayStar Filters product will considerably shorten its lifespan!
|

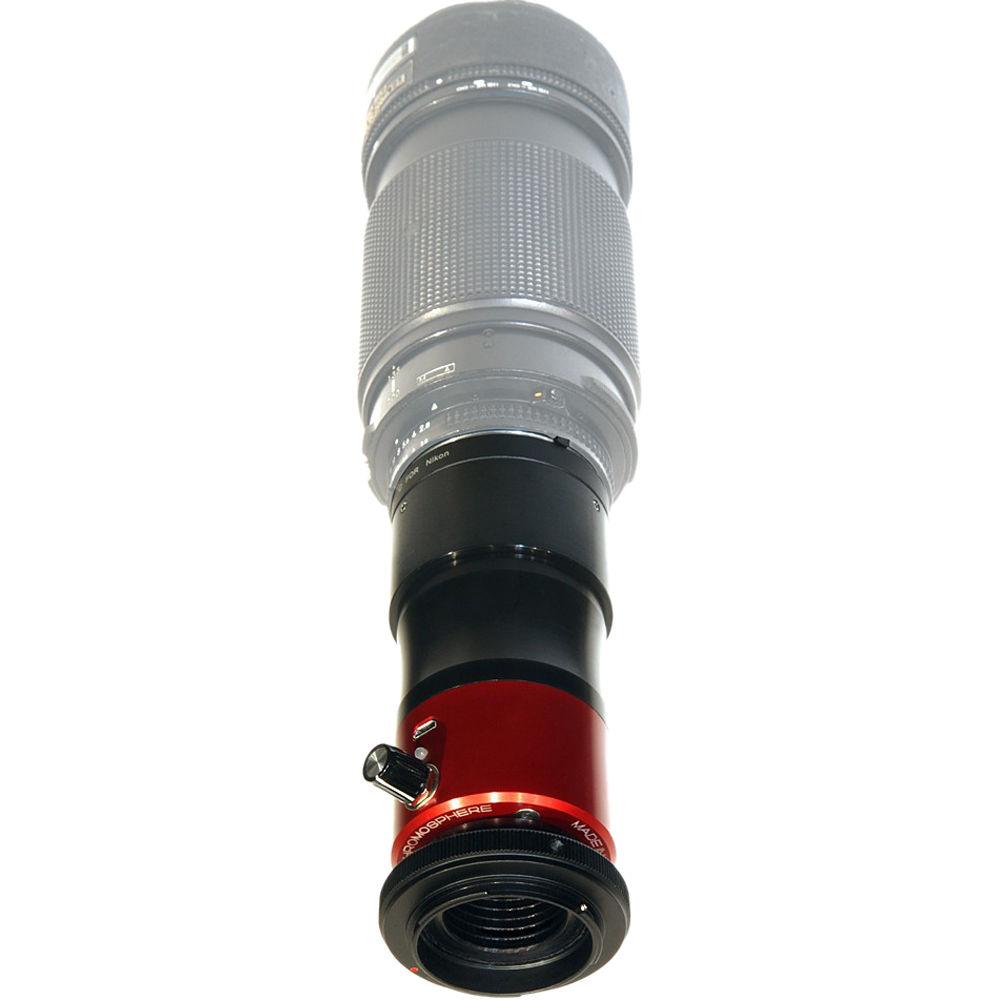

Product description A Buying Guide for Solar and Solar Eclipse Viewing Read More Building on the success of the standard versions of their Quark, Daystar Filters designed this version of the Camera Quark H-alpha Solar Filter to fit Nikon SLR and DLSR bodies and lenses to allow imaging or viewing prominences. To fit your camera system, the each end is equipped with a corresponding bayonet mount for easy attachment, and full disk viewing possible on lenses up to ~450mm focal length. A rear 1.25" eyepiece adapter is included to allow the use of traditional astronomical eyepieces. This adapter essentially converts your lens into a solar telescope. Daystar recommends the use of red, orange or yellow colored glass lens front filters for apertures over 80mm.The filter is tuned to the 0.8-0.6Å bandwidth of the 656nm hydrogen-alpha wavelength with the ability to tune it ±0.5Å from the center line for compensate for Doppler shift or to focus on specific regions or features, with indicators every 0.1Å. Prominences, a detail of the chromosphere projected against the blackness of space behind the sun, are seen with improved contrast due to the filter's narrower bandpass versus a wider bandpass filter tuned for conventional chromosphere surface viewing. The filter is powered via a micro-USB port, and Daystar includes a power cord and an AC adapter to meet the high-power requirements of 5 VDC 1.5A. To enable its use at home and abroad, a set of international outlet plugs is provided with adapters for the US, UK, EU, and Australia.The Camera Quark comes with a combination lens foot with 1/4-20 tripod holes to mount it on conventional photo/video/field tripods, and a Vixen-style dovetail plate for telescope mounts. While a focal extender spacer ring is included to ensure compatibility with a wide variety of lenses, focus and clearances are not guaranteed with all Nikon lenses. Because there is no electric pass-through on the filter, when installed between the camera body and lens, some lens features such as auto-focus and electronic aperture control will not work. - Filter Properties
-
- Hydrogen-alpha bandpass
- Integrated 12mm blocking filter
- 21mm clear filter aperture
- Tuned to 0.8-0.6Å for viewing prominences
- Tuning knob allows for ±0.5Å wing shift for Doppler-shift compensation
- Markers at every 0.1Å for reference and repeatability
- LED indicators for power, warming, ready, and fault
- Optics
-
- Integrated 4.2x Barlow lens
- Lens and optical coatings designed specifically for 656nm H-alpha wavelength
- Two-element telecentric lens design keeps light waves parallel to flatten the field of view and reduce parallax as magnification increases
- Camera/Lens Compatibility
-
- Front and rear bayonet mounts for Nikon cameras and lenses
- Full disk viewing possible on lenses up to ~450mm focal length lenses
- Includes focal extender spacer ring to ensure compatibility with a wide variety of lenses
- No electric pass through on filter so lens features like auto-focus and electronic aperture control will not work
- Focus and clearances not guaranteed for 100% of lenses
- Use of red, orange or yellow colored glass lens front filters recommended
- 1.25" eyepiece adapter to use conventional astronomical eyepieces and convert lens into solar telescope
- Power
-
- 5 VDC, 1.5A micro-USB port
- 90-240 VAC wall adapter
- Set of international outlet plugs for US, UK, EU, and Australia
- Mounting
-

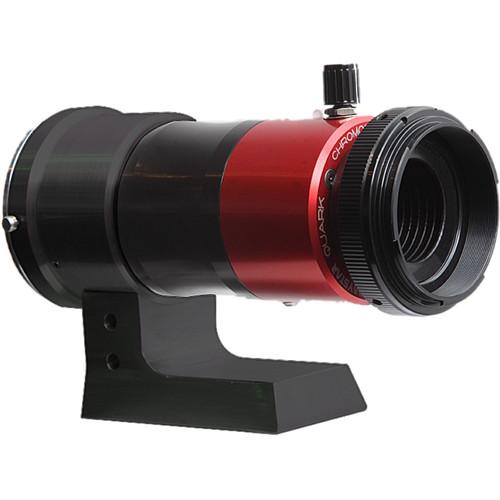

- Reversible combination lens foot
- 1/4"-20 tripod holes for use with standard photo, video, or field tripods
- Vixen-style dovetail plate for use with telescope mounts
UPC: 724696425755 In the Box DayStar Filters Camera Quark H-alpha Solar Filter for Nikon (Prominence) Lens Foot Plastic Case USB Power Cord 90-240VAC Wall Outlet Power Adapter Set of International Plug Adapters Focal Extender Spacer Ring 1.25" Eyepiece Adapter Limited 5-Year Warranty Solar and Solar Eclipse Viewing 101 Christopher Witt 12/14/2016 yxvfuerdtfbu Mark Your Calendars: North American Solar Eclipse 2017 Todd Vorenkamp and Christopher Witt 08/19/2016 Table of Contents
|
Upload User Manual
Have you got an user manual for the DayStar Filters Camera Quark H-alpha Solar Filter for Nikon in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDayStar Filters DSZTNP Specs | Type | Hydrogen-Alpha | | Filter Factor | 0.8 - 0.6 Å | | Application | Prominence viewing | | Mounting | Nikon bayonet, front and rear | | Multi-Coated | Yes | | Power Requirement | 5 VDC, 1.5 A | | Construction | Aluminum alloy | | Dimensions | Not specified by manufacturer | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 12.7 x 4.4 x 4.3" |
