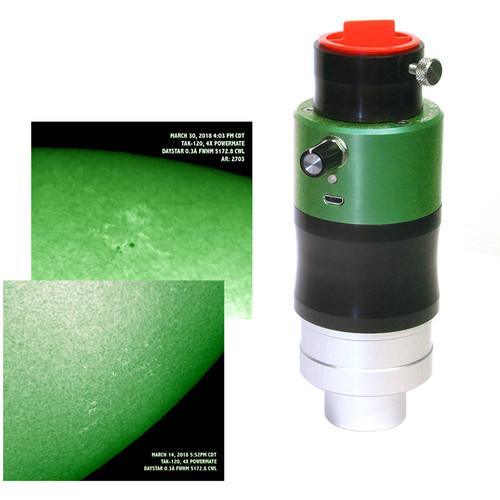

User Manual for DayStar Filters Magnesium I Quark B2 Line Eyepiece Solar Filter Click to enlarge the picture
Contents of the user manual for the DayStar Filters Magnesium I Quark B2
- Product category: Solar Filters for Astronomical Telescopes DayStar Filters
- Brand: DayStar Filters
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DayStar Filters Solar Filters for Astronomical Telescopes
|
User manual for the DayStar Filters Magnesium I Quark B2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DayStar Filters product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DayStar Filters user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DayStar Filters product will considerably shorten its lifespan!
|
Product description A Buying Guide for Solar and Solar Eclipse Viewing Read More Daystar Filters' Magnesium I Quark B2 Line Eyepiece Solar Filter departs from the more popular H-alpha tuned filters and focuses on the highly magnetized high energy in the bright 5172.8? wavelength. The temperatures for energetic activity emitting the B2 line are calculated to be extremely high. Spectroscopically, a line "splitting" called the Zeeman effect can be observed, whereas the dark absorption "splits" and occurs slightly above and below the typical wavelength where light from non-magnetized activity is absorbed. Views through a magnesium filter reveal plage and dark absorptive mottling of the chromospheric structure. The line is brighter than calcium, H-alpha, and even sodium, so it is very easy for observers to see and will require short exposures when imaging in this wavelength.While there are no OTA aperture limitations, Daystar recommends the use of rear UV/IR cut filters for long-duration solar viewing sessions, an energy rejection filter for safety, and for best results they suggest using refractor-style scopes with focal ratios between f/4 and f/8. You can enjoy full-disk viewing with focal lengths up to 450mm.This all-in-one filter design enables the use of nighttime telescopes for solar viewing and is engineered to eliminate unnecessary components, which reduces the size and weight. This streamlined form enables it to simply insert into 1.25" or 2" diagonals and accept 1.25" eyepieces. The filter is powered via a micro-USB port, and Daystar includes a power cord and an AC adapter to meet the high-power requirements of 5 VDC 1.5A. To enable its use at home and abroad, a set of international outlet plugs is provided with adapters for the US, UK, EU, and Australia. - Filter Properties
-
- Tuned to magnesium I B2-line 5172.8
|
Upload User Manual
Have you got an user manual for the DayStar Filters Magnesium I Quark B2 Line Eyepiece Solar Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDayStar Filters Quark Specs | Type | Magnesium I B2 line | | Filter Factor | 5172.8 Å | | Blocking | 12 mm
21 mm clear aperture | | Size | Drawtube side: 1.25"/2"
Eyepiece holder: 1.25" | | Multi-Coated | Yes | | Power Requirement | 5 VDC, 1.5 A | | Construction | Aluminum alloy | | Dimensions | 3.6 x 2.8 x 2.2" / 9.1 x 7.1 x 5.5 cm |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
