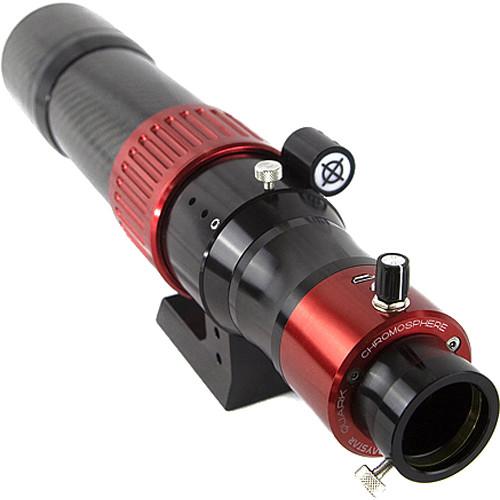

User Manual for DayStar Filters Solar Scout 60mm f 15.5 H-alpha Carbon Fiber Solar Telescope Click to enlarge the picture
Contents of the user manual for the DayStar Filters Solar Scout 60mm f
- Product category: Solar Telescopes DayStar Filters
- Brand: DayStar Filters
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DayStar Filters Solar Telescopes
 |
User manual for the DayStar Filters Solar Scout 60mm f contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DayStar Filters product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DayStar Filters user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DayStar Filters product will considerably shorten its lifespan!
|
Product description A Buying Guide for Solar and Solar Eclipse Viewing Read More Study the rich details of the sun's prominence using Daystar Filters Solar Scout 60mm f/15.5 H-alpha Achro Solar Telescope. Optically, this is an achromatic doublet refractor which corrects spherical and chromatic aberrations to produce accurate color rendition without distortion across the entire field of view. Included with the optical tube assembly is the Quark Jr. solar filter system, specifically tuned for prominence viewing. Prominences, a detail of the chromosphere projected against the blackness of space behind the sun, are seen with improved contrast due to the filter's narrower bandpass versus a wider bandpass filter tuned for conventional chromosphere surface viewing.The Quark Jr. is an all-in-one hydrogen-alpha filter engineered to eliminate unnecessary components, which reduces the size and weight and enables it to fit in a compact form factor that flows seamlessly with the form and contour of the optical tube. In addition to the tunable H-alpha filter, the Quark also functions as a 4.3x Barlow lens with a two-element lens system that is designed to be telecentric, which flattens the field of view and reduces parallax, and features optical coatings that are optimized for the 656nm H-alpha wavelength. This design enables the use of nighttime telescopes for solar viewing, so it can be removed from the Scout OTA and inserted and used in many traditional telescopes with the addition of required adapters that are available separately.The Solar Scout is offered here as an OTA-only option, so a mount and tripod are required for proper use. Daystar includes a Vixen-style dovetail plate to be compatible with many mounts, and a 1/4"-20 socket on the plate allows it to be directly attached to many photo, video, or field tripods. Also included is a solar finder for safe alignment during observation, and a hard carrying case to protect it when it's not being used. - Optical Tube
-
- 60mm aperture keeps the overall diameter narrow for easier handling
- Slow f/15.5 focal ratio
- 930mm focal length produces a moderate magnification potential
- Refractor-style light path is sturdy and requires little maintenance—ideal for off-the-grid observations
- Achromatic doublet lens design corrects spherical and chromatic aberration to produce accurate color fidelity without distortion across the entire field of view

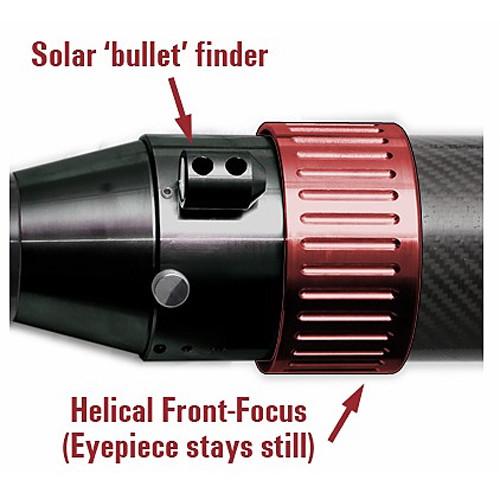

- Sturdy and precise helical focuser has no backlash and won't rotate eyepiece/imaging rig to ensure optical alignment and orientation
- Carbon fiber optical tube reduces weight without sacrificing strength, and resists the expansion/contraction caused by temperature fluctuations that can cause internal lenses to move out of alignment, affecting image quality and focusing ability
- Prominence Quark
-
- Hydrogen-alpha bandpass
- Integrated 12mm blocking filter
- 16mm clear filter aperture
- Tuned to 0.8-0.6Å for viewing prominence details
- Tuning knob allows for ±0.5Å wing shift for Doppler-shift compensation
- Markers at every 0.1Å for reference and repeatability
- LED indicators for power, warming, ready, and fault
- Integrated 4.3x Barlow lens provides critical backfocus distance while producing high magnifications from eyepieces with normally moderate power
- Two-element telecentric lens design keeps light waves parallel to flatten the field of view and reduce parallax as magnification increases
- 1.25" nosepiece and holder is compatible with a wide range of drawtubes/focusers and visual/photographic accessories
- Can be moved to other OTAs
Power Requirements:- 5 VDC, 1.5A micro-USB port
- 90-240 VAC US wall outlet adapter
- Mounting
-
- OTA only, mount and tripod required
- Vixen-style dovetail plate is compatible with a wide variety of mounts
- 1/4"-20 mounting socket allows the use of many photo/video/field tripods
- Accessories
- Finder:
- Allows for safe alignment with the sun
- Does not require directly looking at the sun
- Safely projects image of the sun on a small white screen for accurate alignment
- Compact bullet design
Carrying Case:- Hard exterior protects contents during transport and storage
- Foam-lined interior
UPC: 724696426141 In the Box DayStar Filters Solar Scout 60mm f/15.5 H-alpha Carbon Fiber Solar Telescope (Prominence, OTA Only) Quark Jr for Prominence Solar Finder AC Power Adapter Hard Carrying Case Limited 5-Year Warranty Solar and Solar Eclipse Viewing 101 Christopher Witt 12/14/2016 Mark Your Calendars: North American Solar Eclipse 2017 Todd Vorenkamp and Christopher Witt 08/19/2016 bybwbdzrbbq Table of Contents
|
Upload User Manual
Have you got an user manual for the DayStar Filters Solar Scout 60mm f 15.5 H-alpha Carbon Fiber Solar Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDayStar Filters Scout Specs | | | Optical Design | Achromatic Doublet Refractor | | Aperture | 60 mm / 2.4" | | Focal Length | 930 mm | | Focal Ratio | f/15.5 | | Focuser | Helical | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | None | | Finderscope | Yes | | Mounting System | Vixen Style, 1/4"-20 Female | | Optical Tube Dimensions | 15.9 x 4.3 x 3.1" / 40.3 x 11 x 7.8 cm | | | | Filtration Wavelength | Hydrogen-alpha | | Bandpass | <5.0 Å | | Blocking Filter | 12 mm | | | | Batteries | None | | Adapter | 12 VDC (Included) | | GPS | None | | Wi-Fi | None | | Weight | 2.9 lb / 1.3 kg |
