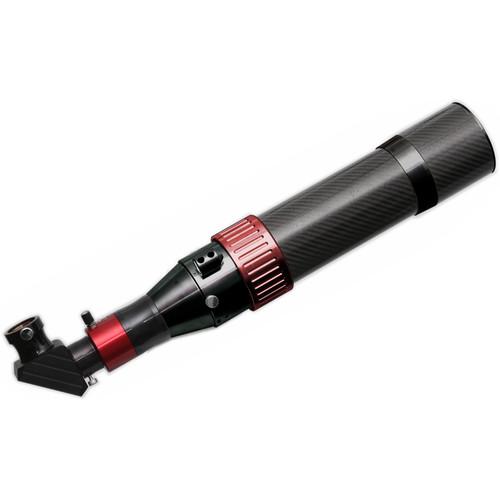

Product description A Buying Guide for Solar and Solar Eclipse Viewing Read More Study the rich details of the sun's prominence using Daystar Filters Solar Scout 80mm f/17.5 H-alpha Achro Solar Telescope. Optically, this is an achromatic doublet refractor which corrects spherical and chromatic aberrations to produce accurate color rendition without distortion across the entire field of view. Included with the optical tube assembly is the Quark solar filter system, specifically tuned for prominence viewing. Prominences, a detail of the chromosphere projected against the blackness of space behind the sun, are seen with improved contrast due to the filter's narrower bandpass versus a wider bandpass filter tuned for conventional chromosphere surface viewing.The Quark is an all-in-one hydrogen-alpha filter engineered to eliminate unnecessary components, which reduces the size and weight and enables it to fit in a compact form factor that simply inserts into drawtubes and accepts 1.25" eyepieces. In addition to the tunable H-alpha filter, the Quark also functions as a 4.3x Barlow lens with a two-element lens system that is designed to be telecentric, which flattens the field of view and reduces parallax, and optical coatings that are optimized for the 656nm H-alpha wavelength. This design enables the use of nighttime telescopes for solar viewing, so it can be removed from the Scout OTA and inserted and used in many traditional telescopes.The Solar Scout is offered here as an OTA-only option, so a mount and tripod are required for proper use. Daystar includes a Vixen-style dovetail plate to be compatible with many mounts, and a 1/4"-20 mount on the plate allows it to be directly attached to many photo, video, or field tripods. Also included is a solar finder for safe alignment for observation, and a hard carrying case to protect it when it's not being used. - Optical Tube
-
- 80mm aperture
- f/17.5 focal ratio
- 1400mm focal length
- Refractor-style optical configuration
- Achromatic doublet lens design corrects spherical and chromatic aberration to produce accurate color fidelity without distortion across the entire field of view
- Sturdy and precise helical focuser has no backlash and won't rotate eyepiece/imaging rig
- Carbon fiber optical tube reduces weight without sacrificing strength, and resists the expansion/contraction caused by temperature fluctuations which can cause internal lenses to move out of alignment and affecting image quality and focusing ability
- Prominence Quark
-
- Hydrogen-alpha bandpass
- Integrated 12mm blocking filter
- 22mm clear filter aperture
- Tuned to 0.5-0.3Å for viewing prominence details
- Tuning knob allows for ±0.5Å wing shift for Doppler-shift compensation
- Markers at every 0.1Å for reference and repeatability
- LED indicators for power, warming, ready, and fault
- Integrated 4.3x Barlow lens
- Two-element telecentric lens design keeps light waves parallel to flatten the field of view and reduce parallax as magnification increases
- Combination 2" & 1.25" snout — accepts 1.25" eyepieces and accessories
- Can be moved to other OTAs
Power Requirements:- 5 VDC, 1.5A micro-USB port
- 90-240 VAC wall adapter
- Includes a set of international outlet plugs for US, UK, EU, and Australia
- Mounting
-
- OTA only, mount and tripod required
- Vixen-style dovetail plate is compatible with a wide variety of mounts
- 1/4"-20 mounting socket allows the use of many photo/video/field tripods
- Accessories
-
Finder:- Allows for safe alignment with the sun
- Does not require directly looking at the sun
- Safely projects image of the sun on a small white screen for accurate alignment
- Compact bullet design
Carrying Case:- Hard exterior protects for transport and storage
- Foam-lined interior
UPC: 724696425915 In the Box DayStar Filters Solar Scout 80mm f/17.5 H-alpha Achro Solar Telescope (Prominence, OTA Only) QUARK H-Alpha Eyepiece Solar Filter (Prominence) bfutacbrwtcxqzfsbtvevzwzubacyaq Solar Finder AC Power Adapter Hard Carrying Case Limited 5-Year Warranty Solar and Solar Eclipse Viewing 101 Christopher Witt 12/14/2016 Mark Your Calendars: North American Solar Eclipse 2017 Todd Vorenkamp and Christopher Witt 08/19/2016 Table of Contents
|
Upload User Manual
Have you got an user manual for the DayStar Filters Solar Scout 80mm f 17.5 H-alpha Achro Solar Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDayStar Filters SS80P Specs | | | Optical Design | Achromatic Doublet Refractor | | Aperture | 80 mm / 3.1" | | Focal Length | 1400 mm | | Focal Ratio | f/17.5 | | Focuser | Helical | | Eyepiece Barrel Diameter | 2" | | Diagonal | None | | Finderscope | Yes | | Mounting System | Vixen Style | | | | Filtration Wavelength | Hydrogen-alpha | | Bandpass | 0.5 Å | | Blocking Filter | 12 mm | | | | Batteries | None | | Adapter | 5 VDC | | GPS | None | | Wi-Fi | None | | Assembled Dimensions | 20.2 x 5.3 x 3.7" / 51.2 x 13.5 x 9.4 cm | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 28.6 x 16.7 x 8.5" |
