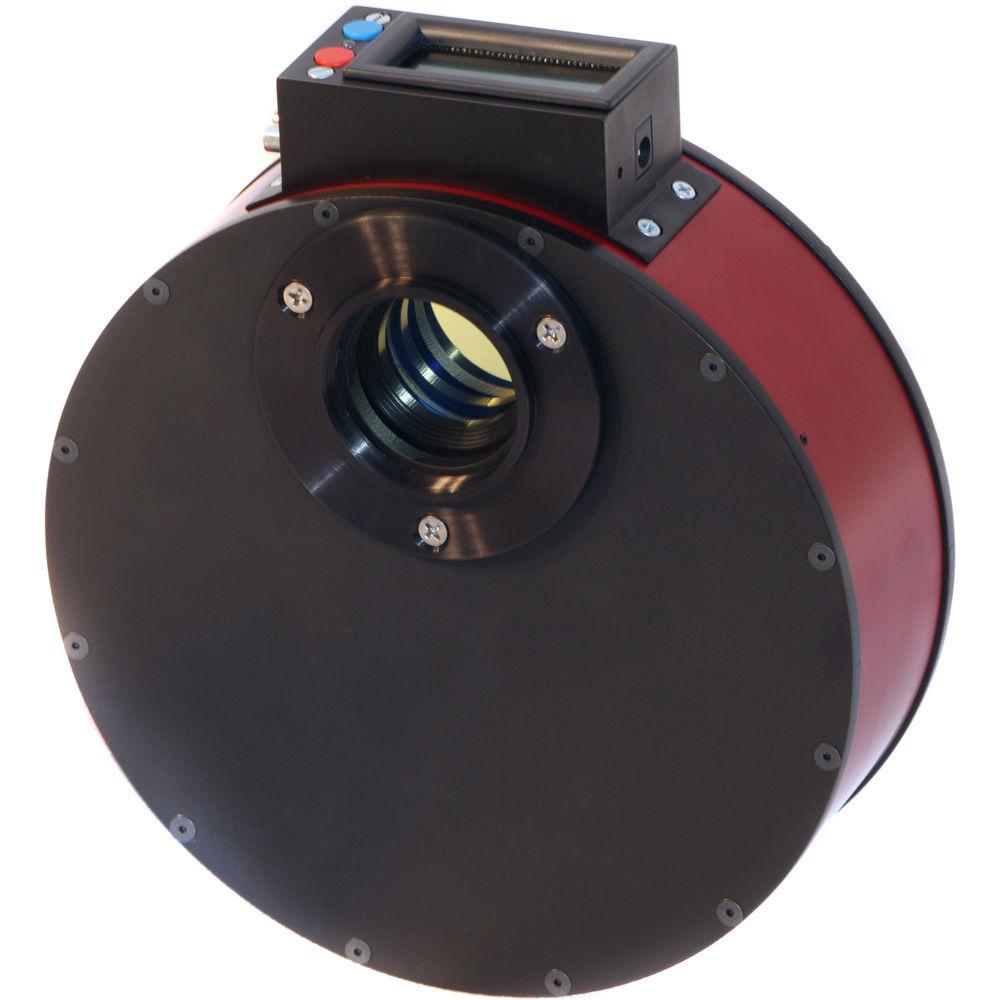

User Manual for DayStar Filters Solar System Filter Wheel Click to enlarge the picture
Contents of the user manual for the DayStar Filters Solar System Filter Wheel
- Product category: Solar Filters for Astronomical Telescopes DayStar Filters
- Brand: DayStar Filters
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DayStar Filters Solar Filters for Astronomical Telescopes
 |
User manual for the DayStar Filters Solar System Filter Wheel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DayStar Filters product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DayStar Filters user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DayStar Filters product will considerably shorten its lifespan!
|

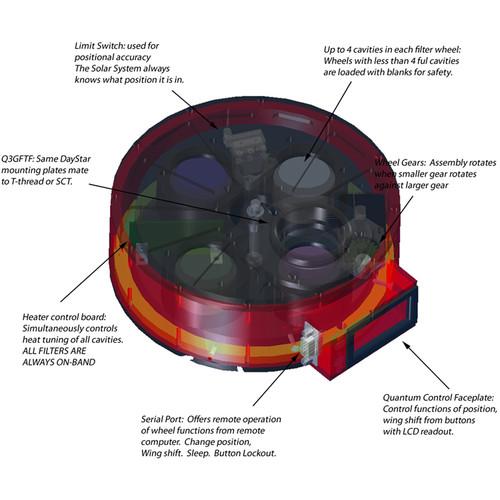

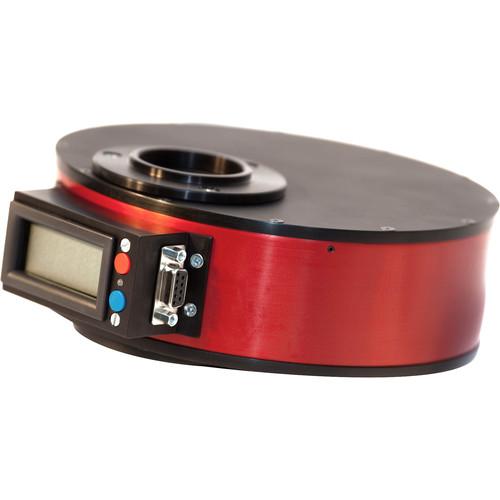

Product description A Buying Guide for Solar and Solar Eclipse Viewing Read More View the sun through four different filters with just the touch of a button using the Daystar Filters Solar System Filter Wheel. Easily switch from Hydrogen Alpha for prominences or surface detail to Helium to Calcium and back again, effortlessly and accurately, using just one telescope. The four filters provide a range of viewing options of the sun, and are recommended for use with refractors, Schmidt-Cassegrain, and Maksutov-Cassegrain optical tube assemblies of any aperture with focal ratios between f/27 and f/35. Barlow lenses or stop-down masks may be required to reach the recommended focal ratios, and ERF and UV/IR-cut filters are required for proper and safe use and performance. For mounting, the wheel accepts standard Quantum plates, providing mounting to standard T-threads, SCT backs, or 2" drawtubes.The wheel uses the same electronic temperature tuning system as regular Quantum filters, which is accurate to 0.1Å, and the wavelength can be offset as much as 1.0Å in either direction for Doppler shift compensation and to highlight specific areas. The system is outfitted with an RS-232 serial port that allows it to be connected to a computer and enables remote viewing of the wavelength display and control of the tuning. It runs on 12 VDC power and comes with a 6' power cord and a set of international outlet plugs for US, EU, UK, and Australia.This version of the Quantum system is designed for professional research-grade users who require tight tolerances and improved quality. To accomplish this, Daystar improved homogeneity and on-band transmittance values across the substrate surface, so these filters require additional quality control steps, as well as additional fabrication and testing times. - Hydrogen-Alpha 0.4Å
-
- Calibrated for the H-alpha wavelength at 6562.8Å
- Anti-reflection coated BK7 glass
- Mainly used to study the photospheric, chromospheric, prominence, and atmospheric areas of the sun
- Specifically improves solar surface contrast and fine chromosphere details
- Hydrogen-Alpha 0.7Å
-
- Calibrated for the H-alpha wavelength at 6562.8
|
Upload User Manual
Have you got an user manual for the DayStar Filters Solar System Filter Wheel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDayStar Filters FW-04PHA-07SHA-03PHED-5CAH Specs | Filter Type | 2 x H-alpha
1 x He D3-line
1 x Ca II H-line | | Wavelength | 6562.8
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 77 owners. Add your rating and experience with the product.
