User Manual for DayStar Filters Solar System Filter Wheel Click to enlarge the picture
Contents of the user manual for the DayStar Filters Solar System Filter Wheel
- Product category: Solar Filters for Astronomical Telescopes DayStar Filters
- Brand: DayStar Filters
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DayStar Filters Solar Filters for Astronomical Telescopes
 |
User manual for the DayStar Filters Solar System Filter Wheel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DayStar Filters product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DayStar Filters user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DayStar Filters product will considerably shorten its lifespan!
|

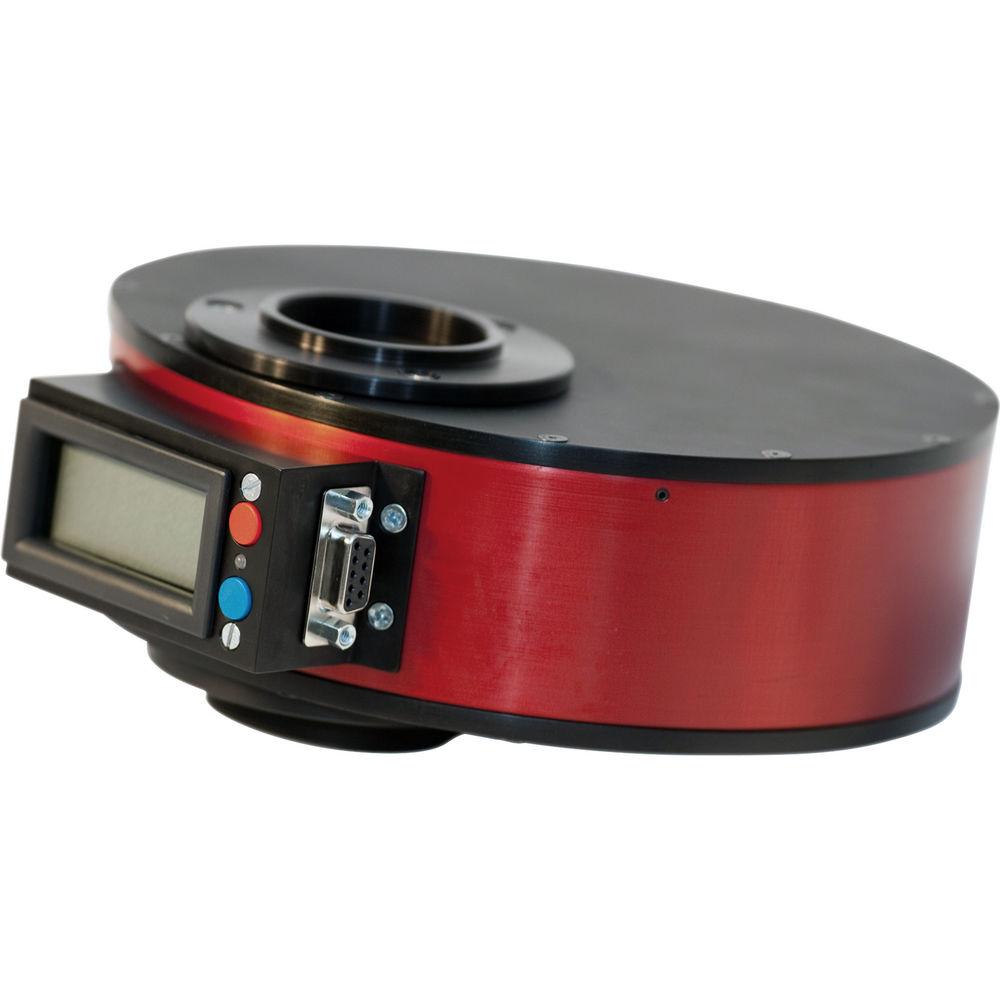

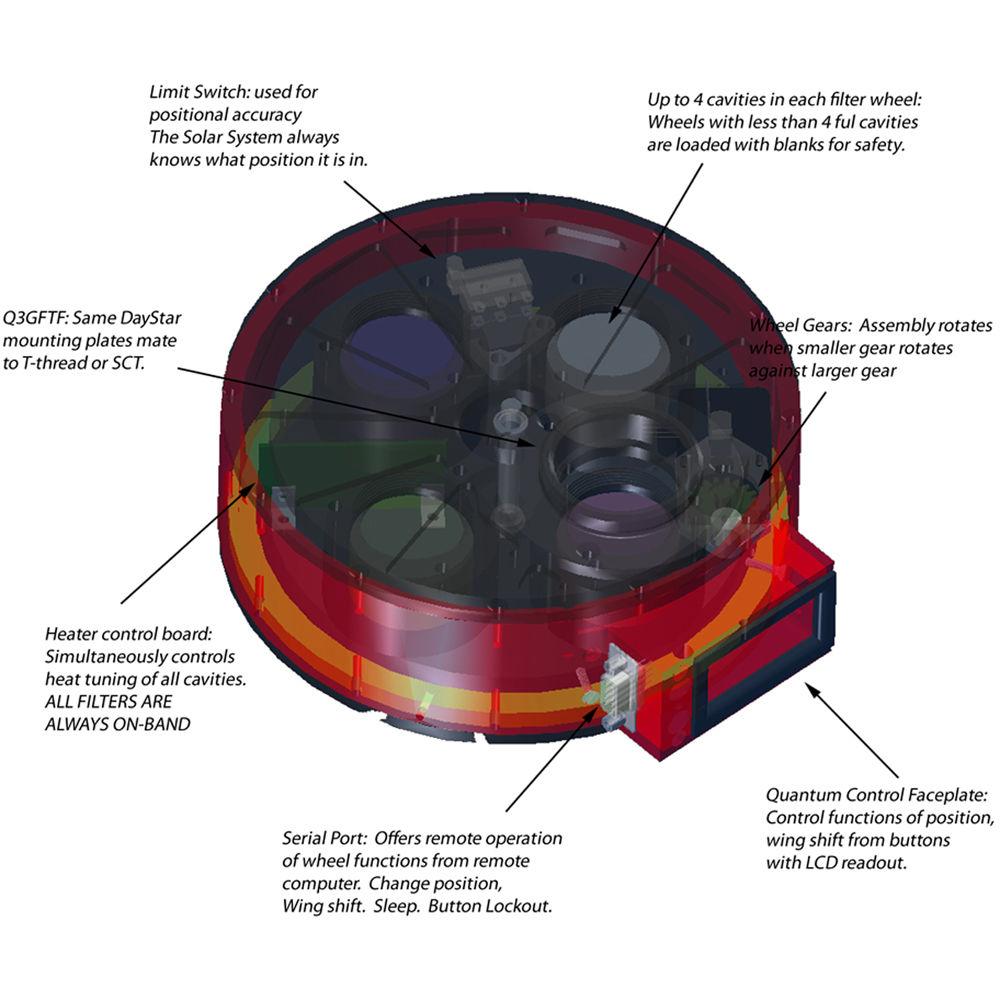

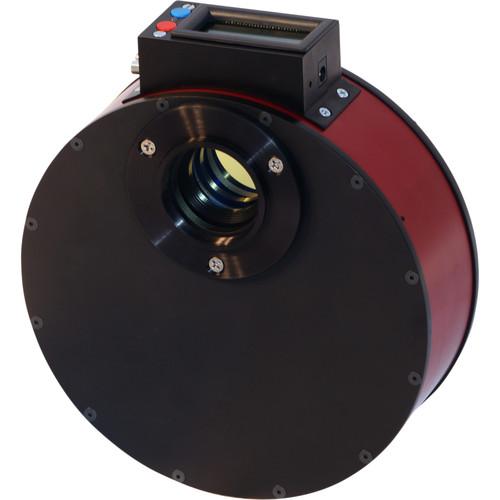

Product description A Buying Guide for Solar and Solar Eclipse Viewing Read More wcwbybrycacxbrcvczstvtec Release the full potential of your astronomical telescope with Daystar Filters' Solar System Filter Wheel and quickly convert your nighttime scope to a solar scope. Easily switch from H-alpha to sodium to helium to calcium and back again with the touch of a button to view various wavelengths without requiring separate OTAs. The wheel is offered here without any filters for those who already have a selection and want to upgrade their rigs with the wheel housing. It can hold up to four filters and requires a minimum of two to function, using any DayStar wavelength, bandpass, or custom filter combinations. An intuitive user interface with a simple two-button electronic tuner, which is accurate to 0.1Å,enables the wavelength to be offset as much as 1.0Å in either direction for Doppler shift compensation and to highlight specific areas.Using the included plates, the wheel can be mounted to T-threads, Schmidt-Cassegrain back threads, or 2" drawtubes (to use with eyepieces or cameras). The wheel is outfitted with an RS-232 serial port that allows it to be connected to a computer and enables remote viewing of the wavelength display, and control of the tuning and filter selection. To run it at home or away, it runs on 1-30 VDC power and comes with a universal AC adapter and an international plug kit for the US, UK, EU and Australia.Most telescope configurations and styles can be used with no aperture limit, although Daystar recommends using the wheel at focal ratios between f/27 and f/35. An optional Powermate Barlow or stop-down mask can be used to get to that f-stop, and an energy rejection filter or UV/IR cut filter must be used to prevent damage to the optical system. - OTA Recommendations
-
- Refractor, SCT, Maksutov (with sufficient focus travel)
- No aperture limitations
- Apochromatic refractor recommended for best results
- Achromats may require slight focus adjustment when changing positions
- Recommended focal ratio range: f/27-f/35
- Best performance at f/30 focal ratios
- Filter/Accessory Compatibility
-
- Accepts standard Quantum plates
- Mounting to T-thread, Schmidt-Cassegrain back thread, or 2" drawtube (for use with eyepieces or cameras)
- Power
-
- 10-30 VDC, 2.5 amps
- Universal AC wall adapter
- Set of international outlet plugs for US, UK, EU, and Australia
UPC: 724696425250 In the Box DayStar Filters Solar System Filter Wheel (Housing Only) Front Plate Rear Plate Hard Carrying Case Power Adapter with Cord Set of International Outlet Plugs Limited 5-Year Warranty Solar and Solar Eclipse Viewing 101 Christopher Witt 12/14/2016 Mark Your Calendars: North American Solar Eclipse 2017 Todd Vorenkamp and Christopher Witt 08/19/2016 Table of Contents
|
Upload User Manual
Have you got an user manual for the DayStar Filters Solar System Filter Wheel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDayStar Filters FW-UPGRADE Specs | Power Requirement | 10 - 30 VDC, 2.5 A | | Dimensions | 7.75 x 7.0 x 2.3" / 19.7 x 17.8 x 5.8 cm | | Weight | 5.1 lb / 2.3 kg, fully loaded |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 25 owners. Add your rating and experience with the product.
