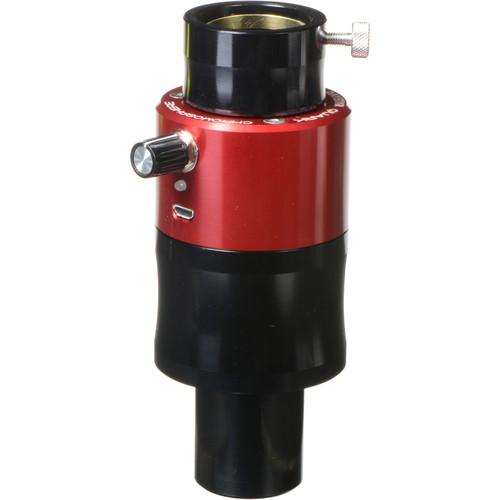

Product description A Buying Guide for Solar and Solar Eclipse Viewing Read More With a shorter snout than the standard model, the Daystar Filters Spotting Scope QUARK H-Alpha Eyepiece Solar Filter is made to fit into spotting scopes that accept conventional 1.25" eyepieces. The shorter snout allows it to sit deeper into spotting scope eyepiece holder so it can achieve the proper focus.This version is specifically tuned for viewing chromosphere details. The chromosphere's surface structure behaves differently in active regions than quiet areas, where magnetic field lines are stronger, so viewing this portion of the sun provides a constantly-changing observational experience. Designed as an all-in-one hydrogen-alpha (H-alpha) filter, it is engineered to eliminate unnecessary components which reduces it to a compact form factor. In addition to the tunable H-alpha filter, the Quark also functions as a 4.3x Barlow lens, with a 2-element lens system designed to be telecentric which flattens the field of view and reduces parallax, and optical coatings that are optimized for the 656nm H-alpha wavelength.While there are no OTA aperture limitations, Daystar recommends the use of UV/IR cut filters or front-mount energy rejection filters on spotters over 80mm of for long-duration solar viewing sessions. The filter is powered via a micro-USB port, and Daystar includes a power cord and an AC adapter to meet the high-power requirements of 5 VDC 1.5A. To enable its use at home and abroad, a set of international outlet plugs is provided with adapters for the US, UK, EU, and Australia. - Filter Properties
-
- Hydrogen-alpha bandpass
- Integrated 12mm blocking filter
- 21mm clear filter aperture
- Tuned to 0.5-0.3Å for viewing chromosphere
- Tuning knob allows for ±0.5Å wing shift for Doppler-shift compensation
- Markers at every 0.1Å for reference and repeatability
- LED indicators for power, warming, ready, and fault
- Optics
-
- Integrated 4.3x Barlow lens
- Lens and optical coatings designed specifically for 656nm H-alpha wavelength
- Two-element telecentric lens design keeps light waves parallel to flatten the field of view and reduce parallax as magnification increases
- Recommended Spotting Scope Specifications
-
- Fits spotting scopes that accept standard 1.25" eyepieces
- Will NOT work on spotting scopes with proprietary eyepiece bayonet mounts
- No aperture limitation
- For apertures over 80mm (3.1"), or for long-duration solar viewing, a UV/IR cut filter or ERF should be used to prevent over-heating of the optics
- Power
-
- 5 VDC, 1.5A micro-USB port
- 90-240 VAC wall adapter
- Set of international outlet plugs for US, UK, EU, and Australia
UPC: 724696425991 In the Box DayStar Filters Spotting Scope QUARK H-Alpha Eyepiece Solar Filter (Chromosphere) Plastic Case USB Power Cord Wall Outlet Power Adapter Set of International Plug Adapters Limited 5-Year Warranty Solar and Solar Eclipse Viewing 101 Christopher Witt 12/14/2016 trxcwxqyfzdrbcsewbstwyrr Mark Your Calendars: North American Solar Eclipse 2017 Todd Vorenkamp and Christopher Witt 08/19/2016 Table of Contents
|
Upload User Manual
Have you got an user manual for the DayStar Filters Spotting Scope QUARK H-Alpha Eyepiece Solar Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDayStar Filters DSC4SC Specs | Type | Hydrogen-Alpha | | Filter Factor | 0.5 - 0.3 Å | | Application | Chromosphere viewing | | Eyepiece Barrel Diameter | 1.25" | | Multi-Coated | Yes | | Power Requirement | 5 VDC, 1.5 A | | Construction | Aluminum alloy | | Dimensions | 5.7 x 2.8 x 2.2" / 14.6 x 7.1 x 5.5 cm | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 10.7 x 4.5 x 4.2" |
