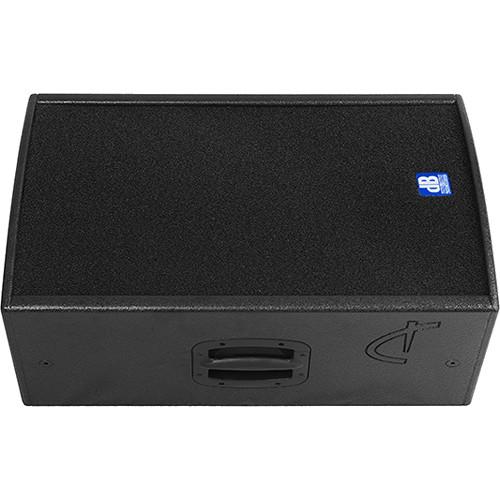

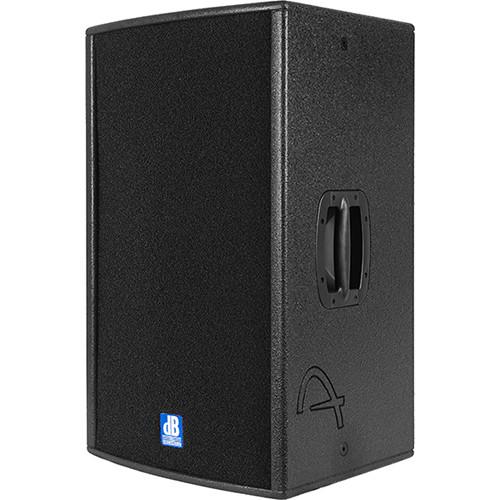

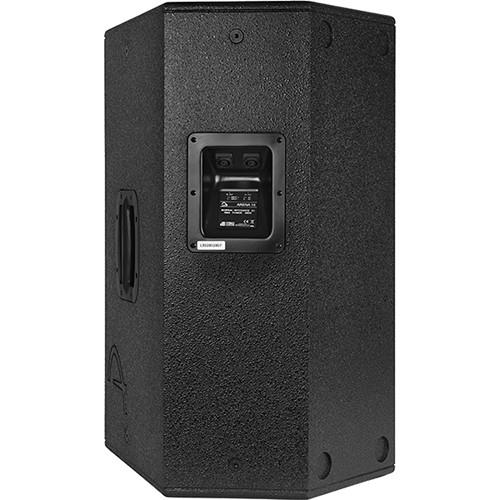

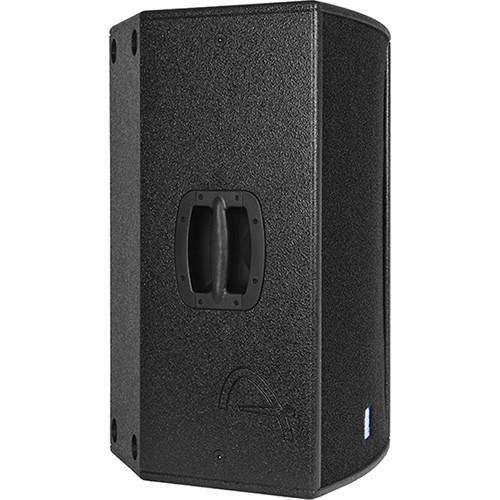

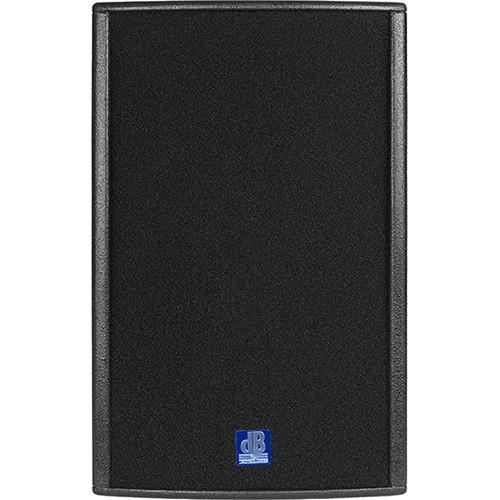

Product description The ARENA 15 Professional 15” 2-Way Passive Speaker from dB Technologies is a wooden 2-way passive loudspeaker designed for medium-to-large sized rooms. It is made from birch wood while the various fixing clamps, the pole-mount socket, and the handles ensure easy installation and transport. The loudspeaker can be placed on wall shelves or suspended through the fixing clamps placed above, under, or on the side of the loudspeaker. The lower part of the box has a standard pedestal support (D36mm).The ARENA Loudspeaker features passive crossover filters with a slope of 12 dB/oct for the low-pass part, 18 dB/oct for the high-pass, and a self-resetting thermal protection circuit on the driver to prevent protracted overloading. In the Box dB Technologies ARENA 15 Professional 15" 2-Way Passive Speaker Rubber Feet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies ARENA 15 Professional 15" 2-Way Passive Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies ARENA-15 Specs | Speaker System | Passive 2-way | | RMS Power | 400 W | | Peak Power | 800 W | | Frequency Response | 80 Hz to 19 kHz (-3 dB)
70 Hz to 19 kHz (-6 dB) | | Crossover | 2 kHz | | Sound Pressure | 129 dB maximum | | Impedance | 8 ohms | | Components | 1 x 15" woofer
2.5" coil
1 x 1" compression driver
1.4" exit voice (1" coil) | | Filters | 18 dB/oct high-pass
12 dB/oct low-pass | | Dispersion | 90° x 40° (rotary) | | Audio Connectors | 2 x Speakon in parallel | | Flying Mode | 10 MA x 12 points | | Stand | D (36 mm) | | Handle | 1 (one for side) | | Dimensions (H x L x D) | 18 x 28 x 18" (46 x 71 x 45 cm) | | Weight | 52.2 lb (23.7 kg) | | | | Package Weight | 60.0 lb | | Box Dimensions (LxWxH) | 31.2 x 22.0 x 22.0" |
