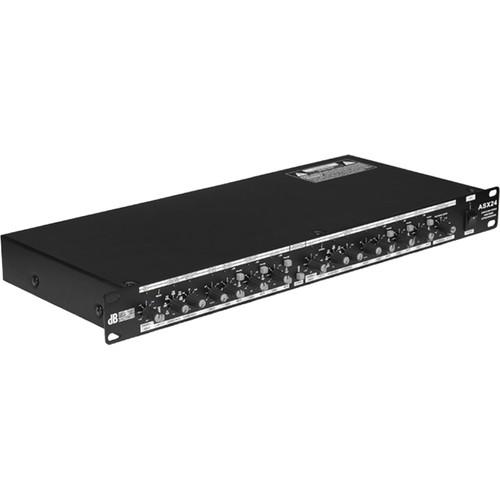

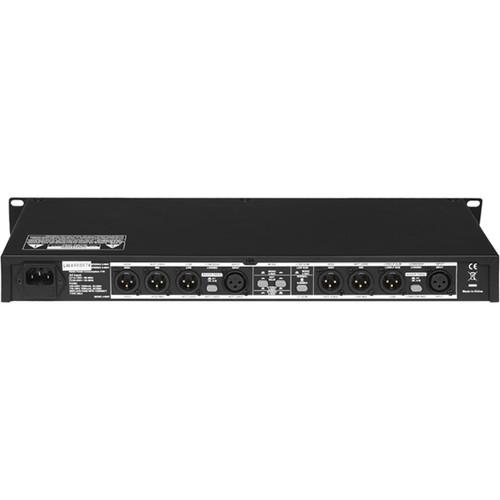

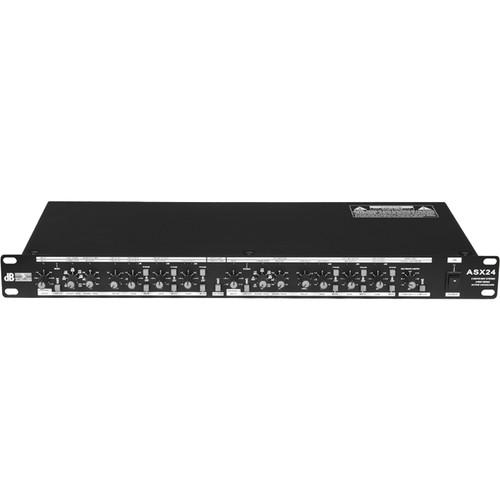

Product description The ASX 24 2-Way/3-Way Stereo with 4-Way Mono Active Crossover from dB Technologies features a 2x XLR-input with 25 Hz high-pass filter switch and a 6x XLR-output with high quality 24 dB/ octave slope. It has an adjustable delay time up to 2ms for outputs. The LOW SUM function conveys the whole LF range of L&R channels to a mono sub out. In the Box dB Technologies ASX 24 2-Way/3-Way Stereo with 4-Way Mono Active Crossover Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies ASX 24 2-Way 3-Way Stereo with 4-Way Mono Active Crossover in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the dB Technologies ASX 24 2-Way 3-Way Stereo with 4-Way Mono Active Crossover can be downloaded in PDF format at the link stated below.
Technical parametersdB Technologies ASX 24 Specs | | | Connectors | XLR balanced/unbalanced RF filtered | | Impedance | Balanced: 50 kOhms
Unbalanced: 25 kOhms | | Input Level | Maximum: 22 dB typical (balanced/unbalanced) | | CMRR | >40 dB typically
>55 dB @ 1 kHz | | | | Connectors | XLR balanced/unbalanced RF filtered | | Impedance | Balanced: 60 ohms
Unbalanced: 30 ohms | | Maximum Input Level | >+20 dB (Balanced/unbalanced) | | | | Bandwidth | 20 Hz to 20 kHz, +/- 0.5 dB | | Frequency Response | <5 hz to>90 Hz, +/- 0.3 dB | | Signal to Noise | Reference: 4 dBU, 20 Hz to 20 kHz, unweighted | | Output | Stereo:
Low: >93 dBu
Mid: >95 dBu
High: >90 dB
Mono:
Low: >93 dBu
Low to Mid: >94 dB
Mid to High: >94 dBu
High: >88 dB | | Dynamic Range | >106 dB unweight | | THD & Noise | Stereo:
Limiter Off: <0.04%
Mono:
Limiter On: <0.5% | | Crosstalk |
High to Low: <93 dBu
High to Mid: <94 dBu
Mid to Low: <95 dBu
High to High-Mid: <95 dBu
High to High-Mid: <95 dBu
HIgh-Mid to Low-Mid: <95 dBu
Low-Mid to Low: <92 dBu
| | | | Filter Type | Linkwitz-Riley, 24 dB/octave | | Frequency | Stereo Mode (2 or 3-Way): x1
Low/High or Low/Mid: 44 Hz to 930 Hz
Mid/High: 440 Hz to 9.3 kHz
Mono Mode (4-Way): x1
Low/Low-Mid: 44 Hz to 930 Hz
Low-Mid/High-Mid: 440 Hz to 9.3 kHz
High-Mid/High: 440 Hz to 9.3 kHz
Stereo Mode (2 or 3-Way): x10
Low/High or Low/Mid: 440 Hz to 9.3 kHz
Mono Mode (4-Way): x10
Low/Low to Mid: 440 Hz to 9.3 kHz | | | | Front Panel | Low Cut: Activates 25 Hz Butterworth, 12 dB/octave
High-pass filter | | Mute | Mutes the individual output | | Phase Invert | Inverts the phase at individual ouput | | Horn | CD: Corrects CD horn frequency response above 3.5 kHz | | Limiter | Activates the limiter function for all outputs | | Rear Panel Controls | Crossover frequency: Multiplies crossover frequency range by 10
Mode: Selects stereo/mono, selects 2/3/4 way operation
LF Sum: Selects normal stereo or normal summed low frequency operation | | | | Inputs | Controls the input gain (+/-12 dB) | | Crossover Frequency | Controls the crossover frequency | | Delay | Controls the delay at low output (0 to 2 ms) | | Gain | Controls the output gain (+/-6 dB) | | Threshold | Controls the threshold of the limiter (-6 dB to off) | | | | Stereo Output | Yellow LED | | Mono Output | Yellow LED | | Input | Green LED | | Limiter | Red LED | | Power On | Green LED | | | | Voltage | Internal Voltage Setup:
110 to 120 VAC @ 50 to 60 Hz
220 to 240 VAC @ 50 to 60 Hz | | Fuse | 110 to 120 VAC @ T250 mAL, 250 V
220 to 240 VAV @ T500 mAL, 250 V | | Power Consumption | 17 W | | | | Dimensions (W x D x H) | 19.0 x 7.7 x 1.7" (48.2 x 19.5 x 4.4 cm) | | Weight | 6.6 lb (3.0 kg) | | | | Package Weight | 8.4 lb | | Box Dimensions (LxWxH) | 20.8 x 10.5 x 3.7" |
