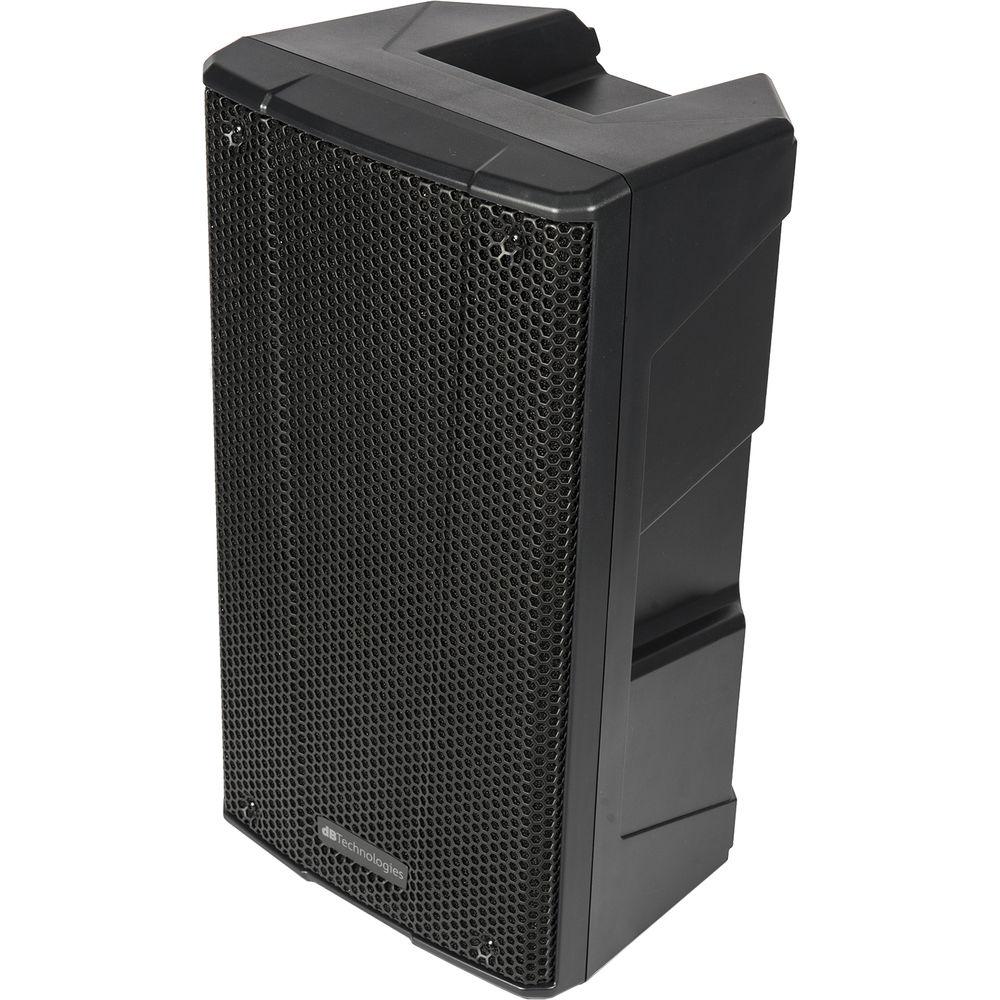

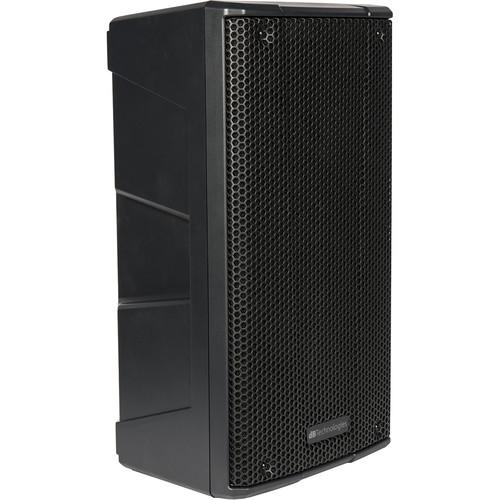

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The B-HYPE 10 2-Way 260W Active Speaker by dB Technologies provides a professional performance for all kinds of sound reinforcement applications, featuring a Class-D amplifier with sound pressure levels up to 121 dB for this 10" cabinet.
The B-HYPE 10 is equipped with one 1” compression driver, and one 10" woofer. The sound dispersion pattern is asymmetrical, which allows sound coverage in acoustically live environments.

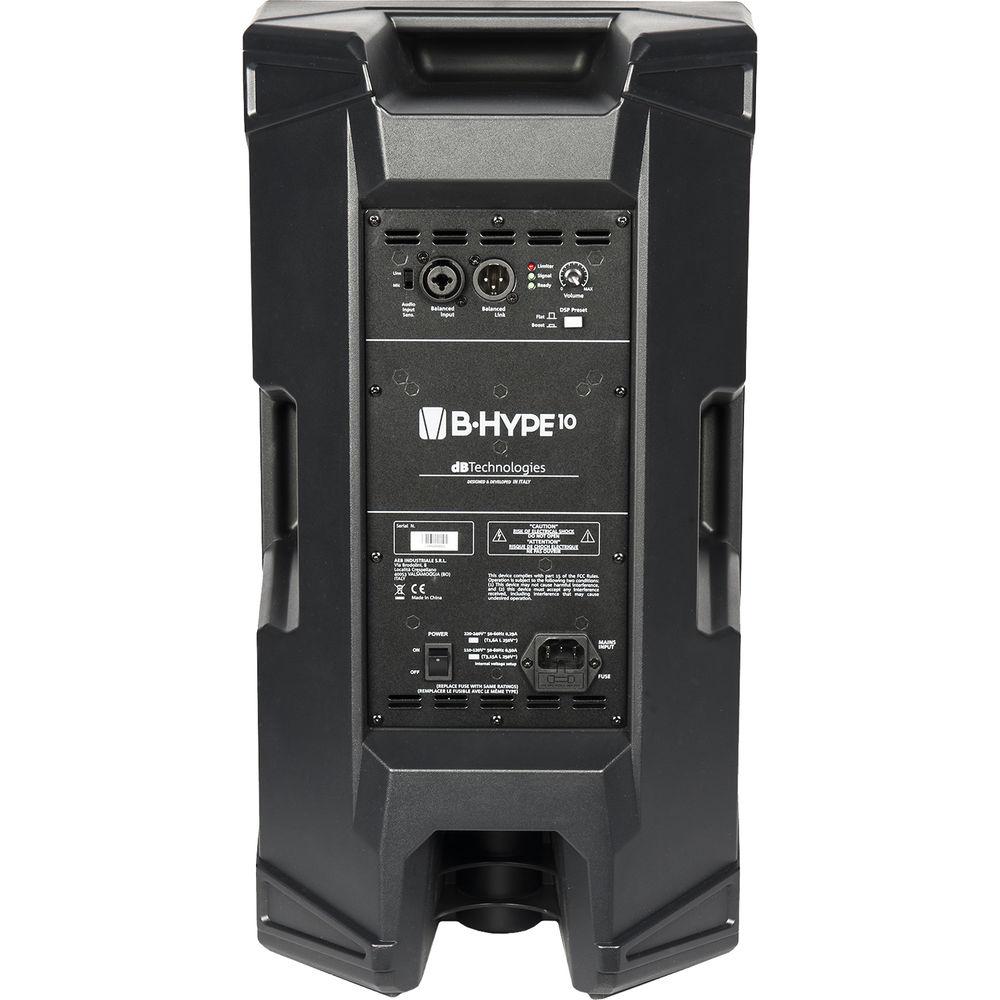

The combo XLR-1/4" input allows you to plug in a dynamic microphone or a standard line-level source. This speaker provides control over lower and upper frequencies with the DSP preset function, and the B-HYPE 10 provides an XLR balanced output that allows the audio connection to a second loudspeaker.

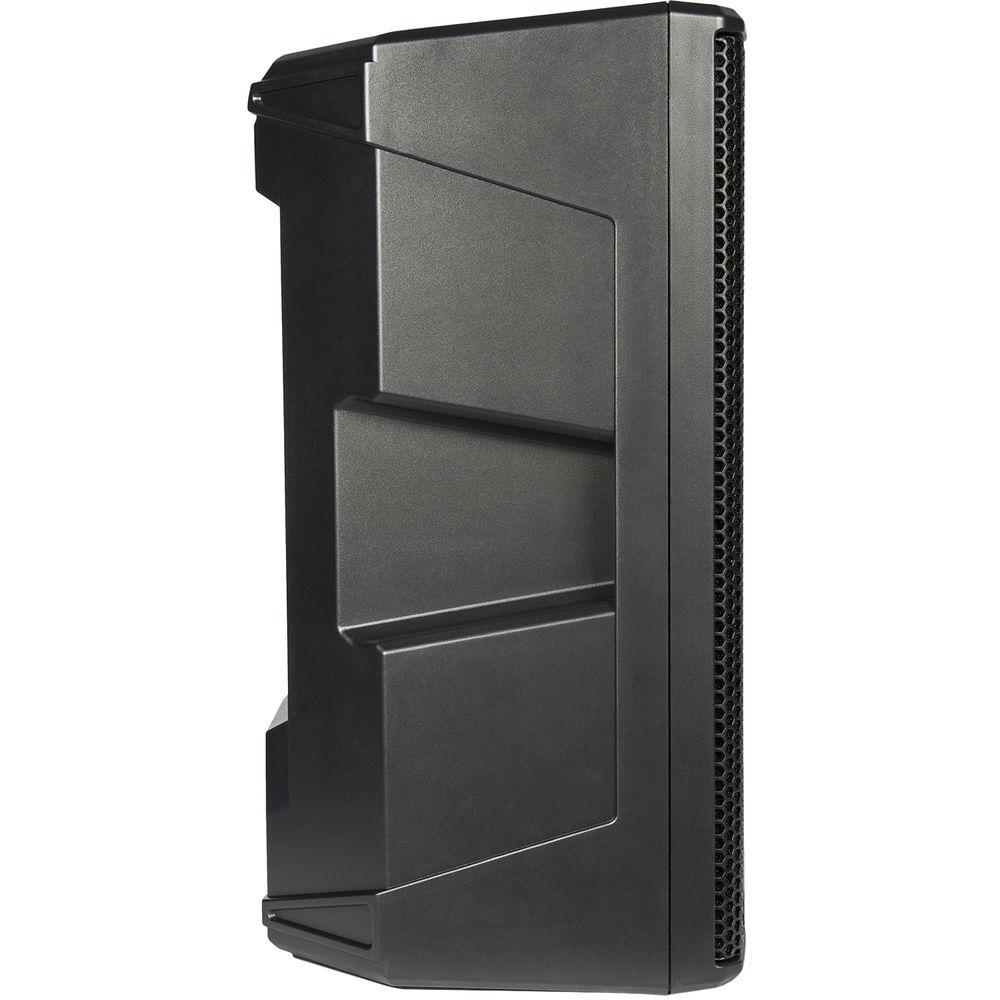

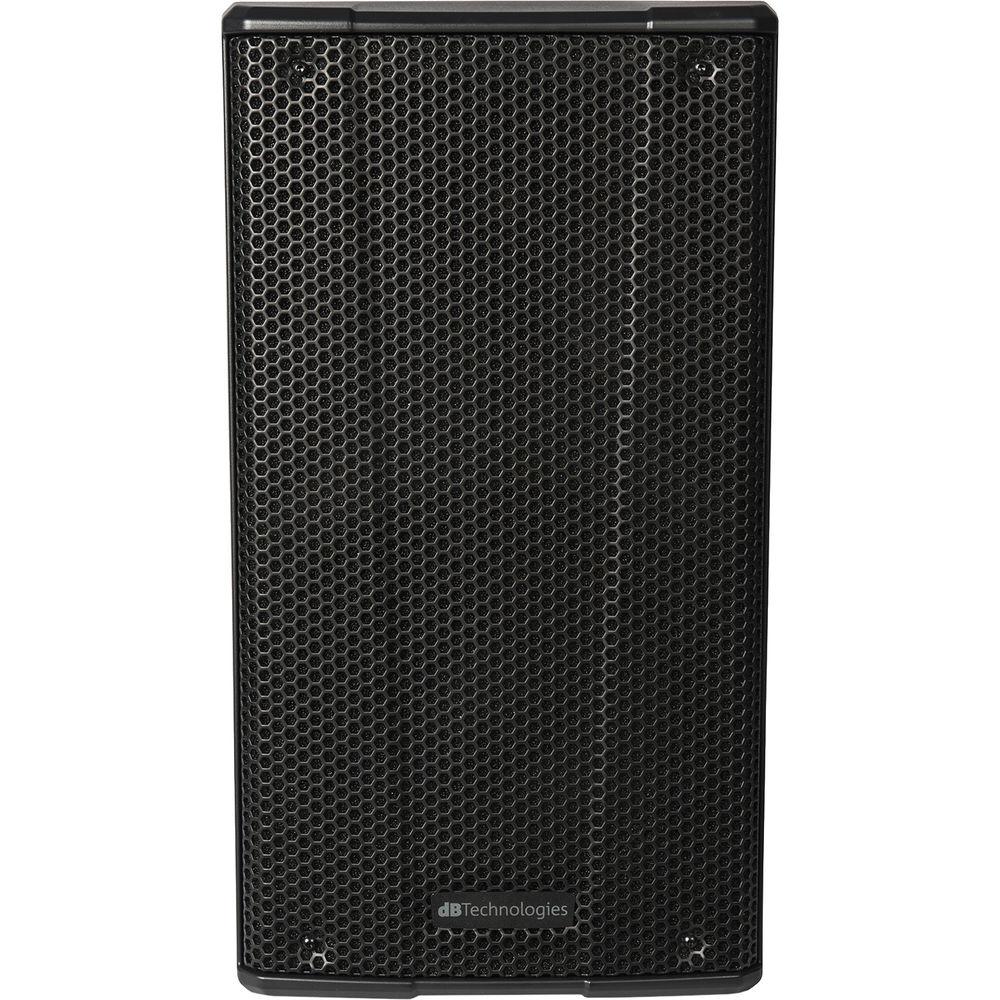

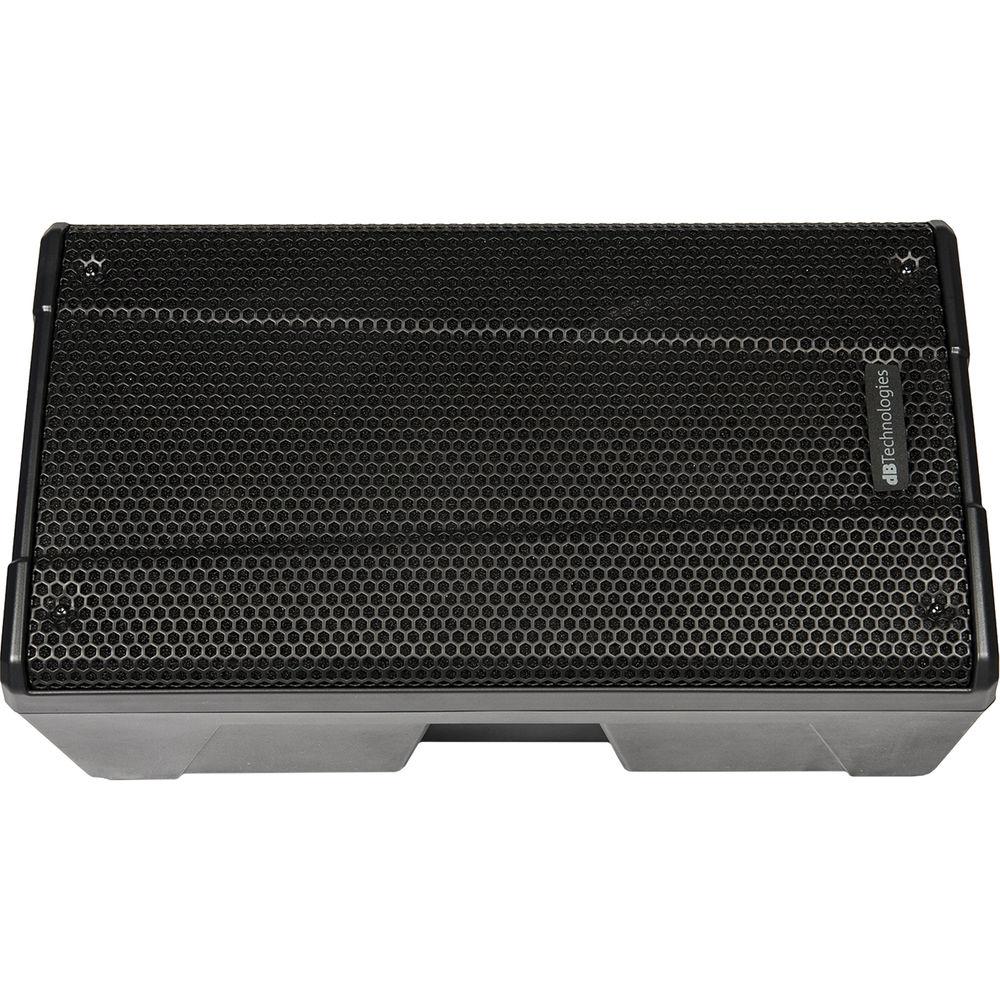

This speaker has a metal grille and the weight of the speaker allows you to carry it by one of the three handles for portability. The B-HYPE 10 can be used horizontally as a stage monitor on both sides and features a pole mount for use with speaker stands or stacked on a subwoofer. In the Box dB Technologies B-HYPE 10 2-Way 260W Active Speaker Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies B-HYPE 10 2-Way 260W Active Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies B HYPE 10" Specs | Speaker Type | 2-Way Active Speaker | | | | Operating Bandwidth | 55 to 20 kHz | | Frequency Response | 62 to 19.6 kHz | | Max SPL | 121 dB | | High Frequency Driver | Compression Driver | | Voice Coil Diameter | 1" | | Low Frequency Driver | 10" | | Voice Coil Diameter | 1.5" | | Crossover Frequency | 2300 Hz (24 dB/Oct.) | | Horizontal Coverage Angle | Asymmetrical 85° up / 120° down | | Vertical Coverage Angle | 85° (+25/-60°) | | | | Amplifier Class | Class-D | | Peak Power | 260 W | | | | Controller | DSP 28-/56-Bit @ 48 kHz | | Limiter | Peak, RMS, Thermal | | Controls | Volume
Audio Input Sensitivity
DSP Preset | | | | Input | 1 x Balanced Combo XLR/1/4" (Mic/Line) | | Output | 1 x Balanced XLR (LINK) | | | | Housing | Polypropylene | | Grille | Metal | | Pole Mount | 1-3/8" / 36 mm | | Power Specifications | 110-120 VAC, 12 A | | Dimensions (W x H x D) | 11.6" x 21.4" x 11.1" / 295 x 544 x 283 mm | | Weight | 19.8 lb / 9 kg |
