User Manual for dB Technologies B-HYPE 12 2-Way 400W Active Speaker Click to enlarge the picture
Contents of the user manual for the dB Technologies B-HYPE 12 2-Way 400W
- Product category: Portable PA Systems dB Technologies
- Brand: dB Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dB Technologies Portable PA Systems
 |
User manual for the dB Technologies B-HYPE 12 2-Way 400W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dB Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dB Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dB Technologies product will considerably shorten its lifespan!
|

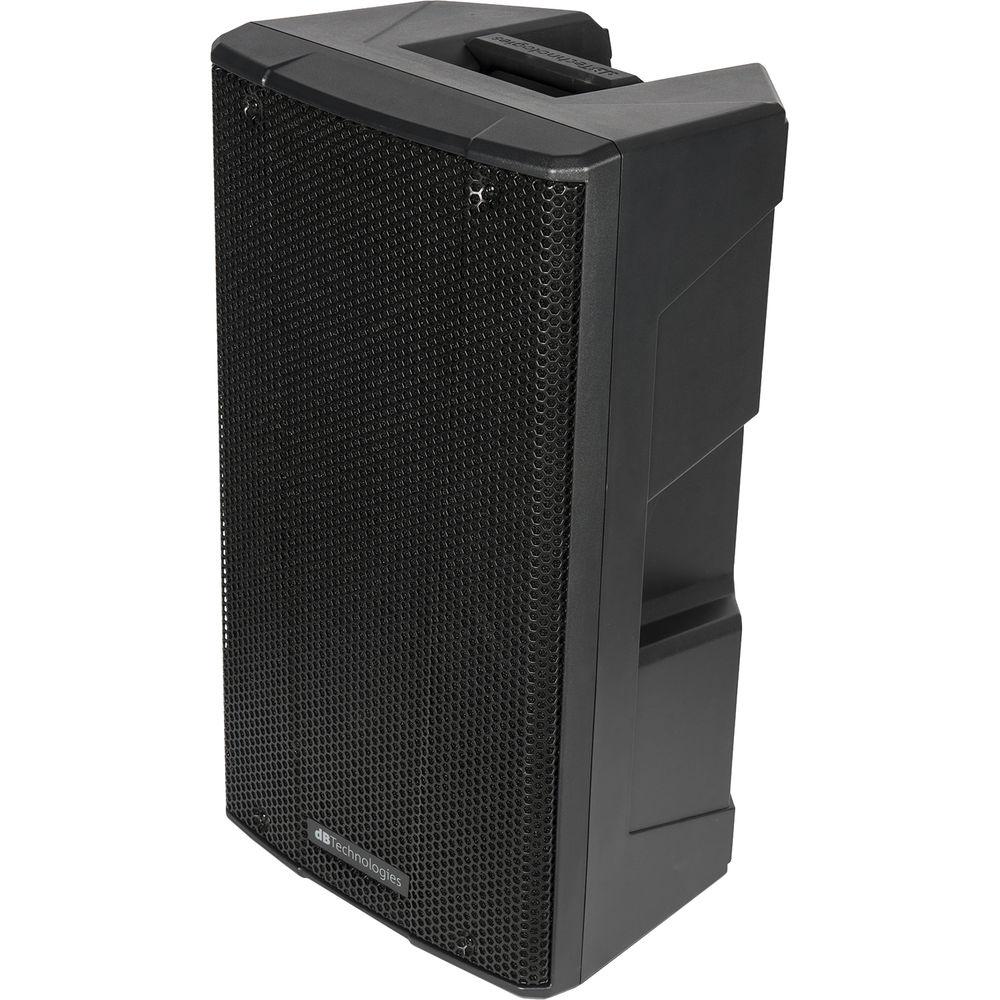

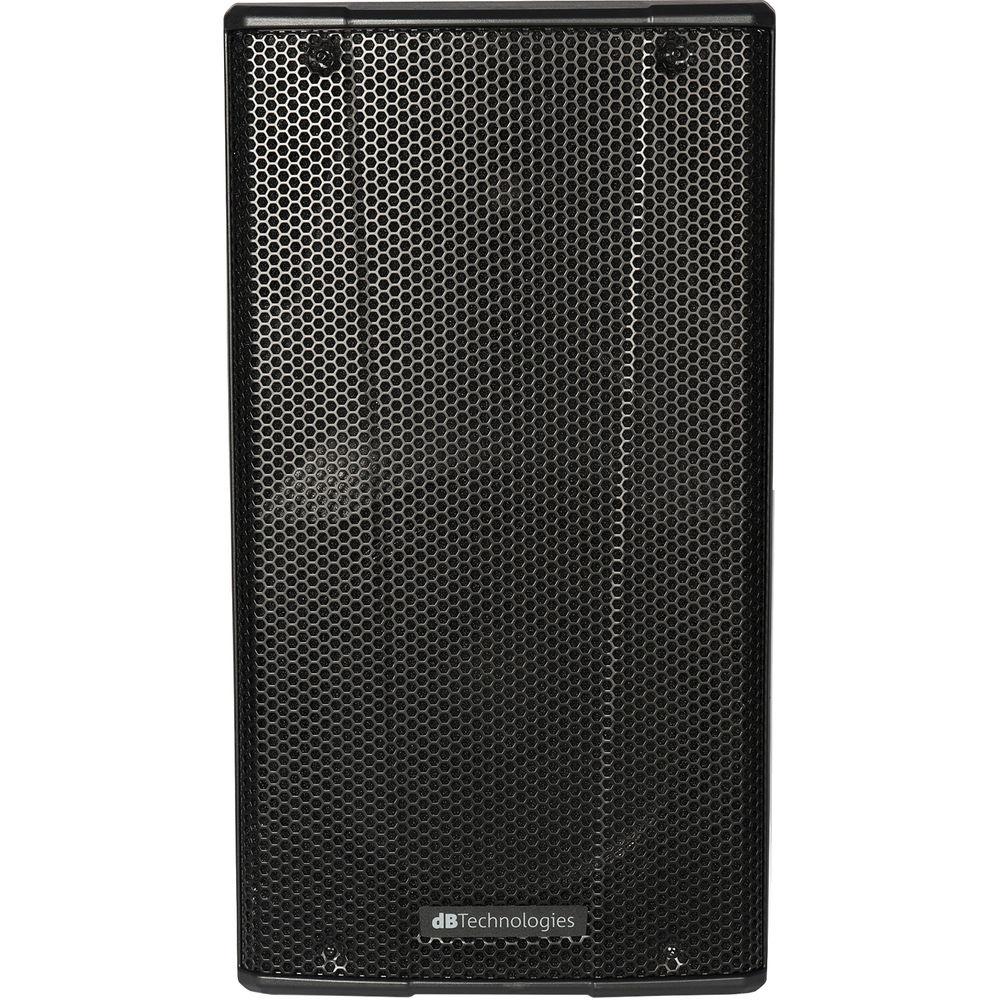

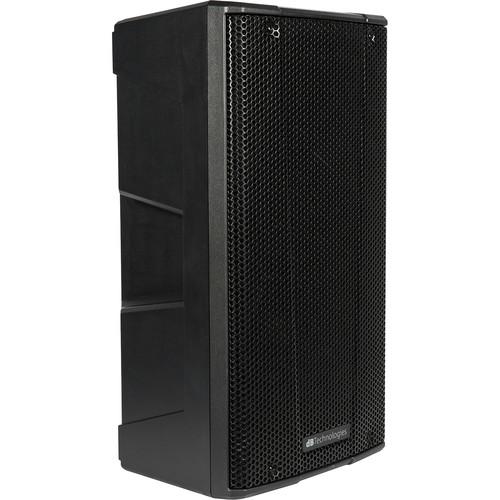

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The B-HYPE 12 2-Way 400W Active Speaker by dB Technologies provides a professional performance for all kinds of sound reinforcement applications, featuring a Class-D amplifier with sound pressure levels up to 126 dB for this 12" cabinet.
The B-HYPE 12 is equipped with one 1” compression driver, and one 12" woofer. The sound dispersion pattern is asymmetrical, which allows sound coverage in acoustically live environments.

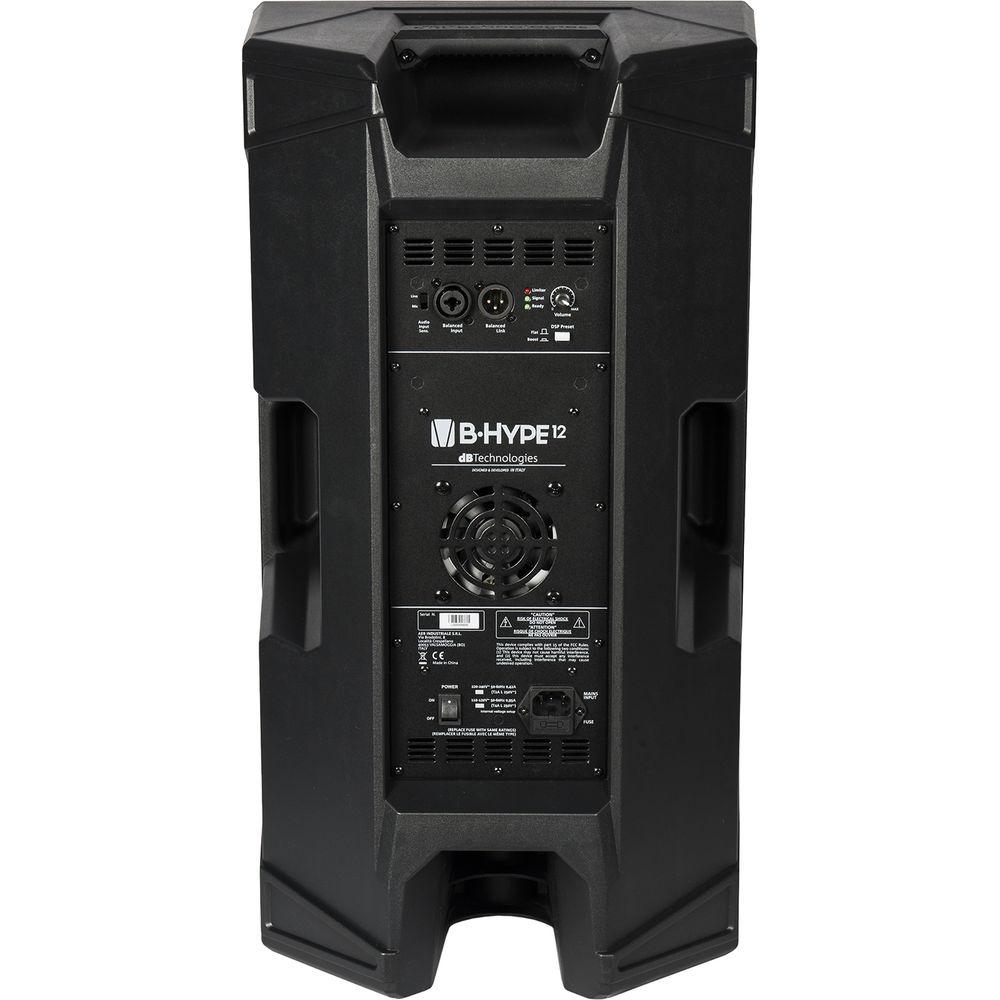

The combo XLR-1/4" input allows you to plug in a dynamic microphone or a standard line-level source. This speaker provides control over lower and upper frequencies with the DSP preset function, and the B-HYPE 12 provides an XLR balanced output that allows the audio connection to a second loudspeaker.

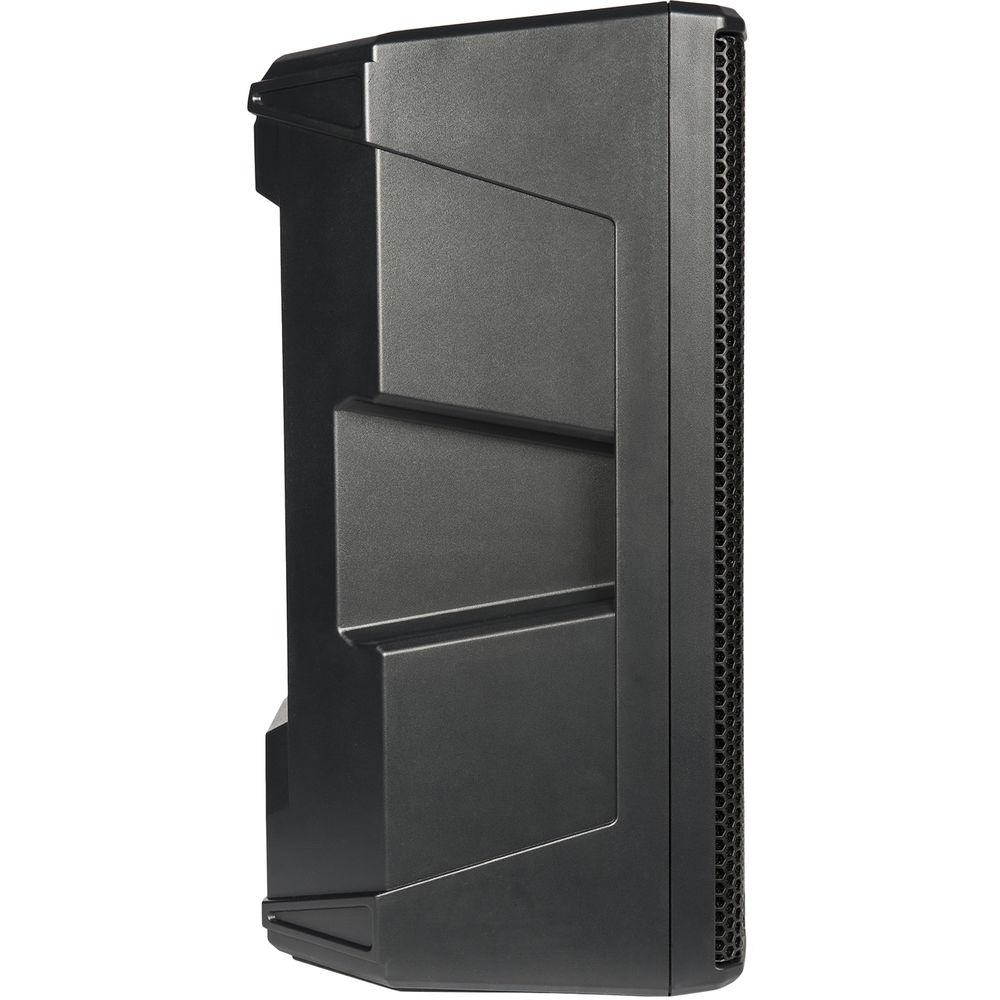

This speaker has a metal grille and the weight of the speaker allows you to carry it by one of the three handles for portability. The B-HYPE 12 can be used horizontally as a stage monitor on both sides and features a pole mount for use with speaker stands or stacked on a subwoofer. In the Box dB Technologies B-HYPE 12 2-Way 400W Active Speaker Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies B-HYPE 12 2-Way 400W Active Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies B HYPE 12" Specs | Speaker Type | 2-Way Active Speaker | | | | Operating Bandwidth | 55 to 20 kHz | | Frequency Response | 61 to 19.5 kHz | | Max SPL | 126 dB | | High Frequency Driver | Compression Driver | | Voice Coil Diameter | 1" | | Low Frequency Driver | 12" | | Voice Coil Diameter | 2" | | Crossover Frequency | 2100 Hz (24 dB/Oct.) | | Horizontal Coverage Angle | Asymmetrical 85° up / 120° down | | Vertical Coverage Angle | 85° (+25/-60°) | | | | Amplifier Class | Class-D | | Peak Power | 400 W | | | | Controller | DSP 28-/56-Bit @ 48 kHz | | Limiter | Peak, RMS, Thermal | | Controls | Volume
Audio Input Sensitivity
DSP Preset | | | | Input | 1 x Balanced Combo XLR/1/4" (Mic/Line) | | Output | 1 x Balanced XLR (LINK) | | | | Housing | Polypropylene | | Grille | Metal | | Pole Mount | 1-3/8" / 36 mm | | Power Specifications | 110-120 VAC, 12.9 A | | Dimensions (W x H x D) | 13.8" x 25.4" x 13" / 350 x 645 x 330 mm | | Weight | 30.4 lb / 14 kg |
