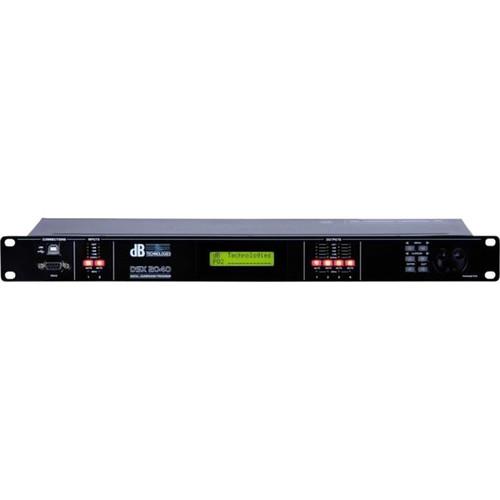

Product description The DSX 2040 2 in 4 Digital Controller from dBTechnologies is a digital loudspeaker management system suitable for use in mobile racks as well as for fixed installation. With two inputs and four outputs, this controller can be used with any two-way active stereo systems made up of subwoofers and mid- / high-range units. An extensive set of signal processing tools such as input compressors, delays, 31-band graphic input EQ, and six parametric EQs for each output lets you tune speaker systems with surgical precision to suit the given venue and operating conditions. Inputs and outputs can be routed in multiple configurations to meet any requirement. Each output also features a precision-tunable digital limiter to protect speaker components. The DSX 2040 Controller can be controlled or configured in real time via the front panel push-buttons or with the intuitive PC GUI accessed via the RS-232 or USB interface. The 2 x 16 character backlit LCD display and LED level meters above each input and output allow you to monitor the unit's performance. With the benefit of controller software, you can easily create presets for dBTechnologies speakers, as well as custom configurations, and load these programs to the controller. Software upgrades for CPU and DSP via PC keep the device current with newly developed algorithms and functions. - 2 inputs and 4 outputs with flexible routing
- High-performance 24-bit A/D converters
- Parametric EQs for inputs and outputs
- 96 kHz / 40-bit signal processing with >115 dB dynamic range
- 1 Hz frequency resolution
- Multiple crossover types with full-function limiters
- 2-line x 16 character backlit LCD display
- 5-segment LED meter for each channel
- Precision-adjustable digital limiter for each output
- Storage of up to 30 preset setups
- USB and RS232 interface for PC control and configuration
- Individual channel buttons with linking capability
- CPU and DSP upgrade via PC
In the Box dB Technologies DSX 2040 2 in 4 Digital Controller XConsole Software CD Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies DSX 2040 2 in 4 Digital Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies DSX 2040 Specs | | | Input Impedance | Input: >10k ohms
Output: 50 ohms | | Maximum Level | +20 dBu | | Type | Electronically balanced | | | | Frequency Response | ±0.1 dB (20 Hz to 30 kHz) | | Dynamic Range | 115 dB typical (unweighted) | | Common Mode Rejection Ratio | >60 dB (50 Hz to 10 kHz) | | Crosstalk | <-100 dB | | Distortion | 0.002% (1 kHz @ +4 dBu) | | | | Processor | 40-bit | | Sampling Rate | 96 kHz | | Digital to Analog Converter | High-performance 24-bit | | Propagation Delay | 1.5 ms | | | | Display | 2 x 16 character backlit LCD | | Level Meters | 5-segment LED | | Buttons | Mute/edit controls
Menu controls | | Encoder | Dial Encoder: Embedded thumb wheel | | | | Analog Inputs | 3-pin female XLR | | Analog Outputs | 3-pin male XLR | | RS-232 | Female DB-9 | | USB | Type B | | Power | Standard IEC socket | | | | Mic Gain Range | 0 to +45 dB in 3 dB steps | | Gain | -40 to +15 dB in 0.25 dB steps | | Polarity | +/- | | Delay | Up to 650 ms per I/O | | | | Number | Equalizers: 8 per input/output
31-Band Graphic Equalizers: 1 per input | | Type | Parametric, Hi-shelf, Lo-shelf, Phase 1, Phase 2 | | Gain | -30 to +15 dB in 0.25 dB steps | | Bandwidth | 0.02 to 3.61 octaves (Q=0.3 to 72) | | | | Filter | 2 per input/output | | Filter Type | Butterworth, Bessel, Linkwitz Riley | | Slope | 6 to 48 dB/oct | | | | Number | 1 per output | | Threshold | -20 to +20 dBu | | Attack | 0.3 to 100 ms | | Release | 2 to 32x the attack time | | | | Number of Presets | 30 | | Program | 12 character length | | Units of Measure | Delay Units: ms, ft, m | | Frequency | Frequency Modes: 36 steps/oct, 1 Hz resolution | | | | Power | 90 to 240 VAC (50 to 60 Hz) | | Dimensions | 19 x 1.75 x 9" (483 x 44 x 229 mm) | | Weight | 10 lb (4.5 kg) |
