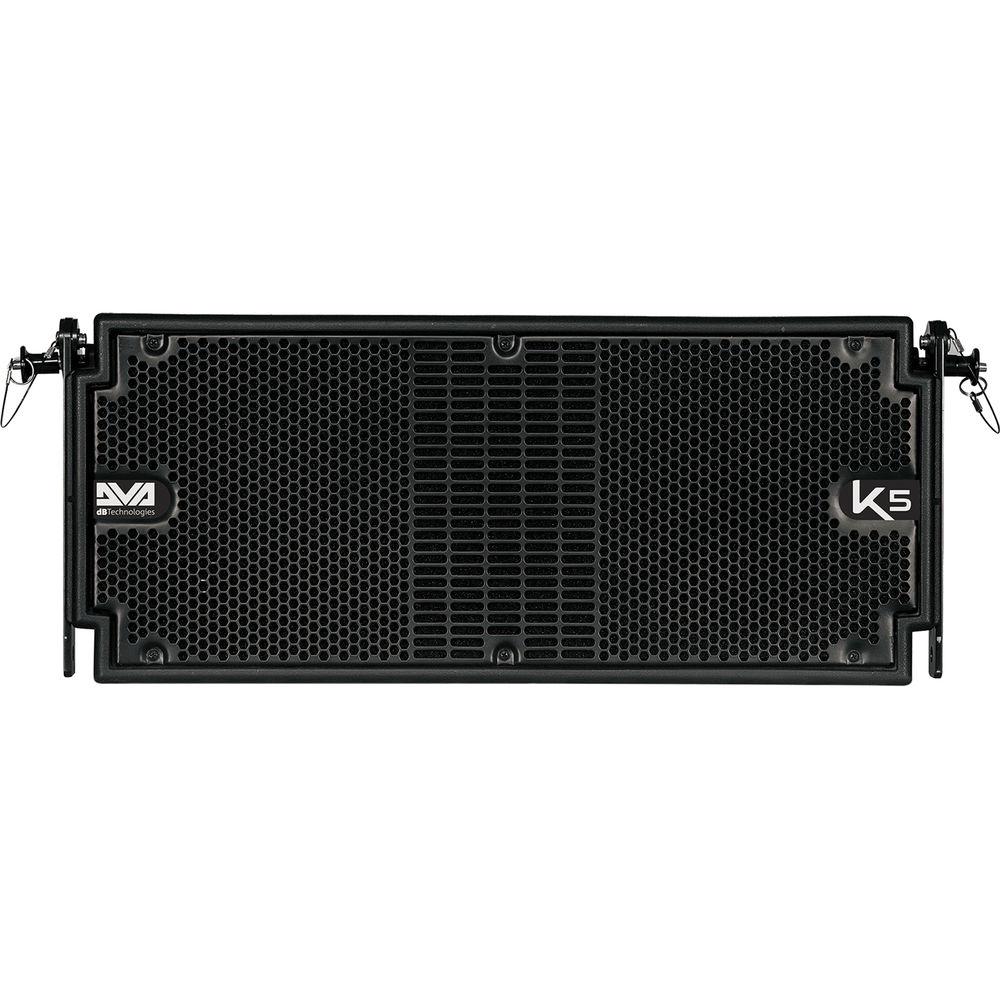

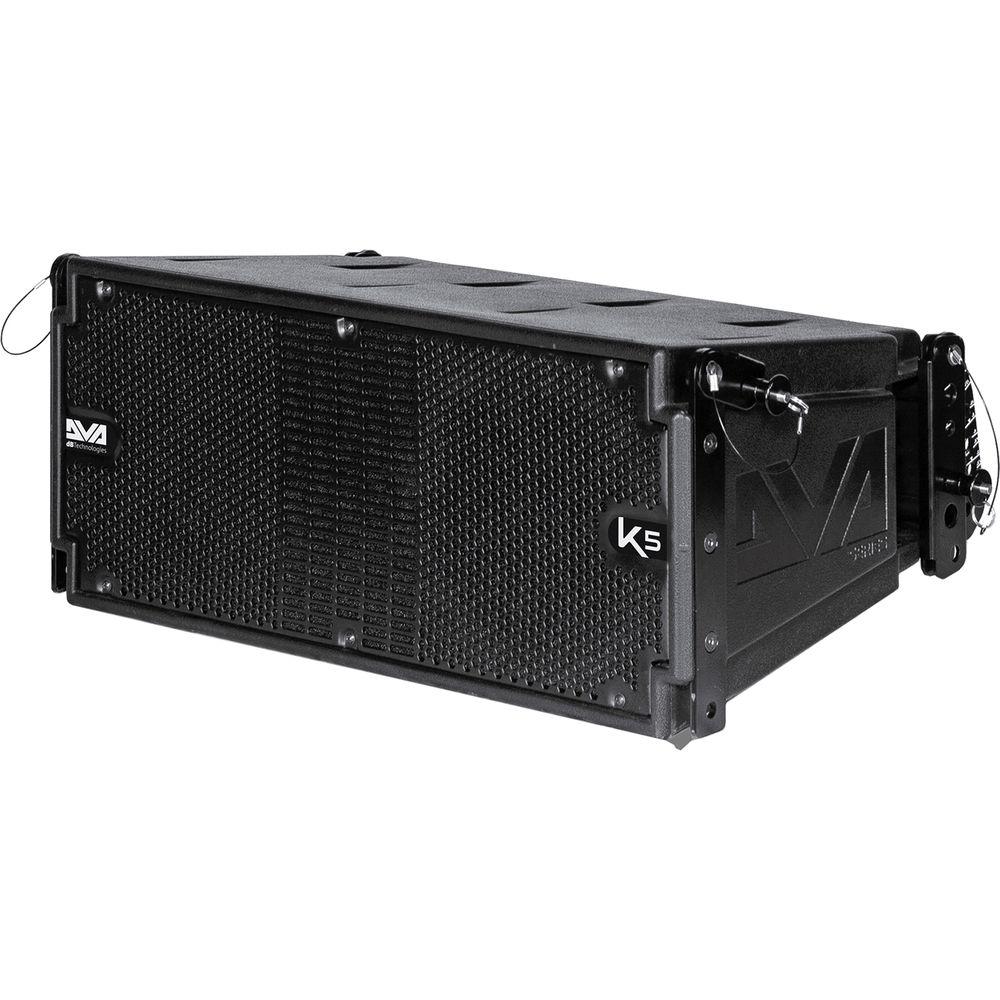

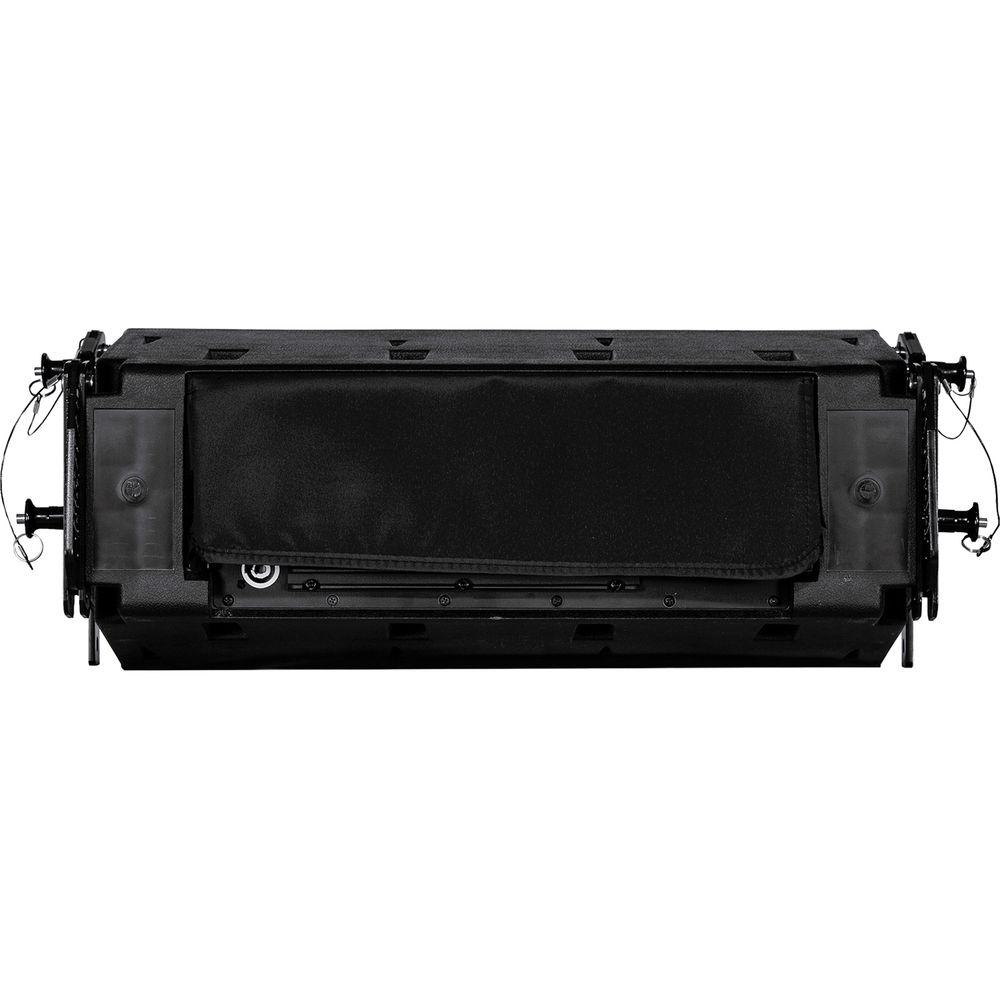

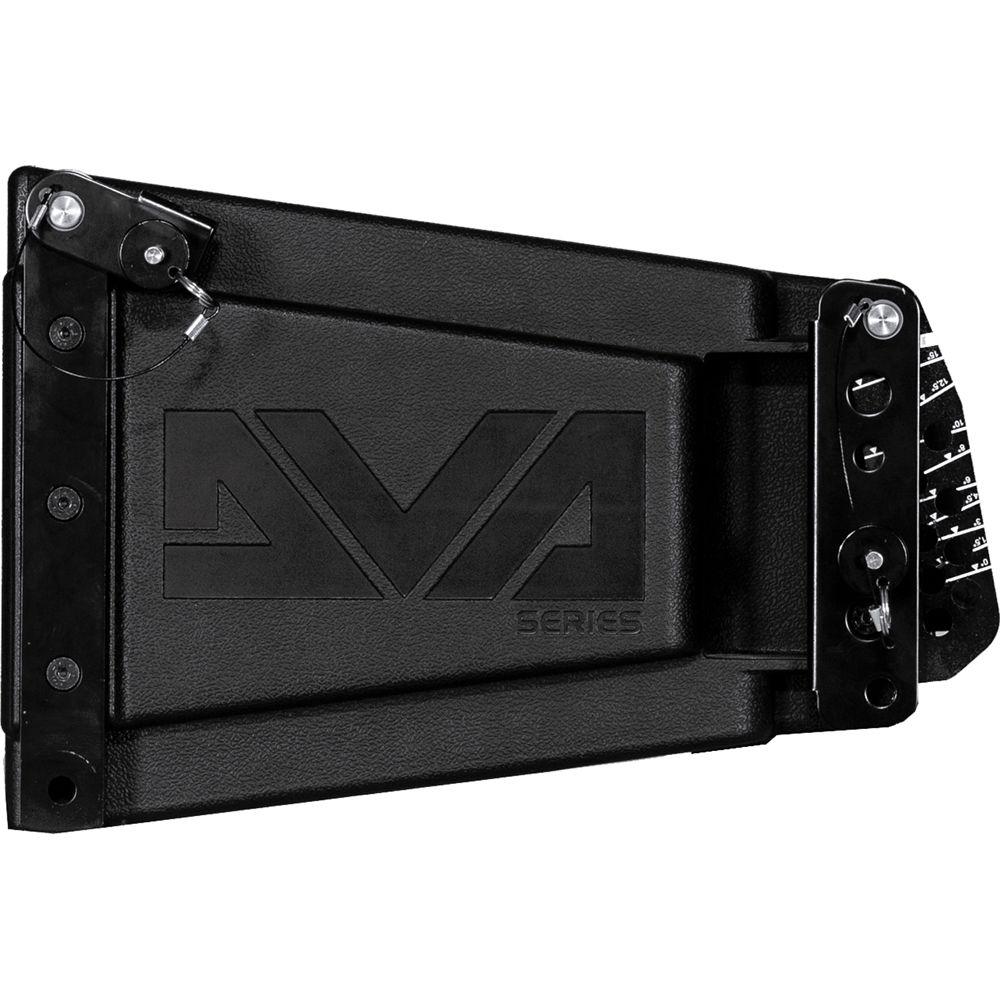

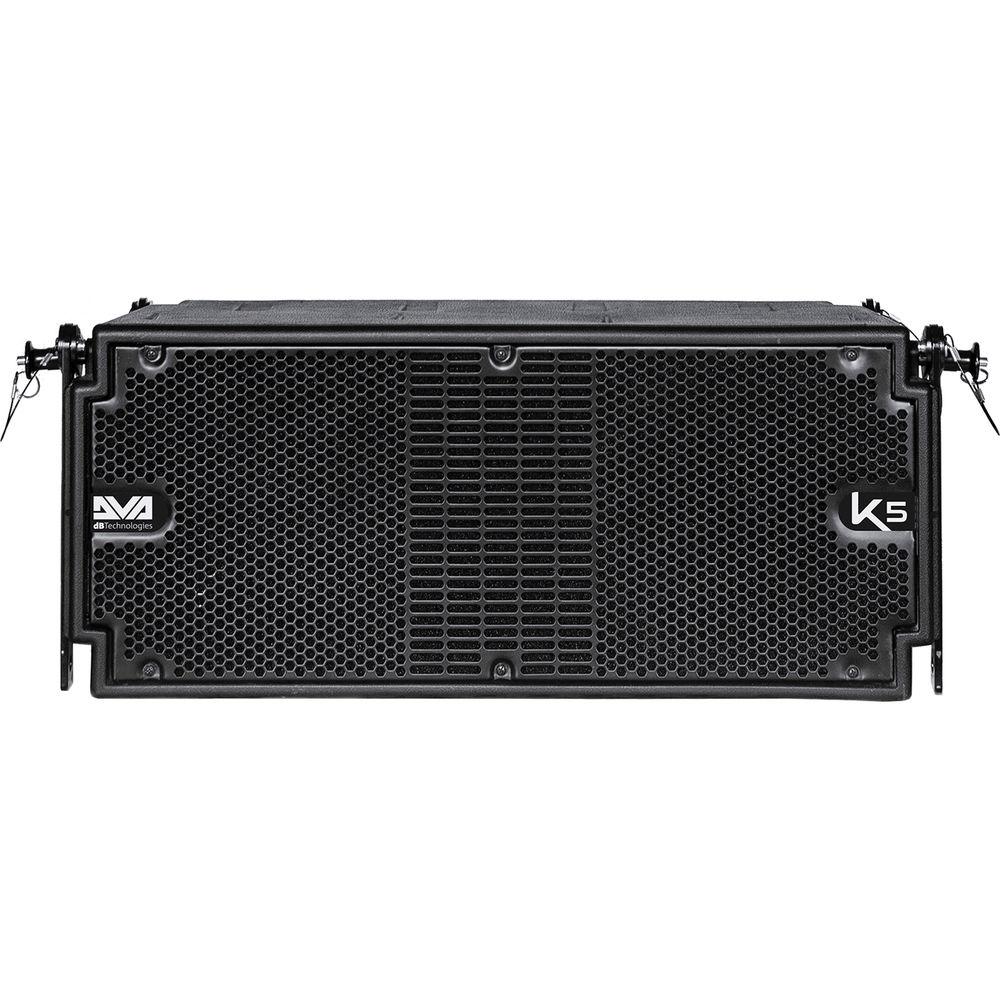

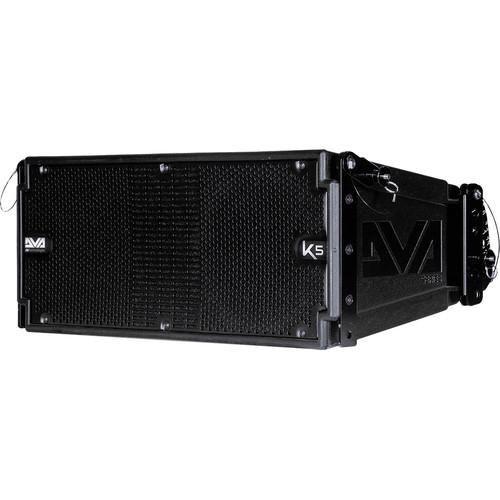

Product description The DVA K5 3-way Active Line Array Module Speaker from dBTechnologies is equipped with two 1" compression driver exit (1.4" voice coil), one 6.5" neodymium midrange (2" voice coil), and one 8" neodymium woofer (2.5" voice coil). Featuring a Class D 500W RMS DIGIPRO G3 digital amplifier, DVA K5 is capable of reaching SPL of up to 129 dB. The integrated DSP lets you customize the output sound of the speaker. Thanks to the dual rotary encoder interface, it is possible to quickly tune the line-array configuration coverage, using the FIR filter technology. The speaker is housed in a sturdy polypropylene PP reinforced metal box. Additionally, it comes with a black painted CNC metal grille and integrated rigging points. Note: The fuse is factory set for 220 to 240V operation. If required, please change the fuse to 100 to 120V range. In the Box dB Technologies DVA K5 3-way Active Line Array Module Speaker 100-120V Fuse Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies DVA K5 3-way Active Line Array Module Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies DVA K5 Specs | | | Type | Speaker: 3-way active line-array element
Filter: FIR | | Frequency Response | @±3 dB: 70 Hz to 19 kHz | | Max SPL | 129 dB | | Compression Driver | HF: 2 x 1" (2.54 cm) exit
MF: 1 x 6.5" (16.5 cm)
LF: 1 x 8" (20.3 cm) | | Voice Coil | HF: 2 x 1.4" (3.6 cm)
MF: 1 x 2" (5.1 cm)
LF: 1 x 2.5" (6.4 cm) | | Crossover Frequencies | L/M: 340 Hz
M/H: 1800 Hz | | Coverage | H x V: 100° x 15° (single unit) | | | | Technology | Digipro G3 | | Class | Class-D | | RMS Power | 500 W | | Peak Power | 1000 W | | | | Controller | DSP, 28/56-bit 48 kHz | | Limiter | Peak, thermal | | Controls | Rotary audio input sensitivity | | Presets | Rotary Presets: Two Rotary BCD 8 positions for line-array configuration (speaker coupling, high frequency compensation) | | | | Mains | PowerCON In/Link | | Signal Input | 1x IN (balanced) | | Signal Output | 1 x XLR link OUT (balanced) | | USB | Mini USB B-type (for SERVICE DATA) | | | | Housing | Polypropylene PP metal reinforced | | Grille | CNC metal grille black painted | | Rigging Points | Integrated rigging hardware | | Dimensions | 23.2 x 9.6 x 13.1" (58 x 24 x 33 cm) | | Weight | 31.1 lb (14.2 kg) | | | | Package Weight | 37.0 lb | | Box Dimensions (LxWxH) | 25.0 x 16.25 x 12.25" |
