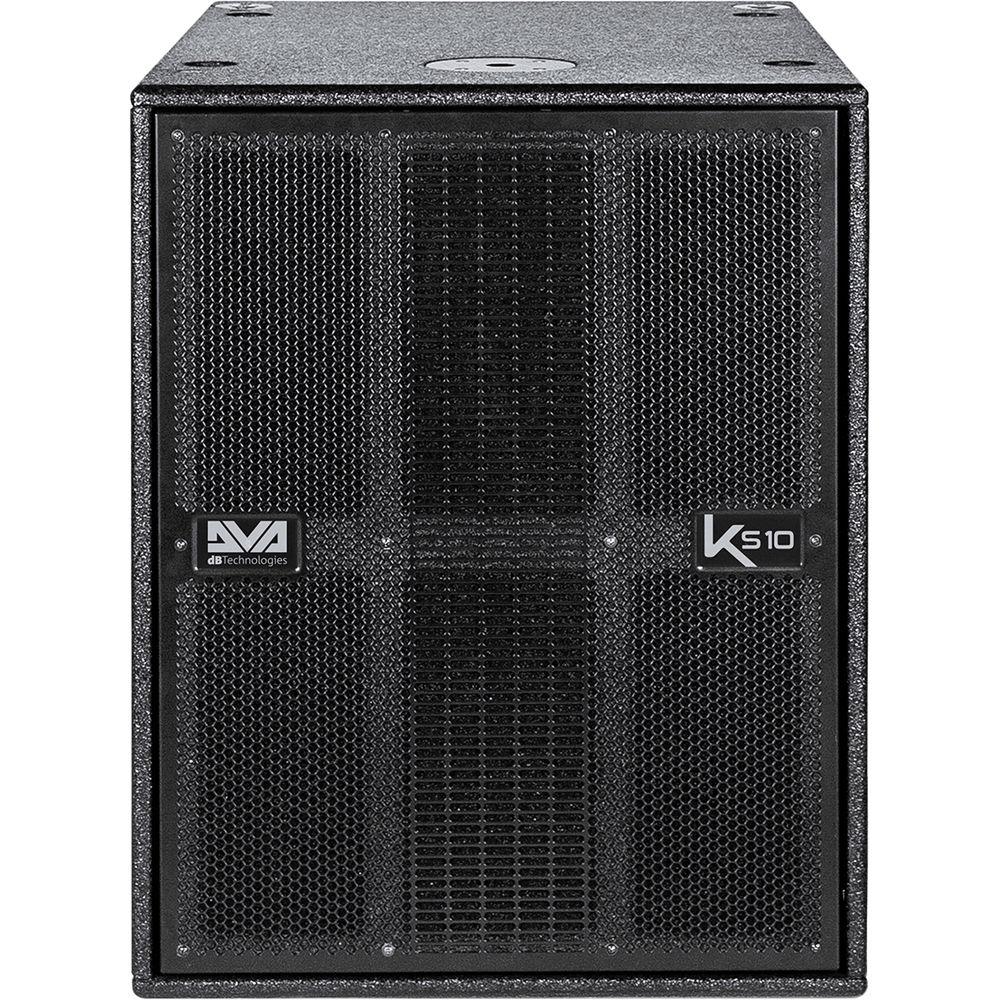

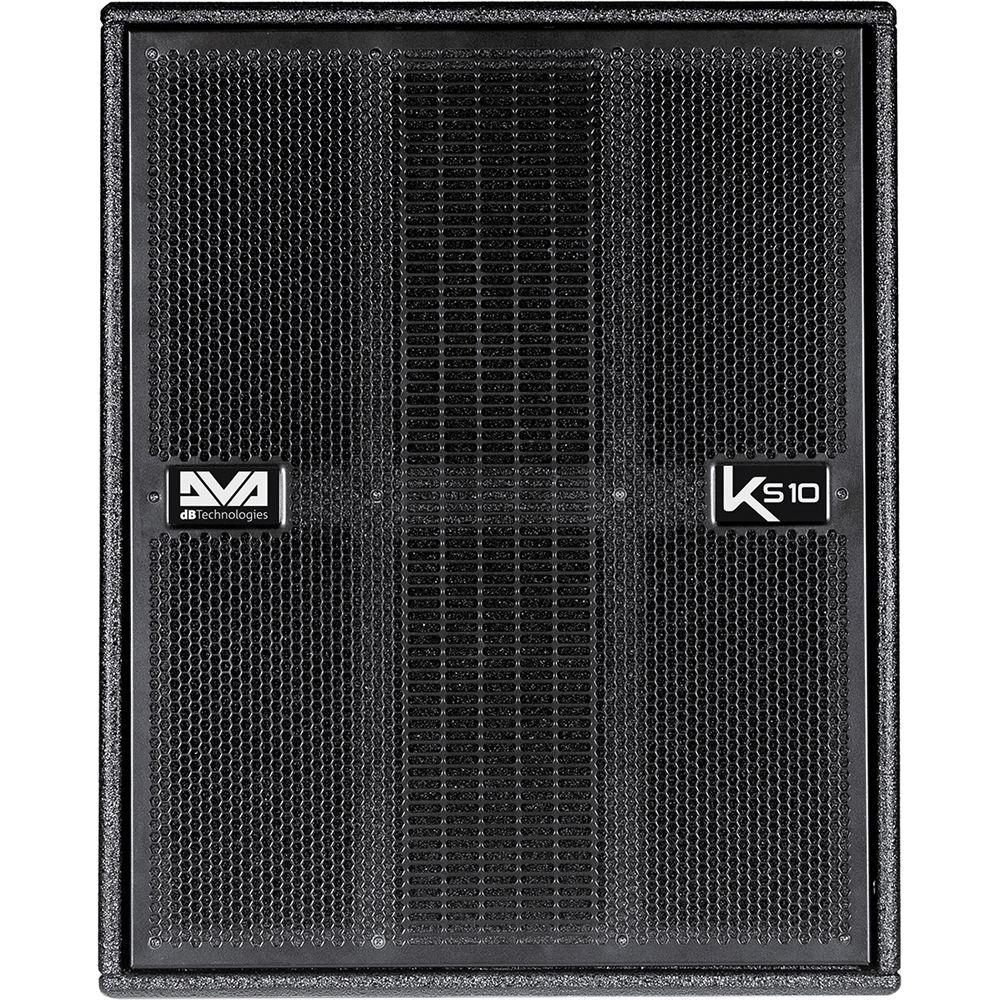

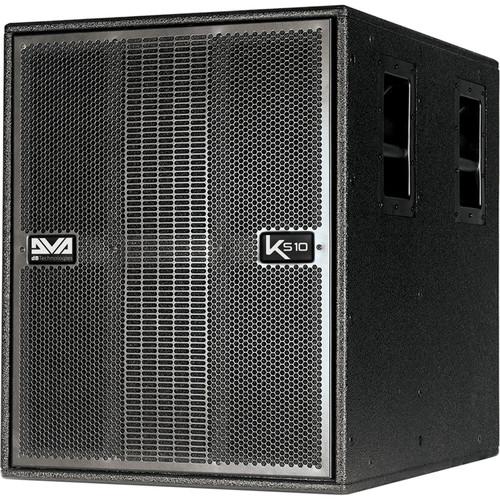

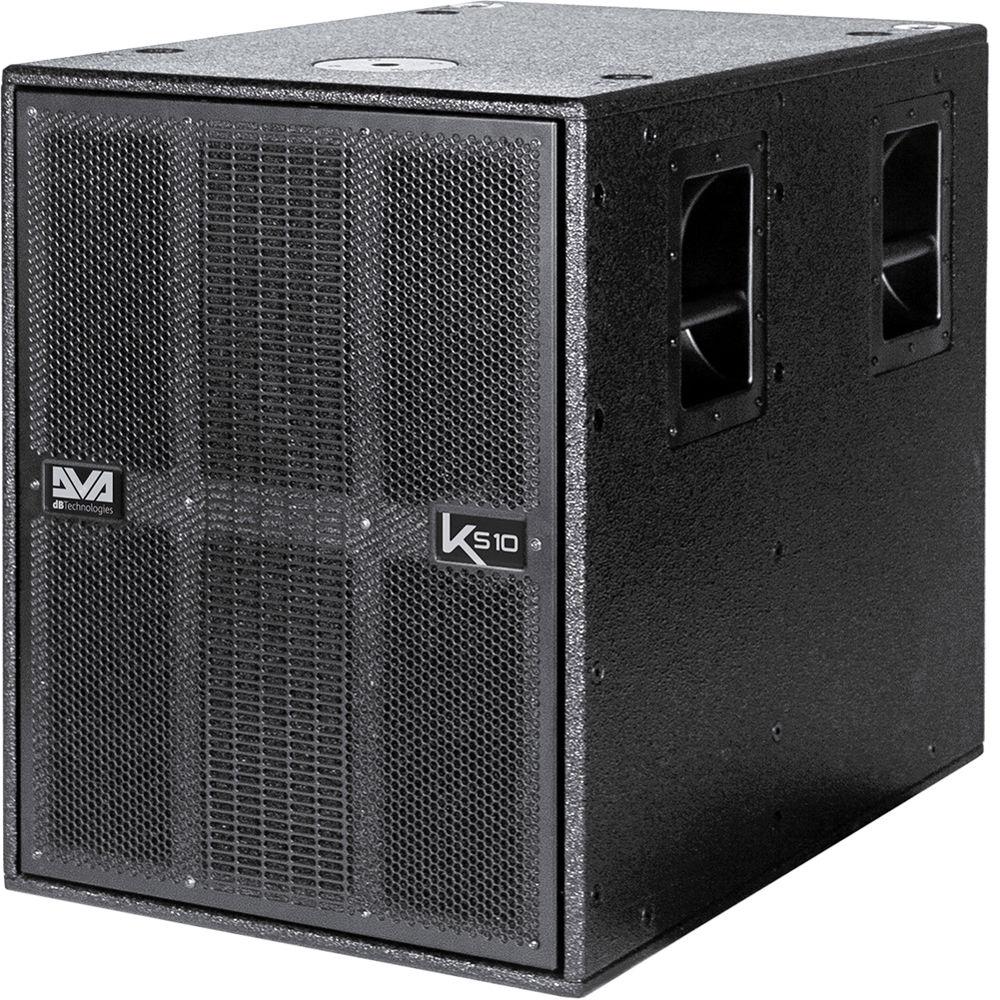

User Manual for dB Technologies DVA KS10 Active Semi-Horn Loaded Subwoofer Click to enlarge the picture
Contents of the user manual for the dB Technologies DVA KS10 Active Semi-Horn
- Product category: PA Speakers dB Technologies
- Brand: dB Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dB Technologies PA Speakers
 |
User manual for the dB Technologies DVA KS10 Active Semi-Horn contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dB Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dB Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dB Technologies product will considerably shorten its lifespan!
|
Product description The DVA KS10 Subwoofer from dBTechnologies is an active semi-horn loaded subwoofer, equipped with one 18" transducer and a 4" voice coil. Featuring a Class D 900W RMS Digipro G3 digital amplifier, DVA KS10 is capable of reaching SPL of up to 134 dB. The integrated DSP lets you customize the output sound of the speaker. It also lets you tweak the phase and delay of the output. The input and output audio connections can be configured in either mono or stereo mode. Note: The fuse is factory set for 220 to 240V operation. If required, please change the fuse to 100 to 120V range. Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies DVA KS10 Active Semi-Horn Loaded Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies DVA KS10 Specs | | | Type | Active semi-horn loaded subwoofer | | Frequency Response | @10 dB: 41 to 120 Hz | | Max SPL | 134 dB | | LF Driver | 18" (45.7 cm) | | Voice Coil | LF: 4" (10.2 cm) | | Crossover Frequencies | 90 Hz, 120 Hz LPF | | | | Technology | Digipro G3 | | Class | Class D | | RMS Power | 900 W | | Peak Power | 1800 W | | | | Controller | DSP, 28/56-bit 48 kHz | | Limiter | Peak, thermal | | Controls | Rotary Delay Control:
0 to 4.5 ms
Steps: 0.5 ms
Switches:
Outputs Mode, Phase, Xover
Subwoofer level | | | | Mains | PowerCON In/Link | | Signal Input | 2 x IN (L,R) balanced | | Signal Output | 2 x OUT (L,R) balanced | | USB | Mini USB B-type (for SERVICE DATA) | | | | Housing | Plywood | | Grille | Black painted CNC metal grille | | Rigging Points | Integrated for SRK10 fly kit
2 x Pick points on top for DRK10/20 rigging frames | | Pole Mount | Yes; for M20 screw pole mount | | Dimensions | 20.3 x 25.2 x 28.4" (51.5 x 64.0 x 72.0 cm) | | Weight | 95.7 lb (43.4 kg) | | | | Package Weight | 97.0 lb | | Box Dimensions (LxWxH) | 30.0 x 28.0 x 22.0" |
