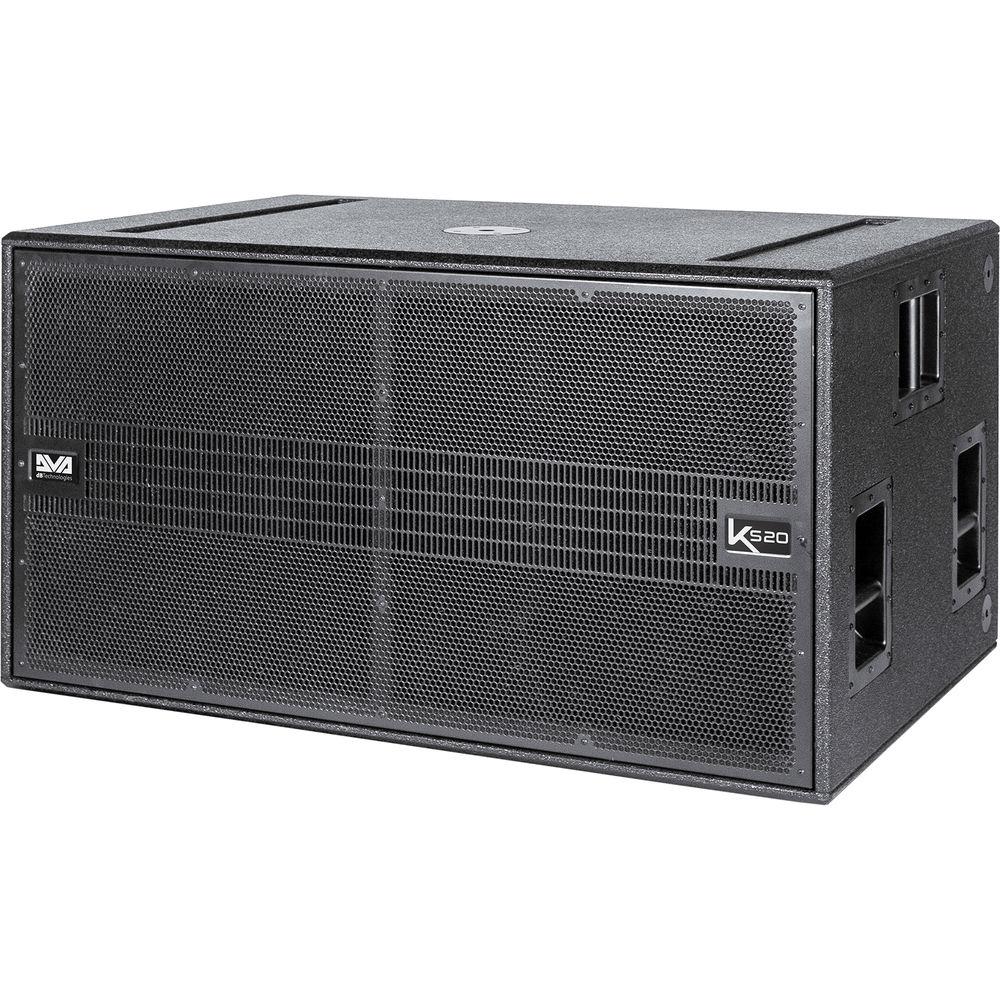

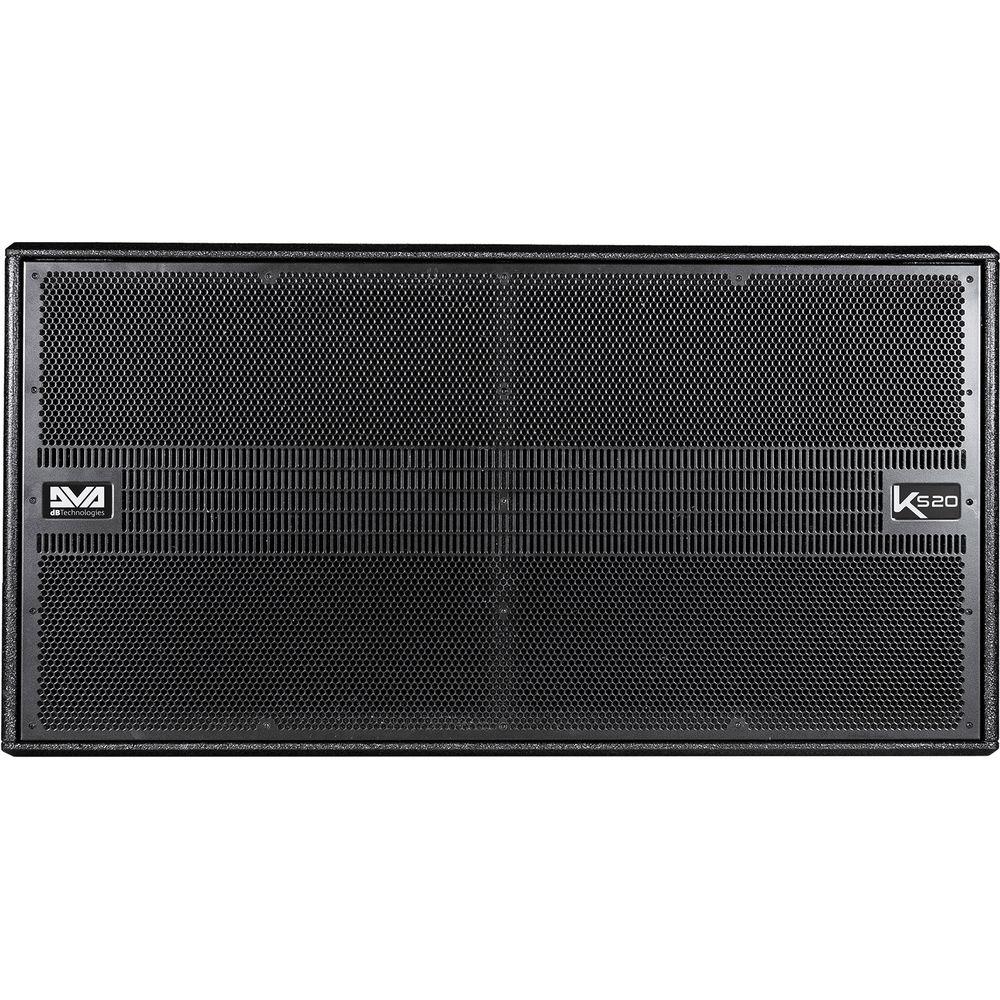

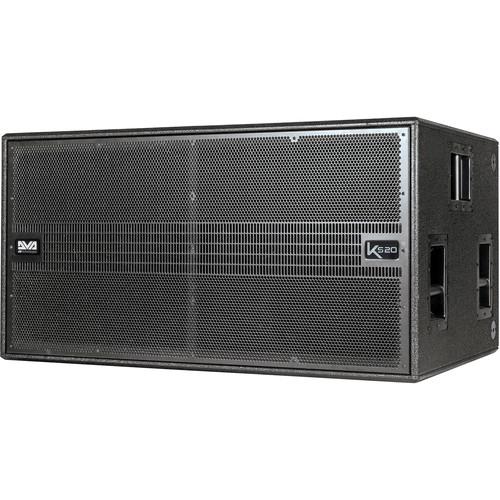

Product description Featuring a double 18" woofer pairing in a bass reflex housing, the DVA KS20 Active Horn Loaded Subwoofer from dBTechnologies is equipped with two Digipro G3 power amplifiers. These amplifiers allow the subwoofer to deliver peak power of 3600W. The system's internal design brings together the benefits of bass reflex and horn-loaded system in a compact sturdy housing covered with black metal grille. For efficient system processing, KS20 features a 56-bit DSP that manages the limiters and delays. Note: The fuse is factory set for 220 to 240V operation. If required, please change the fuse to 100 to 120V range. In the Box dB Technologies DVA KS20 Active Horn Loaded Subwoofer Mains Cable with Neutrik powerCON Connector 100-120V Fuse Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies DVA KS20 Active Horn Loaded Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies DVA KS20 Specs | | | Type | Active horn loaded subwoofer | | Frequency Response | @10 dB: 41 to 120 Hz | | Max SPL | 138 dB | | LF Driver | 2 x 18" (45.7 cm) | | Voice Coil | LF: 4" (10.2 cm) | | Crossover Frequencies | 90 Hz, 120 Hz LPF | | | | Technology | 2 x Digipro G3 | | Class | Class D | | RMS Power | 1800 W | | Peak Power | 3600 W | | | | Controller | DSP, 28/56-bit 48 kHz | | Limiter | Peak, thermal | | Controls | Rotary Delay Control:
0 to 4.5 ms
Steps: 0.5 ms
Switches:
Outputs Mode, Phase, Xover
Subwoofer level | | | | Mains | PowerCON In/Link | | Signal Input | 2 x IN (L,R) balanced | | Signal Output | 2 x OUT (L,R) balanced | | USB | Mini USB B-type (for SERVICE DATA) | | | | Housing | Plywood | | Grille | Black painted CNC metal grille | | Rigging Points | 2 x Pick points on top for DRK10/20 rigging frames | | Pole Mount | Yes; for M20 screw pole mount | | Dimensions | 43.3 x 22.8 x 28.4" (110 x 58 x 72 cm) | | Weight | 185.2 lb (84 kg) |
