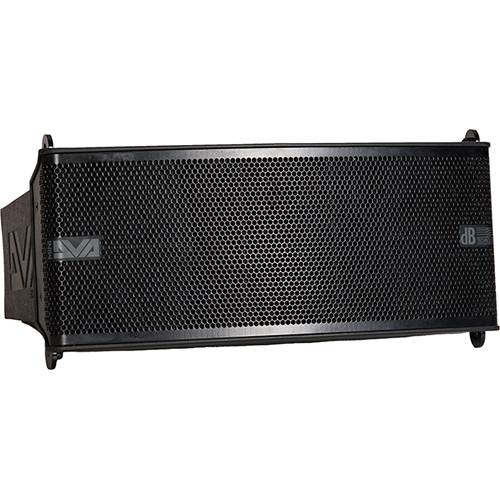

Product description The DVA M2P 2-Way Passive Line Array Module from dB Technologies features two 6.5" neodymium woofers, whose disposition and efficiency is extremely optimized thanks to a custom dual phase-plug. The treble section consists of two 1" neodymium compression drivers (1" voice coil) mounted vertically and spaced to optimize vertical coverage. It also features fast-lock mechanics, which makes it easy to assemble and rig by completely removing pins and complex mechanics in favor of a quick-locking system. - A New Benchmark in Passive Line Arrays
- It is a compact, simple to configure, lightweight, and extremely versatile format. It is the ideal choice for permanent installation in theaters, places of worship, convention centers, and live music gigs where it is preferred to work with passive systems.
- Low-Mid Range Consistent Coverage Pattern
- It features two 6.5" neodymium woofers, whose disposition and efficiency is extremely optimized thanks to a custom dual phase-plug. This technology significantly improves the mid-range efficiency of the speaker and, most of all, makes the horizontal coverage really homogeneous and consistent.
- Clear and Assertive Top End
- The two 1" drivers deliver a crystalline clear sound in high frequency, in order to provide the audience the same intelligibility of the DVA line array systems. It is possible to change the top end response (3 dB) through a switch located on the rear panel, in order to compensate the attenuation on high frequencies when using the unit as a long throw system.
- Lightweight but Heavy-Duty
- The Polypropylene enclosure and the internal hardwearing anti-vibration structure allows it to be utilized as a heavy-duty professional tools. These features, together with neodymium transducers, contribute to realize a light, durable, and powerful line array module. The choice of neodymium magnets ensures even more value to the module.

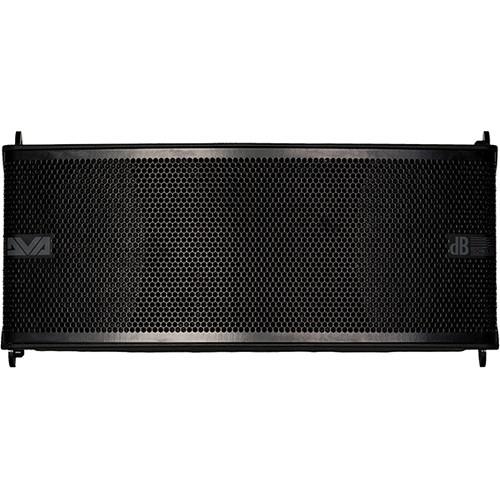

- Premium Design
- The mechanics are hidden behind the frontal panel, and the elegant curvature of the frontal hexagonal grille contributes to create a very nice looking system for any kind of fixed installation purposes or live music events where the system should be totally invisible.

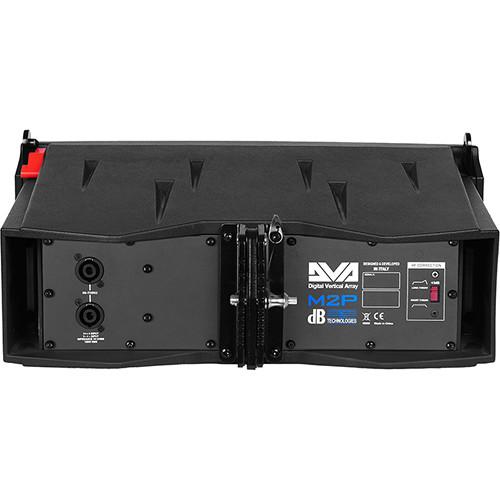

- Fast-Lock System and Single Rear Mechanics
- It features fast-lock mechanics which makes it easy to assemble and rig, by completely removing pins and complex mechanics in favor of a quick-locking system. It also features a single mechanic on the rear of the box.
- Ground Stacking or Suspended Use
- It allows suspended or ground-stack configurations ensuring versatility in permanent installations, live music, and all those events that require medium-high sound pressures, limited weight, and footprint.
In the Box dB Technologies DVA M2P 2-Way Passive Line Array Module Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies DVA M2P 2-Way Passive Line Array Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies DVA M2P Specs | | | Power Rating | Nominal: 150 W / RMS | | Power Rating | Peak: 300 W | | Impedance | 16 ohms | | Frequency Response | -6 dB: 78 to 19 kHz
-10 dB: 68 to 20 kHz | | Maximum SPL | 126 dB per unit | | Driver Size | High Frequency: 2 x 1.0" (2.5 cm)
Low Frequency: 2 x 6.5" (16.5 cm) | | Driver Type | High Frequency: Neodymium
Low Frequency: Neodymium | | Voice Coil | High Frequency: 1.0" (2.5 cm)
Low Frequency: 1.5" (3.8 cm) | | Directivity | 90 x 15° single unit | | | | Signal Input | 1x Speakon (Pin 1+=+) (Pin 1-=-) | | Signal Output | 1x Speakon (Pin 1+=+) (Pin 1-=-) | | | | Housing | Polypropylen PP | | Handles | 2 x back side | | Hardware | Integrated hardware with fast lock mechanics | | Angle | 0 to 1.5 to 3 to 4.5 to 6 to 8 to 10 to 12.5 to 15° | | Dimensions (W x H x D) | 18.1 x 7.5 x 13.6" (46.0 x 19.1 x 34.5 cm) | | Weight | 15.7 lb (7.1 kg) |
