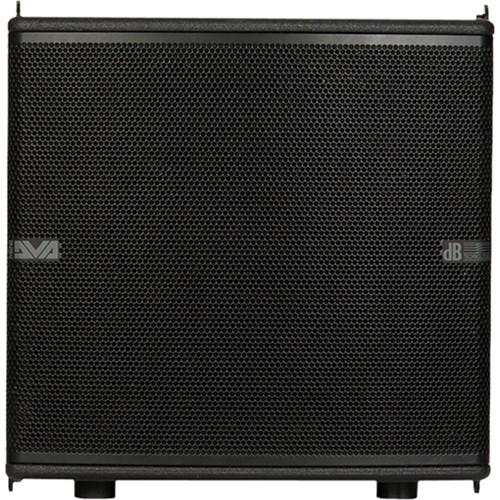

User Manual for dB Technologies DVA MS12 Active Bass Reflex Flyable Subwoofer Click to enlarge the picture
Contents of the user manual for the dB Technologies DVA MS12 Active Bass
- Product category: PA Speakers dB Technologies
- Brand: dB Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dB Technologies PA Speakers
 |
User manual for the dB Technologies DVA MS12 Active Bass contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dB Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dB Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dB Technologies product will considerably shorten its lifespan!
|

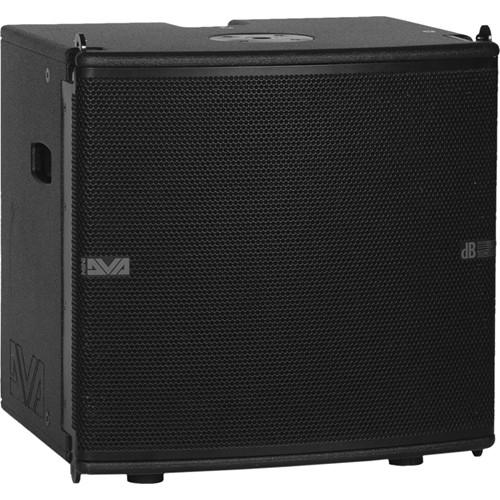

Product description The black DVA MS12 Active Bass Reflex Flyable Subwoofer from dB Technologies is equipped with a single 12" woofer in a bass-reflex enclosure and a DIGIPRO G3 series class-D amplifier capable of delivering 700W PMS. It is equipped with a 12" woofer (3" voice coil). The digital pre-amplifier with Digital Signal Processor (DSP) manages the acoustic components, frequency response, limiter, and speaker alerts. The SMPS (Switched-Mode Power Supply) Power Supply Unit (PSU) thanks to its self-range technology ensures operation at supply voltages from 100 to 120V and from 220 to 240V. - Versatility

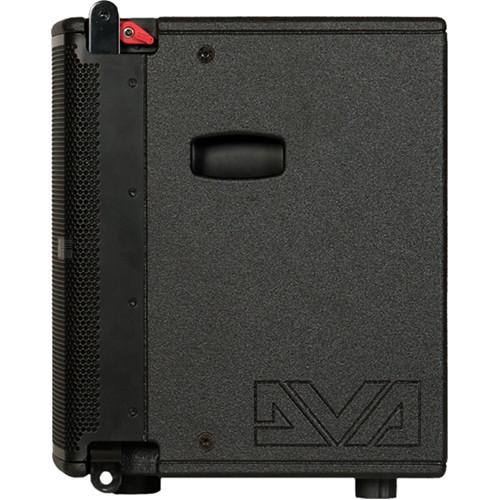

- This subwoofer delivers an incredible SPL considering its very compact dimensions, and it can be easily used both flown and ground-stacked. The smart design of the feet allows the user to avoid the dull removal of the flying brackets. It is possible to remove the feet in few seconds and screw them again upside-down. In this way any contact between the flying brackets and the ground is avoided, as only the rubber feet will touch it. A practical X-over out can be used to feed signal straight to the line-array modules, simplifying considerably the signal and power cabling.
- Digipro G3 Class-D Amplifier
- This subwoofer comes with the Digipro G3 digital amplifier. Distinguished by new features, lightweight design, and good efficiency, it pushes the system performance at its maximum. In order to let the speaker play flawlessly with both 110 and 220V power, a switched-mode power supply with auto-range circuit has been built inside this subwoofer.
- Download Telemetry from USB

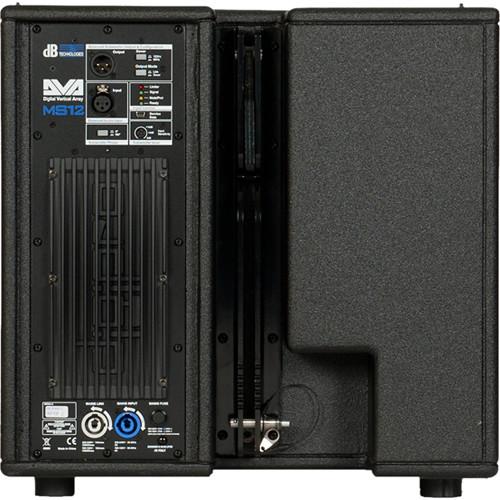

- An integrated USB B-type port on the amplifier allows the user to access the complete telemetry of the sub, monitoring the status of the speaker, including total playing hours, temperatures, and performances reports. It is also possible to download a file log as a status report, as well as upgrade the firmware using the same USB port.
- Other Features
- Integrated hardware with innovative quick-lock mechanics
Switched-mode power supply with auto-range
Digital controller on board (DSP) - Applications
- Live sound for rental application in small and mid-size venues
Permanent installation in theaters, houses of worship, convention centers
Portable PA, clubs, ballrooms, live theaters
Surround-sound applications In the Box dB Technologies DVA MS12 Active Bass Reflex Flyable Subwoofer (Black) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies DVA MS12 Active Bass Reflex Flyable Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies DVA-MS12 Specs | | | Frequency Response | -6 dB: 45 to 140 Hz
-10 dB: 40 to 165 Hz | | Maximum SPL | 131 dB | | Driver Size | Low Frequency: 12.0" (30.5 cm) | | Voice Coil | Low Frequency: 3.0" (7.6 cm) | | Directivity | Omnidirectional | | | | Technology | Digipro G3 | | Class | Class D | | Power Supply | 700 W SMPS with PSU auto-range (110 and 220 V) | | Inrush Current | 17.9 A | | Current Consumption | 100 to 120 VAC / 50 to 60 Hz: 4A 220 to 240 VAC / 50 to 60 Hz: 2A | | RMS Power | 700 W | | Peak Power | 1400 W | | Cooling | Convection | | | | Sensitivity | Nominal | | Impedance | Balanced: 20 kOhms
Unbalanced: 10 kOhms | | | | Controller | DSP 56-bit | | Converter | AD / DA: 24-bit / 48 kHz | | Controls | X-Over frequency selection, phase selection (0 or 180°), outputs mode selection (link / X-over), mini-USB type B port (service data) | | Limiter | Dual active, RMS / peak, thermal | | Crossover Frequency | Low to High Frequency: 110 to 140 Hz | | X-Over Control | LF X-Over Out Slope: 24 dB / octave | | | | Housing | Multiplex birch plywood with polyurea painting (rectangular shape) | | Handles | 1 x left side
1 x right side | | Feet | 4x dual-position reversible feet (flying / stacking mode) | | Hardware | M20 screw for pole mount on top side, integrated hardware with fast-lock mechanics | | Material | Stirrup: Steel | | Grille | Front: Performed sheet 0.06" (1.5 mm) with internal foam | | Dimensions (W x H x D) | 18.1 x 16.9 x 15.2" (46.0 x 42.9 x 38.6 cm) | | Weight | 58.4 lb (26.5 kg) |
