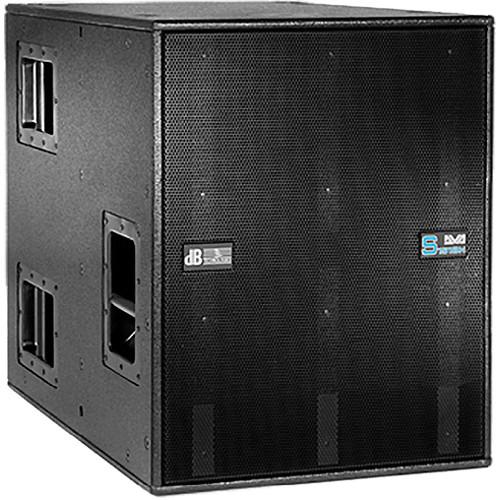

User Manual for dB Technologies DVA S1518N Active 18" 1500W Subwoofer Click to enlarge the picture
Contents of the user manual for the dB Technologies DVA S1518N Active 18"
- Product category: PA Speakers dB Technologies
- Brand: dB Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dB Technologies PA Speakers
 |
User manual for the dB Technologies DVA S1518N Active 18" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dB Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dB Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dB Technologies product will considerably shorten its lifespan!
|

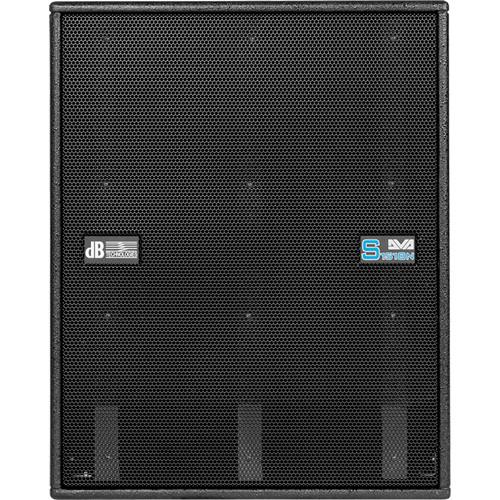

Product description The DVA S1518N from dB Technologies is an 18" active bandpass subwoofer with 1500 watts of power, integrated DSP, and an RDnet link. Designed for versatility, the subwoofer delivers tight and punchy bass response that supports and transitions smoothly to the satellites' lower midrange frequencies.
The DVA S1518N is equipped with an 18" woofer driven by a built-in 1500W Digipro G2 digital power amp. The speaker can be situated on the floor or be flown to keep the rig's footprint inconspicuous. In the Box dB Technologies DVA S1518N Active 18" 1500W Subwoofer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies DVA S1518N Active 18" 1500W Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies DVA S1518N Specs | Speaker Type | Active bandpass subwoofer | | Frequency Response | 39 - 120 Hz, +/- 3 dB | | Max SPL Level | 138 dB | | Directivity | Omnidirectional, cardioid option with DSP setup | | Driver | 18" (45.7 cm) | | Voice Coil | 4" (10.2 cm) | | Amplification | Amp Technology: Digipro G2
Amp Class: Class D
Power Supply: 1.5 kW SMPS
LF Amp: 1500 W RMS
Cooling: Convection | | Controller | DSP 56 bit | | Converters | 24 bit/ 96 kHz | | Presets | X-over, delay | | Phase | 0, 180 | | Limiter | RMS, peak, thermal | | Delay | 0 - 4.5 ms internal | | Crossover Frequency | 75 - 120 Hz steps of 5 Hz
LF Crossover Out Slope: 24 dB/octave | | Housing | Housing: Multiplex birch plywood
Housing Design: Rectangular | | Handles | 3x per side | | Pole Mount | M20 | | Rigging Points | Integrated for SRK10 fly kit 2x pick points on top to fix DRK10/20 rigging frames | | Dimensions | 20.6 x 25.6 x 28.8" (515 x 640 x 720 mm) | | Weight | 101.41 lb (46 kg) | | | | Package Weight | 118.15 lb | | Box Dimensions (LxWxH) | 31.8 x 29.0 x 23.5" |
