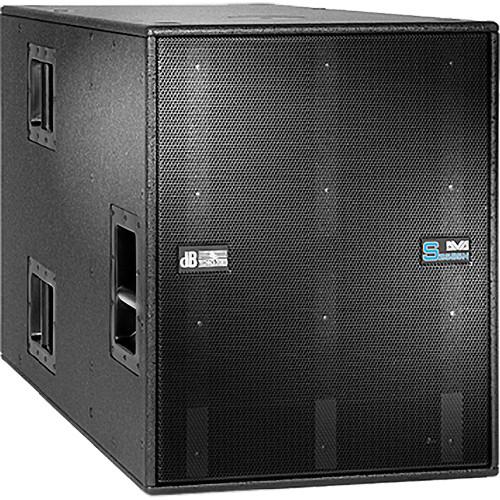

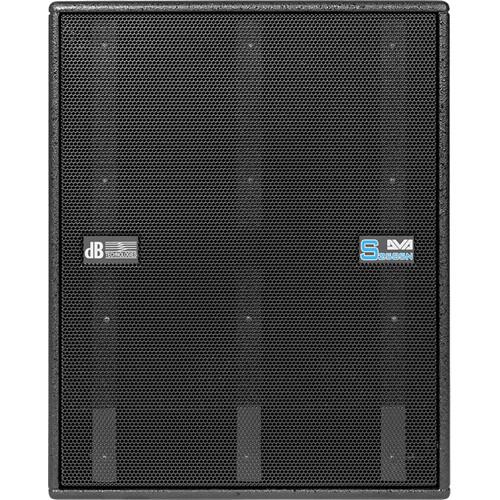

Product description The DVA S2585N from dB Technologies is a compact subwoofer system featuring a cardioid layout designed for highly directional output. The system consists of two separate chambers, one loaded with a forward facing 18" woofer and another with a rearward facing 15" woofer.
The integrated Digipro G2 digital power amps provide 2500 watts of total output power. The high-quality DSP filters allow the speakers to deliver an authentic audio image and faithful transient response.
The speaker can be situated on the floor or be flown to keep the rig's footprint inconspicuous. - RDnet Port
- Factory-equipped with an RDnet port, this subwoofer is ready for integration into elaborate, remotely controlled and monitored DVA T12 sound reinforcement systems via RJ45 inputs and outputs that connect the units to an RDnet hub.
In the Box dB Technologies DVA S2585N Active 2500W 15" + 18" Subwoofer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies DVA S2585N Active 2500W 15" 18" Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies DVA S2585N Specs | Speaker Type | Active cardioid-subwoofer | | Frequency Response | 35 - 120 Hz, +/- 3 dB | | Max SPL Level | 140 dB | | Directivity | Cardioid | | Driver | 15" (38.1 cm) + 18" (45.7 cm) | | Voice Coil | 4" (10.2 cm) | | Amplification | Amp Technology: Digipro G2
Amp Class: Class D
Power Supply: 2.5 kW SMPS
LF Amp: 2500 W RMS
Cooling: Convection | | Controller | DSP 56 bit | | Converters | 24 bit/ 96 kHz | | Presets | X-over, delay | | Phase | 0, 180 | | Limiter | RMS, peak, thermal | | Delay | 0 - 4.5 ms internal | | Crossover Frequency | 75 - 120 Hz steps of 5 Hz
LF Crossover Out Slope: 24 dB/octave | | Housing | Housing: Multiplex birch plywood
Housing Design: Rectangular | | Handles | 3x per side | | Pole Mount | M20 | | Rigging Points | Integrated for SRK10 fly kit 2 x pick points on top to fix DRK10/20 rigging frames | | Dimensions | 20.6 x 25.6 x 40.0" (515 x 640 x 1000 mm) | | Weight | 143.3 lb (65 kg) |
