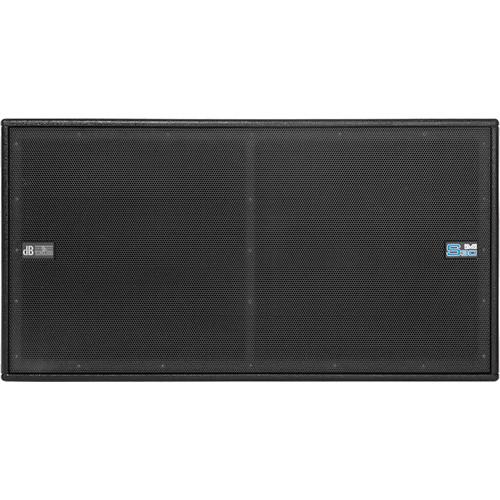

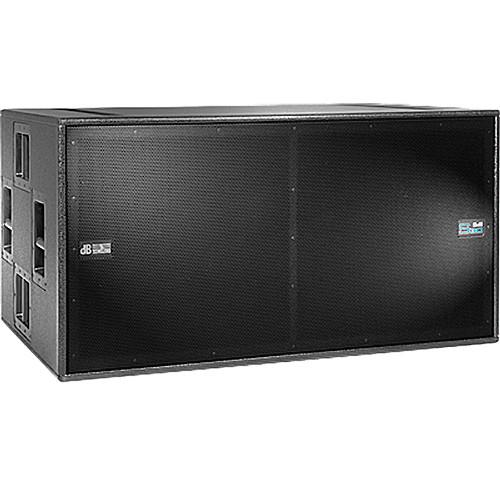

Product description Featuring a dual 18" subwoofer pairing in a bass reflex housing, the dB Technologies DVA S30N is designed to pack a muscular, ultra low frequency punch. This subwoofer can be used as an addition to large PAs and as a compliment to mid and high-range units in stacked arrays.

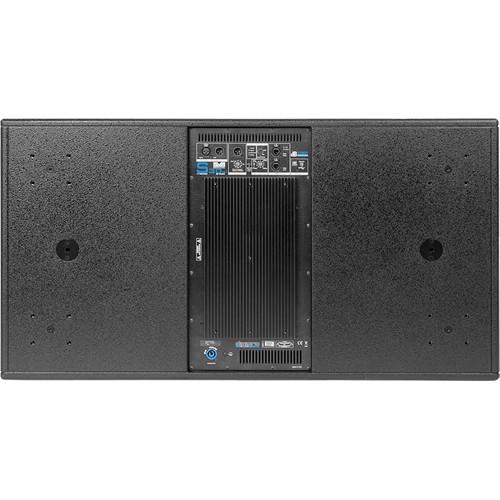

The speakers's birch multiplex housing is covered in black textured lacquer and equipped with eight grips. On the back is a transport dolly that removes easily via quick release pins to keep the wheels from rattling. - Bass Reflex Horn Housing
- This design brings together the benefits of bass reflex and horn systems in a compact housing engineered to render low frequencies with high SPL. The two baffle boards are arrayed in the form of a V. They guide the central bass reflex channel's sound energy into the horn's port. This funneling action is smooth and uniform, greatly increasing its range.
In the Box dB Technologies DVA S30N - Active 3000W Dual 18" Subwoofer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies DVA S30N - Active 3000W Dual 18" Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies DVA S30N Specs | Speaker Type | Active bass reflex horn subwoofer | | Frequency Response | 30 - 120 Hz, +/- 3 dB | | Max SPL Level | 141 dB | | Directivity | Omnidirectional, cardioid option with DSP setup | | Driver | 2x 18" (45.7 cm) | | Voice Coil | 4" (10.2 cm) | | Amplification | Amp Technology: Digipro
Amp Class: Class D
Power Supply: 3 kW SMPS
LF Amp: 3000W RMS
Cooling: Convection | | Controller | DSP 56 bit | | Converter | DSP 24-bit / 48 kHz | | Presets | X-over, delay | | Phase | 0, 180° | | Limiter | RMS, peak, thermal | | Delay | 0 - 4.5 ms internal | | Crossover Frequency | 75 - 120 Hz steps of 5 Hz
LF Crossover Out Slope: 24 dB/octave | | Housing | Housing: Multiplex birch plywood
Housing Design: Rectangular | | Handles | 4x per side | | Rigging Points | 2x pick points on top to fix DRK10/20 rigging frames | | Dimensions | 44.0 x 23.2 x 28.8" (1100 x 580 x 720 mm) | | Weight | 182.98 lb (83 kg) | | | | Package Weight | 168.0 lb | | Box Dimensions (LxWxH) | 21.0 x 18.5 x 16.5" |
