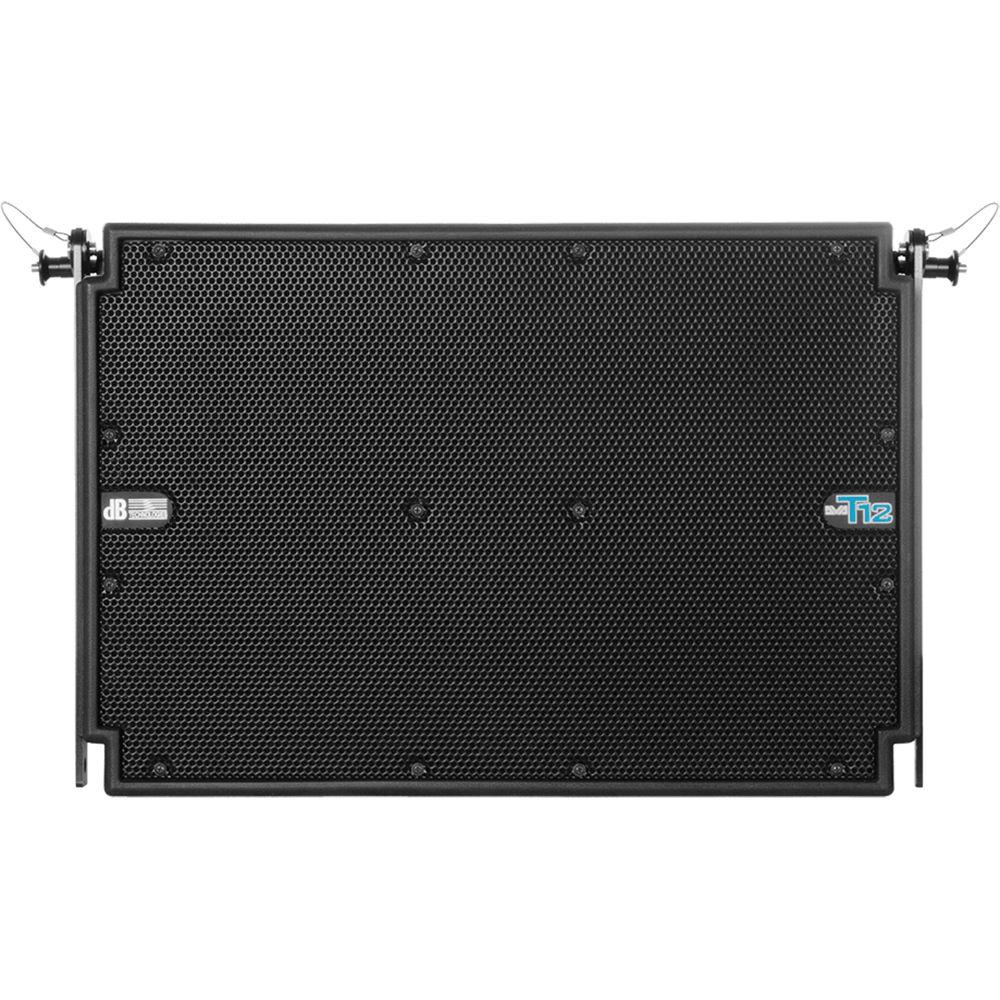

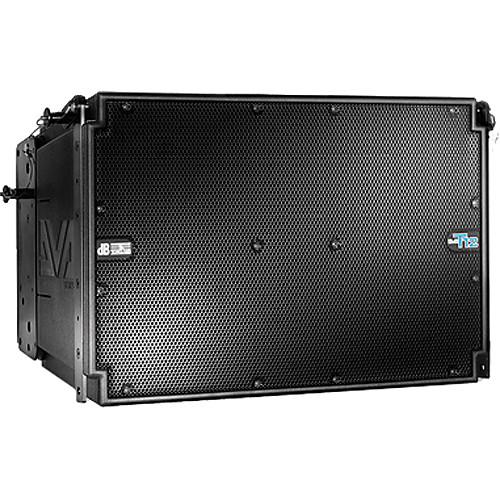

Product description The DVA T12 Active Line Array Module from dB Technologies features neodymium speakers and high-performance digital amps with a total of 1,410W output power. In combination with DSP and quality AD-DA converters, it delivers high-quality sound with high SPL for large sound reinforcement applications.
A band-passed 12" neodymium woofer covers the low frequency range. It packs an assertive punch that reaches down to 60 Hz to enable full-range applications. The 12" woofer is slanted inside the housing, giving the cabinet a lean, unobtrusive look.
The DVA T12's two 6.5" neodymium midrange drivers are placed close together to maximize coherent coupling and response for critical midrange frequencies. The speaker resides in a sealed basket to optimize the displacement volume. This makes the midrange even more responsive. With a high BL factor, it reacts far faster to transients and renders each attack with accuracy. Both 6.5" midrange drivers are equipped with an optimized phase plug and feed into a front loaded horn to achieve a uniform coverage pattern.
The 1" neodymium HF drivers feature 1.4" Mylar diaphragms. Light and responsive, they deliver richly detailed signals with remarkably linear frequency response. Especially developed for use in line arrays, these compact drivers may be deployed in very close proximity to one another. This is essential to minimize interference in such arrays. The DVA T12 is loaded with three HF drivers tuned specifically for the custom designed array horn. This combination maximizes the coupling of the drivers' outputs and extends the range of the HF signal. In the Box dB Technologies DVA T12 12" x 6.5" x 1" 1500 Watt Active Line Array Module Warranty Rain Cover Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies DVA T12 12" x 6.5" x 1" 1500 Watt Active Line Array Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies DVA T12 Specs | Speaker Type | 3-way active line array module | | Frequency Response | 60 - 19,000 Hz | | Max SPL Level | One Unit: 136 dB | | Driver | HF: 3 x 1"
Voice coil HF: 1.4"
Directivity: 100 x 10° single unit
Horn: integrated CD horn
MF: 2 x 6.5"
Type MF: Neodymium sealed basket phase plug horn loaded
Voice coil MF: 2"
LF: 12"
Type LF: Neodymium
Voice coil LF: 3" | | Amplification | Amp technology: Digipro G2
Amp class: Class D
HF amp: 350 W RMS
MF amp: 350 W RMS
LF amp: 710 W RMS
Cooling: convection | | Controller | DSP 56 bit | | Converter | DSP 24-bit / 96 kHz | | Presets | 8, HF/low-mid correction | | Limiter | Dual active limiter multiband RMS, peak, thermal | | Crossover | Crossover frequency MF-HF: 1800 Hz
Slope MF-HF: 24 dB/octave
Crossover frequency LF-MF: 420 Hz

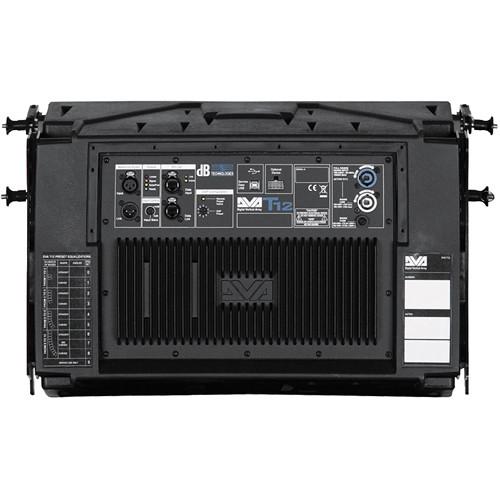

Slope LF-MF: 24 dB/octave | | Input | Signal input: 1x XLR fem, bal.
Signal output: 1x XLR male, bal.
Network: RDnet remote control RJ45 connector IN/OUT
Power socket: 1x Powercon in 1x Powercon out Voltage range: 90 - 240 V | | Housing | Housing: ProlypropylenE PP aluminum reinforced

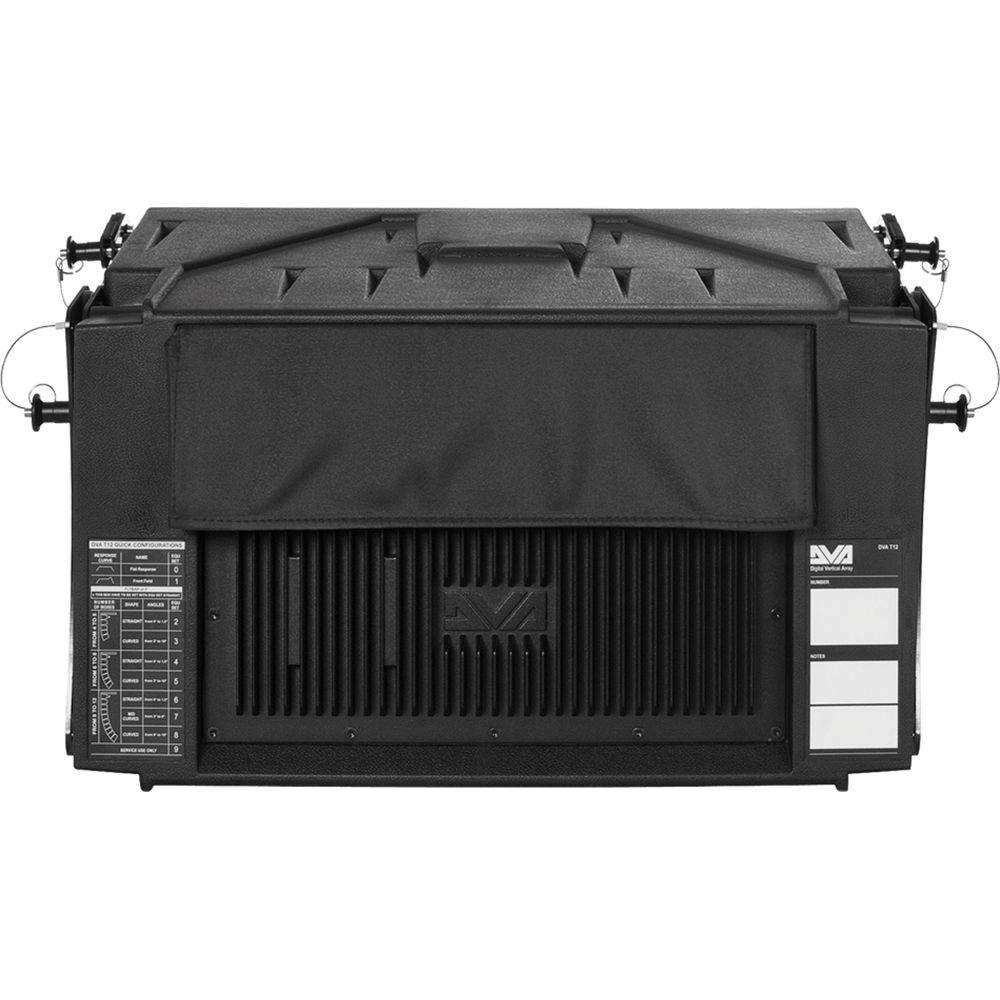

Housing design: trapezoidal 10° | | Weatherproof | Rain cover included | | Rigging Points | Integrated rigging hardware | | Dimensions | 23.2 x 15.44 x 17.2" (589 x 392 x 437 mm) | | Weight | 65.9 lb (29.9 kg) | | | | Box Dimensions (LxWxH) | 22.8 x 16.9 x 15.1" |
