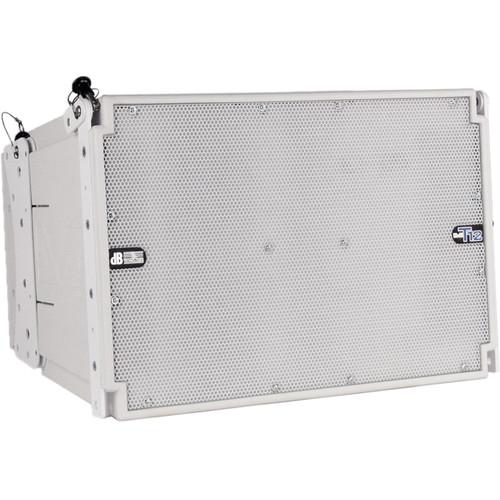

Product description The white DVA T12 Active 3-Way Line-Array Module from dB Technologies has two 6.5" neodymium midrange drivers which are placed close together to maximize coherent coupling and response for midrange frequencies. Both 6.5" midrange drivers are equipped with an optimized phase plug and feed into a front-loaded horn to achieve a uniform coverage pattern. The 1" neodymium HF drivers feature 1.4" Mylar diaphragms. This module is loaded with three HF drivers tuned specifically for the custom-designed array horn. - General Features
-
- Fully powered three-way unit
- Switched-Mode Power Supply (SMPS) with PFC (works from 90 to 240V)
- 1410W Class-D Digipro G2 amplifier
- Remotable with on-board RDNet port
- 56-bit DSP to 24-bit / 48 kHz A / D conversion
- 9 on-board preset equalizations for a fast and easy setup
- Hardware and acoustical design is compatible with DVA T series systems
- Applications
-
- Sound reinforcement for large-size venues
- Installations in clubs, theaters, houses of worship
- Upfill / long-throw coverage in combination with T8s or T4s systems
In the Box dB Technologies DVA T12 Active 3-Way Line-Array Module (White) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies DVA T12 Active 3-Way Line-Array Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies DVA T12W Specs | | | Frequency Response | + / -3 dB: 60 Hz to 19 kHz | | Maximum SPL | 136 dB | | Inputs | 1x XLR
1x RJ45 (RDNet input) | | Input Sensitivity | Nominal: 0 dBu | | Outputs | 1 x XLR
1 x RJ45 (RDNet link) | | Controls | 1 x Input Sensitivity rotary
1 x EQ rotary switch (9 presets)
1 x USB type B port (service data) | | Drivers | Low Frequency: 1 x 12.0" (30.5 cm) Neodymium woofer, 3.0" (7.6 cm) v.c.
Middle Frequency: 2 x 6.5" (16.5 cm) Neodymium midrange, 2.0" (5.1 cm) v.c.
High Frequency: 3 x 1.0" (2.5 cm) Neodymium CD, 1.4" (3.6 cm) v.c. | | Dispersion | Pattern: 100 x 10° (H x V) | | | | Technology | Digipro G2 | | Class | Class D | | RMS Power | 1410 W | | Peak Power | 2820 W | | Low Frequency Drivers | 710 W / RMS | | Medium | Frequency: 350 W / RMS | | High Frequency Drivers | 350 W / RMS | | Power Connections | Power-con (in and out) | | Power Supply | Main PSU: 1500 W SMPS full-range with active PFC (100 to 240 V)
Logic and Control PSU: 15 W SMPS full-range (100 to 240 V) | | Cooling | Convection, fan-free | | Advanced Features | Intelligent Power On Sequence (I.P.O.S.) circuit | | | | Audio Processing | DSP: 28- /56-bit with double-precision filters
A/D conversion: 24-bit / 96 kHz | | Limiter | Dual active - Multi-band - RMS / Peak - thermal | | Crossover Frequency | Low to Medium Frequency: 420 Hz, 24 dB / octave
Medium to High Frequency: 1900 Hz, 24 dB / octave | | X-Over Control | LF X-Over Out Slope: 24 dB / octave | | Presets | Audio: 9 audio presets (8 x high frequency and low to mid frequency correction and 1 for user custom EQ) | | Remote Control | RDNet control (read/write data in real time) | | | | Enclosure | Box: Polypropylene PP
Internal Structure: Metal reinforced
Flying Support: Steel | | Handles | 1 x left side
1 x right side | | Angle | Splay: 0 - 1.5 - 3 - 4.5 - 6 - 8 - 10° | | Hardware | Integrated | | Dimensions (W x H x D) | 22.83 x 15.20 x 16.33" (57.99 x 38.60 x 41.48 cm) | | Weight | 65.92 lb (29.90 kg) |
