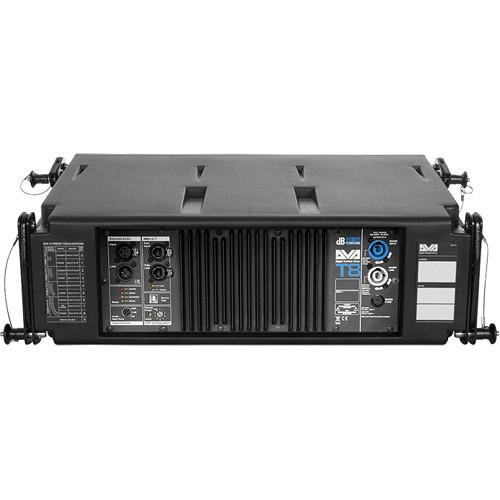

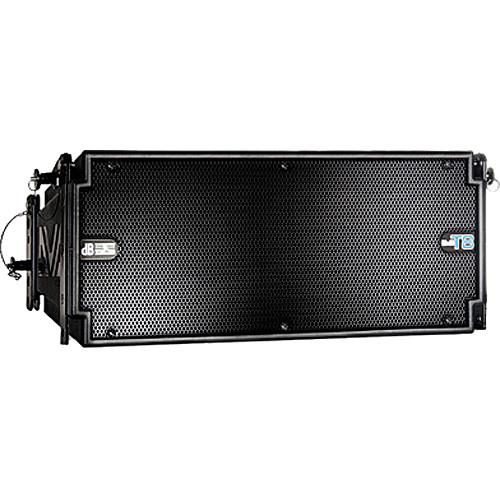

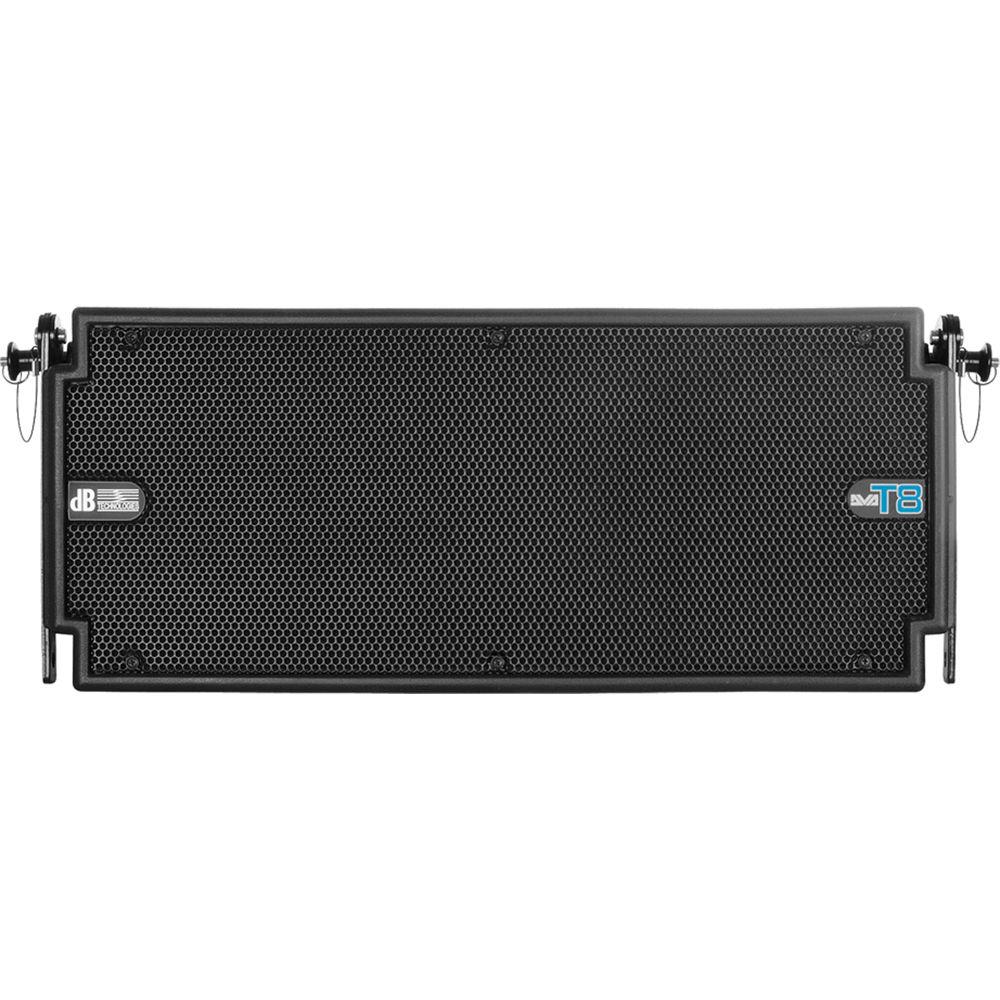

User Manual for dB Technologies DVA T8 8" x 6.5" x 1" 700 Watt Active Line Array Module Click to enlarge the picture
Contents of the user manual for the dB Technologies DVA T8 8" x
- Product category: PA Speakers dB Technologies
- Brand: dB Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dB Technologies PA Speakers
 |
User manual for the dB Technologies DVA T8 8" x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dB Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dB Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dB Technologies product will considerably shorten its lifespan!
|
Product description The DVA T8 from dB Technologies is an active line array module with neodymium woofers that features a high-performance digital power amp with 700W/RMS total output, 56-bit DSP, and premium-quality AD-DA converters. Lightweight at 14.2 kg, this line array's is designed for powerful performance despite its small footprint.
The DVA T8 boasts constant directivity horns, HF drivers, and midrange woofers optimized to deliver a uniform 100°-by-15° coverage pattern. It makes use of two acoustical effects to help distribute SPL evenly. One is the vector addition of individual horns' output; the other is cylindrical wave formation. These two effects come together to create a uniform coverage pattern that is easily adapted to different venues by varying the length of the array and adjusting the splay between individual components.
The 1" neodymium HF drivers feature 1.4" Mylar diaphragms. Light and responsive, they deliver detailed signals with linear frequency response. Developed especially for use in line arrays, these drivers may be deployed in very close proximity to one another. This is helps to minimize interference in such arrays.
Loaded with a custom 6.5" neodymium midrange driver, the DVA T8 also delivers accurate midrange response. The midrange driver is housed in a sealed chassis. Its high BL factor makes it more responsive so that it renders transients faithfully. A phase plug feeds into a front loaded horn tuned to achieve a uniform coverage pattern.
A powerful 8" neodymium woofer, paired with a 350W power amp, covers the low frequency range with a response that reaches down to 70 Hz. In the Box dB Technologies DVA T8 8" x 6.5" x 1" 700 Watt Active Line Array Module Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies DVA T8 8" x 6.5" x 1" 700 Watt Active Line Array Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies DVA T8 Specs | | | Configuration | Active 3-Way | | Enclosure Type | Line Array | | Total Power Capacity | 700 W | | Amplifier Power Rating | HF:
175 W RMS
MF:
175 W RMS
LF:
350 W RMS | | Amplifier Class | Class-D | | | | HF Driver | 2 x 1" / Compression Driver | | HF Voice Coil | 1.4" / 35.6 mm | | MF Driver | 1 x 6.5" / 165.1 mm Horn-Loaded | | MF Voice Coil | 2" / 50.8 mm | | LF Driver | 1 x 8" / 203 mm Woofer | | LF Voice Coil | 2.5" / 6.35 cm | | Magnet | Neodymium | | | | Frequency Response | 66 Hz to 18 kHz | | Maximum SPL | 132 dB | | Coverage Angle | 100° H x 15° V (Horn) | | Protections | RMS, Thermal | | | | Audio I/O | 1 x XLR Female Balanced Input
1 x XLR Male Balanced Output | | Network I/O | 2 x RJ45 (RDNet) | | | | Crossover | High-Pass:
1900 Hz, 24 dB/Octave
Low-Pass:
400 Hz, 24 dB/Octave | | Dynamic Processing | Peak Limiter | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | | | AC Input Power | 90 to 240 VAC, 50 / 60 Hz | | AC Power Connector | 1 x powerCON Input
1 x powerCON Output | | | | Mounting | Integrated Rigging | | Cooling | Convection | | Construction Material | Polypropylene | | Dimensions | 23.2 x 9.6 x 13.1" / 580.0 x 240.0 x 327.0 mm | | Weight | 31.3 lb / 14.2 kg | | | | Box Dimensions (LxWxH) | 22.8 x 16.9 x 15.1" |
