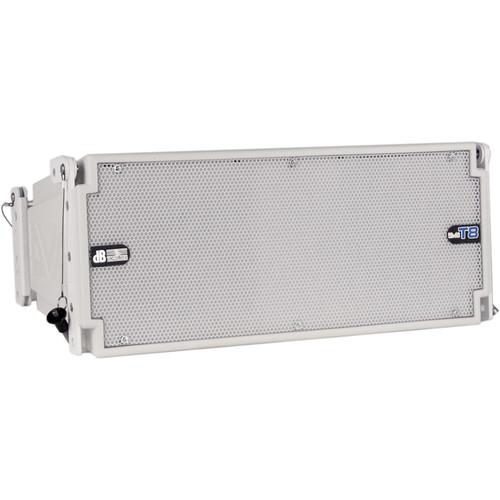

User Manual for dB Technologies DVA T8 Active 3-Way Line-Array Module Click to enlarge the picture
Contents of the user manual for the dB Technologies DVA T8 Active 3-Way
- Product category: PA Speakers dB Technologies
- Brand: dB Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dB Technologies PA Speakers
|
User manual for the dB Technologies DVA T8 Active 3-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dB Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dB Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dB Technologies product will considerably shorten its lifespan!
|
Product description The white DVA T8 Active 3-Way Line-Array Module from dB Technologies features a digital power amp with 700W / RMS total output, a high-end 56-bit DSP, and premium-quality AD-DA converters. It comes with constant-directivity horns, HF drivers, and mid-range woofers optimized to deliver a uniform 100 x 15° coverage pattern. It also delivers an excellent mid-range response, all thanks to the 6.5mm neodymium mid-range drivers. - General Features
-
- Fully powered three-way unit
- 700W Class-D Digipro G2 amplifier
- Network-ready with an Integrated RDNet port
- 56-bit DSP and 24-bit / 48 kHz A/D conversion
- 9 onboard preset equalizations
- Switched-Mode Power Supply with PFC (90 to 240V)
- Mechanically and acoustically compatible with DVA T series systems
- Applications
-
- Sound reinforcement for large-sized venues
- Installations in clubs, theaters, houses of worship
- Down-fill coverage in combination with T12 systems
In the Box dB Technologies DVA T8 Active 3-Way Line-Array Module (White) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies DVA T8 Active 3-Way Line-Array Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies DVA T8W Specs | | | Frequency Response | -6 dB: 66 Hz to 18 kHz
-10 dB: 61 Hz to 19.9 kHz | | Maximum SPL | 132 dB | | Inputs | 1x XLR
1x RJ45 (RDNet input) | | Input Sensitivity | Nominal: 0 dBu | | Controls | 1 x Input Sensitivity rotary
1 x EQ rotary switch (9 presets)
1 x USB type B port (service data) | | Drivers | Low Frequency: 1 x 8.0" (20.3 cm) neodymium woofer, 2.5" (6.4 cm) v.c.
Middle Frequency: 1 x 6.5" (16.5 cm) neodymium midrange, 2.0" (5.1 cm) v.c.
High Frequency: 2 x 1.0" (2.5 cm) neodymium CD, 1.4" (3.6 cm) v.c. | | Dispersion | Pattern: 100 x 15° (H x V) | | | | Technology | Digipro G2 | | Class | Class-D | | RMS Power | 700 W | | Peak Power | 1400 W | | Low Frequency Drivers | 350 W / RMS | | Medium | Frequency: 175 W / RMS | | High Frequency Drivers | 175 W / RMS | | Power Connections | Power-con (in and out) | | Power Supply | Main PSU: 750 W SMPS full-range with active PFC (100 to 240 V)
Logic and Control PSU: 15 W SMPS full-range (100 to 240 V) | | Cooling | Convection, fan-free | | Advanced Features | Intelligent Power On Sequence (I.P.O.S.) circuit | | | | Audio Processing | DSP: 56-bit with double-precision filters
A/D conversion: 24-bit / 96 kHz | | Limiter | Dual-active - Multi-band - RMS / Peak - thermal | | Crossover Frequency | Low to Medium Frequency: 400 Hz, 24 dB / octave
Medium to High Frequency: 1900 Hz, 24 dB / octave | | Presets | Audio: 9 audio presets (8 x high frequency and low- to mid-frequency correction and 1 for user custom EQ) | | Remote Control | RDNet control (read / write data in real time) | | | | Enclosure | Box: Polypropylene PP
Internal Structure: Metal reinforced
Flying Support: Steel | | Handles | 1 x left side
1 x right side | | Angle | Splay: 0 - 1.5 - 3 - 4.5 - 6 - 8 - 10 - 12.5 - 15° | | Hardware | Integrated | | Dimensions (W x H x D) | 22.83 x 9.45 x 12.87" (57.99 x 24.00 x 32.69 cm) | | Weight | 31.3 lb (14.2 kg) |
