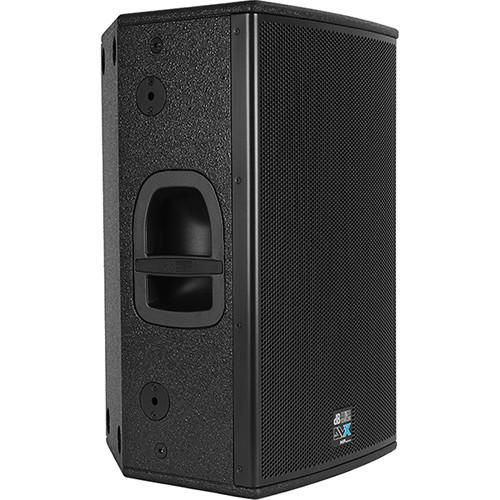

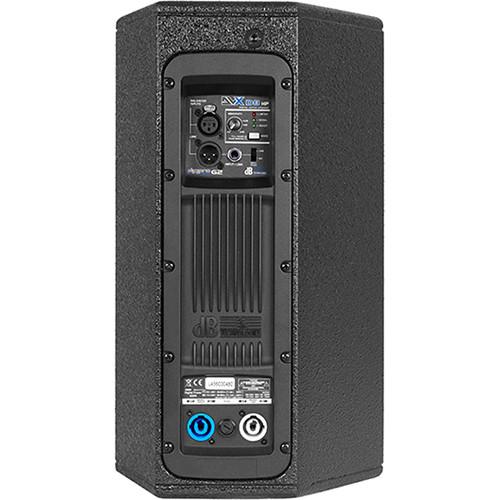

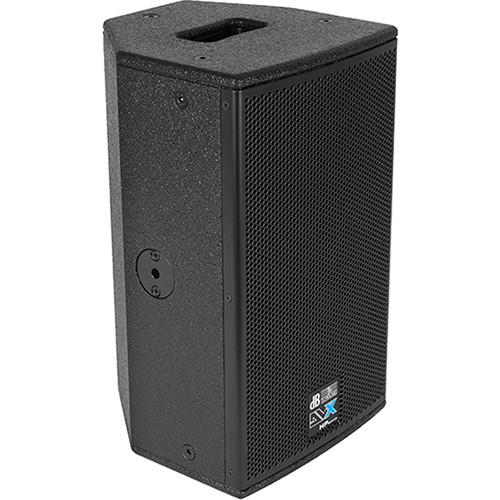

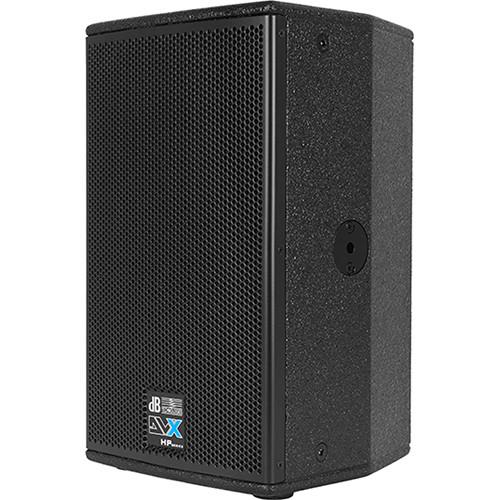

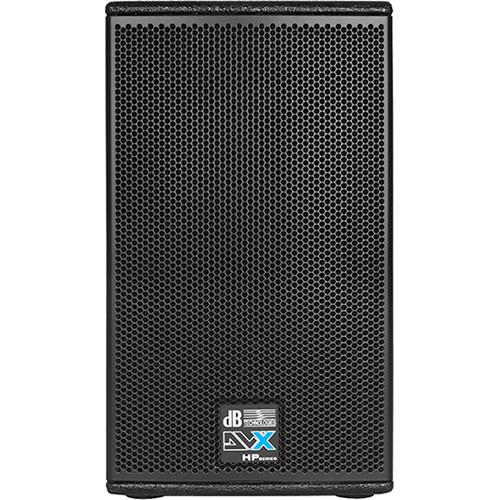

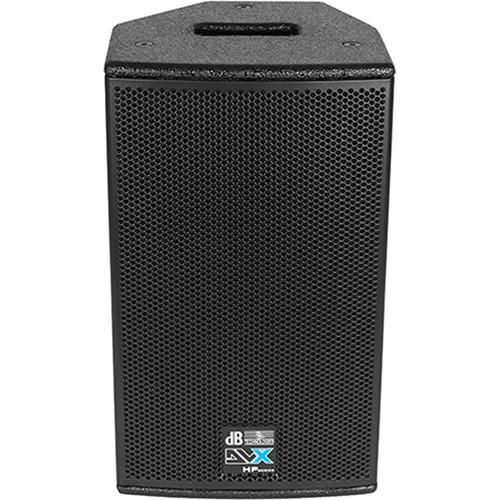

Product description The dB Technologies DVX D8 HP Speaker is a bi-amped active speaker that is equipped with a 400W RMS Digipro G2 module and SMPS. It features an integrated DSP which carries out various tasks, such as controlling the power amp, serving as an active equalizer, x-over, and high-pass filter. The DSP also performs audio setup tasks, such as aligning phases and delay time, and controlling the limiter. The LF transducer is an 8" woofer with a 2" voice coil whereas the HF transducer is a 1" compression driver with 1.4" voice coil on a 90 x 70° CD-horn. This rotatable high-frequency horn provides clean and constant directivity. Thanks to the low-power dissipation design, the cooling of the amplifier module does not require a fan. To help keep the drivers cool, all high-frequency horns are made of aluminium.The DVX D8 HP is made of 12mm birch plywood. For easy transportation, the speaker features an on-top handle, ten fly-tracks, six M10 threads, and two fly-pins located on the sides of the speaker. The standard aluminium pole-mount cup (Ø36mm) in the bottom of the box lets you use this speaker on a subwoofer or a speaker stand. Features - 90 x 70° rotatable aluminium CD horn
- 8" woofer; 1" compression driver
- 400W RMS Class-D Digipro G2 amplifier

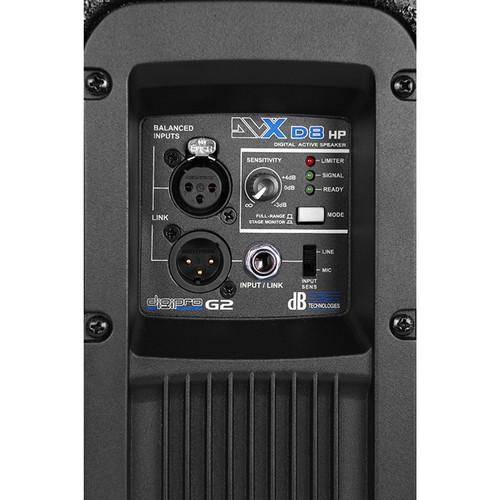

- 24-bit/48 kHz DSP processing with two presets for full-range or stage monitor use

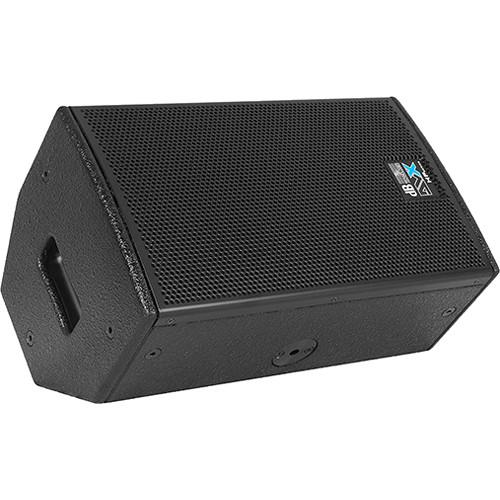

- Dual-angle enclosure for both front-of-house and floor monitor applications
- RMS/peak, thermal, and multi-band limiter
Applications - Compact live-sound reinforcement system
- Foreground / background music, infill / delay
- Portable PA, retail, clubs, ballrooms, houses of worship, corporate AV, live theaters
In the Box dB Technologies DVX D8 HP 400W 8" Active Speaker Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies DVX D8 HP 400W 8" Active Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies DVX-D8-HP Specs | Speaker Type | 2-way active speaker | | Frequency Response | 75 Hz to 20 kHz, -10 dB
100 Hz to 19 kHz, -3 dB | | Maximum SPL | 125 dB | | Drivers | HF: 1.0" (2.5 cm)
Voice Coil HF: 1.4" (3.6 cm)
Directivity: 90 x 70°
Horn: CD horn aluminum
LF: 8.0" (20.3 cm)
Voice Coil LF: 2.0" (5.1 cm) | | Amplifier | Amp Technology: Digipro G2
Amp Class: Class D
Power PRG: 400 W
Peak Power: 800 W | | Processor | Controller: DSP 24-bit/48 kHz
System Presets: Flat, monitor
Limiter: RMS, peak, thermal, multiband
Crossover Frequency LF-HF: 1850 Hz | | Housing | Multiplex birch plywood | | Angle | Monitor use 45°, Up | | Rigging Points | 10 x M08; 2 x 0.4" (1.0 cm) quick release for DTF-bracket | | Handles | 1 x On the top | | Dimensions | 9.8 x 16.7 x 10.2" (24.9 x 42.4 x 25.9 cm) | | Weight | 21.4 lb (9.7 kg) |
