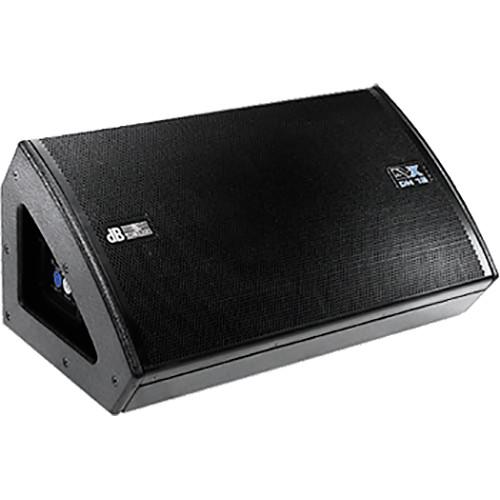

User Manual for dB Technologies DVX DM12 2-Way 750W Active 12" Stage Monitor Click to enlarge the picture
Contents of the user manual for the dB Technologies DVX DM12 2-Way 750W
- Product category: PA Speakers dB Technologies
- Brand: dB Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dB Technologies PA Speakers
|
User manual for the dB Technologies DVX DM12 2-Way 750W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dB Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dB Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dB Technologies product will considerably shorten its lifespan!
|
Product description The DVX DM12 2-Way 750W Active 12” Stage Monitor from dB Technologies features a neodymium 12” woofer (3” voice coil) and a neodymium 1.4” compression driver (2.5” voice coil), installed on a 90 x 40° rotatable CD horn. It offers natural response, dynamic balance, and high SPL in a compact package. The low-profile enclosure and quality of the woofer make this stage monitor able to render signals with impressive precision. The DVX DM12 Monitor is a pro-grade performer developed specifically for use as a floor monitor. Optimized to resist feedback even at extremely high levels, it delivers natural response and dynamic balance that artists demand.The DM12 Monitor is equipped with a DIGIPRO-Series Class-D amplifier, providing 500W RMS for the bass section and 250W RMS for the high-frequency section. This high-efficiency amplifier delivers high output power in a compact size and low weight. Thanks to its high efficiency the cooling of the amplifier module is obtained statically, thus avoiding the need of an external fan. The power supply has been conceived to work in full-range mode, and thanks to the SMPS (Switched-Mode Power Supply) technology with PFC (Power Factor Correction), the operation with supply voltages between 100 and 240 VAC is made possible by ensuring the same sound performances even with floating and non-stabilized power supply systems.The integrated 24-bit/48 kHz DSP acts as the enclosure controller, serving as an active equalizer, active X-over with phase & delay time alignment, peak, thermal, and multi-band limiter. Made of rugged 15mm multiplex birch plywood coated with tough black lacquer, the monitor’s light enclosure sets up at two different angles. The two recessed handles on each side of the speaker enable easy transport and installation. It is also equipped with a pole mount, enabling the DVX DM12 Monitor to be set on a tripod or speaker pole. - General
-
- 2-way active stage monitor
- 40 x 90° directivity
- 12” neodymium woofers, 3” voice coil
- 1.4” neodymium driver, 2.5” voice coil, with rotatable horn
- 750W RMS class-D Digipro amplifier
- 24-bit/48 kHz DSP
- Multi-band, RMS/peak, thermal limiter
- Flat / monitor EQ presets
- Applications
-
- Main vocal stage monitor
- Stage monitor for keyboard or other instruments
- Full-range speaker for small- to medium-scale applications
In the Box dB Technologies DVX DM12 2-Way 750W Active 12" Stage Monitor Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies DVX DM12 2-Way 750W Active 12" Stage Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies DVX-DM12 Specs | Speaker Type | 2-way active speaker | | Frequency Response | 55 Hz to 20 kHz @ -10 dB
68 Hz to 19 kHz @ -3 dB | | Maximum SPL | 131 dB | | Drivers | HF 1.4" (3.5 cm)
Type HF neodymium compression driver
Voice Coil HF Titanium: 2.5" (6.35 cm)
Directivity: 90 x 40°
Horn: CD Horn Aluminium
Rotatable Horn
LF: 12" (30.5 cm)
Type LF: Neodymium
Voice Coil LF: 3" (8 cm) | | Amplifier | Amp Technology: Digipro
Amp Class: Class-D
Peak Power: 1500 W
Power Supply: Full-range with PFC
Cooling: Convection | | Processor | Controller: DSP 24-bit/48 kHz
System Presets: Flat, Monitor
Limiter: RMS, Peak, Thermal, Multiband
Crossover Frequency: 1.4 kHz
Slope LF-HF: 24 dB/Octave | | Connections | Input: XLR balanced
Output: XLR balanced (link out)
EQ Preset: 2-way switch (Monitor - full-range)
Sensitivity: Rotative knob
Indicators: 4 x LEDs (On, Mute, Signal, Limiter) | | Power Supply | Powercon (Mains Input: Blue)
Powercon (Mains Link: White)
Mains Fuse: 220 to 240V (T5A, 250 V) / 100 to 120 V to (T10 A, 250 V) | | Housing | Material: Multiplex birch plywood
Design: Low-profile multi-functional | | Angle | 30°, 60° (up) | | Handles | 2 x recessed handles (one on each side) | | Dimensions (W x H x D) | 26.0 x 12.0 x 13.9" (66.0 x 30.5 x 37.8 cm) | | Weight | 38.6 lb (17.5 kg) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 29.5 x 17.6 x 14.5" |
