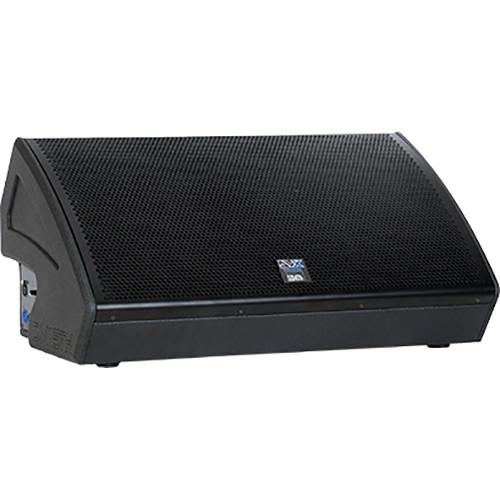

Product description The DVX DM15 TH 1500W Two-Way Active Stage Monitor from dB Technologies is equipped with 15" neodymium heavy-duty woofer with a 4" voice coil. It features a neodymium compression driver, 1500W RMS Digipro G2 amplifiers, and SMPS with PFC. The speaker also features phase-plug technology that helps the speaker in providing a correction of the phase and frequency response of the 15" woofer. The result is a coherent horizontal coverage and a great definition of the mid frequencies. Thanks to its high SPL, this DM TH monitor is suitable for various applications. DVX DM15's frequency response can be regulated trough the two preset equalizations: Flat EQ and TH EQ.By rotating the whole frontal panel, you can easily can change the monitor's orientation. This will invert the internal geometry of the speaker, moving the horn from the left side to right side, or vice versa. You can also couple two adjacent monitors' HF horns and avoid comb filters. The speaker comes with a logo which will indicate the internal disposition of the transducers. This will allow you to discern if a monitor is in a right or left configuration. For vertical usage, it is also possible to rotate the monitor's CD aluminium horn in order to optimize speaker dispersion and adapt it to the new configuration. Without any visible cables, the stage will look neat, thanks to inputs (PowerCon and XLR) on one side and the links on the other (PowerCon and XLR ). This disposition enables the positioning of the adjacent monitors without any space between the two boxes. As a result, the coupling effect will be optimized. Features - Two-way active stage monitor
- 15" neodymium heavy-duty woofer
- 1.4" neodymium compression driver
- 1500W RMS Class-D Digipro G2 amplifier
- Dual-active, multi-band, RMS/peak, thermal limiter
- Rotatable front panel (left or right monitor customization)
Applications - High-output drum or keyboard monitor
- Side-fill monitor for small- to medium-scale applications
- Stage monitor system side-fill
In the Box dB Technologies DVX DM15 TH 1500W Two-Way Active Stage Monitor Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies DVX DM15 TH 1500W Two-Way Active Stage Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies DVX-DM15-TH Specs | Speaker Type | 2-way active speaker | | Frequency Response | 55 to 16 kHz @ -6 dB
47 to 18 kHz @ -10 dB | | Maximum SPL | 136 dB | | Drivers | HF: 1.4" (3.6 cm) neodymium compression driver
Voice Coil HF: 2.5" (6.4 cm)
Directivity: 40 x 90°
Horn: Aluminum rotatable
LF: 15.0"(38.1 cm) neodymium woofer
Voice Coil LF: 4.0" (10.2 cm) | | Amplifier | Amp Technology: Digipro G2
Amp Class: Class D
Power RMS: 1500 W; LF 750 W @ 4 ohms; HF 375 W @ 8 ohms
Peak Power: 3000 W | | Processor | Controller: DSP 24-bit/48 kHz
System Presets: Flat EQ, TH EQ
Limiter: Dual active, multiband, RMS/peak, thermal
Crossover Frequency: 1070 Hz
Slope LF-HF: 24 dB/Octave | | Power Supply | Full-range 100 to 240 VAC; 50 to 60 Hz with PFC | | Inrush Current | 16.1 A | | Cooling | Single fan | | Housing | Multiplex birch plywood; polyurea painted | | Angle | 35°, 55° up | | Handles | 1 x Left side, 1 x Right side | | Dimensions | 28.9 x 14 x 17.6" (73.5 x 35.5 x 44.7 cm) | | Weight | 62.8 lb (28.5 kg) |
