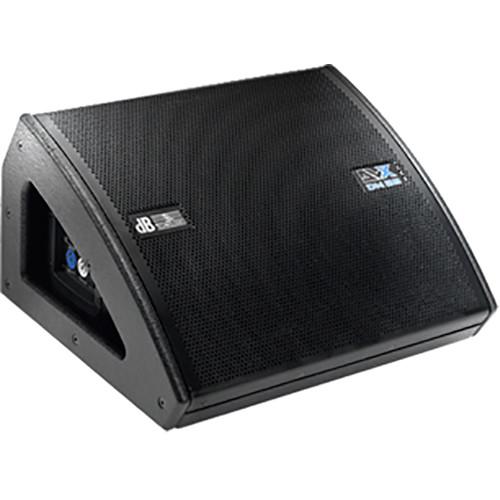

User Manual for dB Technologies DVX DM28 2-Way 750W Active 2x8" Stage Monitor Click to enlarge the picture
Contents of the user manual for the dB Technologies DVX DM28 2-Way 750W
- Product category: PA Speakers dB Technologies
- Brand: dB Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dB Technologies PA Speakers
|
User manual for the dB Technologies DVX DM28 2-Way 750W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dB Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dB Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dB Technologies product will considerably shorten its lifespan!
|
Product description The DVX DM28 2-Way 750W Active 2x8” Stage Monitor from dB Technologies features two neodymium 8” woofers (2.5” voice coil) and a neodymium 1” compression driver (1.75” voice coil) installed on a 90 x 40° rotatable CD horn. It offers natural response, dynamic balance, and high SPL in a compact package. The low-profile enclosure and quality of the two woofers make this stage monitor able to render signals with impressive precision.In contrast to cabinets loaded with simple 8” speakers, the DVX DM28 packs a low-/mid-range punch and responds quickly to transients in the signal, rendering each attack with accuracy and power. It is equipped with DIGIPRO series Class-D amplifier delivering 500W RMS for the bass section and 250W RMS for the high-frequency section. This high-efficiency amplifier delivers high-output power in a compact size and low weight.Thanks to its high efficiency, the cooling of the amplifier module is obtained statically, thus avoiding the need of an external fan. The power supply circuits of the DIGIPRO amplifier have been conceived to work in full-range mode, and thanks to the SMPS (Switched-Mode Power Supply) technology with PFC (Power Factor Correction) the operation with supply voltages between 100 and 240 VAC is made possible by ensuring the same sound performances even with floating and non-stabilized power supply systems.The integrated 24-bit/48 kHz DSP acts as the enclosure controller, serving as an active equalizer, active Xover with phase and delay-time alignment, peak, thermal, and multi-band limiter. You can easily choose between two EQ presets (flat and monitor) by pressing the MODE button on the side panel, adapting the DVX DM28 to full-range or stage monitor use. Made of rugged 15mm multiplex birch plywood coated with tough black lacquer, its light low-profile enclosure sets up at two different angles. The two recessed handles on each side of the speaker enable easy transport and installation. - General
-
- 2-way active stage monitor
- 40 x 60/40° directivity
- 2 x 8” neodymium woofers, 2.5” voice coil
- 1” neodymium driver, 1.75” voice coil, with asymmetrical horn
- 750W RMS Class-D Digipro amplifier
- 24-bit/48 kHz DSP
- Multi-band, RMS/peak, thermal limiter
- Flat / monitor EQ presets
- Applications
-
- Main vocal stage monitor
- Stage monitor for keyboard or other instruments
- Side-range speaker for small- to medium-scale applications
In the Box dB Technologies DVX DM28 2-Way 750W Active 2x8" Stage Monitor Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies DVX DM28 2-Way 750W Active 2x8" Stage Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies DVX-DM28 Specs | Speaker Type | 2-way active speaker | | Frequency Response | 70 Hz to 20 kHz @ -10 dB
89 Hz to 19 kHz @ -3 dB | | Maximum SPL | 130 dB | | Drivers | HF 1" (2.5 cm)
Type HF: Neodymium compression driver
Voice Coil HF Titanium: 1.75" (4.44 cm)
Directivity: 90 x 60/40°
Horn: CD Horn aluminum
Asymmetrical Horn
LF: 2 x 8" (20 cm)
Type LF: Neodymium
Voice Coil LF: 2.5" (8.9 cm) | | Amplifier | Amp Technology: Digipro
Amp Class: Class-D
Peak Power: 1500 W
Power Supply: Full-range with PFC
Cooling: Convection | | Processor | Controller: DSP 24-bit/48 kHz
System Presets: Flat, Monitor
Limiter: RMS, Peak, Thermal, Multiband
Crossover Frequency: 1600 Hz
Slope LF-HF: 24 dB/Octave | | Connections | Input: XLR balanced
Output: XLR balanced (link out)
EQ Preset: 2-way switch (Monitor - full-range)
Sensitivity: Rotative knob
Indicators: 4 x LEDs (On, Mute, Signal, Limiter) | | Power Supply | Powercon (Mains Input: Blue)
Powercon (Mains Link: White)
Mains Fuse: 220 to 240 V (T5A, 250 V) / 100 to 120 V to (T10 A, 250 V) | | Housing | Material: Multiplex birch plywood
Design: Low-profile multi-functional | | Angle | 30°, 60° (up) | | Handles | 2 x recessed handles (one on each side) | | Dimensions (W x H x D) | 19 x 10 x 17" (48 x 27 x 42 cm) | | Weight | 31 lb (14 kg) | | | | Package Weight | 38.5 lb | | Box Dimensions (LxWxH) | 22.3 x 19.0 x 12.0" |
