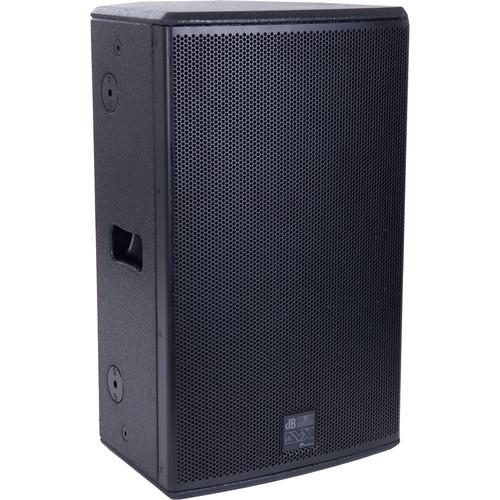

User Manual for dB Technologies DVX P12 12" 2-Way Passive Speaker Click to enlarge the picture
Contents of the user manual for the dB Technologies DVX P12 12" 2-Way
- Product category: PA Speakers dB Technologies
- Brand: dB Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dB Technologies PA Speakers
 |
User manual for the dB Technologies DVX P12 12" 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dB Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dB Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dB Technologies product will considerably shorten its lifespan!
|

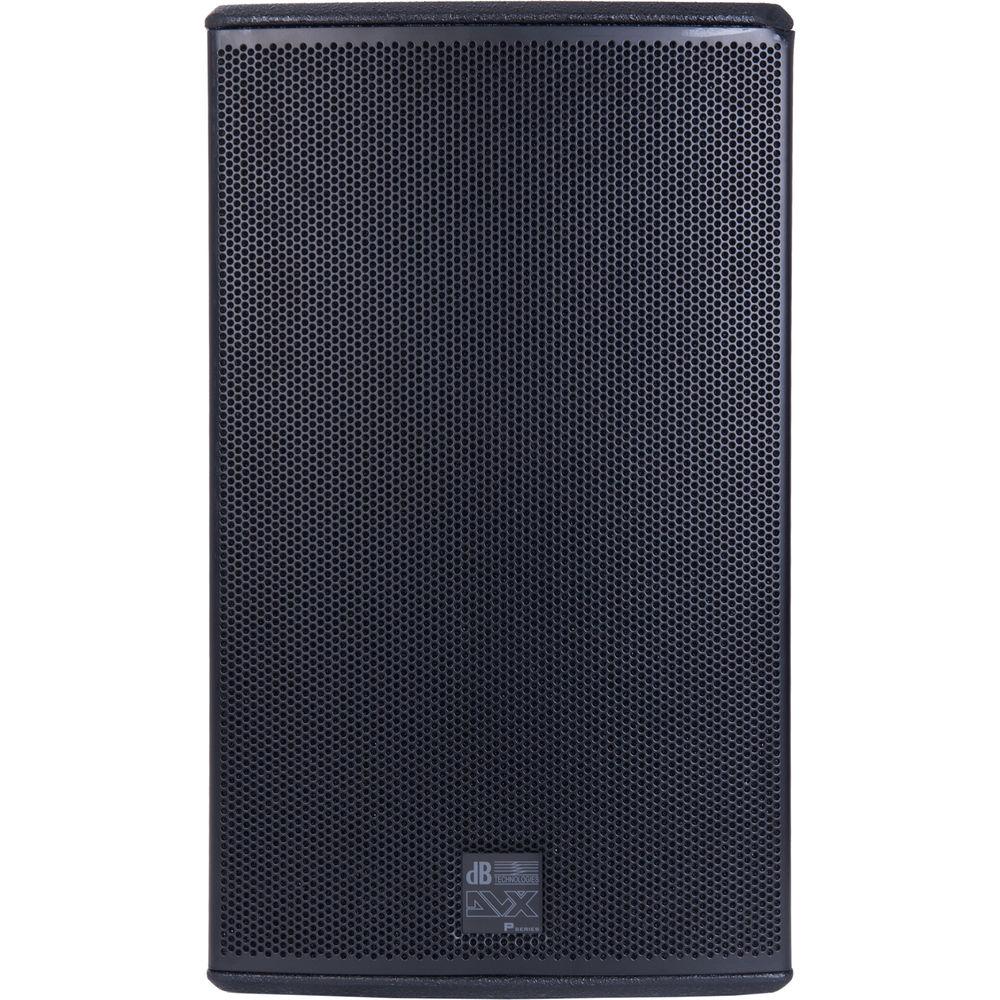

Product description The black DVX P12 12" 2-Way Passive Speaker from dB Technologies is an 12", 1.4" 2-way passive loudspeaker with birch plywood cabinet designed to render speech content, background and any other kind of music in medium- to large-sized rooms.
The DVX P12 is equipped with an 12" woofer (3" voice coil) and a 1.4" compression driver (2.5" voice coil) on a 90 x 40° rotatable plastic CD-horn. It also features a passive crossover filter with 12dB/oct slope of for low-pass part, 18dB/ oct for high-pass and a self-resetting thermal-protection circuit on the high-frequency driver to prevent protracted overloading.

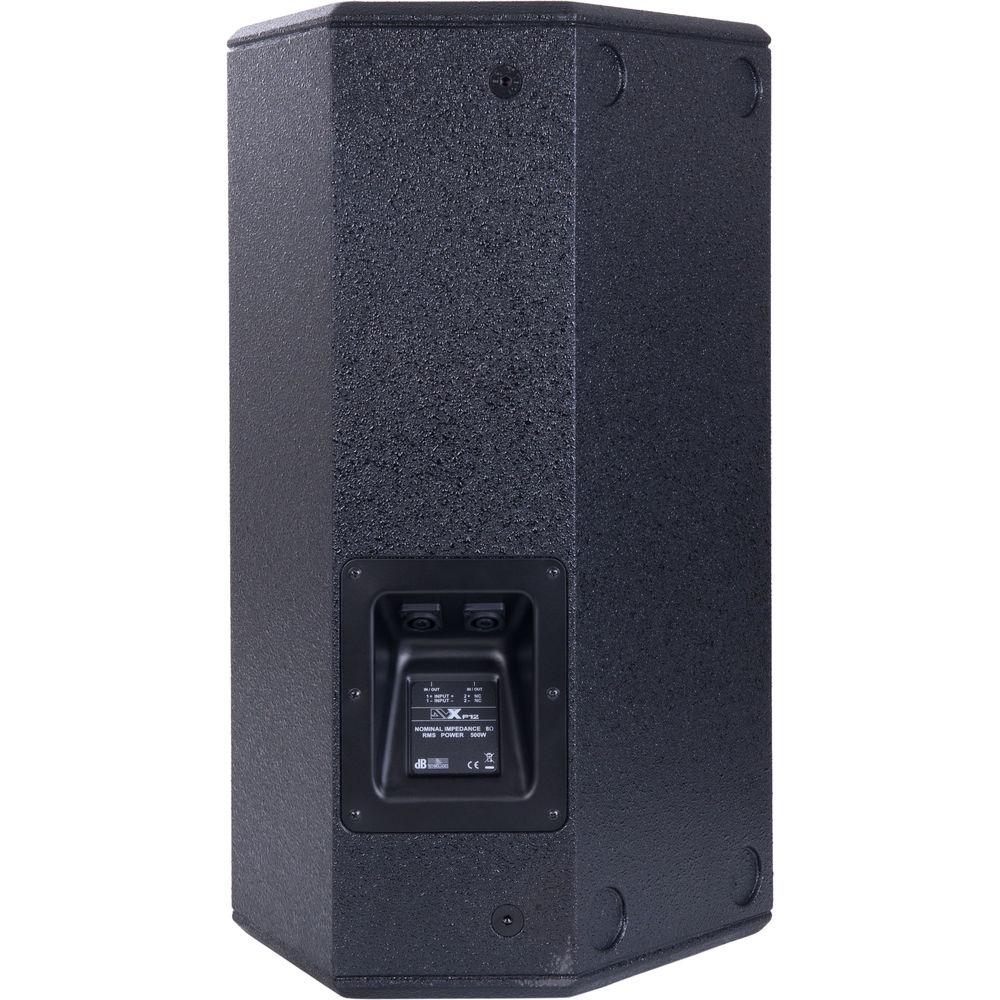

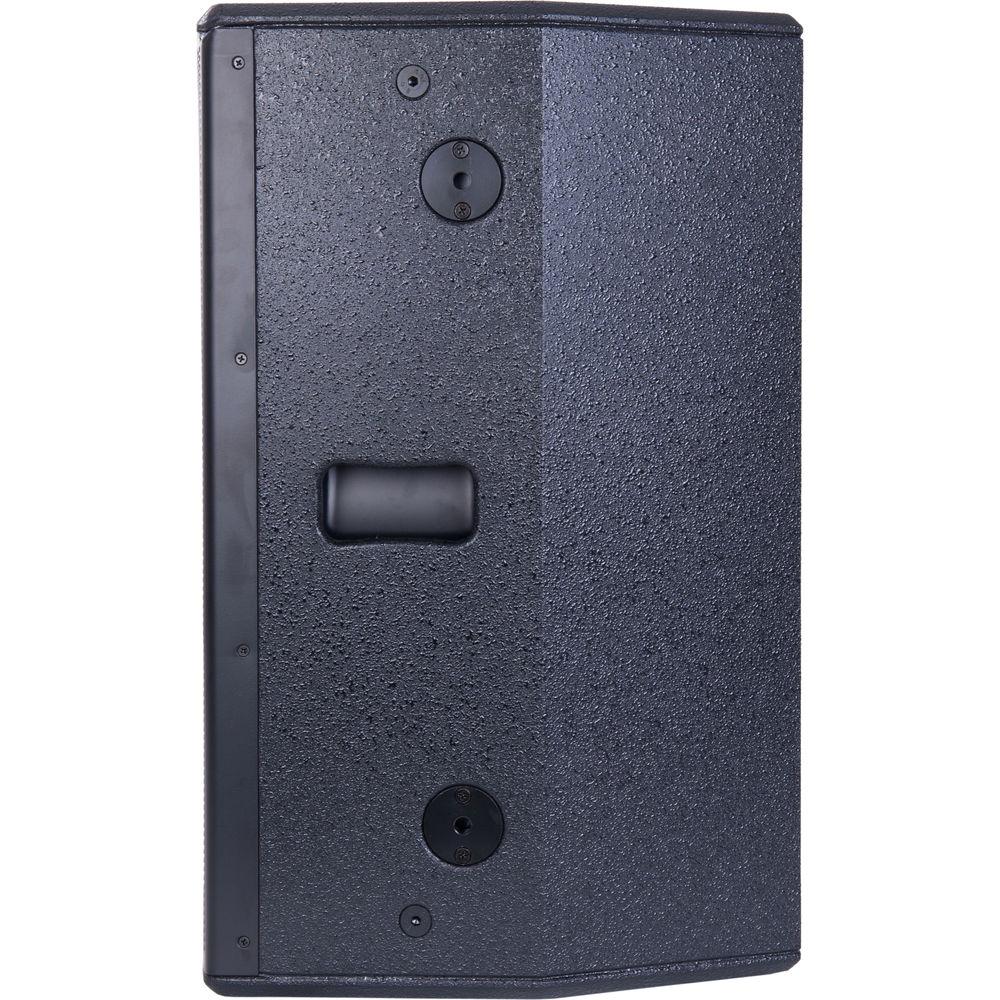

The speaker features a top handle that enables easy transport, 2 fly pins for wall-mount brackets located on the sides of the speaker, 12 x M10 thread-rigging points, and a standard aluminum pole-mount cup (Ø36mm). Its slanted back panel with two angles (40°, 25°) enables stage-monitoring setups, and the rotatable CD-horn allows the user to maintain the same high-frequency coverage angle when the speaker is used as a monitor. - 90 x 40° rotatable CD-horn
- 12" woofer; 1.4" neodymium compression driver
- 500W RMS / 1000W peak, 8 ohms
- Dual-angle enclosure for both front-of-house and floor-monitor applications
- Premium crossover with precision filters
- Self-resetting thermal protection on high frequencies
In the Box dB Technologies DVX P12 12" 2-Way Passive Speaker (Black) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies DVX P12 12" 2-Way Passive Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies DVX P12 Specs | | | Frequency Response | - 10 dB: 60 to 20,000 Hz
- 6 dB: 90 to 20,000 Hz | | Maximum SPL | 133 dB | | Power | RMS / Peak: 500 W / 1000 W | | HF Amplifier | 1.4" neodymium, 2.5" voice coil | | Directivity | 90 x 40° | | Horn | CD-horn aluminum | | LF Amplifier | 12", 3" voice coil | | Impedance | 8 ohms | | Protection | Self-resetting thermal protection on high frequencies | | Crossover Frequency | 1400 Hz | | Filter | 18 dB/oct high pass; 12 dB/oct low pass | | Audio Connector | 2 x Speakon in parallel | | | | Housing | Birch plywood | | Tilt | Monitor use 40°, 25° | | Handles | 1 x housing, top side | | Rigging Points | 12 x M10, 4 x fly-pins | | Dimensions (W x H x D) | 15 x 25 x 15.5" (38 x 63.5 x 39.4 cm) | | Weight | 51.1 lb (23 kg) |
