User Manual for dB Technologies DVX P215 3-Way 1000W RMS Passive Speaker Click to enlarge the picture
Contents of the user manual for the dB Technologies DVX P215 3-Way 1000W
- Product category: PA Speakers dB Technologies
- Brand: dB Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dB Technologies PA Speakers
 |
User manual for the dB Technologies DVX P215 3-Way 1000W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dB Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dB Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dB Technologies product will considerably shorten its lifespan!
|

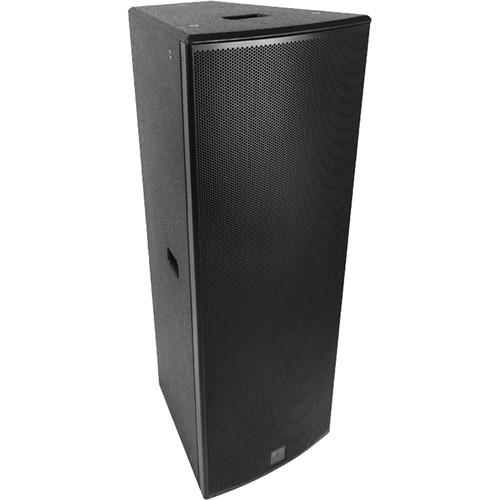

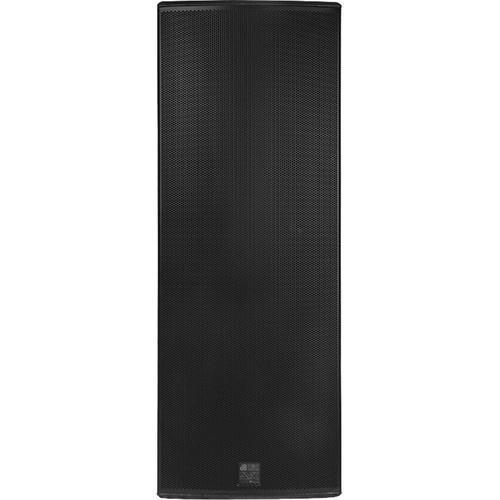

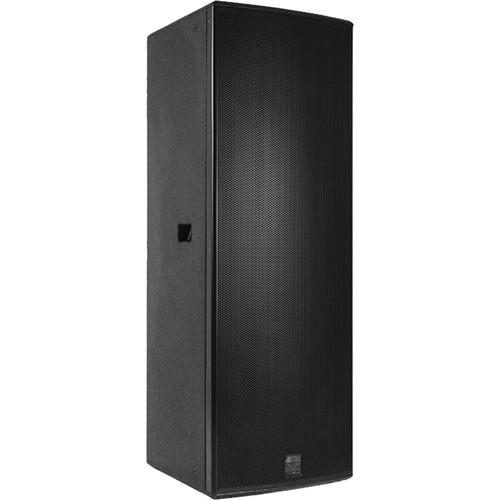

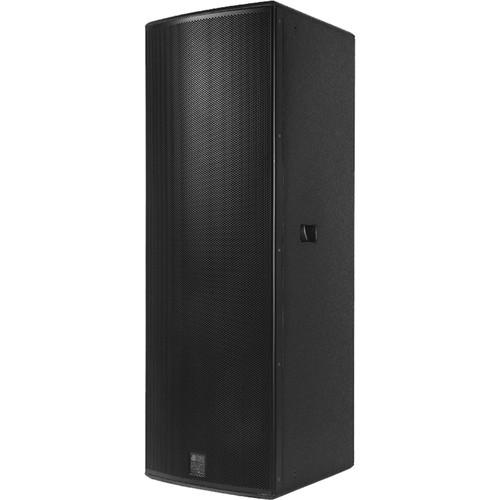

Product description The DVX P215 3-Way Passive Speaker from dB Technologies features two 15" woofers with 3" voice coil and a 1.4" neodymium compression driver with 2.5" voice coil with titanium dome on a 90 x 40° rotatable CD horn. The crossover contains precision filters with 12 dB/octave slope for low-pass and 18 dB/octave for high-pass. In addition, there is a self-resetting thermal protection circuit on the high-frequencies driver to prevent protracted overloading. The rotatable CD-horn allows you to maintain the same high-frequencies coverage angle even when the speaker is used horizontally. The birch plywood cabinet is designed to render speech contents, background, and any other kind of music in medium to large sized rooms, giving more prominence to the lowest part of frequency range. All these characteristics assure maximum speech intelligibility and allow the speaker to deliver wormy, assertive bass response without requiring an added subwoofer. Four handles enable easy transport and eleven M10 threads rigging points and the adjustable foot in the bottom. In the Box dB Technologies DVX P215 3-Way 1000W RMS Passive Speaker Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies DVX P215 3-Way 1000W RMS Passive Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies DVX P215 Specs | | | Frequency Response | 70 Hz to 20 kHz (± 6 dB) | | Maximum SPL | 136 dB | | RMS Power | 1000 W | | Impedance | 8 Ohms | | High Frequency Driver | 1.4" (3.6 cm) Neodymium, 2.5" (6.4 cm) voice coil | | Directivity | 90 x 40° | | Horn | CD horn aluminum | | Crossover Frequency | Passive: 1300 Hz | | Low Frequency Driver | 2 x 15.0" (38.1 cm), 3.0" (7.6 cm) voice coil | | Filter | High Pass: 18 dB/octave
Low Pass: 12 dB/octave | | | | Housing | Multiplex birch plywood | | Rigging Points | 11 x M10 | | Handles | 4 | | Dimensions (W x H x D) | 17.58 x 47.32 x 17.7" (44.65 x 120.2 x 45.0 cm) | | Weight | 103.6 lb (47 kg) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 54 owners. Add your rating and experience with the product.
