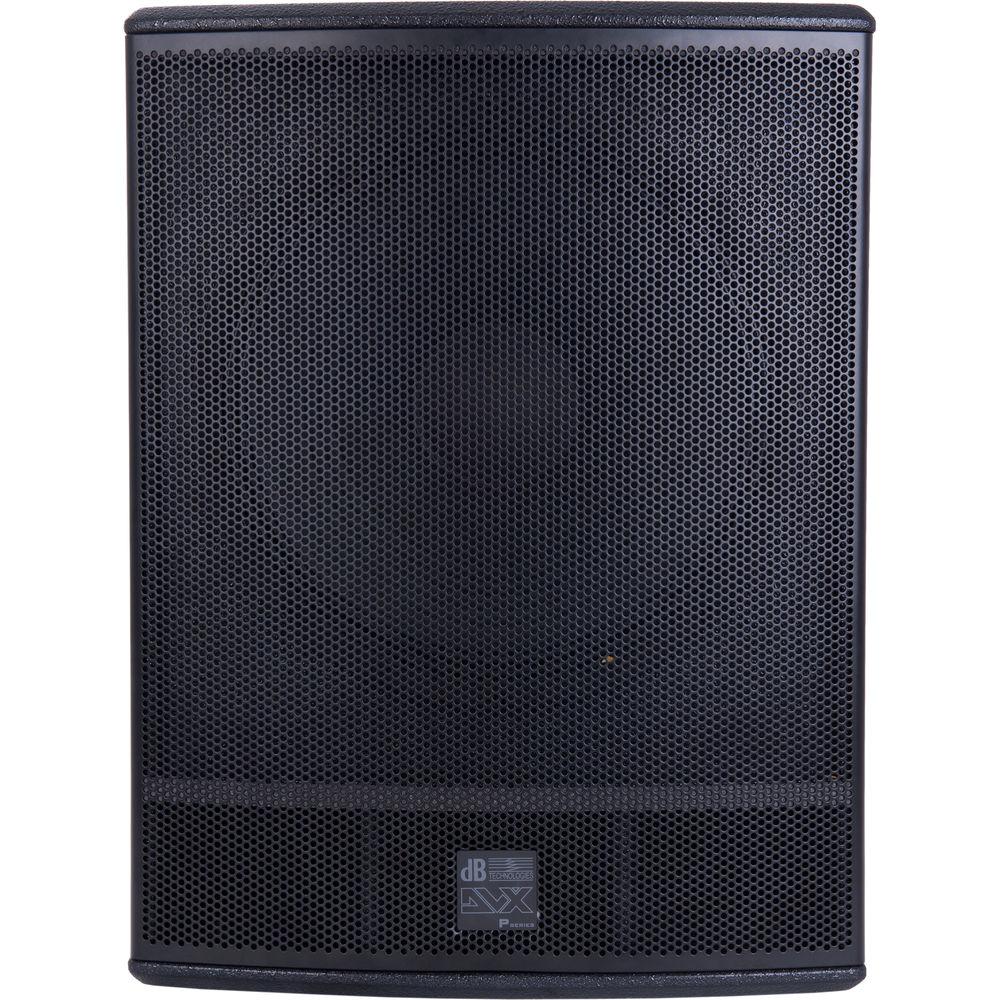

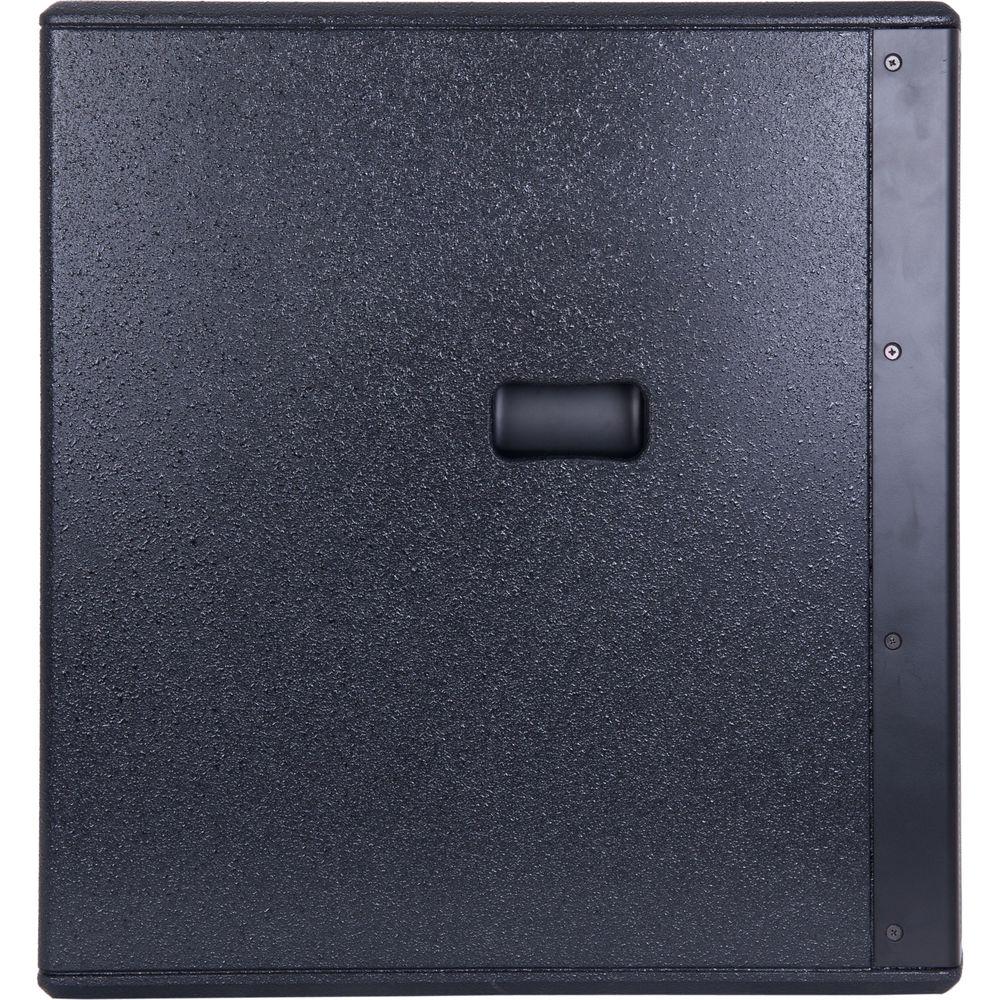

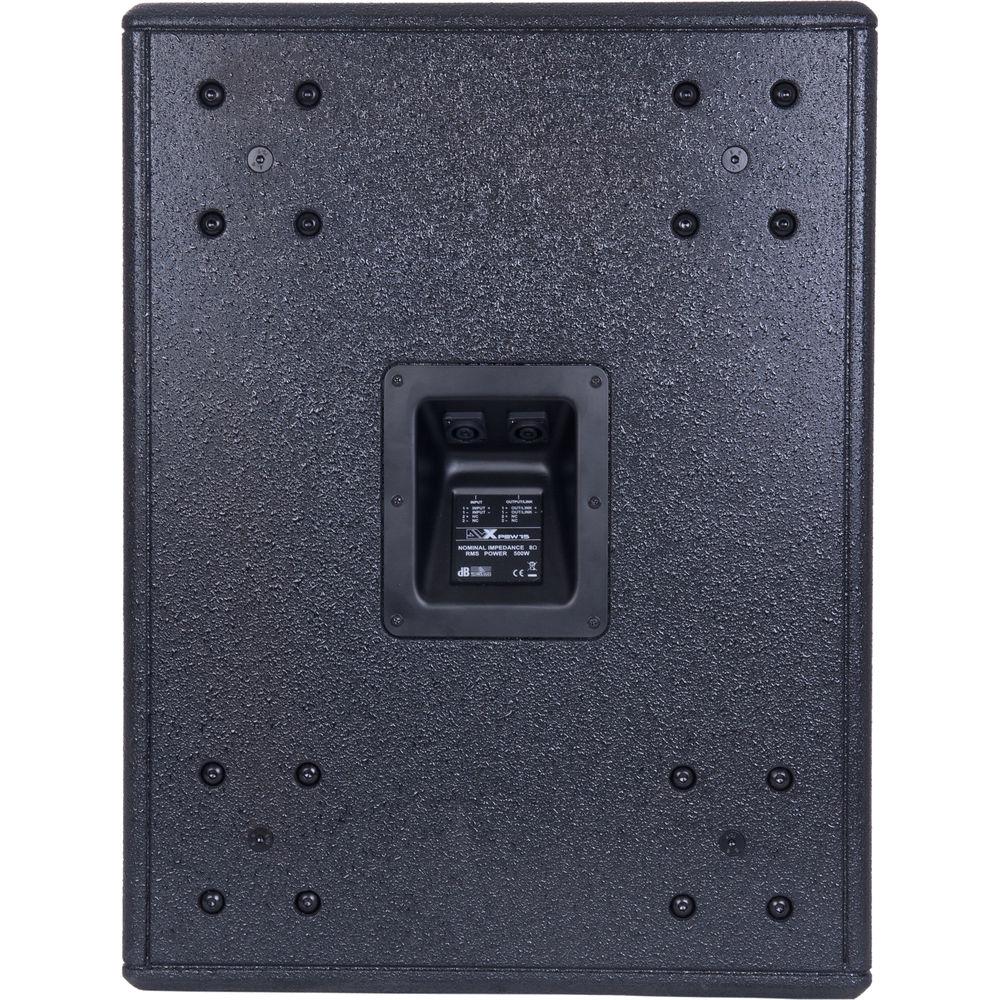

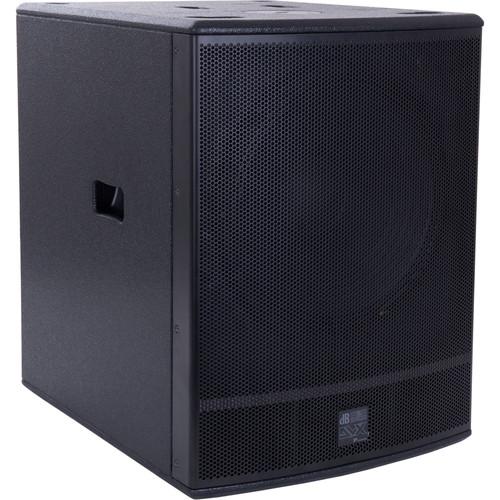

Product description The DVX PSW15 Subwoofer from dB Technologies is a compact, high-output, 15" passive subwoofer. It is able to produce a maximum SPL of 132 dB and handles 1000W of peak power on 8 ohms. The cabinet is designed to achieve tight and maximized output and ensures acoustic response down to 35 Hz, resulting in a fast and controlled reproduction of the bass-frequency range.The birch plywood enclosure is painted with black, heavy-duty paint, which ensures resistance to scratches and to the rigors of the touring environment. A strong 1.5mm metal grille protects its front panel, and its dual side-handle housing helps for easy transportation. For stacking DVX 2-way speakers or another subwoofer on top of the DVX PSW15, the subwoofer features recesses on the top. Additionally, there is an M20 pole-mount plate which allows overlying any speaker with a 36mm hole by using the optional DS2-S pole-mount adaptor. The rear panel features two Neutrik Speakon connectors in a recessed input plate. On each corner there is a set of holes for optional wheels (DWK20 accessory). Features - Sound pressure level of 132 dB max
- 15" woofer with 3" voice coil
- Rectangular box enclosure with 1.5mm protective metal grille
- M20 pole-mount plate on top
- Birch plywood cabinet with black, heavy duty, paint
Applications - Low-frequency enhancement in small- to mid-sized venues
- Live sound for rental application
- Portable PA, clubs, ballrooms, houses of worship, corporate AV, live theaters
In the Box dB Technologies DVX PSW15 15" 500W Passive Subwoofer Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies DVX PSW15 15" 500W Passive Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies DVX PSW15 Specs | Speaker Type | Passive subwoofer | | Frequency Response | 35 to 200 Hz @ -10 dB
40 to 200 Hz @ -6 dB | | Max SPL Level | 132 dB | | RMS Power | 500 W | | Peak Power | 1000 W | | LF Amplifier | 15.0" (38.1 cm), 3.0" (7.6 cm) voice coil | | Characteristic Impedence | 8 ohms | | Audio Connector | 2 x SPEAKON in parallel | | Housing | Birch plywood, black | | Grille | 0.1" (1.5 mm) perforated metal grille | | Pole Mount | Plate: M20 (aluminum) | | Handles | 2 x Housing (1 x Side) | | Dimensions | 18.5 x 24.7 x 23.6"(47.0 x 62.7 x 60.0 cm) | | Weight | 68.1 lb (30.9 kg) |
