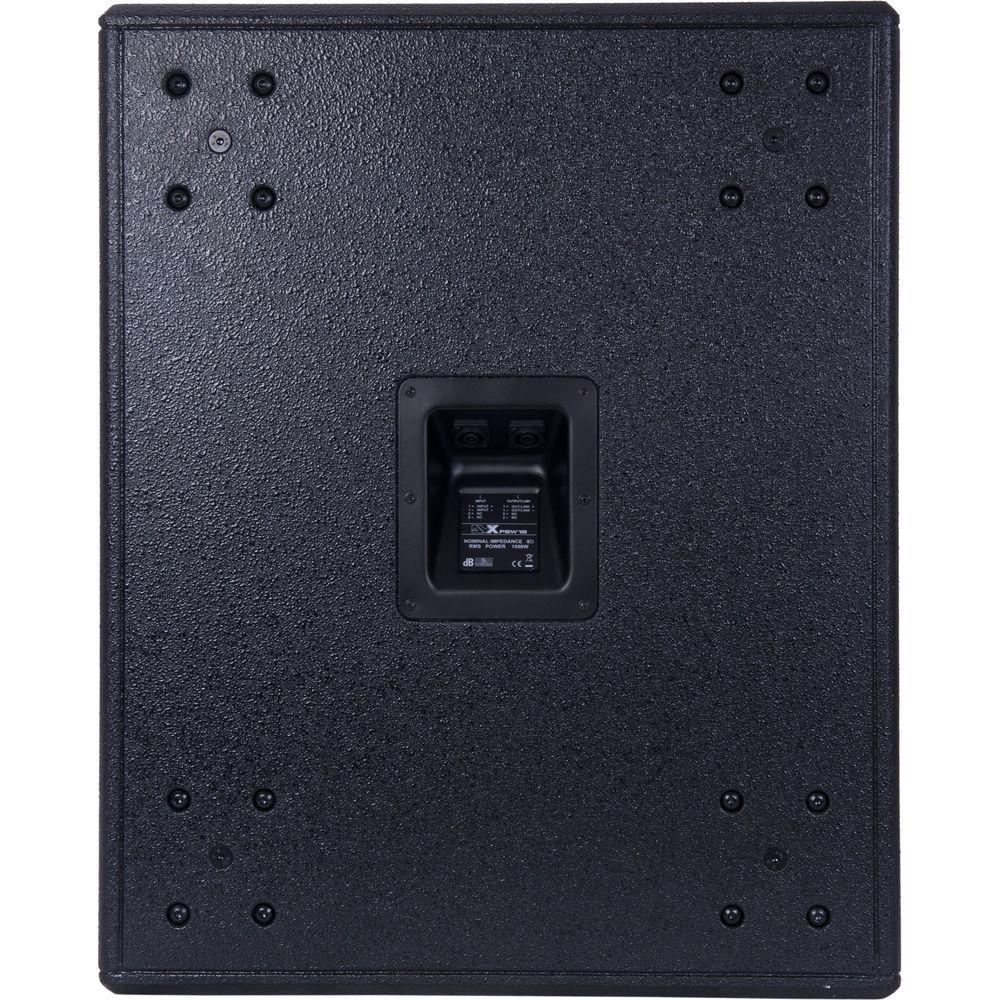

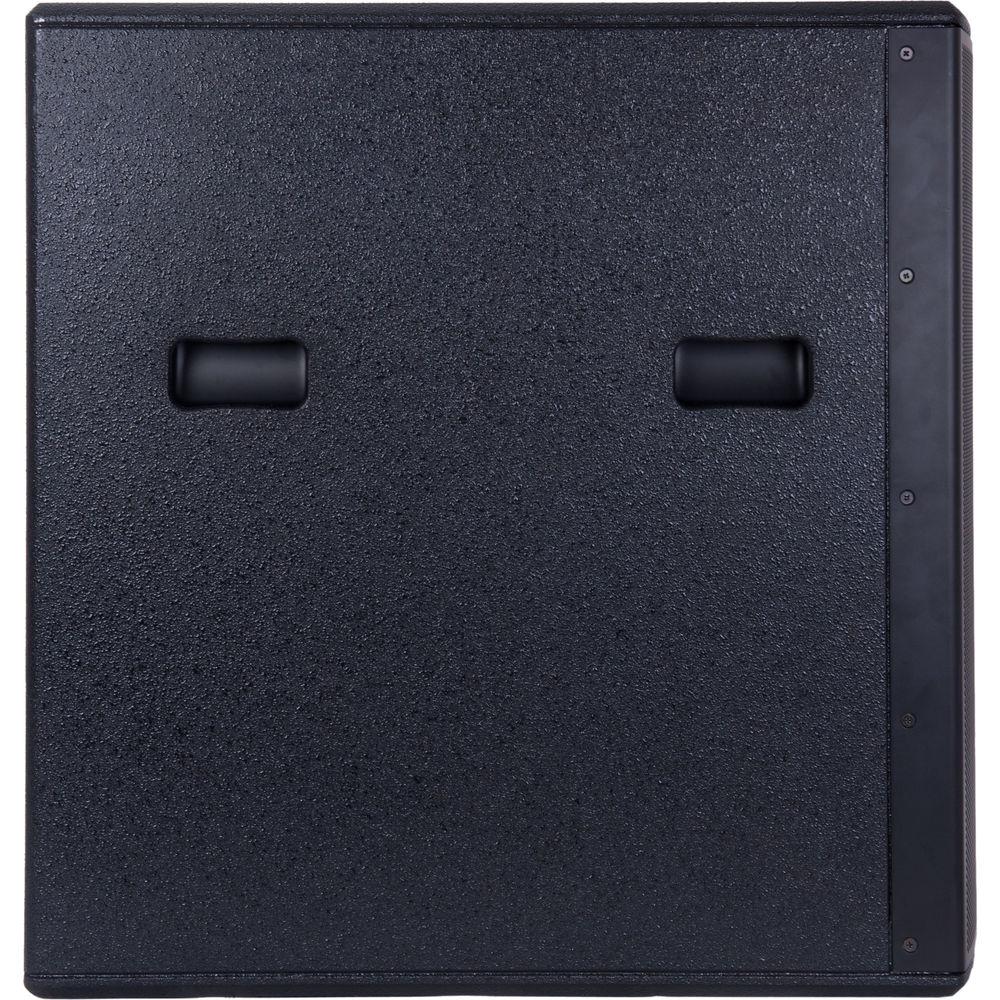

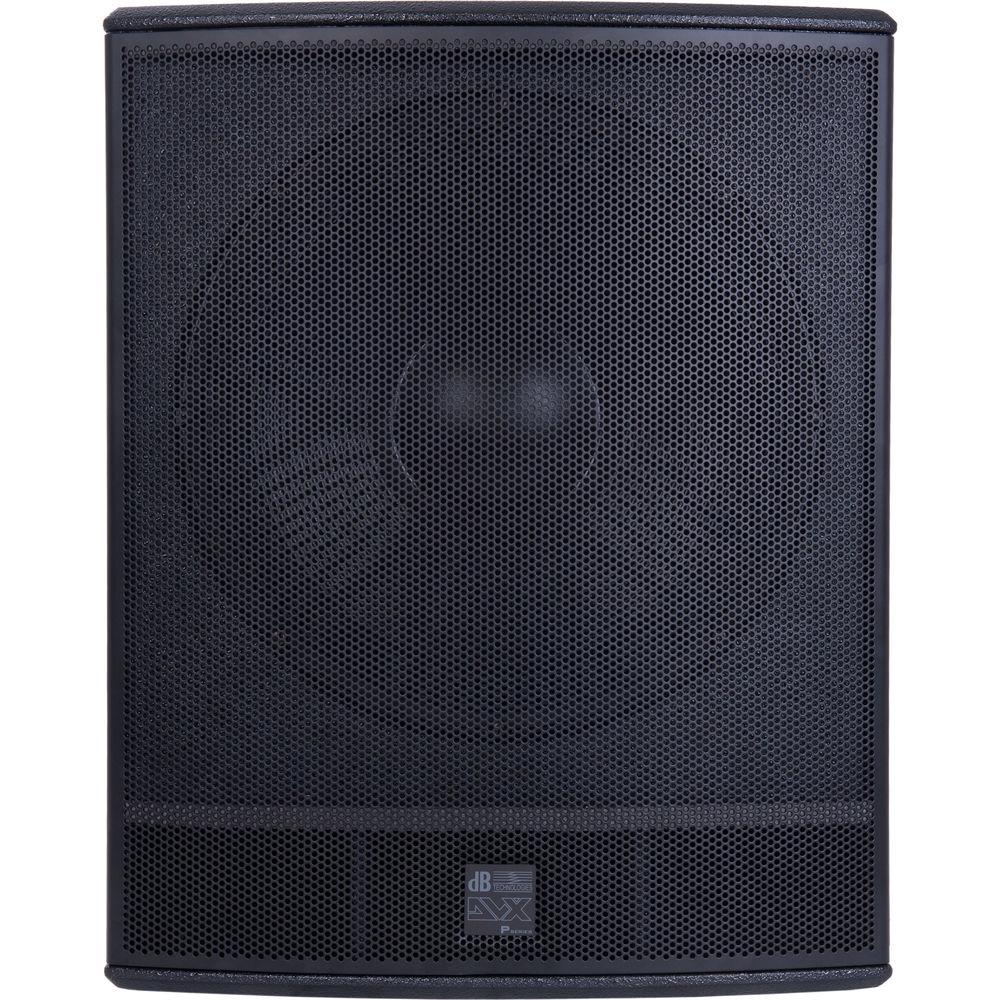

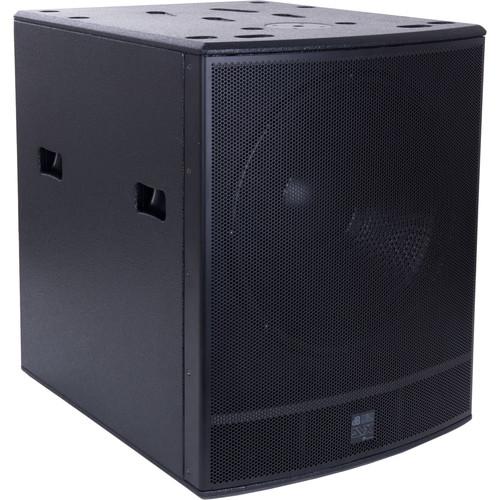

Product description The DVX PSW18 Passive Subwoofer from dB Technologies is a compact, high-output, passive subwoofer equipped with an 18" woofer. It is able to produce a maximum SPL of 134 dB and handles 2000W peak power on 8 ohms. The cabinet is designed to achieve tight and maximized output and ensures acoustic response down to 28 Hz, resulting in a fast and controlled reproduction of the bass-frequency range.The birch plywood enclosure is painted with black, heavy-duty paint, which ensures resistance to scratches and to the rigors of the touring environment. A strong 1.5mm metal grille protects its front panel, and four side handles provide for easy transportation. To stack DVX 2-way speakers or another subwoofer on top of the DVX PSW18, the subwoofer features recesses on the top. Additionally, there is an M20 pole-mount plate which allows for the stacking of any speaker with 36mm holes via the optional DS2-S pole-mount adaptor. The rear panel features two Neutrik Speakon connectors in a recessed input plate. On each corner there is a set of holes for the optional 4-wheel acessory kit (DWK 20). Features - Sound-pressure level of 134 dB max
- 18" woofer with 4" voice coil
- Rectangular box enclosure with 1.5mm protective metal grille
- M20 pole-mount plate on top
- Birch plywood cabinet with black, heavy-duty paint
Applications - Low-frequency enhancement in small- to mid-sized venues
- Live sound for rental application
- Portable PA, clubs, ballrooms, houses of worship, corporate AV, live theaters
In the Box dB Technologies DVX PSW18 18" 1000W Passive Subwoofer Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies DVX PSW18 18" 1000W Passive Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies DVX PSW18 Specs | Speaker Type | Passive subwoofer | | Frequency Response | 28 to 200 Hz @ -10 dB
32 to 200 Hz @ -6 dB | | Max SPL Level | 134 dB | | RMS Power | 1000 W | | Peak Power | 2000 W | | LF Amplifier | 18.0" (45.7 cm), 4.0" (10.2 cm) voice coil | | Impedance | 8 ohms | | Audio Connector | 2 x SPEAKON in parallel | | Housing | Birch plywood, black | | Grille | 0.1" (1.5 mm) perforated metal grille | | Pole Mount | Plate: M20 (aluminum) | | Handles | 4 x Housing (2 x Side) | | Dimensions | 22.2 x 27.9 x 27.5" (56.5 x 71.0 x 70.0 cm) | | Weight | 97.2 lb (44.1 kg) |
