User Manual for dB Technologies DVX PSW218 2000W Passive Subwoofer Click to enlarge the picture
Contents of the user manual for the dB Technologies DVX PSW218 2000W Passive
- Product category: PA Speakers dB Technologies
- Brand: dB Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dB Technologies PA Speakers
 |
User manual for the dB Technologies DVX PSW218 2000W Passive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dB Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dB Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dB Technologies product will considerably shorten its lifespan!
|

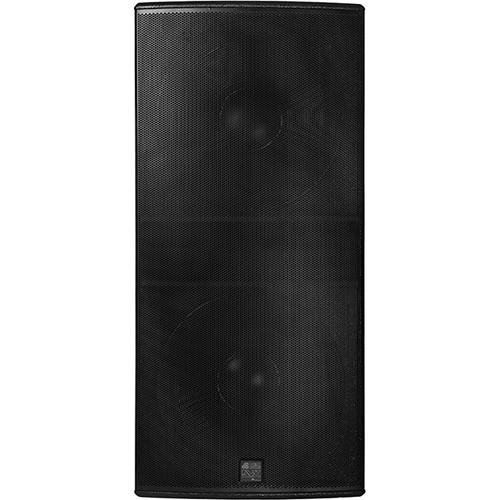

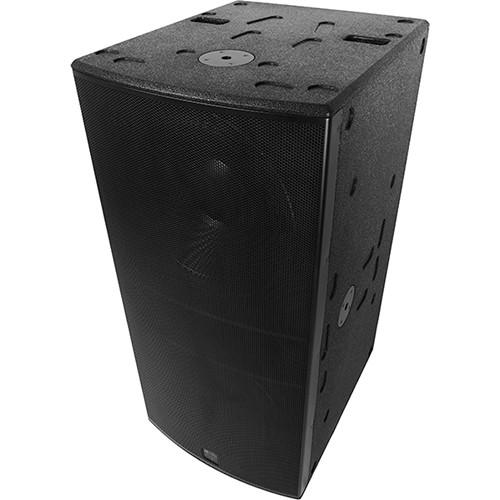

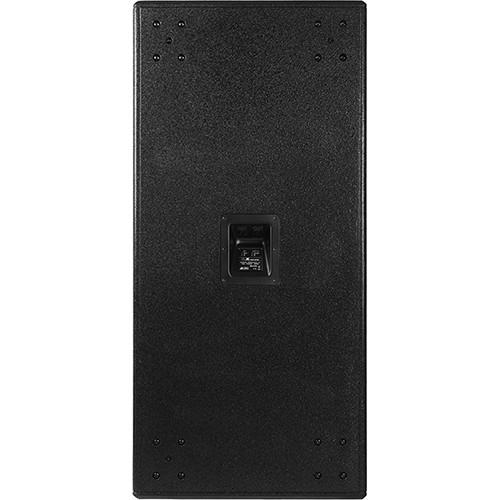

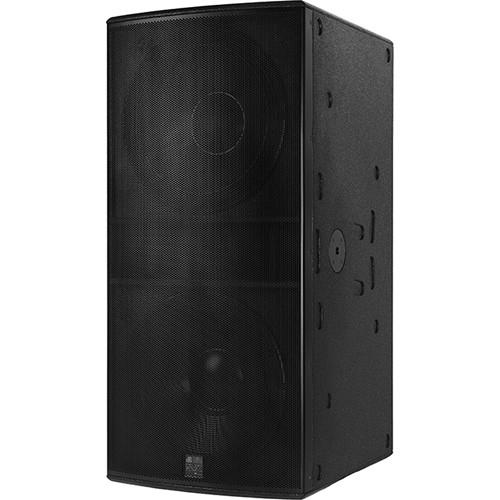

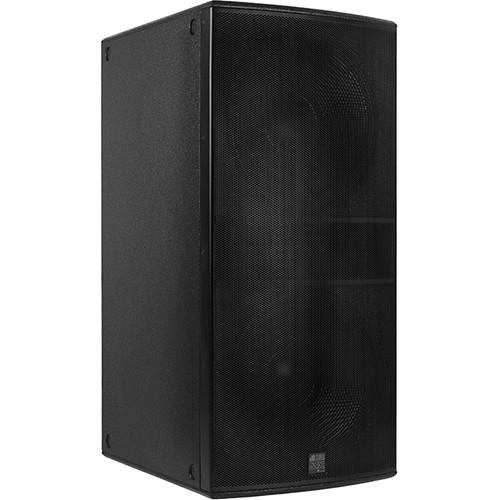

Product description The DVX PSW218 Passive Subwoofer from dB Technologies is a compact, high-output, passive subwoofer equipped with two 18" woofers. It is able to produce a maximum SPL of 140 dB and handles 4000W peak power. The cabinet is designed to achieve tight and maximized output and ensures acoustic response down to 28 Hz, resulting in a fast and controlled reproduction of the bass-frequency range.The birch plywood enclosure is painted with black, heavy-duty paint, which ensures resistance to scratches and to the rigors of the touring environment. A strong 1.5mm metal grille protects its front panel, and the four lateral handles provide for easy transportation. For stacking DVX 2-way speakers or another subwoofer on top of the DVX PSW18, the subwoofer features recesses on the top. Additionally, there is an M20 pole-mount plate which allows for the placement of any speaker with 36mm holes on top of the DVX PSW18 by using the optional DS2-S pole-mount adaptor. The rear panel features two Neutrik Speakon connectors in a recessed input plate. On each corner there is a set of holes to accomodate the optional 4-wheel accessory kit (DWK 20). The lateral part of the DVX PSW218 features recesses for feet-mounting for lateral orientation. Features - Sound pressure level of 134 dB max
- 18" woofer with 4" voice coil
- Rectangular box enclosure with 1.5mm protective metal grille
- M20 pole-mount plate on top
- Birch plywood cabinet with black, heavy-duty paint
Applications - Low-frequency enhancement in small- to mid-sized venues
- Live sound for rental application
- Portable PA, clubs, ballrooms, houses of worship, corporate AV, live theaters
In the Box dB Technologies DVX PSW218 2000W Passive Subwoofer (2 x 18") Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies DVX PSW218 2000W Passive Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies DVX PSW218 Specs | Speaker Type | Passive subwoofer | | Frequency Response | 28 to 200 Hz @ -10 dB
32 to 200 Hz @ -6 dB | | Max SPL Level | 140 dB | | RMS Power | 2000 W | | Peak Power | 4000 W | | LF Amplifier | 2 x 18.0" (45.7 cm), 4.0" (10.2 cm) voice coil | | Audio Connector | 2 x SPEAKON in parallel | | Housing | Birch plywood, black | | Grille | 0.1" (1.5 mm) perforated metal grille | | Pole Mount | Plate: M20 (aluminum) | | Handles | 4 x Housing (2 x Side) | | Dimensions | 22.2 x 47.5 x 27.5"(56.5 x 120.7 x 70.0 cm) | | Weight | 163.0 lb (74.2 kg) |
