User Manual for dB Technologies ES 802 Bi-Amped System Click to enlarge the picture
Contents of the user manual for the dB Technologies ES 802 Bi-Amped System
- Product category: Portable PA Systems dB Technologies
- Brand: dB Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dB Technologies Portable PA Systems
 |
User manual for the dB Technologies ES 802 Bi-Amped System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dB Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dB Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dB Technologies product will considerably shorten its lifespan!
|

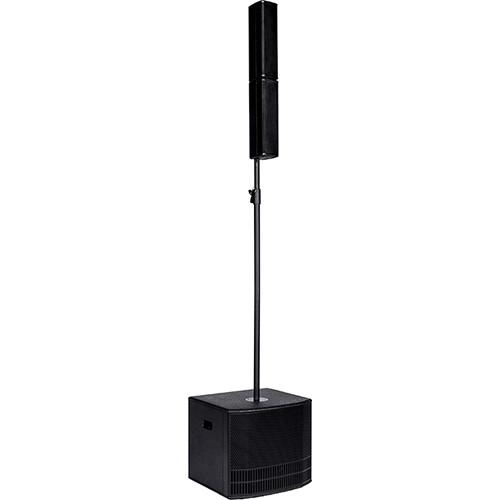

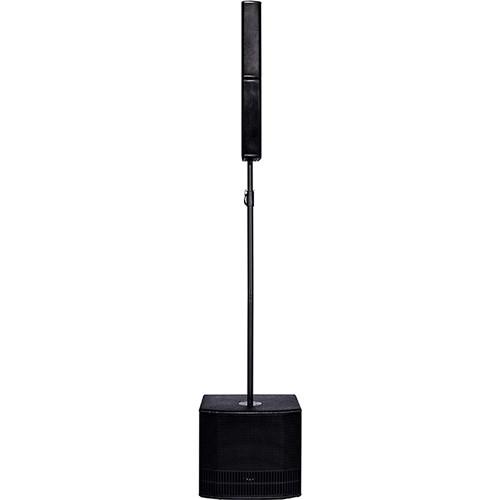

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The ES 802 Bi-Amped System from dB Technologies is composed of two passive tops and one 12" subwoofer. The sub hosts an 1200W power amp module with auto-range PSU. A powerful DSP manages the functions of the system. The satellite is placed on the subwoofer through the supplied D25mm pole. The Class-D Digipro G3 amplifier provides high power with limited weight and dimension. The digital preamplifier controls the audio crossover of the acoustic components, the frequency response, the limiter, and the phase alignment.

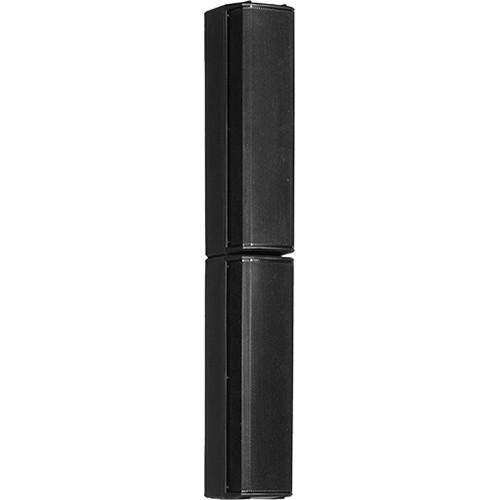

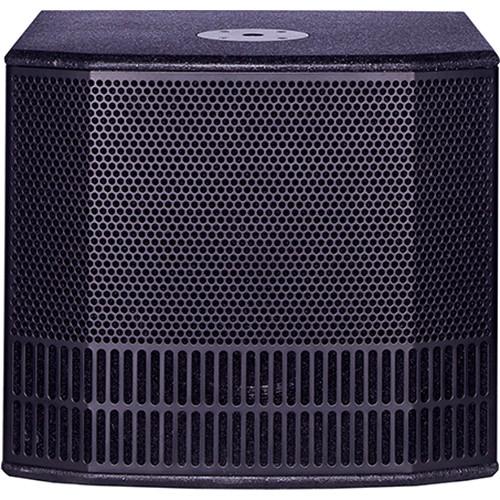

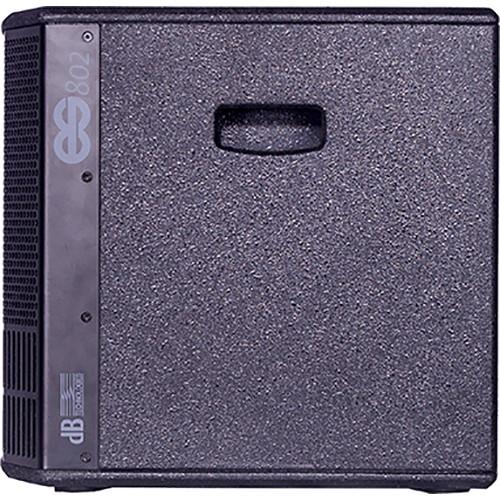

The top is equipped with 8x 3" neodymium drivers. The internal design of the top allows an asymmetrical vertical coverage. A double ringed phase plug widens the horizontal coverage and assures suitable voice intelligibility. The bass-reflex subwoofer houses a 12" woofer and the amplifier module. The enclosure is made of birch plywood coated with a durable scratch-resistant black coat, which makes it road-ready. Two recessed handles (one per side) help easy transport. The metal grid with foam, in addition to protecting the woofer and gives a professional look, it helps the reflex effect. The lower part of the grid, placed right on the reflex ports, has holes with a larger diameter to enhance air flow.

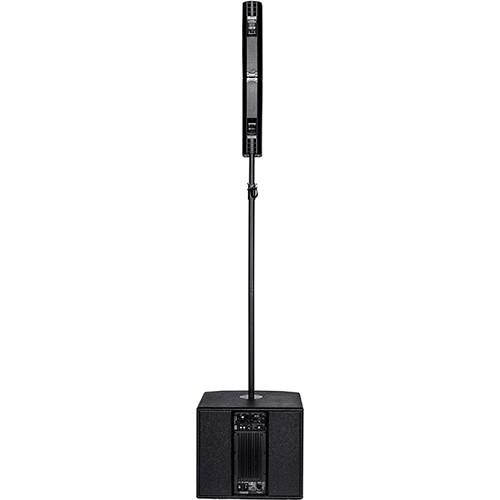

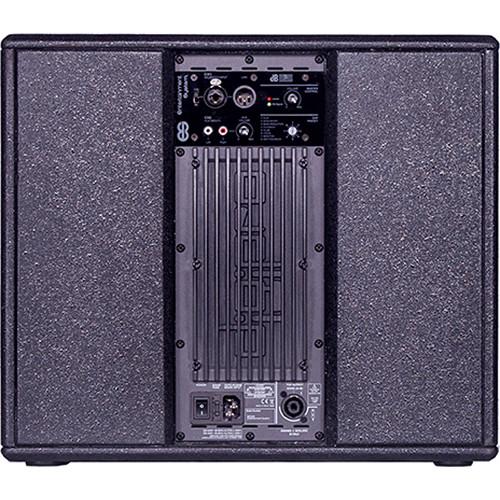

The digital preamplifier with DSP (Digital Signal Processing) controls the audio crossover of the acoustic components, the frequency response, the limiter, and the phase alignment. In addition to the input connectors and controls of the user interface, there are two Speakon outputs and a VDE power connector.
The DSP allows you to choose among 8 different equalizations flat, bass boost, bass reduction, playback, club, vocal, monitor, and anti-feedback. - Extended vertical coverage
- Double-ringed phase plug for a wide horizontal coverage
- Applications: Portable PA for live sound and playback applications, clubs, ballrooms, corporate AV, compact live sound reinforcement system
In the Box dB Technologies ES 802 Bi-Amped System ES802 Subwoofer Unit + ES Top A Satellite + ES-Top B Satellite Telescopic Pole Speakon Cable Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies ES 802 Bi-Amped System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies ES 802 Specs | | | Frequency Response | 37 to 15,000 Hz (-10 dB) | | Maximum SPL | 124 dB | | Type | MF-HF: 8x 3", Neodymium | | LF Detail | 1 x 12" | | Directivity | 95 x 65° | | | | Amplifier Technology | Digipro G3 | | Amplifier Class | Class-D | | Power Amp | 1200 W | | Controls | 1 x rotary (presets), 1 x audio signal monitoring LED, 1 x audio limiter LED | | Power Supply | SMPS with PSU auto-range | | Power Connections | VDE socket | | Cooling | Convection | | | | Controller | DSP 56-bit | | Converter | AD/DA: 24-bit / 48 kHz | | Presets | Flat, bass boost, bass reduction, playback, club, vocal, monitor, anti-feedback | | Limiter | Dual active, peak, RMS, thermal | | Crossover Frequency | LF-MF: 206 Hz | | | | Channel | Mic/Instrument: 1 x combo XLR-1/4" balanced/unbalanced input
1 x RCA stereo input | | Output | Link: 1 x XLR balanced output | | | | Housing | Subwoofer: 15 mm black painted birch plywood
Tops: Polypropylene PP | | Handles | 2 x lateral side (subwoofer) | | Dimensions (W x H x D) | Top: 4 x 14 x 5.4" (10.5 x 35.5 x 14 cm)
Subwoofer: 18.3 x 16 x 17" (46.4 x 41 x 43 cm) | | Weight | Top: 4.2 lb (2 kg)
Subwoofer: 36.5 lb (16.5 kg) | | | | Package Weight | 58.0 lb | | Box Dimensions (LxWxH) | 25.0 x 23.3 x 20.5" |
