User Manual for dB Technologies ES1002 Bi-Amplified 1800W Column PA System Click to enlarge the picture
Contents of the user manual for the dB Technologies ES1002 Bi-Amplified 1800W Column
- Product category: Portable PA Systems dB Technologies
- Brand: dB Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dB Technologies Portable PA Systems
 |
User manual for the dB Technologies ES1002 Bi-Amplified 1800W Column contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dB Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dB Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dB Technologies product will considerably shorten its lifespan!
|

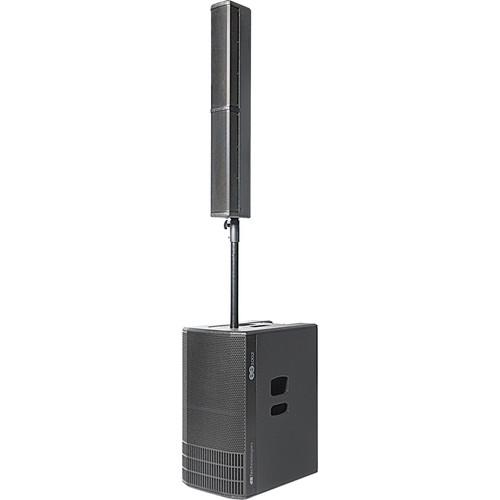

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More rqrycwrdtfbtrefydveayqfwsydsuwzfzfyf The ES1002 Bi-Amplified 1800W Column PA System by dB Technologies is designed for a streamlined setup for musicians and DJ needs. This system includes a subwoofer and column top, which are powered by a Class-D DIGIPRO G3 amplifier delivering 1800W of peak power.The column top is equipped with 8x4” midrange woofers, whose alignment allows an asymmetrical vertical coverage dispersion of the sound above the audience. Each midrange woofer is designed with a phase-plug, able to widen the horizontal coverage while providing an optimized vocal range from the audience listening position.The sub encompasses dual 12” woofers, the amp module, and the mixer's control panel, which is designed for improved usability. The I/O section features two inputs with independent volume controls for the combo XLR-1/4" for mic or line-level sources and RCA (stereo) connections and a balanced XLR LINK output. A rotary EQ knob with 8 presets allows you to tune the system for adapting it to different environment and uses (playback, live music, speech, etc.).The enclosures of both top and sub are made of plywood, coated with a scratch-resistant finish, which makes ES1002 road-ready. This complete system includes one cover for the sub, one cover for the top module and a telescopic speaker pole that allows you to adjust the height of the mounted column speaker. - Balanced MIC/LINE Input (CH1)

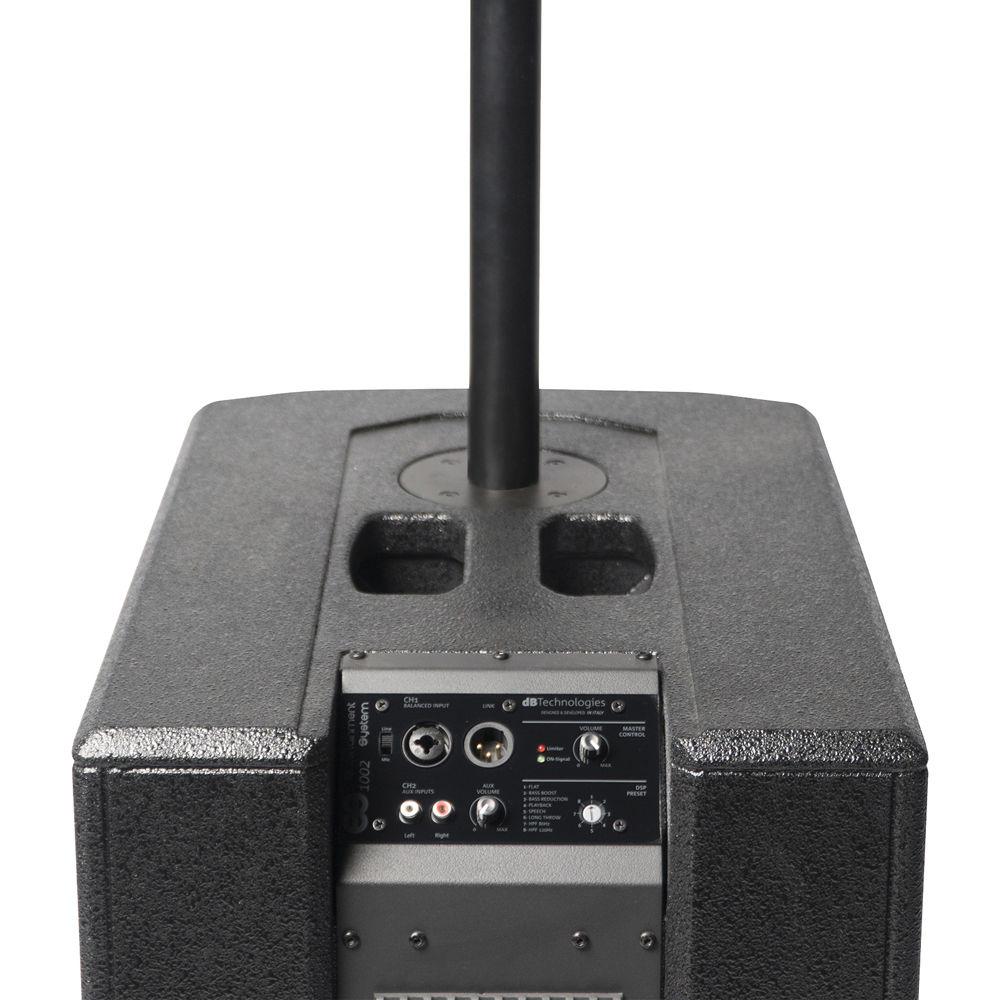

- The ES1002 offers an combo XLR-1/4" (balanced or unbalanced) connector input that allows you to connect a microphone or line-level source.
- Input Sensitivity Switch (Mic/Line)
- Allows you to select the type of input signal that will be connected into the combo XLR-1/4" connector.
- Master Volume Control
- You can control the overall audio output volume of the ES1002.
- LINK Output
- This is an XLR output that repeats the CH1 input signal to a second ES1002 system (or other speaker/monitor with a line-level input). 1
Please Note: The repeated audio signal is not affected by the local volume control. Remember to set the switch to the Line position on the second ES1002 system. close - Aux Input (CH2)
- This is a stereo RCA input that allows you to connect an audio device such as laptops, mobile devices, and MP3 players.
- Aux Volume
- Allows you to adjust the volume of the CH2 input separately.
- Status LED
- The limiter LED status comes on when the internal protection circuit triggers. The on-signal flashes briefly at power-on, and flashes intermittently to indicate that there is an input audio signal.
- DSP Preset
- These presets adapt the sound emitted by the system to specific usage conditions:
- Flat
- Bass Boost
- Bass Reduction
- Playback
- Speech
- Long Throw
- HPF 80 Hz
- HPF 120 Hz
In the Box dB Technologies ES1002 Bi-Amplified 1800W Column PA System Speaker Carry Bags Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies ES1002 Bi-Amplified 1800W Column PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies ES 1002 Specs | Speaker Type | Bi-Amped Mono Column System | | Frequency Response (-3 dB) | 43 Hz to 20 kHz | | Bandwidth | 56 Hz to 18 kHz | | Max SPL | 130.7 dB | | Column | 8 x 4" (MF-HF) | | Driver Type | Neodymium | | LF Driver | 2 x 12" | | Directivity Angle | 97 x 40° (H x V) | | | | Amplifier Technology | Digipro G3 | | Amplifier Class | Class-D | | Peak Power | 1800 W | | | | Controller | DSP 24-Bit / 48 kHz | | System Settings | - Flat
- Bass Boost
- Bass Reduction
- Playback
- Speech
- Long throw
- HPF 80 Hz
- HPF 120 Hz
| | Limiter | - Dual Active
- Peak
- RMS
- Thermal
| | Controls | - DSP Rotary Encoder
- Volume
- MIC/LINE Switch
| | Crossover Frequency | 160 Hz | | Input Connections | 1 x Balanced Combo XLR/1/4" (Mic / Line)
1 x RCA Stereo | | Output Connections | 1 x Balanced XLR Output
1 x Speakon to Top Column | | Housing | Column: Multiplex Plywood
Subwoofer: Plywood | | Handles | 1 x On Top, 2 x On Sides | | Pole Mount | 1-3/8" / 36 mm | | Power Specifications | 100-120 VAC, 2.5 A | | Speaker Dimensions (WxHxD) | Top: 4.3 x 35.6 x 6.3" / 110 x 905 x 160 mm
Subwoofer: 14.2 x 26.8 x 21.5" / 360 x 680 x 545 mm | | Weight | Top: 12.8 lb / 5.8 kg
Subwoofer: 64.6 lb / 29.3 kg |
