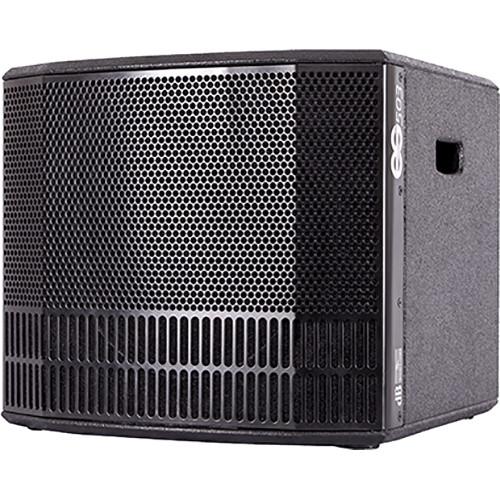

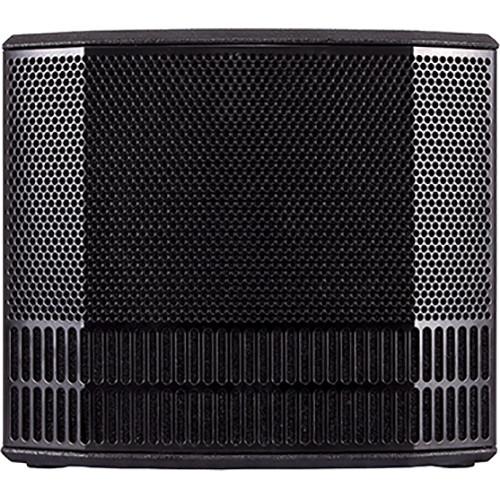

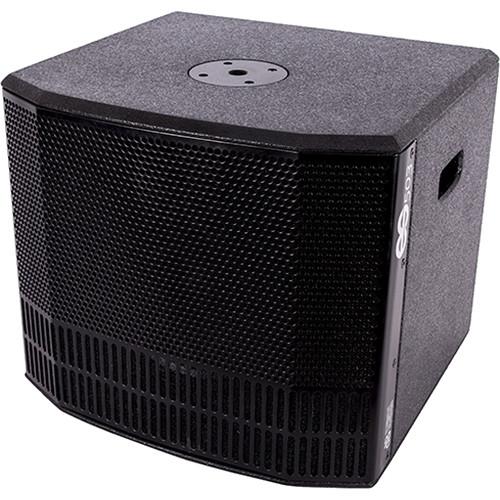

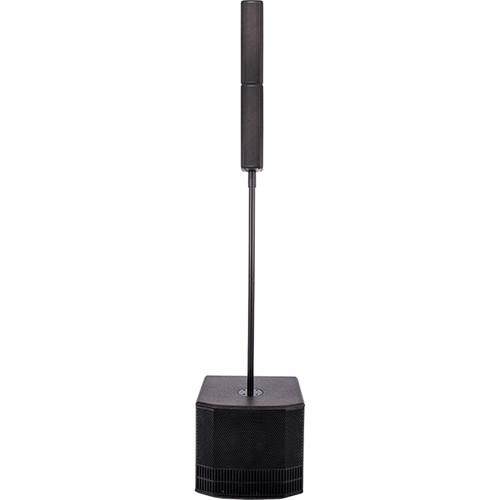

Product description The ES503 3-Amped Stereo System from dB Technologies is a 1000W 3-amped sound system composed by 2 slave 4 x 3" full-range tops and 1 master 12" subwoofer. The sub hosts a Digipro G3 amp module with auto-range PSU and a 3-channels mixer with Bluetooth connection. It is equipped with a three-channel mixer controlled by a DSP. The first channel features a MIC/instrument balanced/unbalanced combo connector with an adjustable anti-feedback filter, impedance compensation, and microphone gain with 3 positions (0, +10, + 20 dB). The second and third channels are LINE inputs with balanced/ unbalanced combo connector. The system is provided with several preset equalizations, and each user can create and save its own custom equalization. - General
-
- 3-amped stereo system
- OLED DSP interface
- Stereo or mono configuration

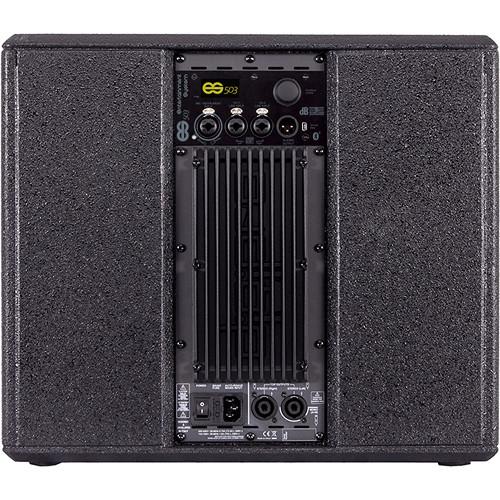

- On board 3-channel digital mixer
- Built-in extended range Bluetooth stereo audio receiver
- Customizable balanced output channel

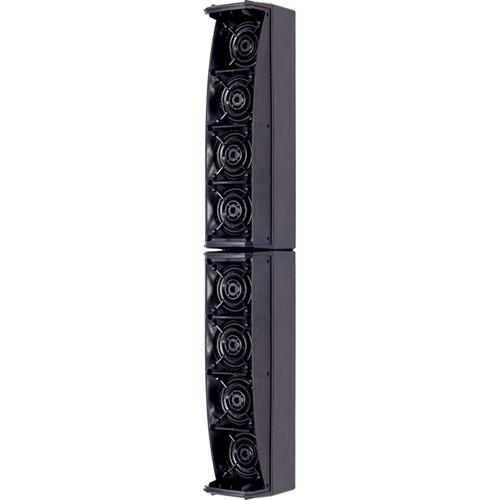

- Logarithmic column array for extended vertical coverage
- Double-ringed phase plugs
- Auto range PSU
- Applications
-
- Portable PA for live sound and playback applications, clubs, ballrooms, corporate AV
- Compact live sound reinforcement system

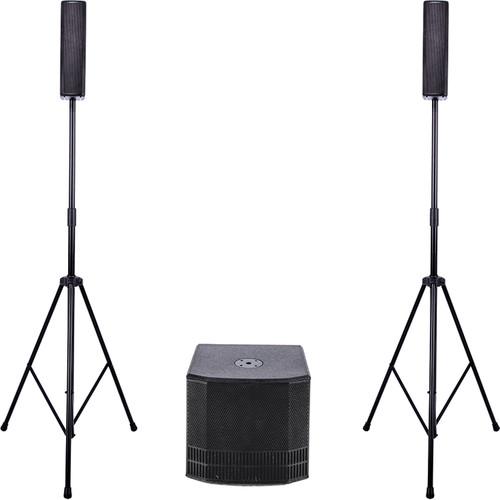

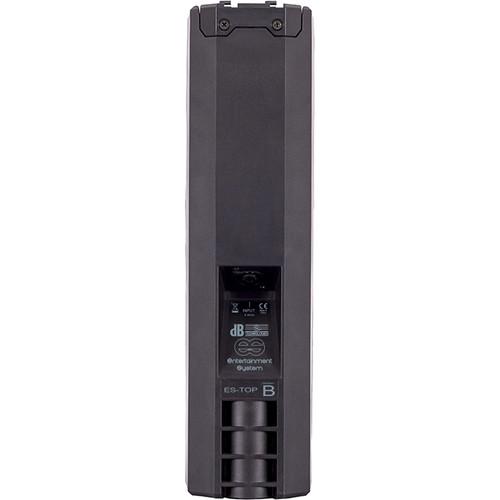

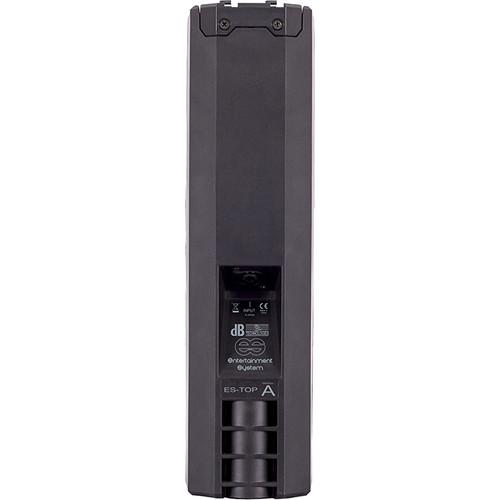

In the Box dB Technologies ES503 3-Amped Stereo System ES Top A ES Top B ES503 Sub Telescopic Pole Speakon Cable Power Supply Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies ES503 3-Amped Stereo System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies ES-503 Specs | | | Frequency Response | -10 dB: 37 to 15000 Hz | | Maximum SPL | 121 dB | | Driver Size | Medium to High Frequency: 8 x 3.0" (7.6 cm) Neodymium drivers
Low Frequency: 1 x 12.0" (30.5 cm) | | Directivity | 95 x 65° | | | | Technology | Digipro G3 | | Class | Class D | | Power Amp | 1000 W | | Controls | 1x OLED display plus rotative knob with push-button
1x Audio signal monitoring LED
1x Mini USB B port (service data) | | Power Supply | SMPS with PSU auto-range | | Cooling | Convection | | Power Connections | VDE socket | | | | Controller | DSP: 56-bit | | Converter | A/D Conversion : 24-bit/48 kHz | | Presets | Factory: Flat, playback, club, vocal, monitor, anti-feedback
User: Low shelving, semiparametric filter, high shelving | | Limiter | Dual active, RMS, peak, thermal | | Crossover Frequency | Low to High Frequency: 206 Hz | | | | Channel | Mic/Instrument: 1 x Combo (XLR-1/4") balanced/unbalanced input | | Channel | Line: 2 x Combo (XLR-1/4") balanced/unbalanced inputs
Media: 1 x Built-in hi-range stereo Bluetooth audio receiver | | Output | Mix: 1 x XLR balanced output | | | | Housing | Subwoofer: 0.6" (15.0 mm) black painted birch plywood
Tops: Polypropylene PP | | Dimensions (W x H x D) | Tops: 3.74 x 13.98 x 5.39 (9.50 x 35.51 x 13.69 cm)
Subwoofer: 18.3 x 15.7 x 16.9" (46.5 x 39.9 x 42.9 cm) | | Weight | Each Top: 4.19 lb (1.90 kg)
Subwoofer: 36.16 lb (16.40 kg) | | | | Package Weight | 56.5 lb | | Box Dimensions (LxWxH) | 24.5 x 23.0 x 20.5" |
