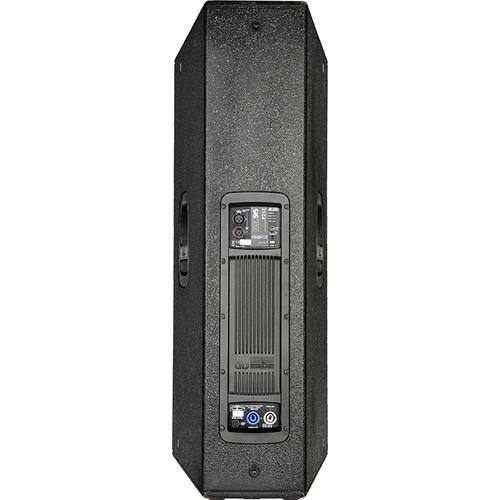

User Manual for dB Technologies FLEXSYS F212 Quasi 3-Way 1000W 2x12" 1" Active Speaker Click to enlarge the picture
Contents of the user manual for the dB Technologies FLEXSYS F212 Quasi 3-Way
- Product category: PA Speakers dB Technologies
- Brand: dB Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dB Technologies PA Speakers
 |
User manual for the dB Technologies FLEXSYS F212 Quasi 3-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dB Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dB Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dB Technologies product will considerably shorten its lifespan!
|

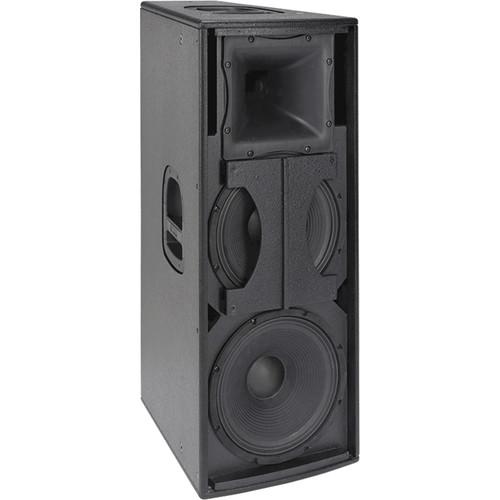

Product description The FLEXSYS F212 Quasi 3-Way 1000W 2x12”/1” Active Speaker from dB Technologies is an efficient and powerful mid-/high-range unit, designed to be combined with active subwoofers to construct high-performance PA systems. Loaded with two 12” woofers, this assertive cabinet delivers sounds across considerable distances, performing exceedingly well in the low midrange.The F212 Speaker’s remarkable directivity comes courtesy of ADC (Acoustical Directivity Control) technology that also allows its enclosure to be clustered to achieve wide coverage. The cabinet is driven by two bi-amped digipro Class-D digital power amps with switched-mode power supplies offering PFC to ensure peak performance. A custom-engineered and array-enabled 60 x 40° CD horn, coupled with a next-generation 1“ neodymium compression driver, delivers assertive, high-definition response throughout the upper-frequency range.Sited on top, the high-frequency horn is at a height suitable for stacked arrays, so ground stacks do not have to be placed on platforms or other raised structures. Thanks to the integrated tilt unit, directing an F212 Speaker towards the audience is easy. With this combination of digital power amps and neodymium magnets, the F212 Speaker is a powerful cabinet with the ability to produce a high SPL. In the Box dB Technologies FLEXSYS F212 Quasi 3-Way 1000W 2x12"/1" Active Speaker Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies FLEXSYS F212 Quasi 3-Way 1000W 2x12" 1" Active Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies F212 Specs | | | Frequency Response | -10 dB: 50 Hz to 20 kHz
+/- 3 dB: 65 Hz to 19 kHz | | Maximum SPL | 132 dB | | HF Driver Size | 1.0" (2.5 cm) | | HF Detail | neodymium compression driver | | Directivity | 60 x 40° | | Horn | CD Horn, rotatable | | LF Driver Power Amp | 2x12" (with phase plug) | | | | Technology | Digipro | | Amplifier Class | Class-D | | Power | RMS: 1000 W
Peak: 2000 W | | | | Controller | DSP 24-bit/48 kHz | | Presets | Flat, Clustered | | Limiter | Dual Active Peak, RMS, Thermal | | Crossover Frequency | 1.8 kHz | | Slope | 24 dB/Octave (LF-HF) | | | | Housing | Multiplex | | Dimensions (W x H x D) | 14.4 x 37.2 x 20" (36 x 93 x 50 cm) | | Weight | 69.5 lb (31.5 kg) |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
