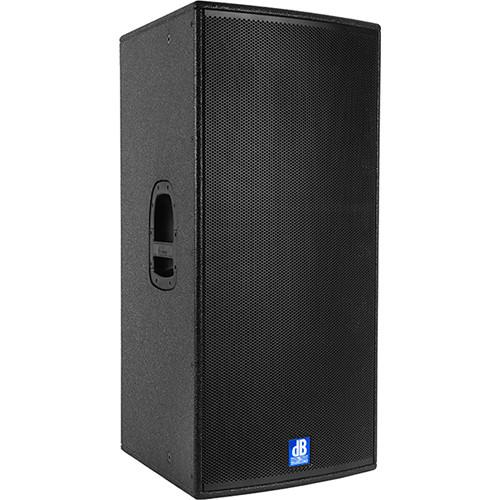

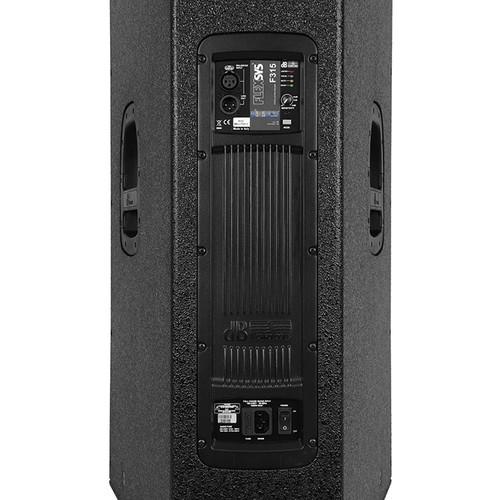

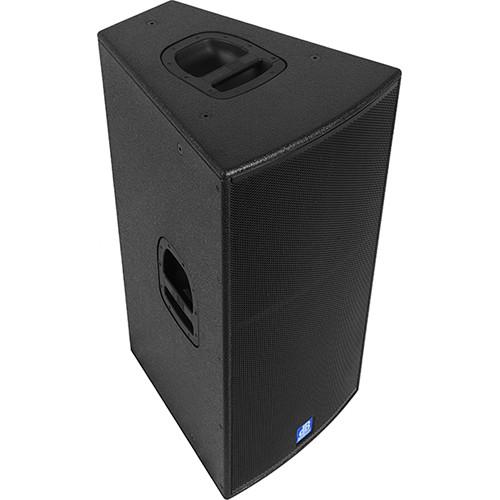

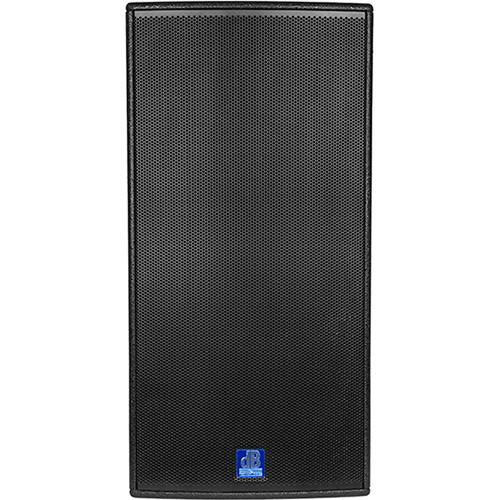

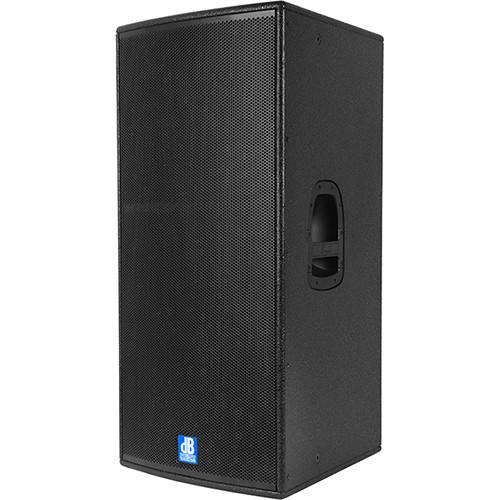

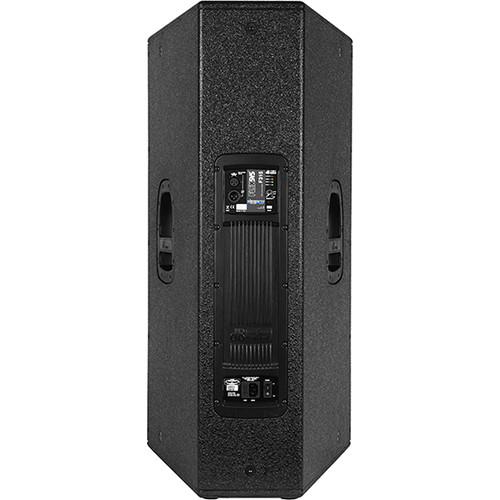

Product description The FLEXSYS F315 1000W 15”/6.5"/1” Active 3-Way Speaker from dB Technologies is a powerful and assertive speaker system, designed to render full-frequency range without requiring an added subwoofer. This full-range enclosure is driven by a bi-amped 1000W/RMS digipro Class-D digital power amp with switched-mode power supply offering PFC.The speaker has a powerful 15” woofer which is housed in a bass-reflex chassis. A specially designed dual-horn section comprised of a 6” horn-loaded midrange driver and a 1” compression driver covers the middle and high-frequency spectrum. An integrated DSP ensures the different speakers' phase and time are in perfect alignment. It also performs energy-management tasks, controlling RMS and thermal limiters to prevent any impending overload. In the Box dB Technologies FLEXSYS F315 1000W 15"/6.5"/1" Active 3-Way Speaker Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies FLEXSYS F315 1000W 15" 6.5" 1" Active 3-Way Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies F315 Specs | | | Frequency Response | -10 dB: 47 Hz to 20 kHz
+/- 3 dB: 60 Hz to 19 kHz | | Maximum SPL | 131 dB | | HF Driver Size | 1.0" (2.5 cm) | | HF Detail | Compression driver | | Directivity | 90 x 40° | | Horn | CD Horn, rotatable | | Driver | 6.5" (16.5 cm) MF
Type: Hornloaded
LF: 15" (38 cm) | | | | Technology | Digipro | | Amplifier Class | Class-D | | Power | RMS: 1000 W
Peak: 2000 W | | | | Controller | DSP 24-bit/48 kHz | | Presets | Flat, Clustered | | Limiter | Dual Active Peak, RMS, Thermal | | Crossover Frequency | 1800 Hz | | Slope | 24 dB/Octave (LF-HF) | | | | Housing | Multiplex | | Dimensions (W x H x D) | 17.6 x 34.6 x 20" (44 x 88 x 50 cm) | | Weight | 68.34 lb (31 kg) |
