User Manual for dB Technologies IG1T INGENIA 2-Way Active Speakers Click to enlarge the picture
Contents of the user manual for the dB Technologies IG1T INGENIA 2-Way Active
- Product category: PA Speakers dB Technologies
- Brand: dB Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for dB Technologies PA Speakers
 |
User manual for the dB Technologies IG1T INGENIA 2-Way Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any dB Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official dB Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a dB Technologies product will considerably shorten its lifespan!
|

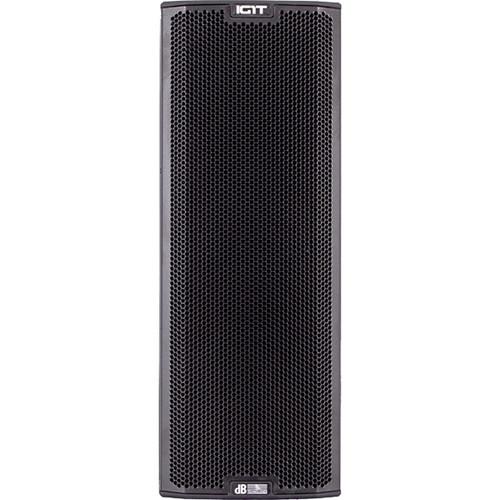

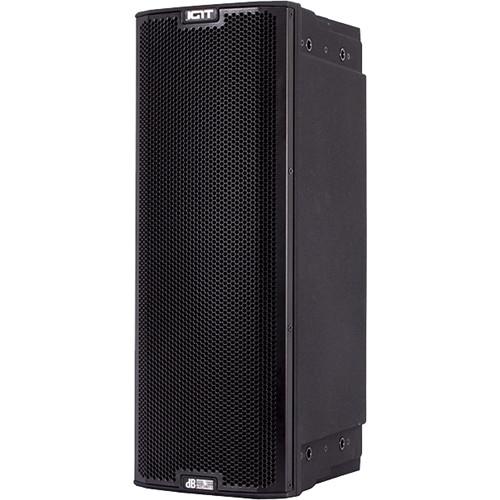

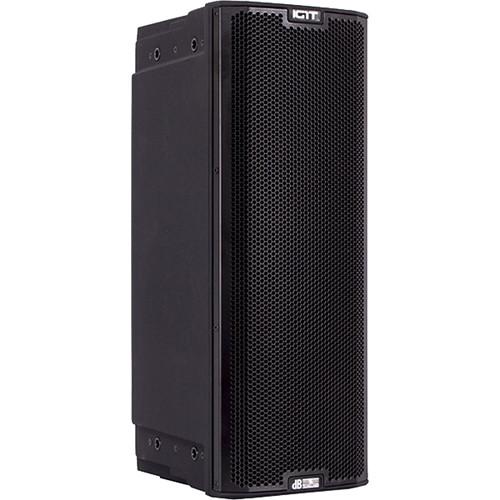

Product description The IG1T INGENIA 2-Way Active Speakers from dB Technologies features 2 x 6.5" woofers, a 1" compression driver, and is equipped with a 400W RMS Digipro G3 digital amplifier. It combines high power, lightweight design, and SMPS technology with PSU auto-range. It is equipped with an infrared system in the two handles on top and bottom sides. The horn of the IG1T is horizontally symmetric and vertically asymmetric (narrower in the upper part and wider in the lower). The DSP doesn't act only on the compression driver, but also on woofers, ensuring maximum intelligibility and transparency in the whole frequency range. - General Features
-
- 2-way active speaker
- 2 x 6.5” woofer; 1” compression driver
- 400W RMS class-D Digipro G3 amplifier
- Asymmetrical vertical coverage
- Digital steering coverage
- Element position detection
- Speakers with neodymium magnet
- User-friendly interface (OLED-encoder)

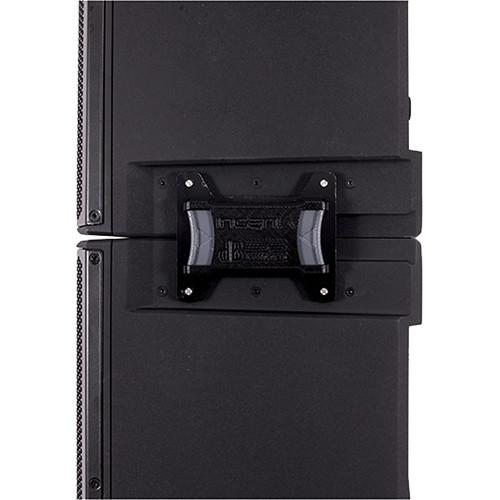

- Unique speaker lock system
- Delay on board
- Microphone HPF and notch filter (variable frequency)
- Applications
-
- Compact live sound reinforcement system
- Permanent installation in theatres, houses of worship, convention centers
- Portable PA, retail, clubs, ballrooms, houses of worship, corporate AV, live theatre
In the Box dB Technologies IG1T INGENIA 2-Way Active Speakers (2 x 6.5") Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the dB Technologies IG1T INGENIA 2-Way Active Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersdB Technologies IG1T Specs | | | Speaker Type | 2-way active speaker | | | | Frequency Response | -10 dB: 85 to 20000 Hz
-6 dB: 92 to 19200 Hz | | Maximum SPL | 128 dB | | High Frequency Drivers | Size: 1.0, 1.4", voice coil (2.5, 3.6 cm)
Directivity (H x V): 100 x 80° (+15 /- 65°)
Type: Neodymium compression driver | | Horn | Vertical asymmetric | | Crossover Frequency | 2100 Hz | | Low Frequency Drivers | 2 x 6.5" (16.5 cm), 2.0" (5.1 cm), voice coil

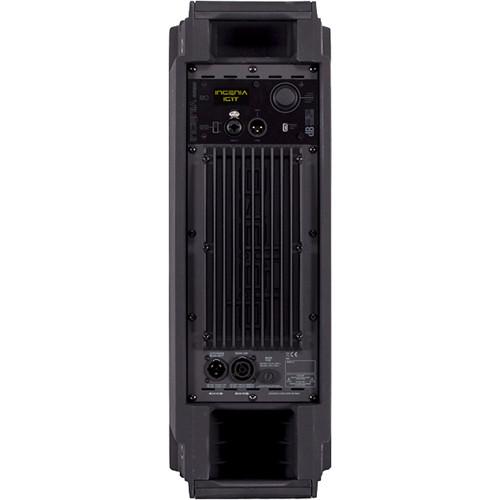

Type: Neodymium | | | | Technology | Digipro G3 | | Class | Class D | | RMS Power | 400 W | | Peak Power | 800 W | | | | Controller | DSP 56-bit | | Converter | AD / DA: 24-bit / 48 kHz | | Limiter | Peak, thermal | | | | Signal Input | 1 x Combo IN (XLR + Jack 6.3 mm) | | User Interface | OLED display and rotative knob with switch | | Signal Output | 1 x XLR link out | | Service Port | Mini USB | | Connector | Mains: New Neutrik NAC3PX | | | | Positioning | Self-rotating display
Accelerometer
Infrared communication and display mirroring
10 / 5 / 0 / -5 / -10° digital steering | | Equalizer | Acoustic correction (Low / high shelving, mid attenuation)
Microphone HPF and notch filter (variable frequency) | | Delay | On Board:
Stage Alignment: 49.2' (15.0 m)
System Delay: 143.4' (43.7 m) | | | | Housing | Polypropylene PP reinforced | | Grille | Full / invisible screws; flyable | | Handles | 1 x Top
1 x Bottom | | Pole Mount | Standard D36 mm | | Dimensions (W × H × D) | 7.68 x 21.10 x 10.67" (19.50 x 53.59 x 27.10 cm) | | Weight | 23.37 lb (10.60 kg) | | | | Package Weight | 28.1 lb | | Box Dimensions (LxWxH) | 25.2 x 13.6 x 10.5" |
